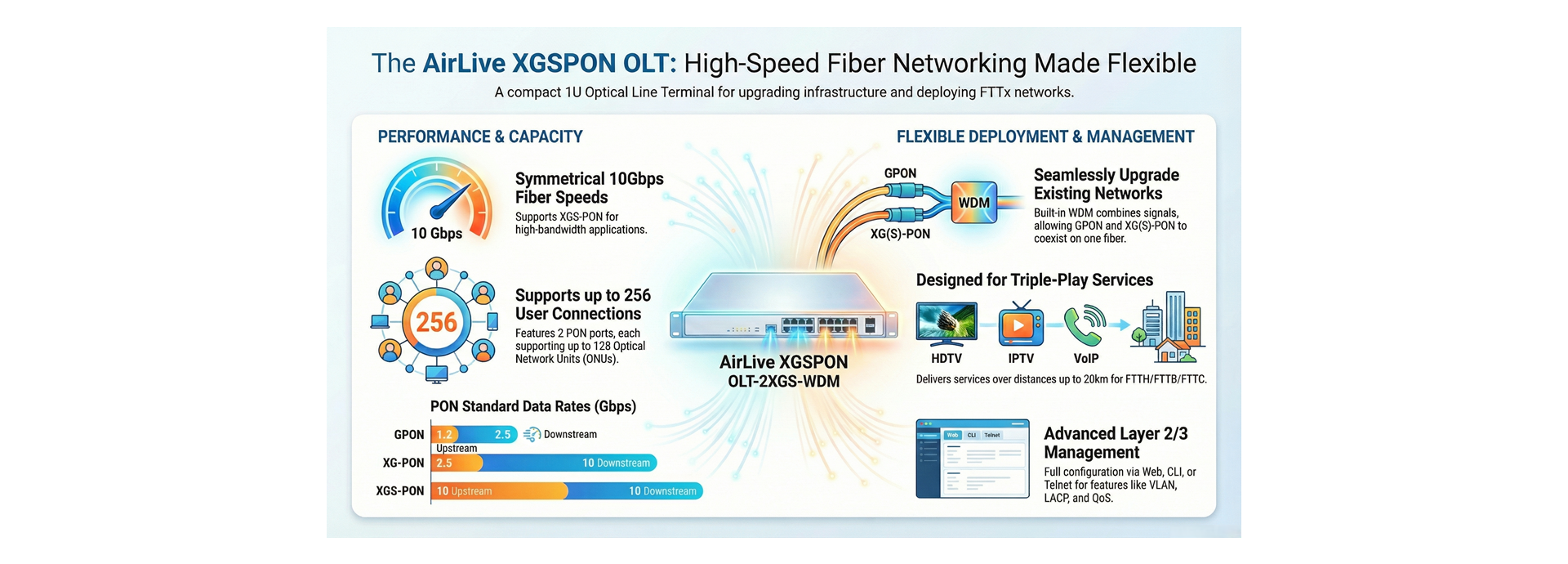

The AirLive XGSPON OLT-2XGS-WDM is a recently launched XG(S)-PON OLT with a built-in WDM1r combiner. That caters to new optical fiber communication networks. It conforms to international standards like ITU-T G.9807 (XGS-PON) and ITU-T G.987 (XG-PON) and supports two bandwidth access modes: 1. Asymmetric mode with 2.5Gbps upstream and 10Gbps downstream speed, and 2. Symmetrical mode with 10Gbps upstream and downstream speeds. It also support ITU-T G.984 (GPON). the OLT is compatible with existing GPON OLT and ODN networks, realizing the coexistence of GPON and XG-PON or XGS-PON, making full use of the existing resources, and enhancing the network scalability and cost-effectiveness. It is an ideal fit for high-bandwidth scenarios such as carrier networks, FTTx, and enterprise networks. The compact 1U chassis of the XGSPON OLT-2XGS-WDM makes it easy to deploy.
Its Broadcom + NXP chipset solution ensures a robust performance. The XGSPON OLT-2XGS-WDM boasts many ports, providing 2*GE (RJ45) + 2*10GE (SFP+) uplink ports for full line-speed data forwarding. It also offers 2 XG(S)-PON downlink interfaces with a splitting ratio of 1:128 to access the user's ONT.

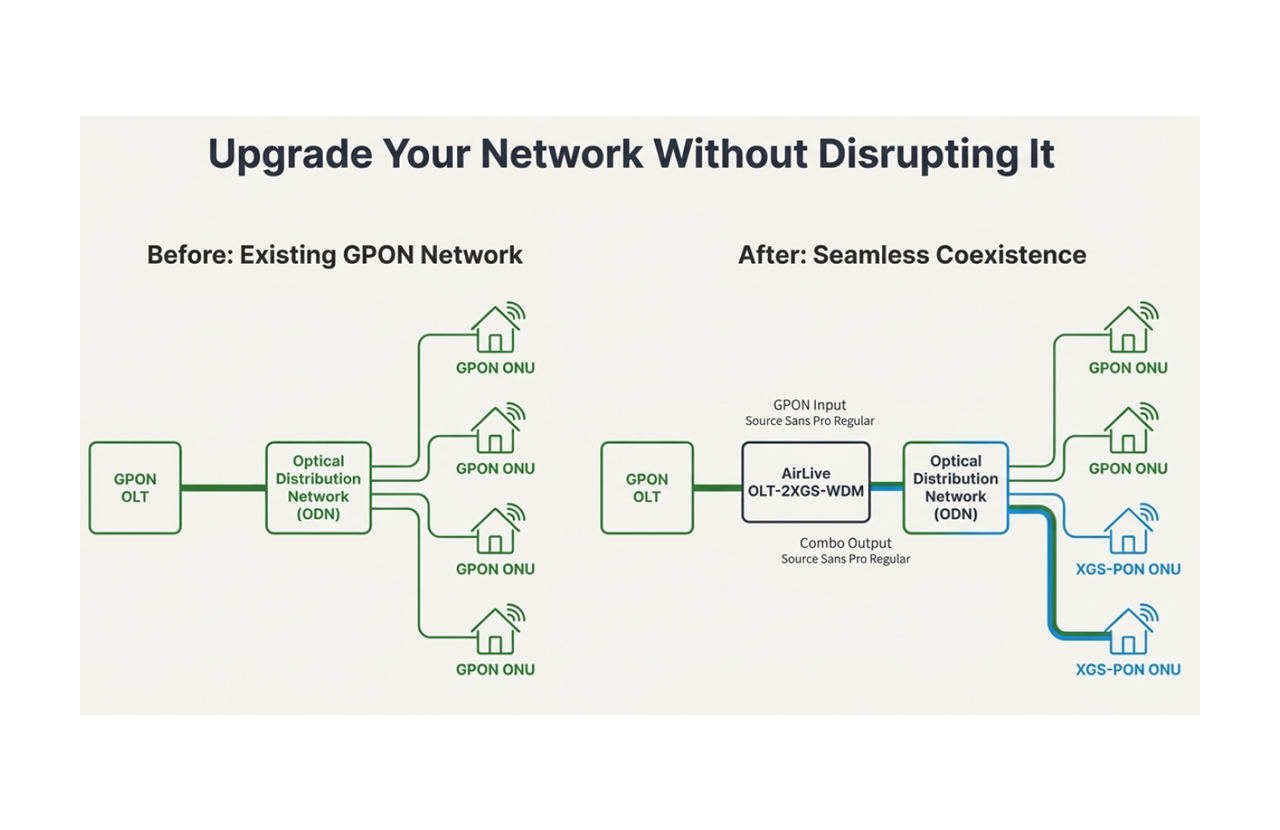

The Built-in WDR1r offers 2* GPON Inputs and 2* XG(S)-PON Inputs as well as 2* Combo output ports. This device is designed for use in FTTH (Fiber-to-the-Home) and small business applications the require the new higher data transfer speeds. You can still use your existing GPON OLT and link it to the OLT-2XGS-WDM GPON Input ports and combine the optical signal with the XG(S)-PON part of the OLT-2XGS-WDM. The Combo output ports can be connected to GPON and XG(S)-PON ONU’s. To use XG/XGS PON a XG/XGS PON SFP+ module is needed. The OLT can only work with a single PON mode selected either XG or XGS, The GPON port will comes a GPON OLT.

XGSPON OLT-2XGS-WDM offers a complete, end-to-end network infrastructure application products for FTTX networks. From the CO to the customer premises, regional carriers, independent operators, municipalities, Multiple System Operators (MSOs), utilities, and developers worldwide have tapped the experience and innovation to build their FTTX networks.

The XGSPON OLT-2XGS-WDM offers a robust solution for providing high-speed and long-distance coverage in triple play service applications such as HDTV, IPTV, voice-over-IP (VoIP), and multimedia. It supports downstream bandwidths of up to 10 Gbps and upstream bandwidths of 10 Gbps, enabling fast and reliable data transmission. With a coverage range of up to 20km between equipment nodes, the OLT-2XGS-WDM is a cost-effective access technology that offers flexibility for network deployment. Its reliable and scalable network ensures a seamless and efficient experience for users.
