WEB-10TX800: 10Gbps Base-T Web Smart Multi Gigabit Switch

ADD INQUIRY
Upgrading your Network Connection to 10G Super High speed with Web Management Switch
Upgrading your Network Connection to 10G Super High speed with Web Management Switch

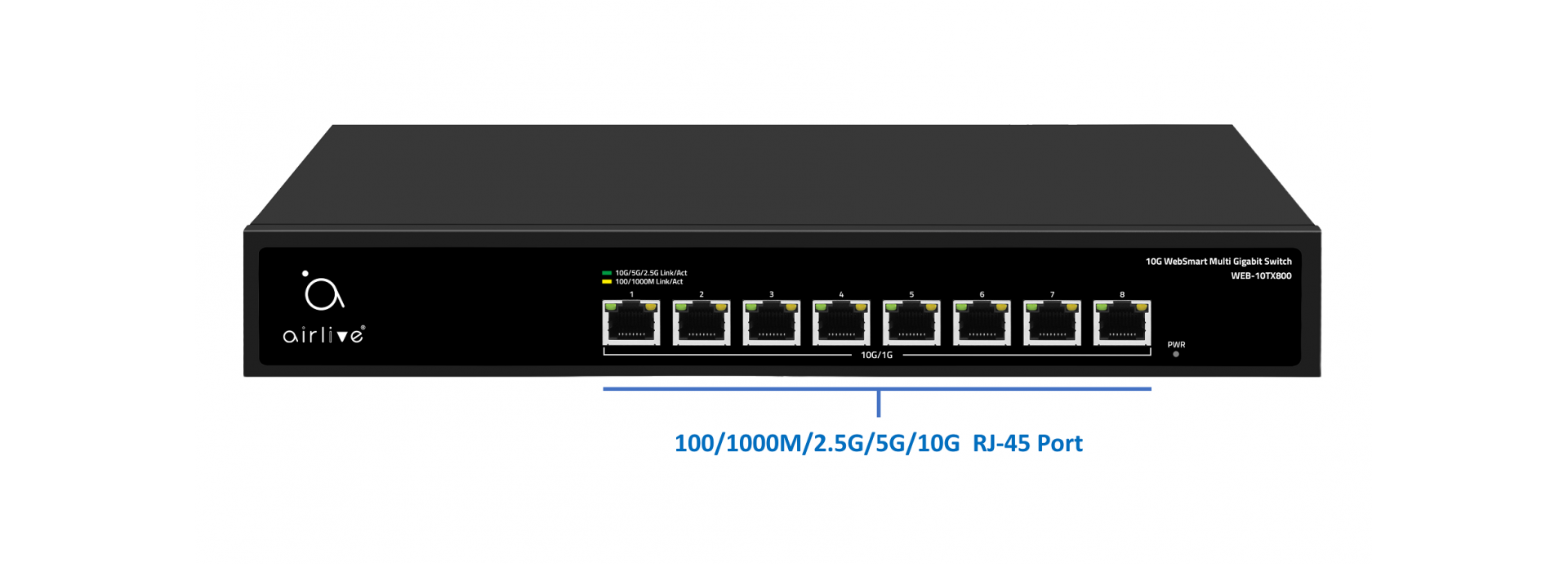

The AirLive Multi-Giga switch, WEB-10TX800, is a Web Managed switch, which supports 8 RJ45 ports for delivering up to 10Gbps extra high-speed connection on RJ-45. Each port can auto-adaptively deliver speed at 100M/1000M or 2.5G/5G/10G to connective devices. Supports WEB Management function and is easy to manage and maintain. The easy to operate WEB-10TX800 has several functions like VLAN setting for a more secure connection. QoS to have more control of the bandwidth and many more like, IGMP, Loop Prevention, Port-Base Mirroring, Port Isolation, Bandwidth Control, Security (MAC Address /table /search / static MAC; Storm control and more. With the 10G multi-Giga switch, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server , for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.
Features and Specifications
  • 8  x 100/1000M/2.5G/5G/10G RJ45 ports
  • Web Smart Management
  • QoS; Priority management
  • All ports at Multi Gigabit high speed, auto-negotiation
Features and Specifications
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
  • Super Fast 10Gbps RJ-45
  • Existing Cat5e cable suitable (Cat6a needed for 10G), painless upgrading
  • Compact size for Home or SMB Network Connectivity

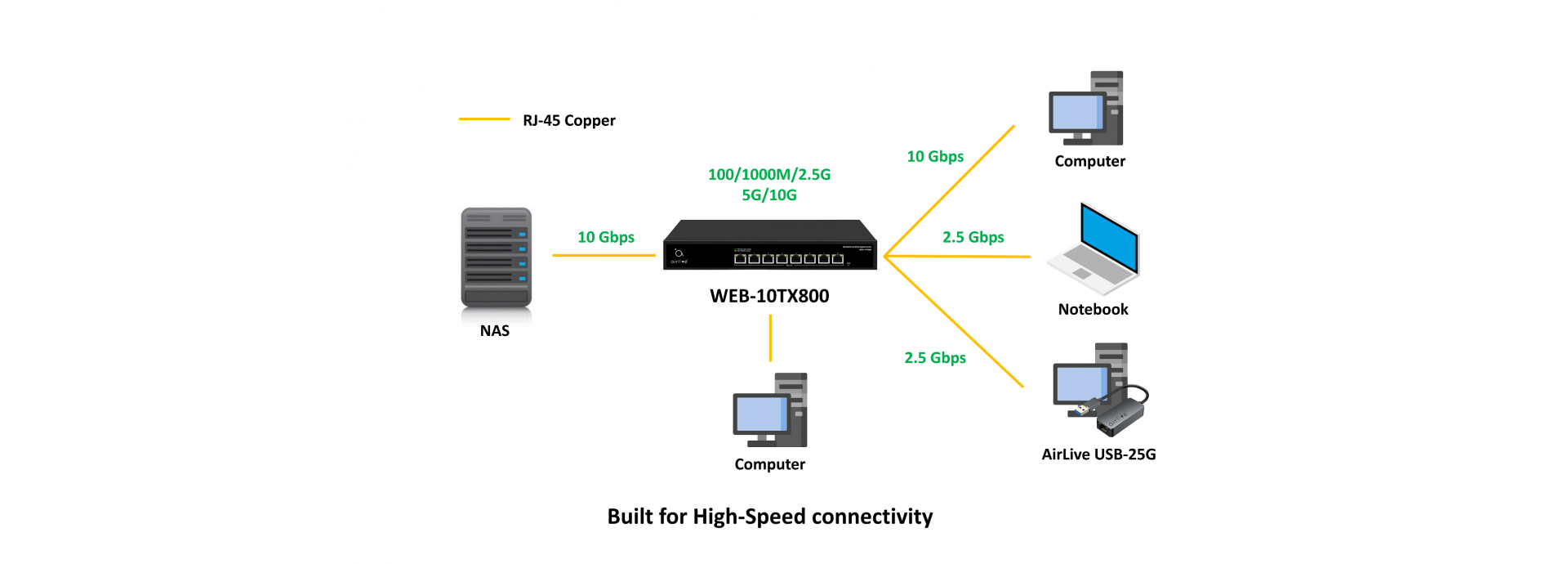

1G/2.5G/5G/10G RJ-45 Multi Gigabit, perfect for various applications
1G/2.5G/5G/10G RJ-45 Multi Gigabit, perfect for various applications
With the AirLive 10G Multi-Giga switch WEB-10TX800, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server, the RJ45 ports are auto adaptive and can also work at 100/1000M/2.5G/5G , for enjoying faster experience and handle bandwidth-hungry applications.

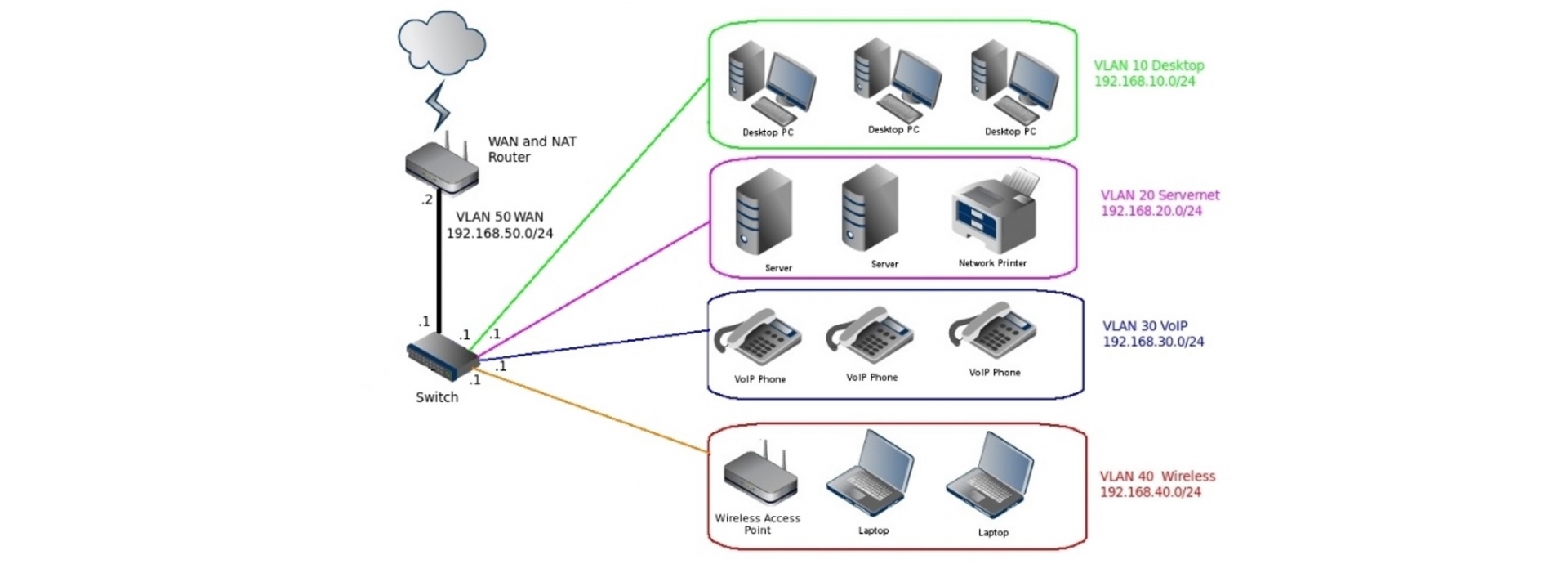

VLAN for enhanced network security
VLAN for enhanced network security
The VLAN 802.1Q VLAN tagging settings can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. With the help of VLAN interface, switches can communicate with other network layer devices.

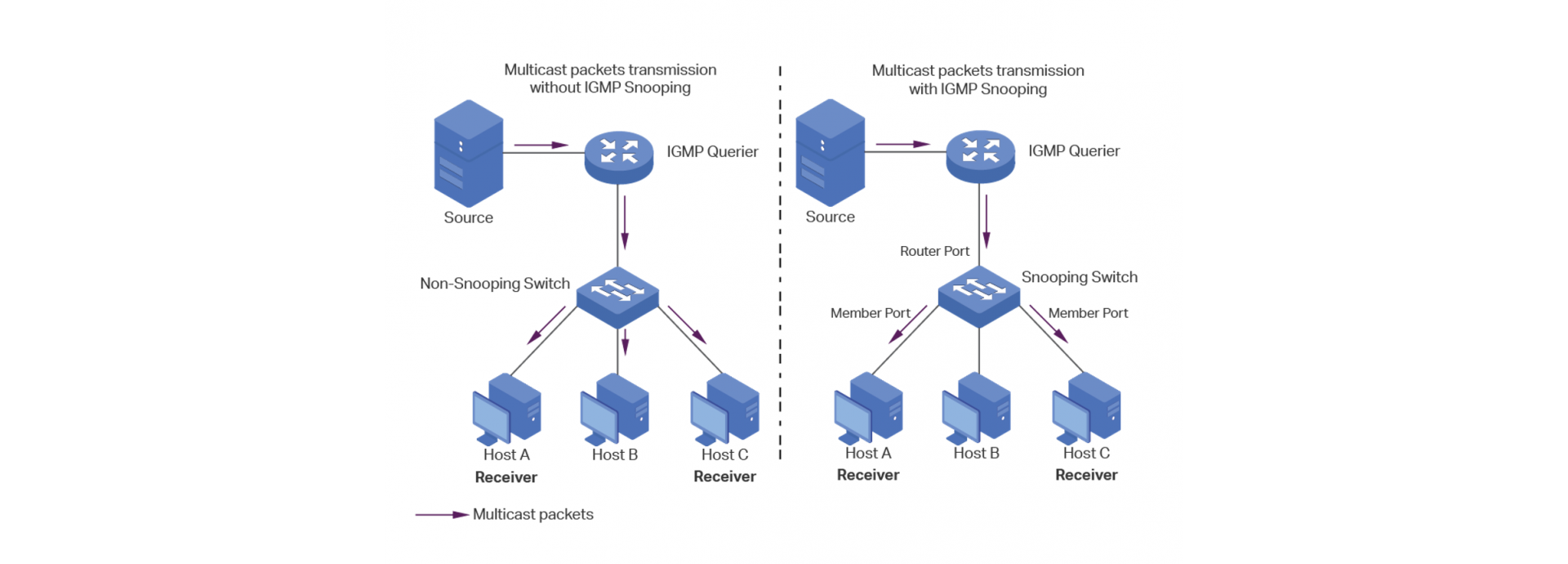

IGMP Snooping Multicast
IGMP Snooping Multicast
Multicast protocols is compliant with IGMP v1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. By analyzing the IGMP messages received, L2 devices establish a mapping between ports and MAC multicast addresses and forward the multicast data accordingly.
QoS for enhanced traffic control & High Video Streaming
QoS for enhanced traffic control & High Video Streaming
QoS (Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a stable level of performance to each data flow. This can be with Port-based Priority or Priority to queue.

Moreover, higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive.
Hardware
ModelAirLive WEB-10TX800
Device Interface8 x 100/1000M/2.5G/5G/10G RJ45
8-port totally
StandardsIEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3an 10G Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.3az (Efficient and Energy saving Ethernet)
Industry standard compliantEMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge)
Lightning Surge / ESD ProtectionSupport Surge Protection: Common Mode 6KV, Differential Mode 2KV(Class C), Electrostatic ESD 8KV Air, 6KV Contact(Class C)
LED IndicatorsPWR (power supply), Port LED Green (2.5/5/10G Link), Port LED Yellow (100/1000M Link)
MechanicalSolid Metal Housing Desktop
Switch Architecture | Performance
Switching architecture: Store and ForwardBandwidth: 160Gbps
Packet Forward Rate: 119.04Mpps
Memory Cache: 12Mbit
MAC Address: 16K
VLAN: VLAN range 1-4094, with a maximum active VLAN of 4K
Jumbo Frame: 12Kbytes
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance100Base-TX: Cat5 or later UTP(100 meter)
1000Base-TX: Cat5e or later UTP(100 meter)
2500Base-TX: Cat5e or later UTP(100 meter)
10GBase TX: Cat6a, Cat7 or above UTP/STP (100m)
Web Management Software Function L2
Port SettingPort Switch Configuration
Port Description Configuration
Port Duplex Configuration
Port Flow Control Configuration
Jumbo Frame up to 16356bytes
EEE
Link AggregationSupport load sharing strategy based on MAC and IP-MAC addresses
Static and Dynamic aggregation groups
Support LACP
Max. 8 members per group
Storm ControlBroadcast
Unknown Multicast
Unknown Unicast
Port MirroringOne to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port SecurityMAC Address Constraints
Protect/Restrict/Shutdown
Port IsolationSupported
Port Rate-limitBandwidth Control
VLANAccess/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
VLAN range 1-4094
Maximum active VLAN is 4K
MAC AddressStatic MAC address
MAC Address Filtering
Spanning Tree ProtocolSTP/RSTP
BPDU Filter
BPDU Guard
Edge Port
MulticastIGMP Snooping
IGMP V1/V2/V3
Router Port
Static Multicast
QoSTraffic classification based
Strict priority and WRR
Port Priority
802.1P Priority
IP DSCP Priority
Supports up to 8 queues per port
Priority Remark
ServicesSupported
SecuritySupported
DHCP SnoopingSupported
DiagnosticsSupported
PingSupported
Electrical Port TestSupported
Management
Manager AccessHTTP, SNMP
Manager IP

Static Address
DHCP Client
Manager VLAN
DNS

SNMPV1/V2C
Community Name
Trap host
SNMP MIBRFC 1213 MIB-II
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
User
FirmwareFirmware Upgradable
ConfigurationUpload and Download
Save, Restart, Factory Defaults
Power
Power InputAC 100~240V
Power Usage Max38.6W
Environment
Operating Temperature0°C to +40°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelWEB-10TX800
8-port 10Gbps Web Smart Multi Gigabit Switch, incl. 8x RJ45, Plug and Play, 100/1000M/2.5G/5G/10G  Auto-negotiation
Standard Package
Product Size32.0(L) x 20.7(W) x 4.5(H) cm
Package Size37.0(L) x 29.0(W) x 8.5(H) cm
Package WeightN.W: 1.82KGS
G.W: 2.36KGS
Package Content1 x Switch
1 x Power cord
1 x QIG
Carton Package
Quantity5 PCS / 1 Carton
Dimensions44.5(L) x 31.0(W) x 39.0(H) cm
Weight12.8 KGS
User Guide
NameDescriptionDownloadDate
AirLive WEB-2TX2402-2TX1602-10TX800-10XGF8 User Guide
2024/05/27
Spec Sheet
NameDescriptionDownloadDate
WEB-10TX800 Spec Sheet
2024/02/01
CE
NameDescriptionDownloadDate
AirLive MultiGiga Switch Series CE+RoHS
AirLive MultiGiga 2.5G, 10G, 100G Switch Series CE+RoHS
2024/06/17
