Introducing the Airlive 1550nm Directly Modulated Optical Transmitter XPON OT-CATV-1550nm: Redefining High-Speed Data Transmission. This cutting-edge device utilizes advanced direct modulation techniques, operating at a 1550nm wavelength to deliver exceptional signal quality and long-distance transmission capabilities. With high-power laser diodes and optical amplifiers, it overcomes signal degradation challenges.

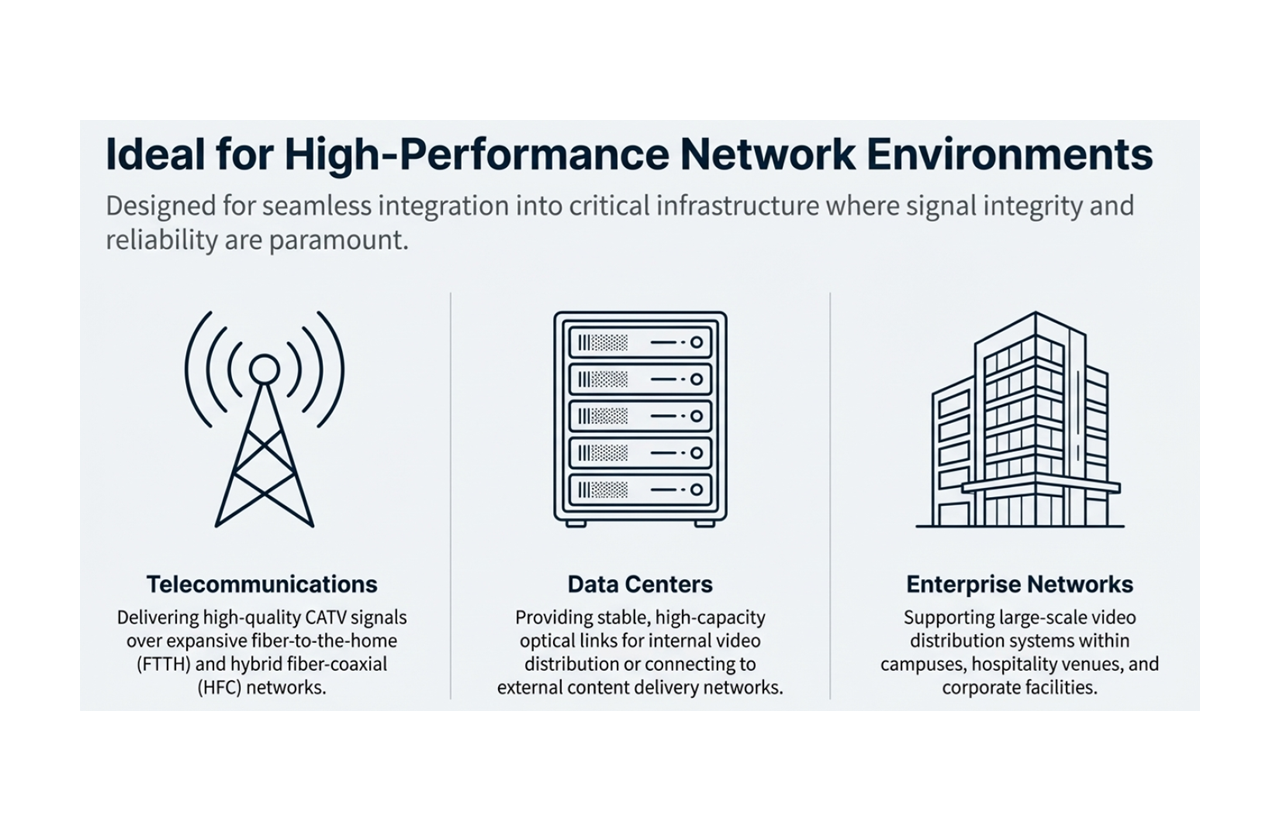

Ideal for telecommunications, data centers, and enterprise networks, this transmitter empowers businesses to meet growing bandwidth demands. Experience unparalleled speed, reach, and stability, optimizing network performance and gaining a competitive advantage. Stay ahead with the Airlive XPON OT-CATV-1550nm , revolutionizing high-speed data transmission and unlocking new possibilities for your business.
| Hardware | |
| Model | AirLive XPON OT-CATV-1550nm |
| Optical | |
| Optical Specifications | Optical wavelength: 1555±20nm Laser Type: Cooled DFB LD Optical Power: 10dBm LD RIN: ≥-160 dB/Hz Connect type: SC/APC |
| RF | |

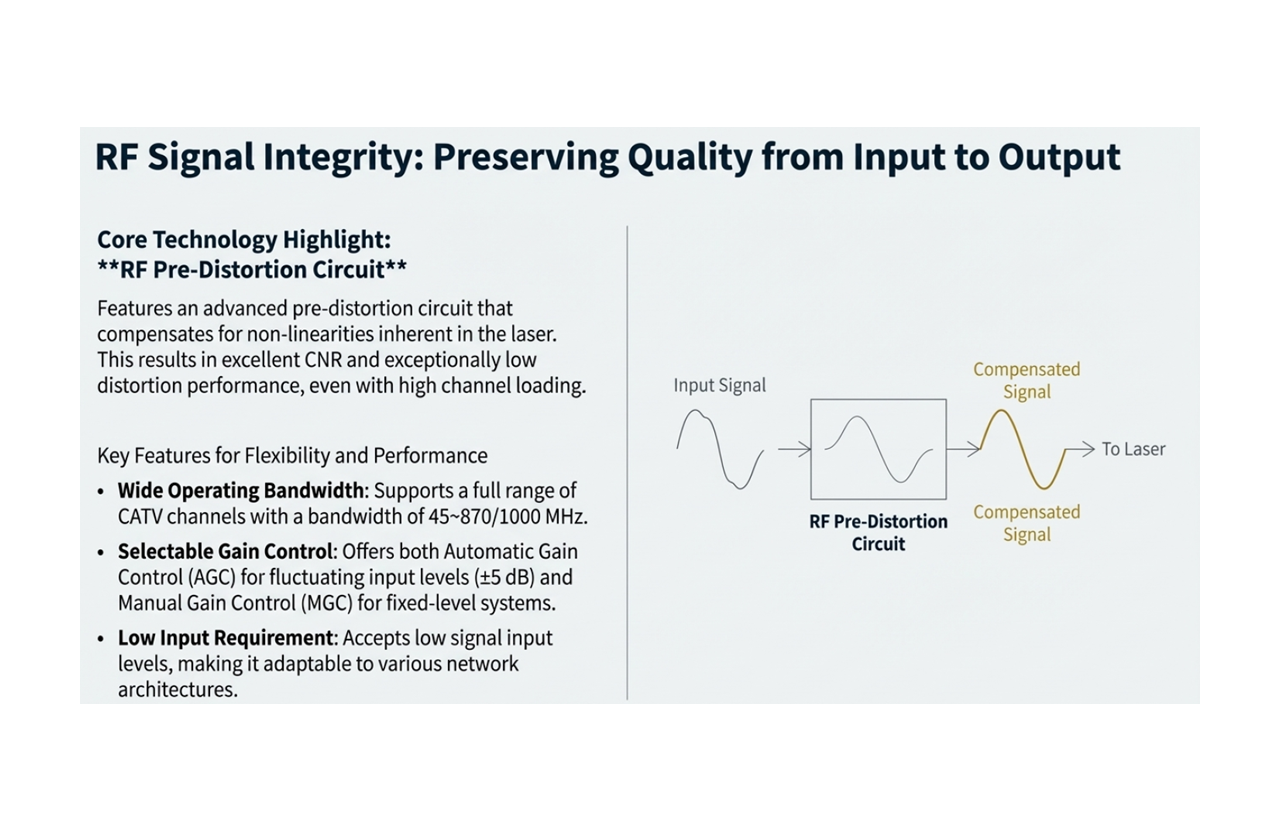

| RF Specifications | Operating bandwidth: 45~870/1000 MHz Flatness: ≤±0.75 dB RF Input Impedance: 75Ω input Return Loss: 45～550 MHz ≥16dB input Return Loss: 550～1000MHz ≥14dB RF Input Level: 80±5 dBmV/Ch Test Point: ≥70 dBuv Connector Type: F type female AGC: ±5 dB CNR: 51dB(typical) CSO: ≤-57 dBc CTB: ≤-63dBc (CNR. CSO, CTB: 59CH PAL-D CW loading, PHOTON standard Reciever, 10km optical fiber, -1dBm optical input power, 80dV input level at 870MHz, 3.6% OMI) |
| Power Supply | |

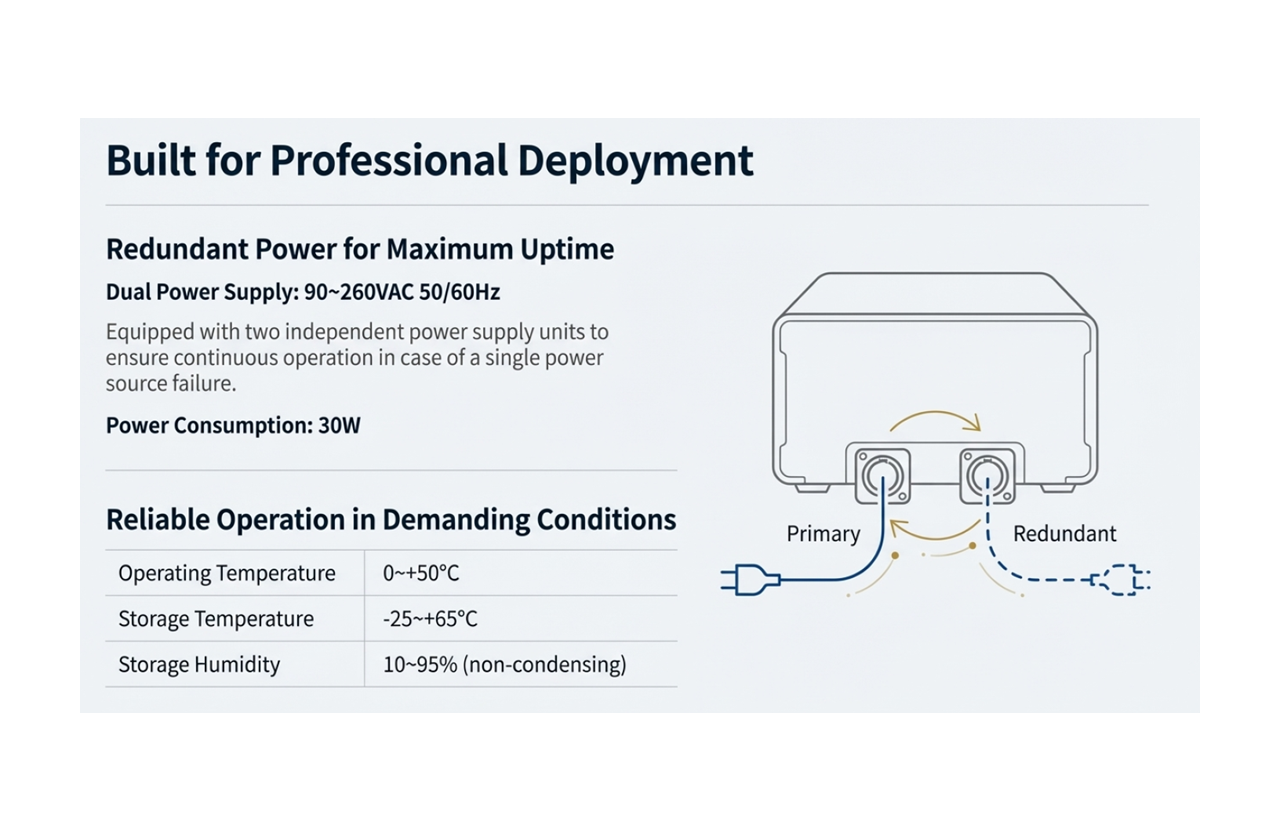

| Electrical Specifications | Control Interface: RJ-45 Power supply: 90~260VAC 50/60Hz (Dual) Power consumption: 30W |
| Environment | |
| Environmental Specifications | Operating Temperature: 0~+50℃ Storage Temperature: -25~+65℃ Storage Humidity: 10~95% (non-condensing) |
| Model | AirLive XPON OT-CATV-1550nm 1550nm Directly Modulated Optical Transmitter |
| Standard Package | |
| Product Size | 48.3x45.0x4.4 cm |
| Package Size | 53.0x50.0x10.0 cm |
| Package Weight | N.W: 2.8KGS G.W: 3.8 KGS |
| Package Content | 1 x XPON OT-CATV-1550nm , 1 x Power Adapter, QIG |
| Carton Package | |
| Quantity | 5 PCS / 1 Carton |
| Dimensions | (L) x (W) x (H) cm |
| Weight | KGS |
| Name | Description | Download | Date |
| XPON OT-CATV-1550nm QIG | 2023/08/17 |
| Name | Description | Download | Date |
| XPON OT-CATV-1550nm Spec Sheet | 2024/01/05 |
