ONU-10XGS-1004-10G: 1 Port 10G XGS PON ONU

Overview
Overview
The AirLive ONU-10XGS-1004-10G is a recently launched ONU that caters to new optical fiber communication networks. It conforms to international standards like ITU-T G.9807.1 (XGS-PON). The ONU comes with 1 x 10GE + 4 x 1GE RJ-45 ports for ultra fast connection speeds. The ONU also comes with a USB3.0 port which can be used to share USB storage. The ONU can bring fast Internet access experience and lower Internet latency for home users and enterprise users. The ONU is specially designed to meet the needs for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, 4K/8K, VR, video surveillance, etc. It is based on XGPON technology, with high reliability, easy maintenance, and can provide QoS guarantee for different services.

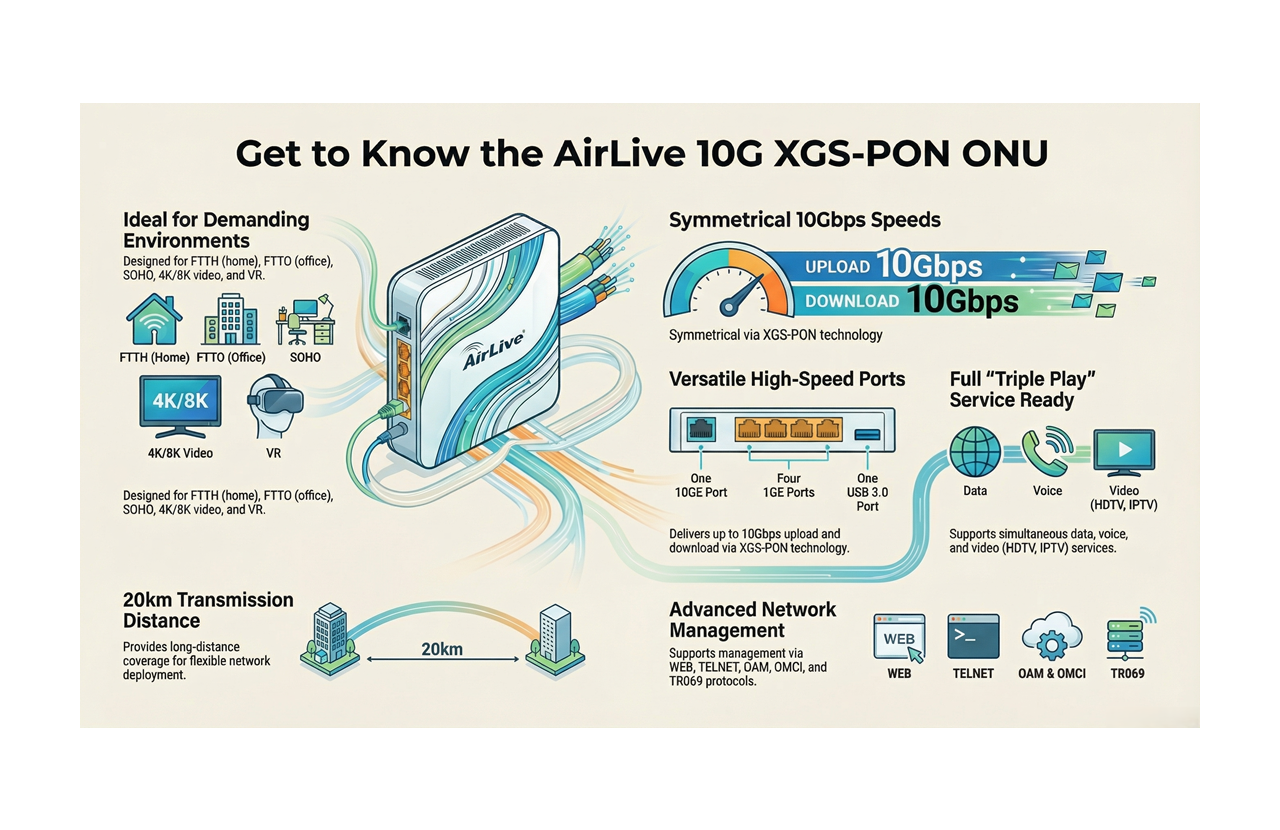

Features
  • 10G XGPON with UL 10Gbps, DL: 10Gbps Speeds
  • 1x 10Gbps RJ-45 Port for High-speed networking
Feature

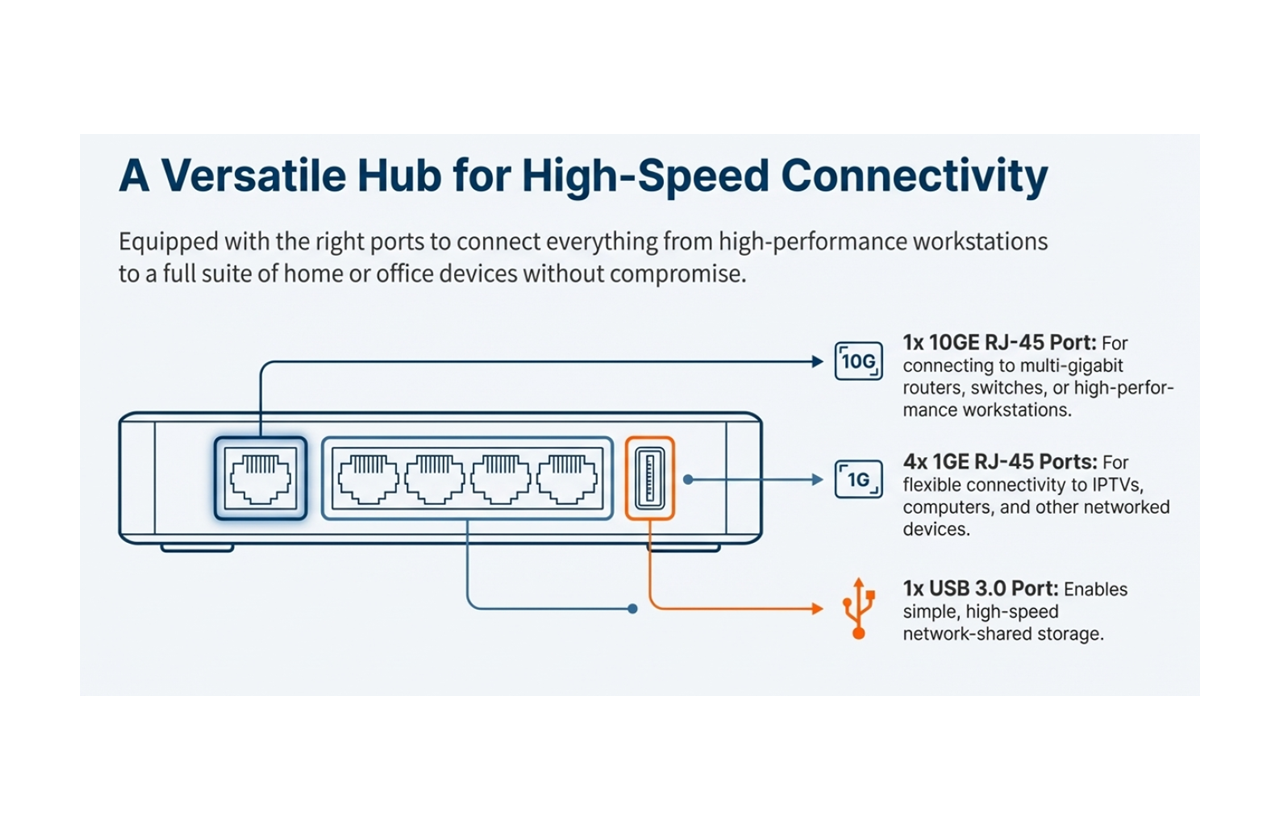

  • 4x 1Gbps RJ-45 Port
  • 1x USB3.0 for Shared Storage
High-speed and Long-distance Coverage for Triple Play Services
High-speed and Long-distance Coverage for Triple Play Services
The AirLive 10G XGSPON ONU offers a solution for providing high-speed and long-distance coverage. The AirLive XGS-PON AX supports full Triple Play of services enabling Data, Voice and Video services through Ethernet, and USB standard interfaces, help Internet Service Providers to deliver internet service speeds of more than 2.5Gbps which is limited by GPON. Triple play service applications such as HDTV, IPTV, and multimedia, enabling fast and reliable data transmission. With a large range between equipment nodes, the 10G XGSPON ONU is a cost-effective access technology that offers flexibility for network deployment. Its reliable and scalable network ensures a seamless and efficient experience for users.
Hardware
ModelAirLive ONU-10XGS-1004-10G
Device Interface•PON Port: 1x 10G PON: Class B+
•Connector: SC single mode, SC/UPC
•TX optical power: 6dBm (XGS-PON)
•RX sensitivity: -28dBm
•Overload optical power: -7dBm
•Wavelength: XG-PON: RX 1577nm/TX 1270nm
•Transmission Distance: 20km
•10G PON layer: ITU-T G.9807.1 (XGS-PON)
•XG-PON ONU Speed: Upstream 9.953Gbps, Downstream: 9.953Gbps
•LAN / USB Port:
1 x 10G RJ-45 Port
4 x 10/100/1000M RJ-45 Port
1 x USB3.0 Port (Storage)
•LED: PWR, PON, LOS, WAN, LAN1~5, USB
Firmware Features

Internet Connection

Support Bridge/Router mode
MulticastSupport IGMP v1/v2/v3
IGMP snooping
MLD v1/v2 snooping
L2802.1D&802.1ad bridge
802.1p Cos
802.1Q VLAN
L3IPv4/IPv6
DHCP Client/Server
PPPoE
NAT
DMZ
DDNS
FirewallAnti-DDOS
Filtering Based on ACL/MAC/URL
ManagementSupport WEB/TELNET/OAM/OMCI/TR069
Support private OAM/OMCI protocol and Unified network management of AirLive OLT
Power Supply
Power Input12V, 1A external AC-DC power adaptor
Power UsagePower Usages Max: ≤ 12W
Environment
Working Temperature-10°C to +55°C
Storage Temperature-40°C to +70°C
Working Humidity5%~95%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelONU-10XGS-1004-10G
AirLive 10G XGSPON ONU 1 PON Port XGSPON ONU with 1x 10GE RJ45, 4x 1GE RJ45, 1x USB 3.0 Port
Standard Package
Product Size18.0(L) x 12.0(W) x 3.45(H) cm
Package Size(L) x (W) x (H) cm
Package WeightN.W: kg
G.W: kg
Package Content1 x Device, 1 x Power Adapter, QIG
Carton Package
Quantity 20PCS / 1 Carton
Dimensions54.0(L) x 30.0(W) x 30.0(H) cm
Weight kg
QIG
NameDescriptionDownloadDate
ONU-10XG(S)-1004-10G
2024/07/02
Spec Sheet
NameDescriptionDownloadDate
ONU-10XGS-1004-10G Spec Sheet
2024/06/27
