IG-601R: Industrial Unmanaged Gigabit Switch

ADD INQUIRY
Reliable Industrial-grade Unmanaged Switch for extreme environment
Reliable Industrial-grade Unmanaged Switch for extreme environment
The AirLive IG-601R is an Unmanaged Gigabit switch with 5 10/100/1000 BASE-T ports, each port automatically adaptive, and 1 Gigabit SFP Uplink port helps with connecting the switch to a larger network. Made for extreme environments with its wide temperature range from -40°c to 75°c and rugged metal housing; Dual power inputs using a 4pin terminal block (DC12~55V).
Features
  • All 6-port, each port delivers Gigabit speed
  • Supports 5 Ports RJ-45 10/100/1000Mbps
  • Extend the network further with 1 SFP slot that accept fiber transceivers and go beyond the limits of Ethernet
Features
  • DIP Switch
  • VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
  • Surge Protection; ESD Protection

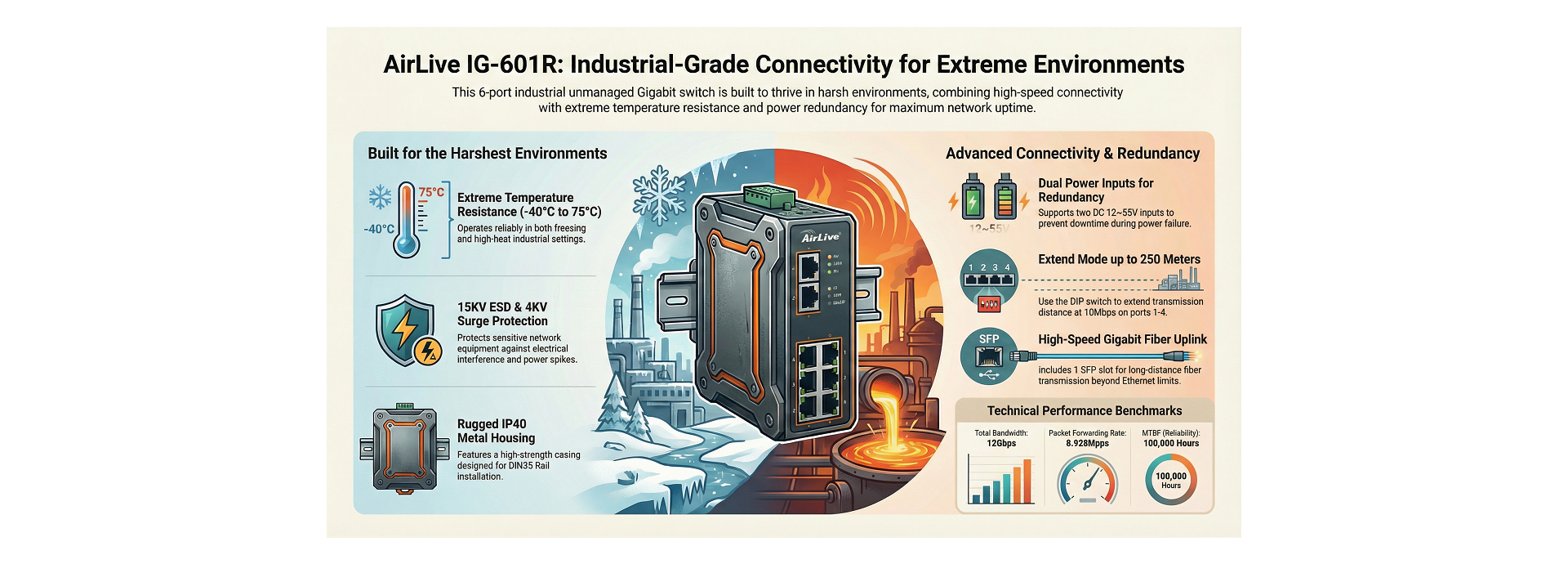

Built for Harsh Environment
Built for Harsh Environment
The IG-601R switch can operate from -40°C ~ 75°C. And each port has 4/6KV surge protection (depending on model). It is the ideal solution for applications which work under harsh environment and require stable network and such as parking lot or factory work. The IG-601R has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.

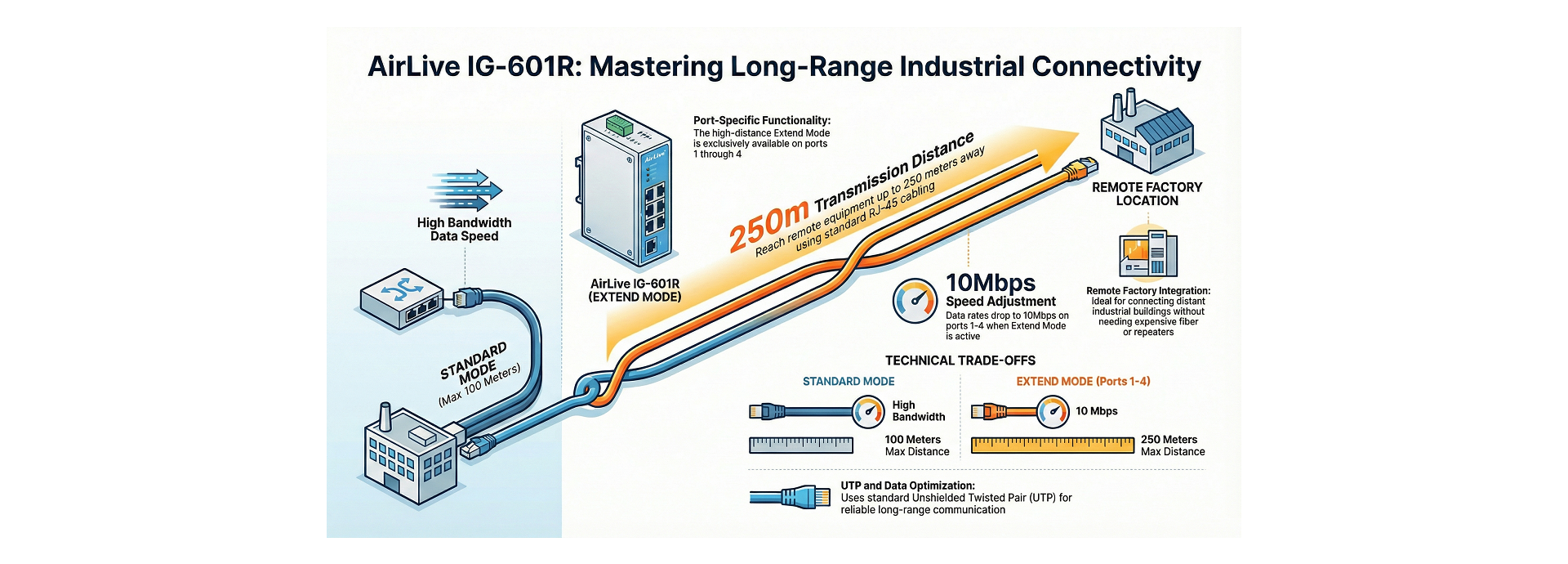

VLAN and Extend Mode
The IG-601R switch can be set in Extend mode to reach a distance of up to 250m (limited to 10Mbps), this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 1~4 on the switch and when enabled the transmission rate will be 10Mbps. VLAN mode: When the Port Isolation mode is enabled the ports (1~4) cannot communicate with each other and can only communicate with the Up-Link port 5/6.
Fiber for Long Distance
Extend the network further with the 1.25G SFP slot/
Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
(Distance depended on module used (not included))
Dual Power Inputs
Dual Power Inputs
AirLive IG-601R supports 2 DC power inputs, DC12~55V, for power redundancy. Which greatly improves the reliability and uptime of a sensitive network in a harsh environment. When one of the DC power inputs fails, the second input will continue to power on the switch.
Hardware
ModelAirLive IG-601R
Device Interface5 x 10/100/1000 RJ-45
1 x 1.25G SFP
6-port totally
StandardsIEEE802.3
IEEE802.3i
IEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
LED IndicatorsPWR (power supply), 1- 6 Link & ACT
Industry standardEMI: FCC Part 15, CISPR (EN55032) class A
EMS:
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Lighting Surge / ESD Protection:
Surge 4KV, ESD 15KV(Air), 8KV (Contact).
Mechanical:
High-strength metal case IP40, DIN35 Rail Mounting
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardBandwidth: 12Gbps
Packet Forwarding Rate 8.928Mpps
MAC Address: 1K
Jumbo Frames: 9.6Kbytes
Transfer Mode: Store and Forward
MTBF: 100000 hours
DIP Switch Control
VLANPort isolation mode. In this mode ports (1~4) cannot communicate with each other and can only communicate with the UP-Link port 5/6
DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m, the transmission rate is 10M/100/1000M adaptive.
ExtendExtension mode, data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 1~4 only.
Power Supply
Input VoltageDC 12~55V
Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Environment
Operating Temperature-40°C to +75°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIG-601R
Industrial Unmanaged Gigabit Switch
6 Ports Including 5 x 10/100/1000Mbs RJ-45, 1 x Uplink SFP
Standard Package
Product Size12(L) x 8.7(W) x 3(H) cm
Package Size17.5(L) x 13(W) x 5.5(H) cm
Package WeightN.W: 0.441KGS
G.W: 0.530KGS
Package Content1 x Switch, 1 x Pull Arm
Standard Carton Package
Quantity40 PCS / 1 Carton
Dimensions54(L) x 29(W) x 37.5(H) cm
Carton Weight22.2KGS
