IG-1002R: Industrial Unmanaged Gigabit Switch

ADD INQUIRY
Reliable Industrial-grade Unmanaged Switch for extreme environment
Reliable Industrial-grade Unmanaged Switch for extreme environment
The AirLive IG-1002R is an Unmanaged Gigabit switch with 8 10/100/1000 BASE-T ports, each port automatically adaptive, and 2 Gigabit SFP Uplink ports help with connecting the switch to a larger network. Made for extreme environments with its wide temperature range from -40°c to 75°c and rugged metal housing; Dual power inputs using a 4pin terminal block (DC12~55V).
Features
  • All 10-port, each port delivers Gigabit speed
  • Supports 8 Ports RJ-45 10/100/1000Mbps
  • Extend the network further with 2 SFP slot that accept fiber transceivers and go beyond the limits of Ethernet
  • Surge Protection; ESD Protection
  • Dual DC Power input 12~55Vdc
Built for Harsh Environment
Built for Harsh Environment
The IG-1002R switch can operate from -40°C ~ 75°C. And each port has 4/6KV surge protection (depending on model). It is the ideal solution for applications which work under harsh environment and require stable network and such as parking lot or factory work. The IG-1002R has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment
Fiber for Long Distance
Fiber for Long Distance
Extend the network further with the 1.25G SFP slot/
Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
(Distance depended on module used (not included))
Dual Power Inputs
Dual Power Inputs
AirLive IG-1002R supports 2 DC power inputs, DC12~55V, for power redundancy. Which greatly improves the reliability and uptime of a sensitive network in a harsh environment. When one of the DC power inputs fails, the second input will continue to power on the switch.
Hardware
ModelAirLive IG-1002R
Device Interface8 x 10/100/1000 RJ-45
2 x 1.25G SFP
10-port totally
StandardsIEEE802.3
IEEE802.3i
IEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
LED IndicatorsPWR (power supply), 1- 10 Link & ACT
Industry standardEMI: FCC Part 15, CISPR (EN55032) class A
EMS:
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Lighting Surge / ESD Protection:
General 6KV, Differential 4KV, ESD 15KV(Air), 8KV (Contact)
Mechanical:
High-strength metal case IP40, DIN35 Rail Mounting
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardBandwidth: 20Gbps
Packet Forwarding Rate 14.88Mpps
MAC Address: 4K
Jumbo Frames: 9216bytes
Transfer Mode: Store and Forward
MTBF: 100000 hours
Power Supply
Input VoltageDC 12~55V

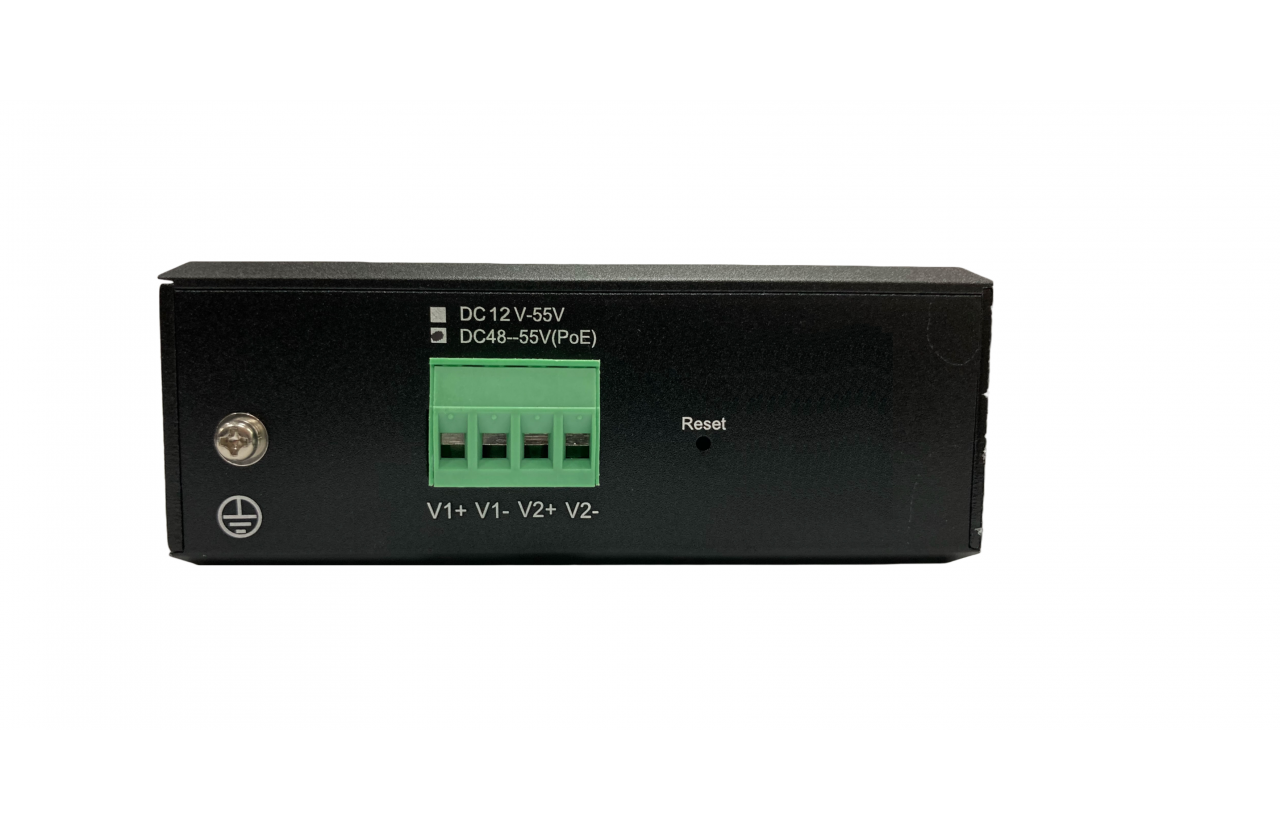

Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
Environment
Operating Temperature-40°C to +75°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIG-1002R
Industrial Unmanaged Gigabit Switch
10 Ports Including 8 x 10/100/1000Mbs RJ-45, 2 x Uplink SFP
Standard Package
Product Size16(L) x 13.5(W) x 4.4(H) cm
Package Size24.2(L) x 20.7(W) x 8.6(H) cm
Package WeightN.W: 0.73KGS
G.W: 0.90KGS
Package Content1 x Switch, 1 x Pull Arm
Standard Carton Package
Quantity20 PCS / 1 Carton
Dimensions44.5(L) x 44.5(W) x 51.0(H) cm
Carton Weight19KGS
Spec Sheet
NameDescriptionDownloadDate
IG-1002R Spec Sheet
2023/06/08
CE
NameDescriptionDownloadDate
AirLive Industrial Series CE+RoHS
AirLive Industrial Series CE+RoHS
2024/05/28
