AirDual-AC12: Wi-Fi 5 AC1200 Outdoor CPE

ADD INQUIRY
AirDual-AC12 service 24/7 365 Management via the AirCloud
AirDual-AC12 service 24/7 365 Management via the AirCloud
You can centrally set up, configure, monitor, and manage certain Airlive devices around the clock, every day of the year, using cloud-based remote network management. This unified remote management solution helps cut costs and save time. Airlive offers an full range of access points, in-wall APs, outdoor CPEs, and mobile hotspots through AirCloud, providing a comprehensive network ecosystem.
Overview
Overview
High Performance Dual-Band AC1200 Outdoor AP/Repeater CPE
AirDual-AC12 is a high performance 1200Mbps Outdoor AP/Repeater/CPE built to the highest standard. It features dual polarity MIMO antenna to ensure optimal reception. 48V PoE 802.3at

Professional Outdoor design+ Internal Lightning Protection, Suitable for multiple harsh environment
Adopt outdoor ABS Plastic shell and professional lightning protection components, provide IP65 water-proof, dust-proof, suit for multiple harsh environment. even in extreme hot and cold environment(-30°C ~ +55°C), also cam work stable.


Features

  • 802.11 a/g/n/ac compliant
  • 2.4/5Ghz AC 1200Mbps
  • LED Status Display
  • IP 65 Enclosure
  • Built-in 15 dBi Antenna
  • 1 x 10/100/1000Mbps WAN
  • 1 x 10/100/1000Mbps LAN
  • 48V PoE power input (WAN)
  • Cloud Control in AP mode
Advanced AP/ Repeater PTP, PTMP Mode or Cloud Management
Advanced AP/ Repeater PTP, PTMP Mode or Cloud Management
AP and Repeater Mode: In this mode the AirLive AirDual-AC12 works as an AP or Repeater, Which allows the installer to setup the Point to point or point to multiple point wireless application. Built a network connection over a longer distance between two buildings or cover a larger open area with several units in multipoint function.

Cloud Control: The AirLive AirDual-AC12 can be controlled via the Cloud (ONLY in AP Mode), ones the AP has been added to the Cloud. It can be controlled from any location. This offers extra benefits when dealing with a large network of Access Points, as direct access is not needed, and support can be giving from a remote office. Also, multiple levels of control can be giving in the Cloud from Admin to only viewer rights. AP’s can be added and removed at anytime

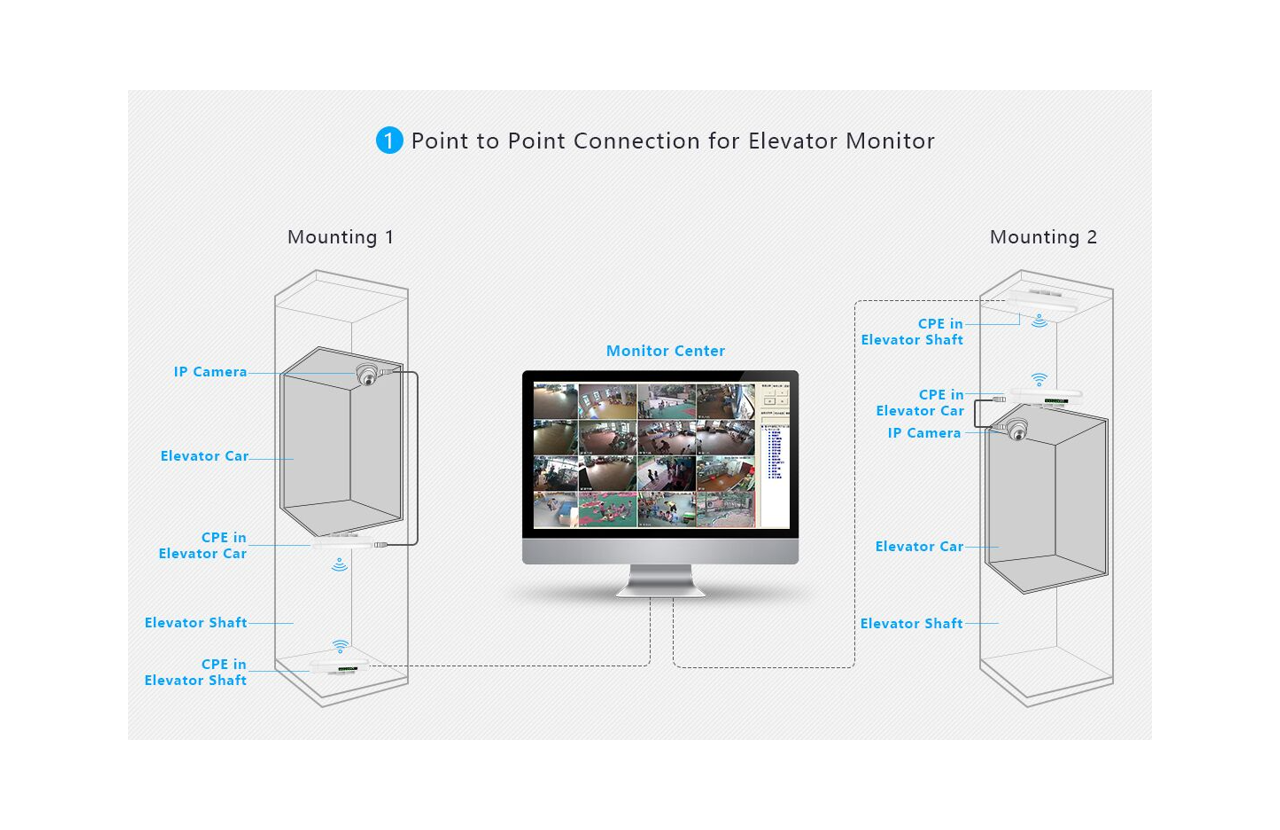

Multiple Application Environment-1
Multiple Application Environment-1

Elevator Monitor

Multiple Application Environment-2
Multiple Application Environment-2

Point To Multiple Point connection application

Multiple Application Environment-3
Multiple Application Environment-3

Point To Point connection application

Device Interface
ModelAirDual-AC12
Device Interface•Main Chip: QualComm QC9563
•Flash:16MB
•RAM:128MB
•Standard:IEEE802.11ac, IEEE802.3, IEEE 802.11n, IEEE 802.11a ,802.11b, 802.3at, 802.3az
•Frequency:5.020GHz-6.100GHz/2.312GHz to 2.4835GHz
•Channel:CH36 ~CH165/CH1~13 (Country depended)
•Modulation: OFDM = BPSK, QPSK,16-QAM,64-QAM; DSSS = DBPSK, DQPSK, CCK
•Data Rate:1200Mbps (2.4Ghz 300Mbps, 5.8Ghz 900Mbps)
•RF Output Power: ≤ 22+2dBm (500mW)
•Antenna:2.4GHz: 12dBi Panel Antenna\5GHz: 14dBi Panel Antenna
•WAN:1 * 10/100/1000Mbps RJ-45 WAN Port, support 802.3at 48V PoE in
•LAN:1 * 10/100/1000Mbps RJ-45 LAN Port
•Reset Button:1 * Reset Button, Press 10 seconds, the device will revert to factory default settings.
•LED Light: SYS, Wi-Fi, WAN, LAN, Signal Strength
•Power Consumption:< 30W
•Water-proof Level:IP65
Firmware Function
Control•Operation Mode: Wireless AP, Gateway, WiFi Repeater
•Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless•SSID broadcast
•Multiple SSID up to 8
•SSID hide
•Firewall: DoS, SPI Firewall, IP, MAC, URL filter, IP and MAC Address Binding
•WiFi timed on/off
•Multicast acceleration
•VPN pass through
•DDNS, Port Forwarding, DMZ Host
•Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1x encryption
•Support RF power adjustable based on environment
•End user access number limited to 128
Network Function•Tag VLAN setting based on SSID
•DHCP server
•Cloud server
Device Management•Backup the configuration information
•Restore the configuration information
•Reset to factory default settings
•Device reboot: reboot immediately or timed reboot
•Firmware upgrade
•Time management: including system time and time synchronization
•System log
•Support WEB GUI management
•Support cloud remote management (AP Mode)
Multiple LanguageEnglish
ESD Protection•ESD: Air discharge: ±8KV, Contact discharge: ±4KV
Environment
Operating Temperature-30°C to +55°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing
EnclosureIP65



Ordering Information

ModelAirDual-AC12: Wi-Fi AC1200 Dualband Outdoor CPE
Standard Package
Product Size31.5(L) x 14.5(W) x 8(H) cm
Package WeightN.W: TBC KGS
G.W: TBC KGS
Package Content

1 x AirDual-AC12, PoE Injector, Install Accessory, QIG

Carton Package
QuantityTBC PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight KGS
