AWOD-30AXi: Wi-Fi 6 AX3000 Outdoor Omni AP

ADD INQUIRY

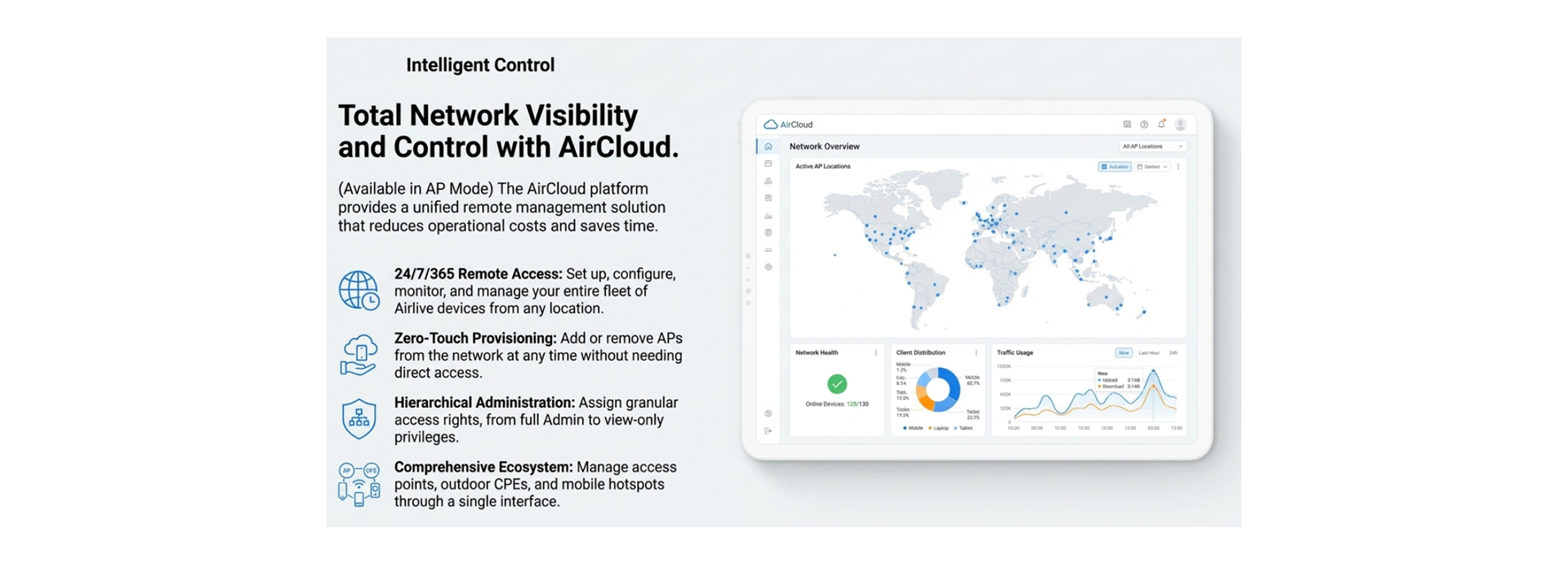

AWOD-AX30i service 24/7 365 Management via the AirCloud
AWOD-AX30i service 24/7 365 Management via the AirCloud
You can centrally set up, configure, monitor, and manage certain Airlive devices around the clock, every day of the year, using cloud-based remote network management. This unified remote management solution helps cut costs and save time. Airlive offers an full range of access points, in-wall APs, outdoor CPEs, and mobile hotspots through AirCloud, providing a comprehensive network ecosystem.
Overview
Overview
High Performance Dual-Band AX3000 Outdoor AP/Repeater with Omni Antenna
AWOD-30AXi is a high performance 3000Mbps Outdoor AP/Repeater built to the highest standard. It features an 8dBi Omni MU-MIMO antenna to ensure optimal reception. 48V IEEE 802.at PoE is featured to allow long cabling distance. It also supports Seamless Roaming.

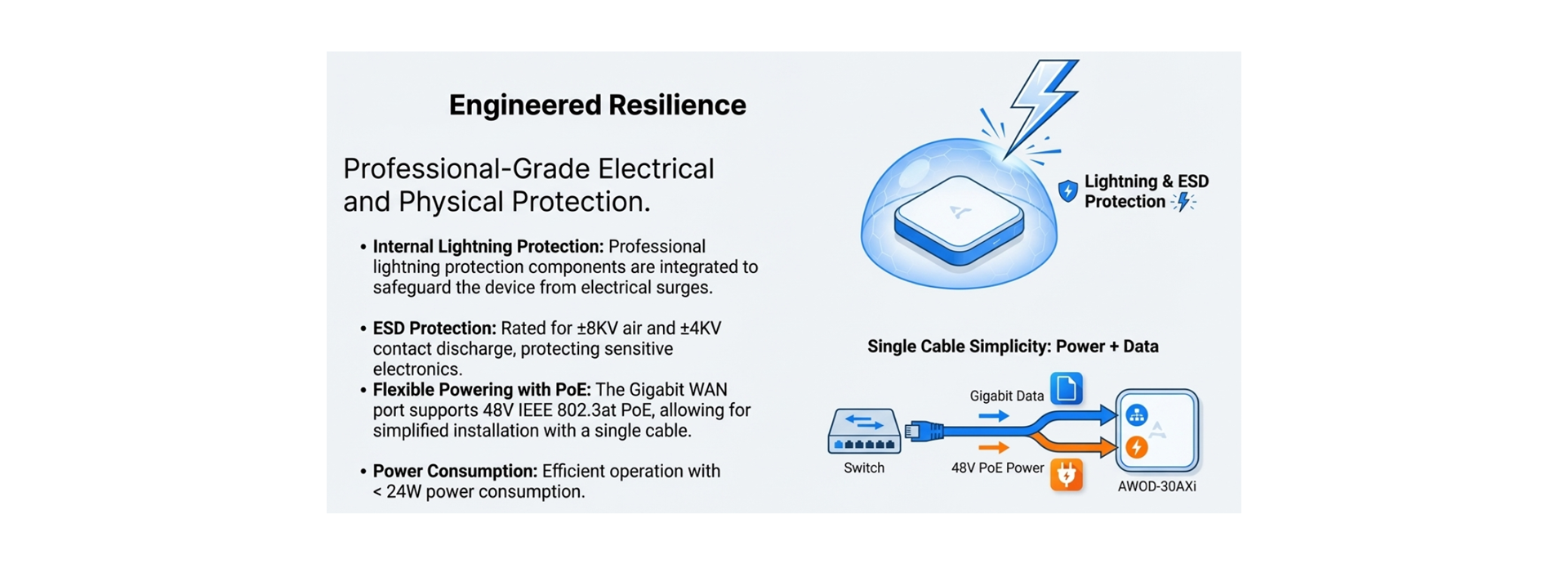

Professional Outdoor design+ Internal Lightning Protection, Suitable for multiple harsh environment
Adopt outdoor ABS Plastic shell and professional lightning protection components, provide IP67 water-proof, dust-proof, suitable  for multiple harsh environment. Even in extreme hot and cold environment(-30°C ~ + 70°C), also can work stable.



Features

  • 802.11 a/g/n/ac/ax compliant
  • 2.4/5Ghz AX 3000Mbps
  • LED Status Display
  • IP 67 Enclosure
  • Built-in 8 dBi Omni Antenna
  • 1 x 10/100/1000Mbps WAN
  • 1 x 10/100/1000Mbps Console Port
  • 48V PoE power input (WAN)
  • Cloud Control in AP mode

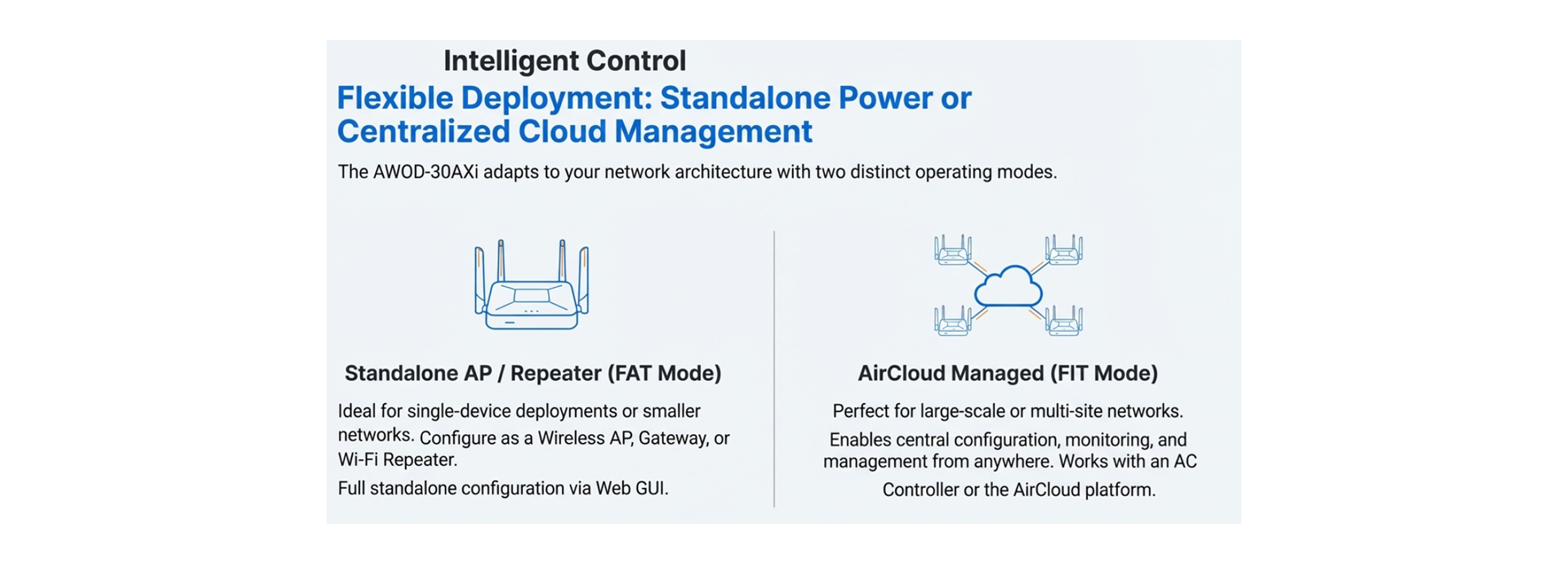

Advanced AP/ Repeater Mode or Cloud Management
Advanced AP/ Repeater Mode or Cloud Management
AP and Repeater Mode: In this mode the AirLive AWOD-30AXi works as an AP or Repeater, Which allows the installer to setup a network which covers an area of 100 to 300m (depending on environment). Or built a network connection over a longer distance between several buildings or cover a larger open area with multiple units in repeater mode.

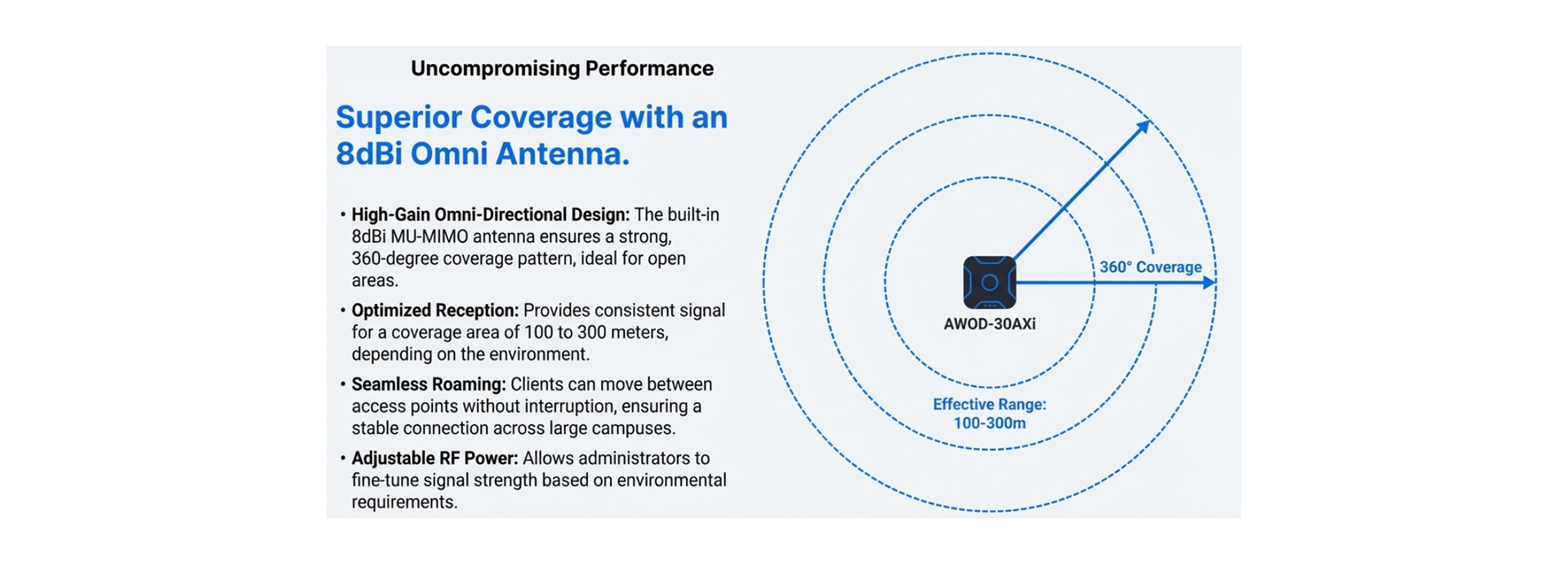

Omni Antenna long range.
The AWOD-30AXi has a coverage area of between 100 to 300meter. Depending on the environment.

Cloud Control: The AirLive AWOD-30AXi can be controlled via the Cloud (ONLY in AP Mode), ones the AP has been added to the Cloud. It can be controlled from any location. This offers extra benefits when dealing with a large network of Access Points, as direct access is not needed, and support can be giving from a remote office. Also, multiple levels of control can be giving in the Cloud from Admin to only viewer rights. AP’s can be added and removed at anytime.



Device Interface
ModelAWOD-30AXi
Device Interface•Main Chip: QualComm IPQ5018
•Flash:NOR 8MB + NAND 128MB
•RAM:512MB
•Standard:IEEE802.11ax, IEEE802.11ac, IEEE802.3, IEEE 802.11n, IEEE 802.11a ,802.11b, 802.3at, 802.3az
•Frequency:5.150GHz-5.850GHz/2.4GHz to 2.484GHz
•Channel:CH36 ~CH165/CH1~13 (Country depended)
•Modulation: OFDM = DL/UL-OFDMA modulation, Seamless Roaming

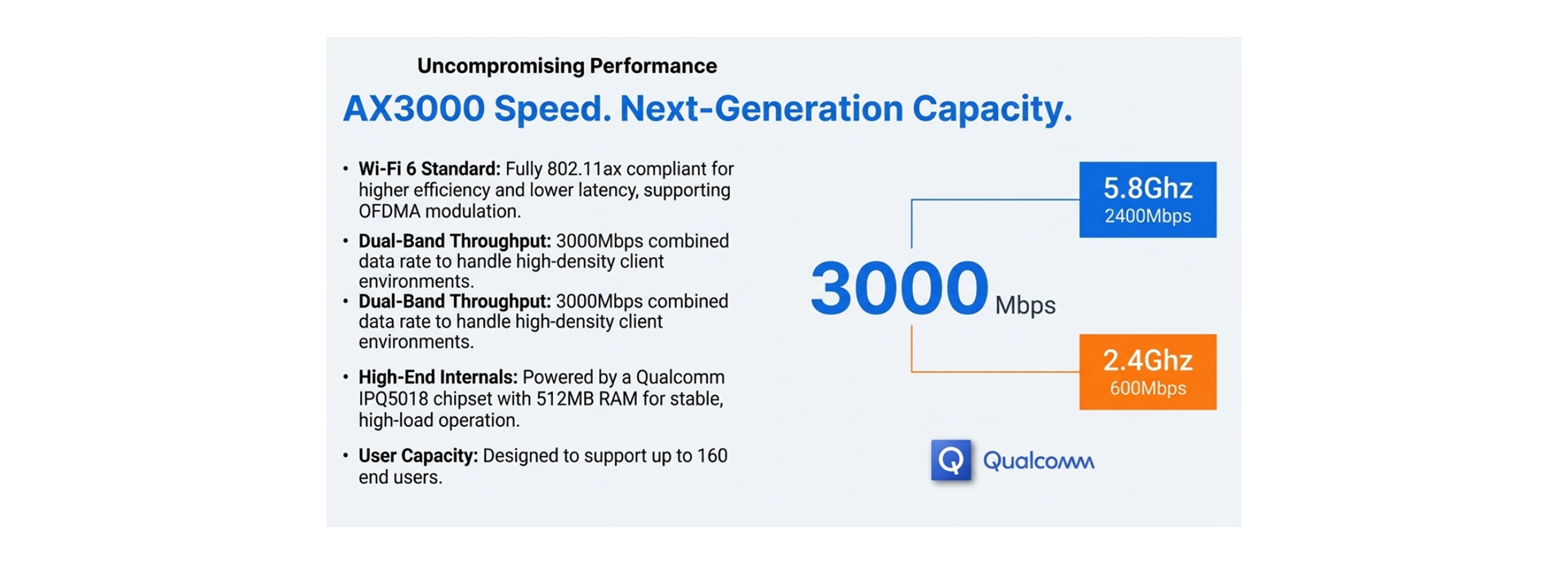

•Data Rate:3000Mbps (2.4Ghz 600Mbps, 5.8Ghz 2400Mbps)
•RF Output Power:≤ 27+2dBm (500mW)
•Antenna: 8dBi Omni Antenna
•WAN:1 * 10/100/1000Mbps RJ-45 WAN Port, support 802.3at 48V PoE in
•LAN:1 * 10/100/1000Mbps RJ-45  Port Console Port
•Reset Button:1 * Reset Button, Press 10 seconds, the device will revert to factory default settings.
•LED Light: SYS, WAN, 2.4G, 5.8G
•Power Consumption:< 24W
•Water-proof Level:IP67
Firmware Function
Control•Operation Mode: Wireless AP, Gateway, WiFi Repeater
•Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access)
Wireless•SSID broadcast
•Multiple SSID up to 8
•SSID hide
•Firewall: DoS, SPI Firewall, IP, MAC, URL filter, IP and MAC Address Binding
•WiFi timed on/off
•Multicast acceleration
•VPN pass through
•DDNS, Port Forwarding, DMZ Host
•Security: OPEN, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3
•Support RF power adjustable based on environment
•End user access number limited to 160

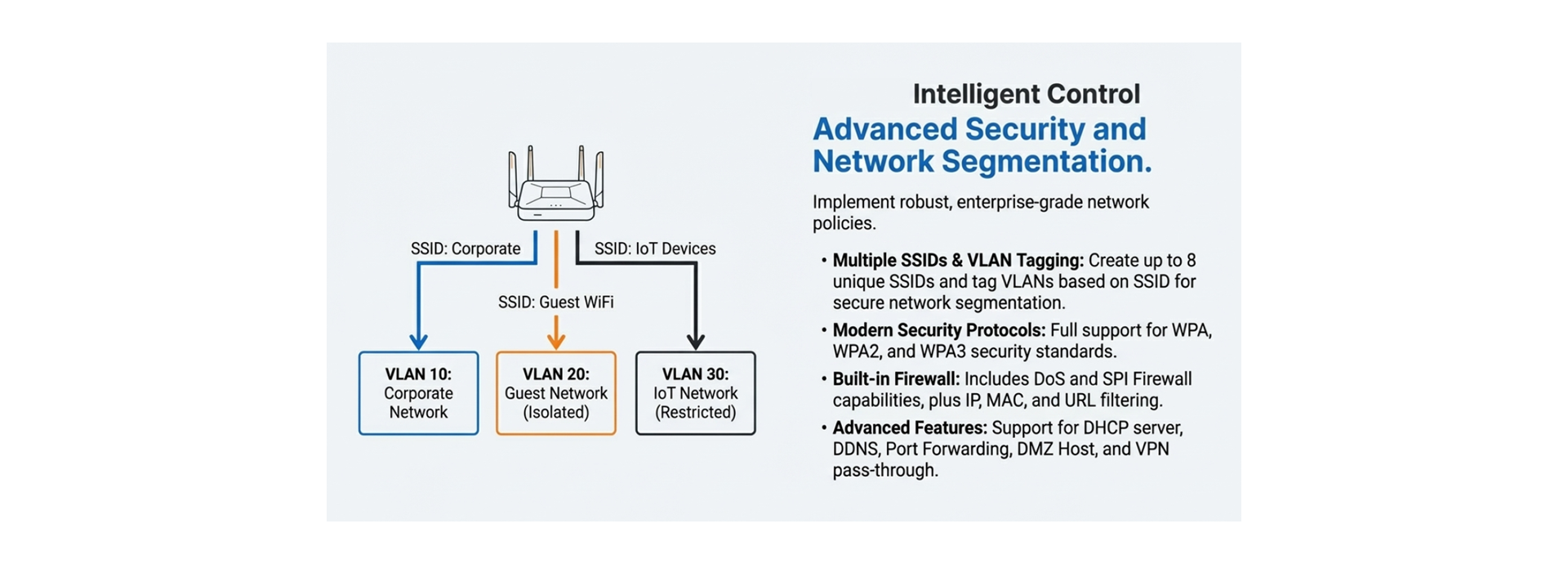

Network Function•Tag VLAN setting based on SSID
•DHCP server
•Cloud server
Device Management•Backup the configuration information
•Restore the configuration information
•Reset to factory default settings
•Device reboot: reboot immediately or timed reboot
•Firmware upgrade
•Time management: including system time and time synchronization
•System log
•Support WEB GUI management
•Support cloud remote management (AP Mode)
Multiple LanguageEnglish
ESD Protection•ESD: Air discharge: ±8KV, Contact discharge: ±4KV
Environment
Operating Temperature-30°C to +70°C
Storage Temperature-40°C to +70°C
Storage Humidity5%~95%, non-condensing
EnclosureIP67



Ordering Information

ModelAWOD-30AXi: Wi-Fi 6 AX3000 Dual-band Outdoor Omni AP
Standard Package
Product Size30.3(L) x 18(W) x 8.7(H) cm
Package WeightN.W: TBC KGS
G.W: TBC KGS
Package Content

1 x AWOD-30AXi, PoE Injector, Install Accessory, QIG

Carton Package
QuantityTBC PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
Weight KGS
