Hardware | |
Model | ANVR-32-4S |

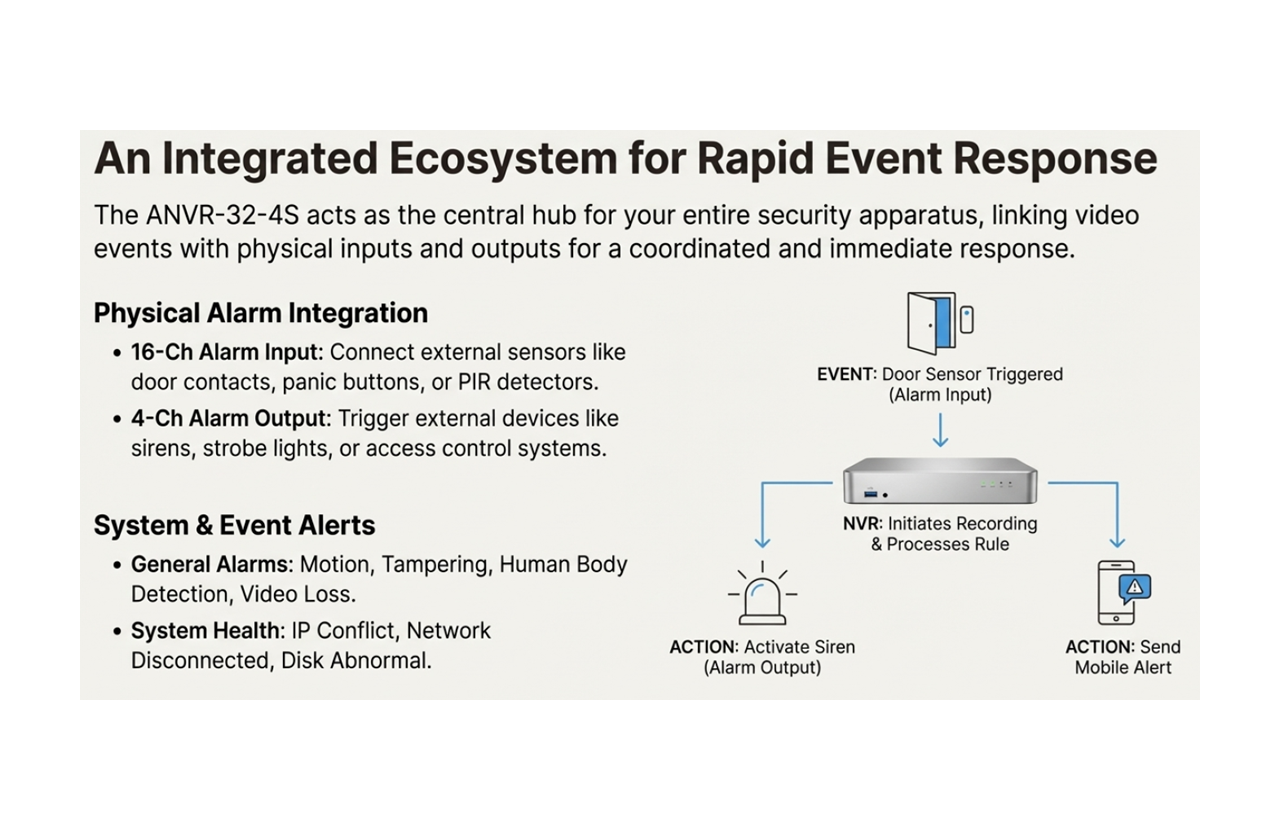

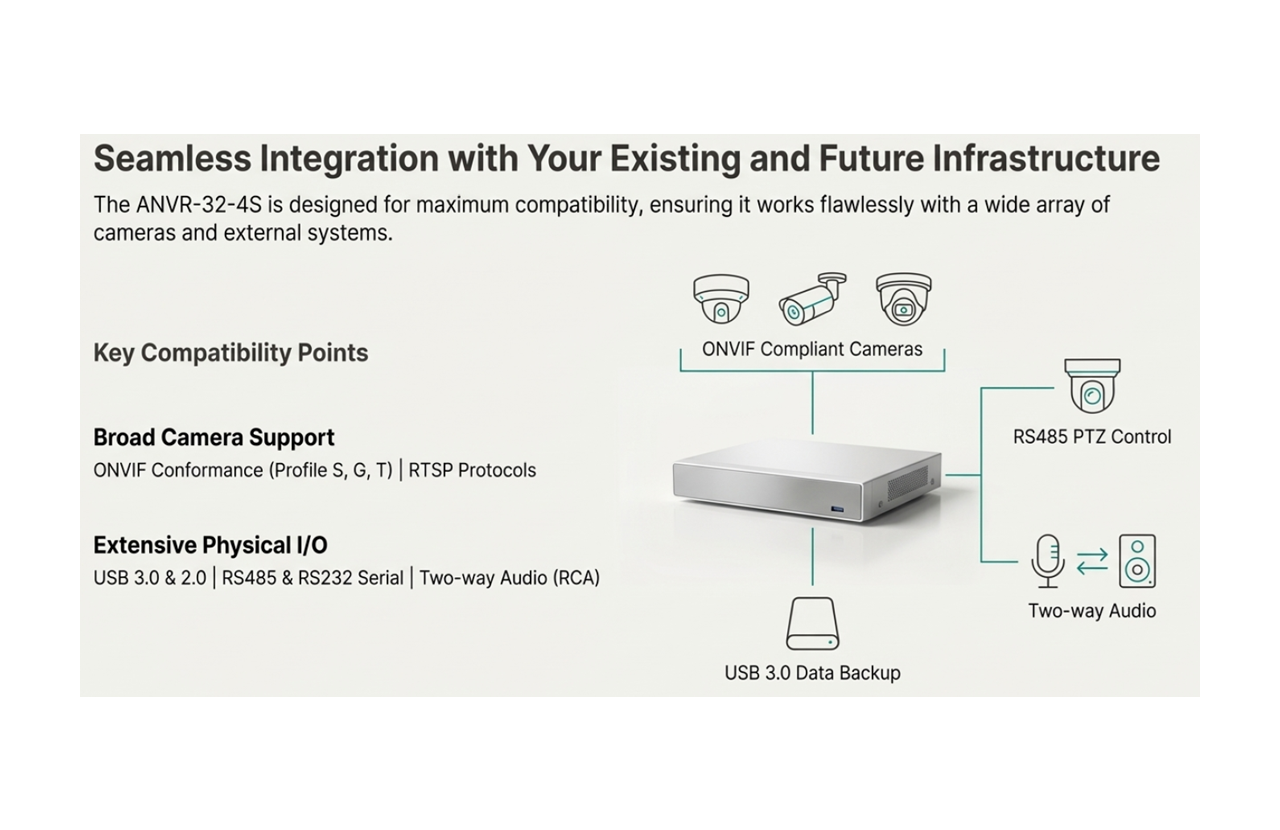

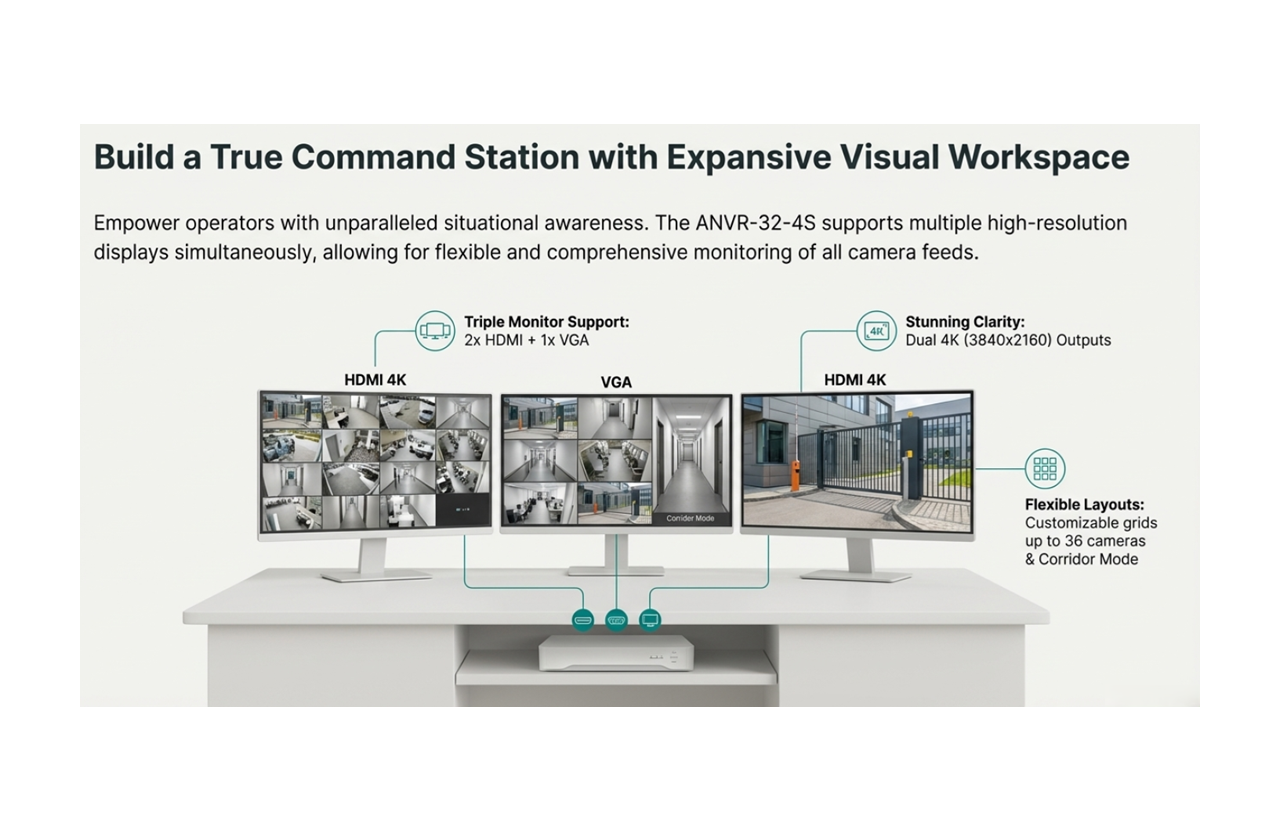

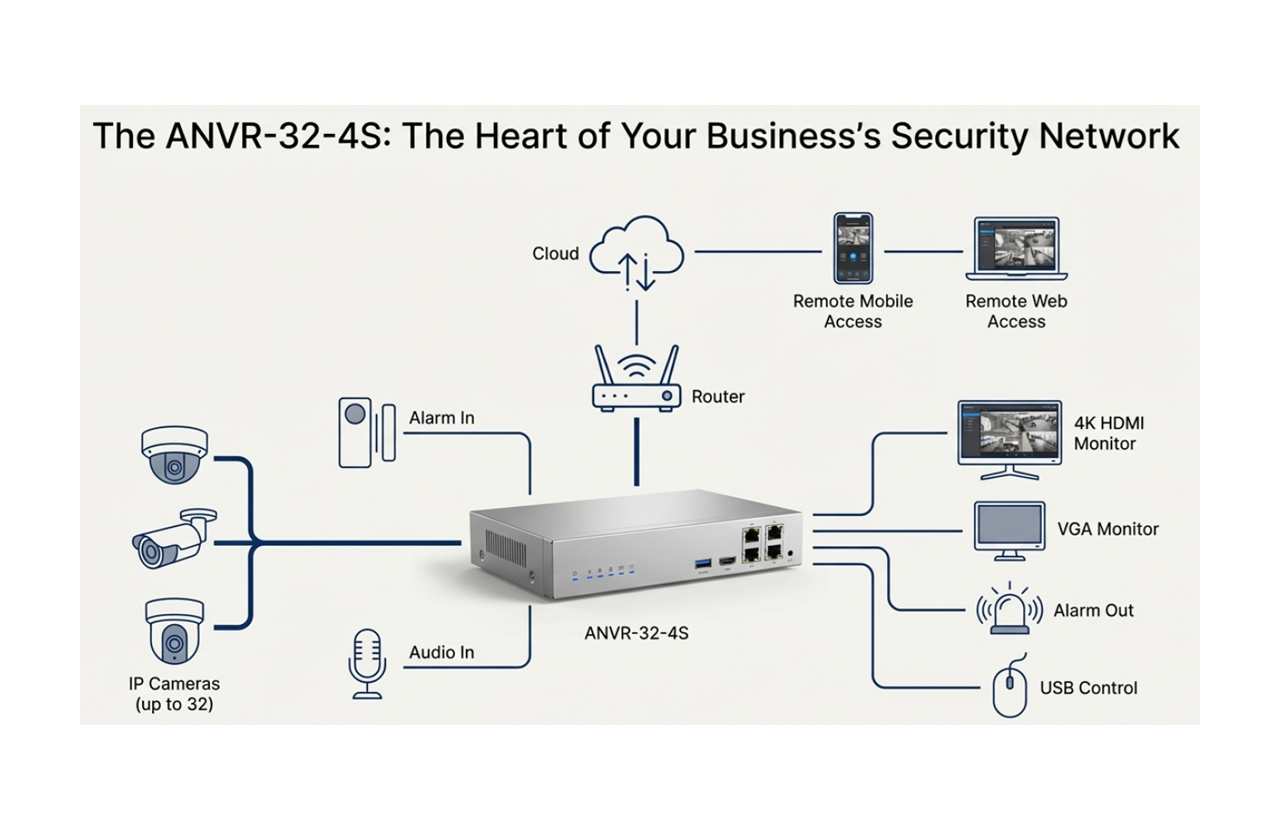

Device Interface | Network Interface: 2x RJ45 10M/100M/1000M self-adaptive Ethernet Interface USB Interface: Rear panel: 1x USB3.0, Front panel: 2x USB2.0 Serial Interface: 1x RS485, 1x RS232 Alarm IN: 16-Ch Alarm OUT: 4-Ch Hard Disk: 4x SATA interface Capacity up to 10TB, Disk Array Type: Raid 1, 5 eSATA: 1x eSATA port Standard: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP Video/Audio Input: 32 Channels Incoming Bandwidth: 384Mbps Outgoing Bandwidth: 384Mbps Remote Users: 128 Two-way Audio Input: 1-ch, RCA Audio Output: 1-ch, RCA HDMI/VGA Output HDMI 1& 2 : 4K 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI 1 & HDMI2 (HDMI audio output is not supported)) VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Compression:G.711A, G.711U Synchronous Playback: 16-ch Live view display: VGA/HDMI1/HDMI2:1/4/6/8/9/16/25/36 Corridor Mode Screen: 3/4/5/7/9/10/12/16/32 Support: Mainstream Cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols |
Decoding | Decoding format: Ultra 265/H.265/H.264 Liveview/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability: 2x 12MP@30FPS, 4x 4K@30FPS, 8x 4MP@30FPS, 9x 4MP@25FPS, 16x 1080p@30FPS, 32x 960p@25FPS |

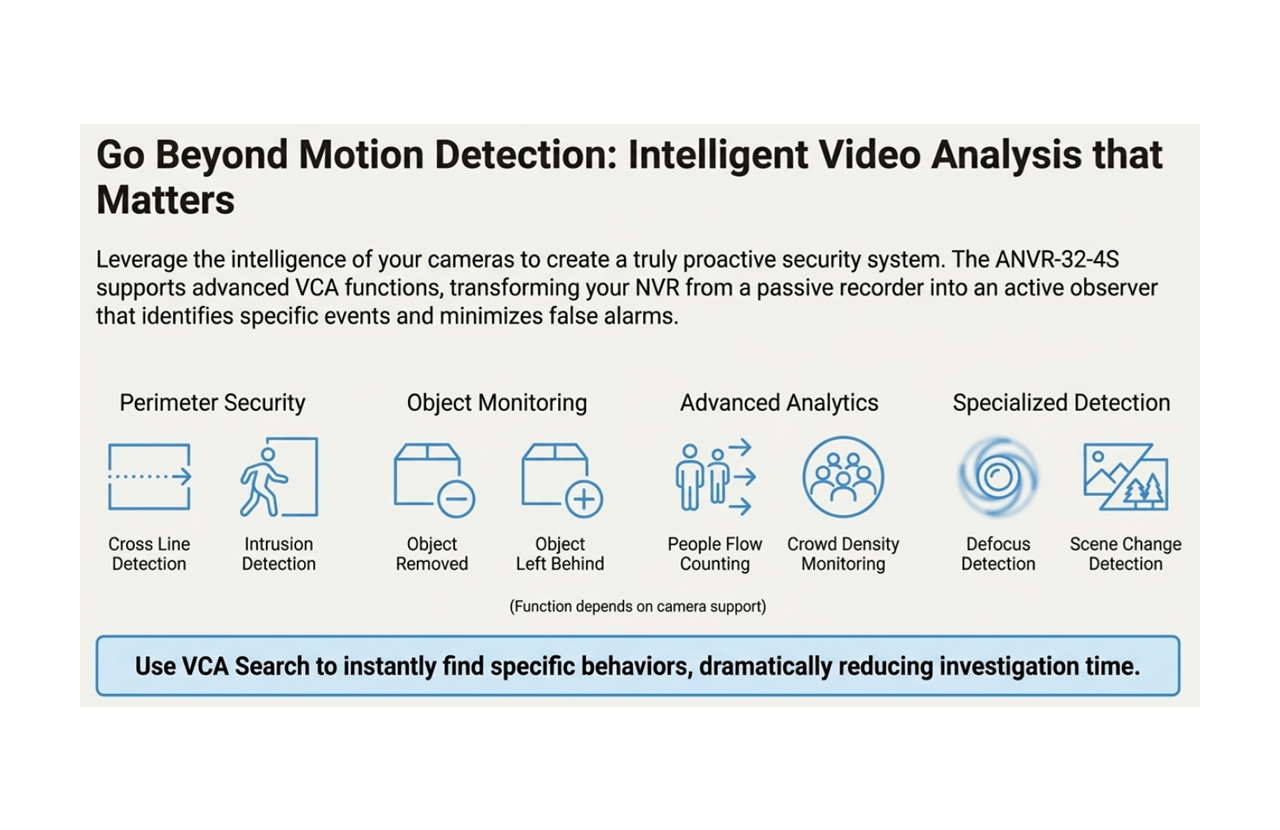

Smart (Function depends if supported by Camera) | VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) VCA Search: Behavior Search People counting: People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), UMD by Camera: Total 16 Channel |
General Alarm | General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
Multiple Language | English, Chinese, Japanese, Korean, French, Spanish, Russian, German, Farsi, Polish, Thai, Portuguese, Arabic, Hebrew, Italian, Czech, Turkish, Dutch, Vietnamese, Finnish |
APP and Software Control | |
APP/Software | Windows: Web browser APP iOS/Android: Download “Guard Viewer” App from APP/Play Store |
Power Input | |
Power Input | Power Supply: AC100~240VAC Power Consumption: ≤25 W (without HDD) |
Environment | |
Operating Temperature | -10°C to +55°C |
Operating Humidity | ≤ 90% RH (non-condensing) |
Model | ANVR-32-4S 32-CH Network Video Recorder with HDMI |
Standard Package | |
Product Size | 44.2(L) x 42.6(W) x 8.9(H) cm |
Package Size | TBD (L) x (W) x (H) cm |
Package Weight | G.W: 5.7kg |
Package Content | 1x ANVR-32, Power Adapter, Mouse, QIG |
Carton Package | |
Quantity | TBDPCS / 1 Carton |
Dimensions | TBD (L) x (W) x (H) cm |
Weight | TBD kg |
Name | Description | Download | Date |
AirLive ANVR-32-4 Spec Sheet | 2024/07/01 |
Name | Description | Download | Date |
AirLive ANVR Series NVR CE+RoHS | 2024/06/20 |
