WEB-10TX408: 10Gbps Web Smart Multi Gigabit Switch

ADD INQUIRY
Upgrading your Network Connection to 10G Super High speed with Web Management Switch
Upgrading your Network Connection to 10G Super High speed with Web Management Switch
The AirLive Multi-Giga switch, WEB-10TX408, is a Web Managed switch, which supports 4 RJ45 ports and 8 SFP+ ports for delivering up to 10Gbps extra high-speed connection on RJ-45. Each port can auto-adaptively deliver speed at 100M/1G/2.5G/5G/10G on RJ45 and 1G/2.5G/10G on SFP+ to connective devices. Supports WEB Management function and is easy to manage and maintain. The easy to operate WEB-10TX408 has several functions like VLAN setting for a more secure connection. QoS to have more control of the bandwidth and many more like, IGMP, Loop Prevention, Port-Base Mirroring, Port Isolation, Bandwidth Control, Security (MAC Address /table /search / static MAC; Storm control and more. With the 10G multi-Giga switch, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server , for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.
Features and Specifications
  • 4  x 100M/1G/2.5G/5G/10G RJ45 ports
  • 8x 1G/2.5G/10G SFP+
  • Web Smart Management
  • QoS: Priority management
  • VLAN: enhanced security and performance
  • All ports at Multi Gigabit high speed, auto-negotiation
Features and Specifications
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
  • Super Fast 10Gbps RJ-45 and SFP+
  • Existing Cat5e cable suitable (Cat6a needed for 10G), painless upgrading
  • Compact size for Home or SMB Network Connectivity

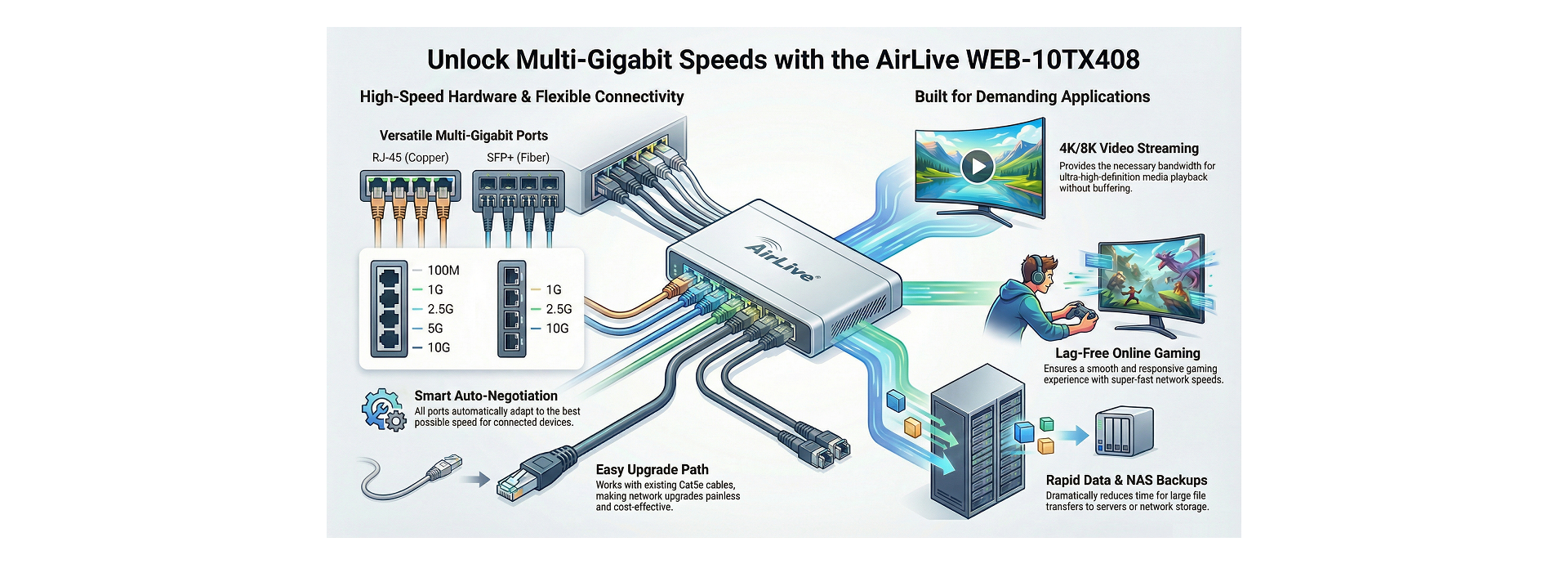

1G/2.5G/5G/10G RJ-45 and SFP+ Multi Gigabit, perfect for various applications
1G/2.5G/5G/10G RJ-45 and SFP+ Multi Gigabit, perfect for various applications
With the AirLive 10G Multi-Giga switch WEB-10TX408, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server, the RJ45 and SFP+ ports are auto adaptive and can also work at 100/1000M/2.5G/5G , for enjoying faster experience and handle bandwidth-hungry applications.
VLAN for enhanced network security
VLAN for enhanced network security
The VLAN 802.1Q VLAN tagging settings can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. With the help of VLAN interface, switches can communicate with other network layer devices.
IGMP Snooping Multicast
IGMP Snooping Multicast
Multicast protocols is compliant with IGMP v1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. By analyzing the IGMP messages received, L2 devices establish a mapping between ports and MAC multicast addresses and forward the multicast data accordingly.
Hardware
ModelAirLive WEB-10TX408
Device Interface4 x 100M/1G/2.5G/5G/10G RJ45
8 x 1G/2.5G/10G SFP+
12-port totally Auto MDI/MDIX
StandardsIEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3an 10G Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
Lightning Surge / ESD ProtectionSupport Port Surge: Common Mode 4KV, Differential Mode 2KV. (Class A), Electrostatic ESD: Contact 6KV, Air 8KV. (Class A)
LED IndicatorsPWR (power supply), SYS (System), Port 1~4: Green LED ON: 10G Link normal, Yellow LED ON: 100M/1G/2.5G/5G Link normal, Port 5~12: Blue LED ON: 10G Link normal, Green LED ON: 1.25G/2.5G Link normal
MechanicalSolid Metal Housing Desktop
Switch Architecture | Performance
Switching architecture: Store and ForwardBandwidth: 240Gbps
Packet Forward Rate: 178.56Mpps
Packet Buffer: 16Mbit
MAC Address: 32K
VLAN: VLAN range 1-4094, with a maximum active VLAN of 4K
Jumbo Frame: 10K
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance100Base-TX: Cat5 or later UTP(100 meter)
1000Base-TX: Cat5e or later UTP(100 meter)
2500Base-TX: Cat5e or later UTP(100 meter)
10GBase TX: Cat6a, Cat7 or above UTP/STP (100m)
Fiber Medium1000BASE-SX: 62.5μm MMF (Multimode optical fiber) (Minimum range: 2m～275m) or 50μm MMF
1000BASE-LX: 62.5μm/50μm MMF (Minimum range: 2m～550m) or 10μm SMF (Minimum range: 2m～5km)
2500BASE-X: G.652D SMF (Single-mode optical fiber) (Minimum range: 2m～500m or 2m～5Km)
10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m～300m)
10GBASE-LR: IEC and B1.1 and B1.3 SMF (Minimum range: 2m～10km)
Web Management Software Function L2
Port SettingPort Switch Configuration
Port Description Configuration
Port Speed Configuration
Port Duplex Configuration
Port Flow Control Configuration
Jumbo Frame
Link AggregationSupport load balance policy; based on MAC and IP-MAC
Static and Dynamic Group
Support LACP Up to 8 groups
Storm ControlBroadcast Suppression
Unknown Multicast
Unknown Unicast
Port MirroringOne to one monitor
Many to one monitor
Ingress/Egress/Both
Up to 4 session groups
Port SecurityMAC Address Constraints
Protect/Restrict/Shutdown
Port IsolationSupported
Port Rate-limitSupported
VLANAccess/Trunk/Hybrid
VLAN Tunnel (Q-in-Q Tunnel)
VLAN range 1-4094
Maximum active VLAN is 4K
MAC AddressFiltering MAC Address
Static MAC address
LLDPSupport LLDP
Support LLDP MED
Spanning Tree ProtocolSTP/RSTP
BPDU Filter
BPDU Guard
Edge Port
MulticastIGMP Snooping
Router Port
Static IGMP Joint
IGMP V1/V2/V3
QoSTraffic classification
Supporting SP and WRR scheduling
Port Priority
802.1P Priority
IP DSCP Priority
Priority Remark
Supports up to 8 queues per port
ERPSSupport Main Ring
Access ProtocolHTTP
Session Timeout
SecurityDHCP Snooping
Copper TestSupported
PingSupported
Management
Manager AccessHTTP, SNMP
Manager IP

Static Address
Manager VLAN
DNS
DHCP Client

SNMPV1/V2C
Community Name
Trap host
SNMP MIBRFC 1213 MIB-II
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
User ManagementSupported
Firmware ManagementFirmware Upgrade
Configuration ManagementUpload/Backup Configuration
Save, Restart, Factory Defaults
Power
Power InputAC 100~240V 50/60HZ (Internal DC 12/4A)
Power Usage Max45.83W
Environment
Operating Temperature0°C to +40°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelWEB-10TX408
12-port 10Gbps Web Smart Multi Gigabit Switch, incl. 4x RJ45 10G and 8x SFP+ 10G, Plug and Play, Auto-negotiation
Standard Package
Product Size32.0(L) x 20.7(W) x 4.5(H) cm
Package Size37.0(L) x 29.0(W) x 8.5(H) cm
Package WeightN.W: 1.59kg
G.W: 2.16kg
Package Content1 x Switch
1 x Power cord
1 x QIG
Carton Package
Quantity5 PCS / 1 Carton
Dimensions44.5(L) x 31.0(W) x 39.0(H) cm
Weight11.54kg
Spec Sheet
NameDescriptionDownloadDate
WEB-10TX408 Spec Sheet
2024/10/24
