Features

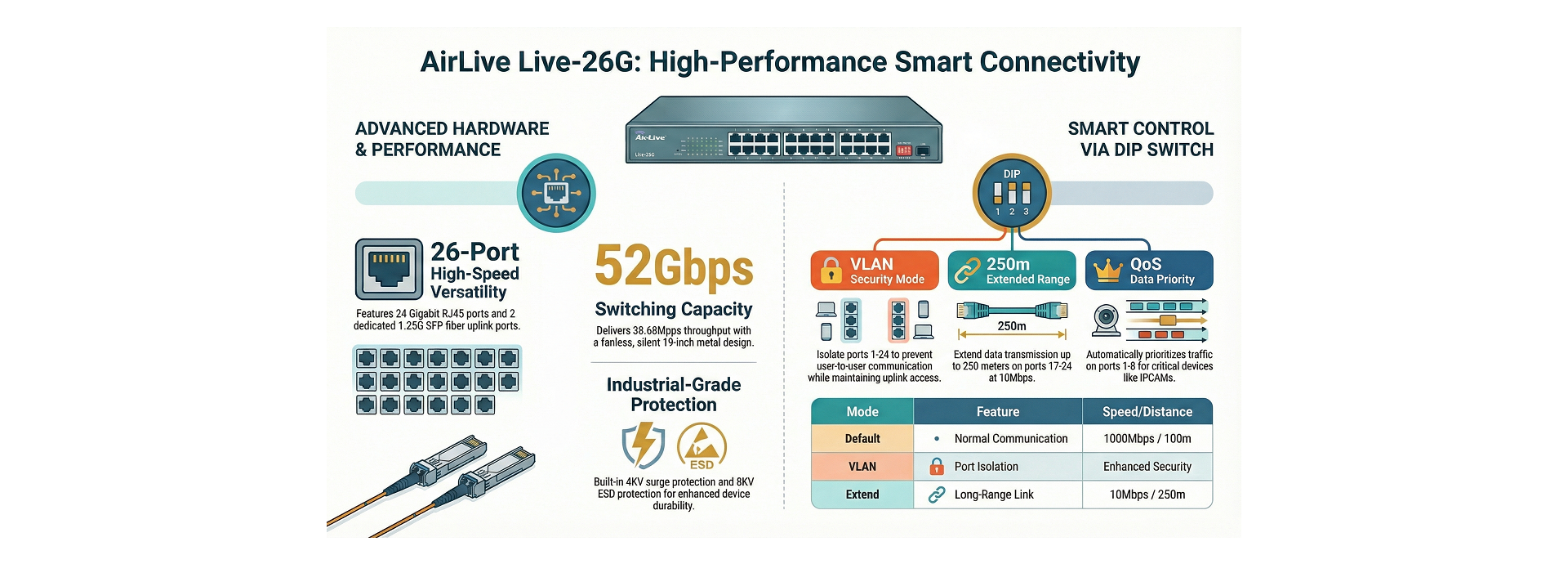

VLAN Mode:
This additional feature gives the switch extra security for the users connected to it. The VLAN mode works as Port isolation, meaning that when it’s enabled the users connected to the LAN ports cannot communicate with each other but only communicate with the UP-Link ports (port 7/8). This way there is an extra layer of security and data will not be shared between the users. This can be used in a small office to separated guests from the company network or in a home to separate tenants.
QoS Priority (Port 1~8):
QoS is supported for data priority, this can be helpful for a IPCAM or high priority preferred device.
Extend Mode (Port 17~24):
The switch’s Extend-mode feature allows data to be transmitted over a longer distance, up to 250Meter, using an RJ-45 cable. However, please note, the speed will drop to 10Mbps for port 17~24 when setting in “Extend Mode”. The Uplink Ports 25/26 still delivers Gigabit speed.
| Hardware | |
| Model | Live-26G |
| Device Interface | 24 x 10/100/1000Mbps RJ45 2 x 1.25G SFP |
| Standards | IEEE802.3u 100Base-TX / 100Base-FX IEEE802.3ab Gigabit 1000Base-T IEEE802.3z 1000Base-FX IEEE802.3x Flow Control |
| Industry standard compliant | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge) |
| LED Indicators | PWR (power supply), Link/Act, 1000M (Speed) |
| Mechanical | Metal |
| Surge and ESD protection | |
| Surge and ESD protection | General 4KV, Differential 2KV, ESD 8KV air, 6KV contact |
| Switch Architecture | Performance | |
| Switching architecture: Store and Forward | Switch Capacity: 52Gbps Throughput; 38.68Mpps MAC Address: 8K Packet Buffer: 4Mb Jumbo Frame: 9.6K Transfer mode: Store and forward MTBF:100000 hour |
| Fiber Medium | Multimode fiber: 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| DIP Switch Control | |
| VLAN | Port isolation mode. In this mode ports (1~24) cannot communicate with each other and can only communicate with the UP-Link port 25/26. |
| Default | Normal mode, all port can communicate with each other, the transmission distance is within 100m, the transmission rate is 10M/100/1000M adaptive |
| Extend | Extension mode, Data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 17~24 only. 17-24 ports support 100M speed reduction negotiation, 250 meters in 10Mbps/s mode, port 25 and port 26 as uplink port at 1000Mbps. Note: VLAN and Extend mode cannot be used at the same time. |
| Power Supply | |
| Power Supply | AC 100~240V |
| Environment | |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Model | Live-26G: 24 x 10/100/1000Mbps RJ45 Switch + 2 x 1.25G SPF |
| Standard Package | |
| Package Size | 50(L) x 29(W) x 8.5(H) cm |
| Package Weight | N.W: 2.36KGS G.W: 2.93KGS |
| Package Content | 1 x Switch, 1 x Power cord, 1x Bracket pair |
| Carton Package | |
| Quantity | 5 PCS / 1 Carton |
| Dimensions | 52(L) x 44.5(W) x 31(H) cm |
| Weight | 15.6 KGS |
