Rich L3 Features

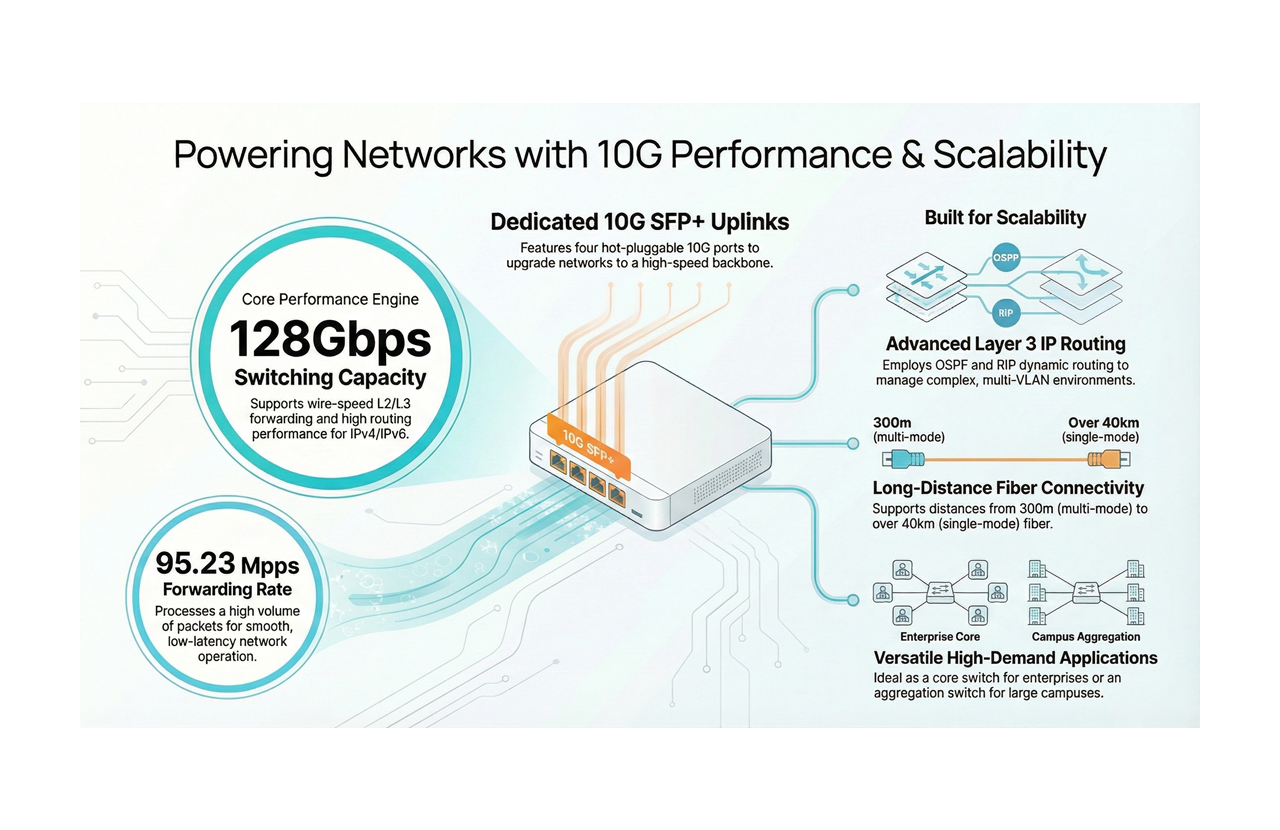

The AirLive L3-XGF28 Series is a next-generation multiservice switch collection that offers remarkable performance and enhanced security. The switches offer high CPU capacity, improved hardware processing power and easier user operation. The L3-XGF28 series supports flexible gigabit access and scalability of high-density 10G ports. All models provide fixed 4X10G fiber ports, With high switching capacity, the L3-XGF28 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With end-to-end service delivery and a wide range of security configurations available, the L3-XGF28 series meets the high-speed, security, and intelligence needs of enterprise networks.

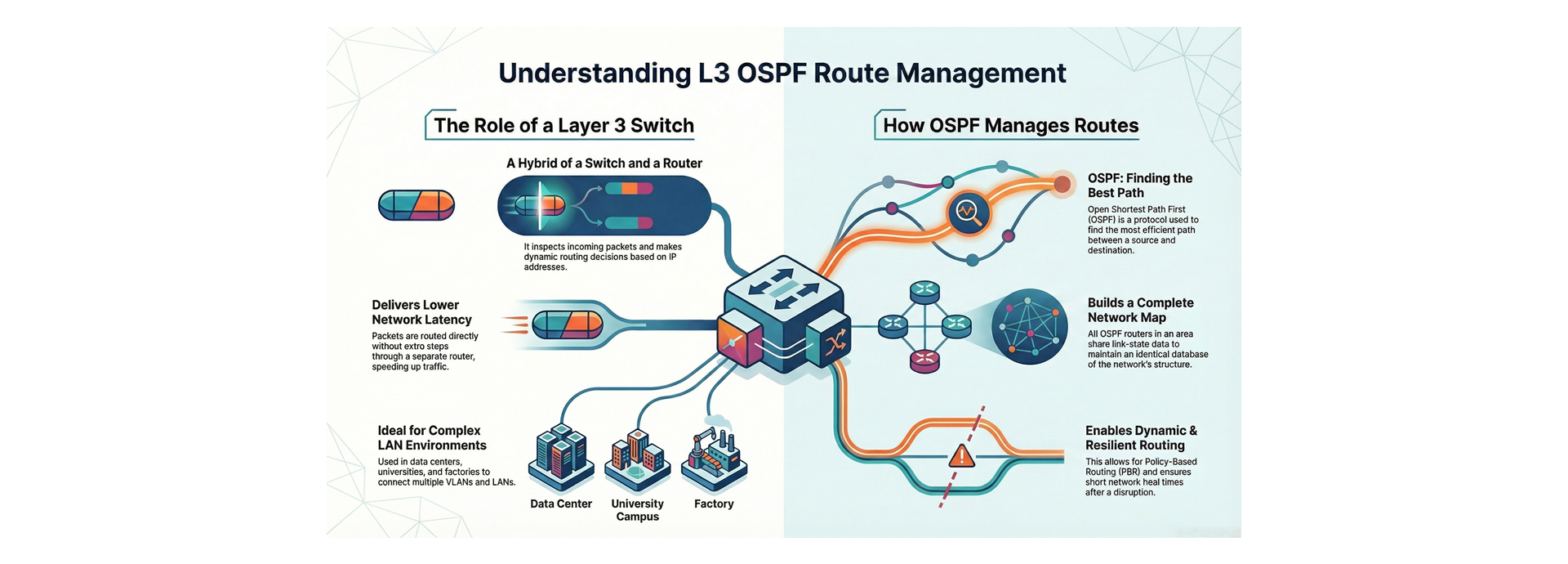

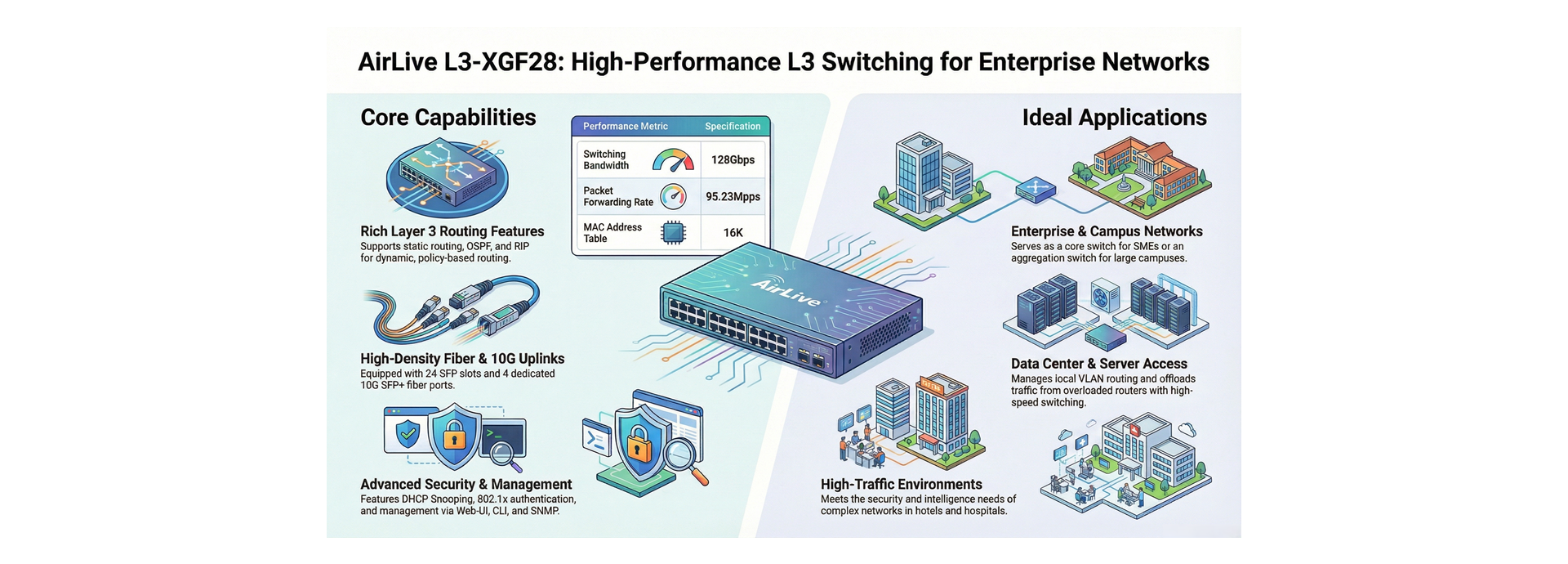

The L3-XGF28 series offers high performance hardware IP routing, Static route, OSPF and RIP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With the L3-XGF28 series, customers could easily achieve a Policy-based Route (PBR), which is important when they need a Fiber Switch to switch application and short network heal time. The L3-XGF28 series with excellent price/performance ratio is ideal for large network aggregation, small to medium network core and server access for data centers.
| Hardware | |
| Model | AirLive L3-XGF28 |
| Device Interface | 24 x SFP slot 4 x 10G SFP+ slot 8 x GE RJ45 (combo) 1 x RJ45 Console Port |
| Standards | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
| LED Indicators | PWR(Power indicator),SYS(System lights),Link(Link light), Act(data light) |
| Lighting Surge Protection | Surge 6KV，ESD 8KV |
| Mechanical | Solid metal 19” 1U rack-mountable, IP30 |
| Power | |
| Power Input | AC 100~240V 50~60Hz |
| Power Consumption | 38W (Without fiber or RJ 45 connected), 96W (Full use). |
| Switch Architecture | Performance | |
| Switching architecture | Bandwidth: 128Gbps Packet Forwarding Rate: 95.23Mpps DDR SDRAM: 128MB Flash Memory: 16MB Package cache: 12Mbit MAC Address: 16K Jumbo frame: 12Kbytes VLANs: 4096 MTBF: 100000 hour |
| Fiber Medium | Multi-mode Fiber: 850nm, 1310nm Transmission Distance: 550m/2Km Single-mode Fiber: 1310nm, 1550nm Transmission Distance: 20/40/60/80/100/120Km |
| ERPS Ethernet Ring Protection | |
| ERPS Ethernet Ring Protection | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. |
| Software Function | |
| Basic functions | Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving |

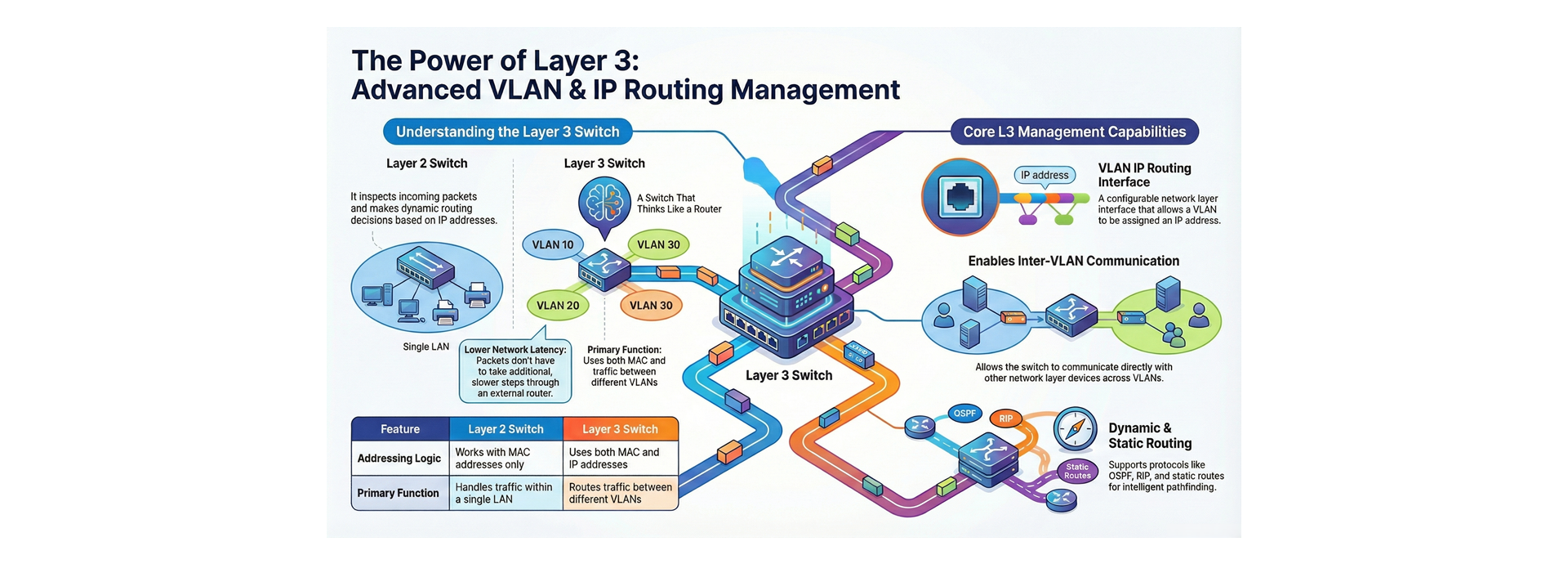

| Layer 3 Interface | Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration |
| Layer 3 Routing | Support IPv4 static routing Support IPv6 static routing Support RIP V1/V2 Support OSPF |

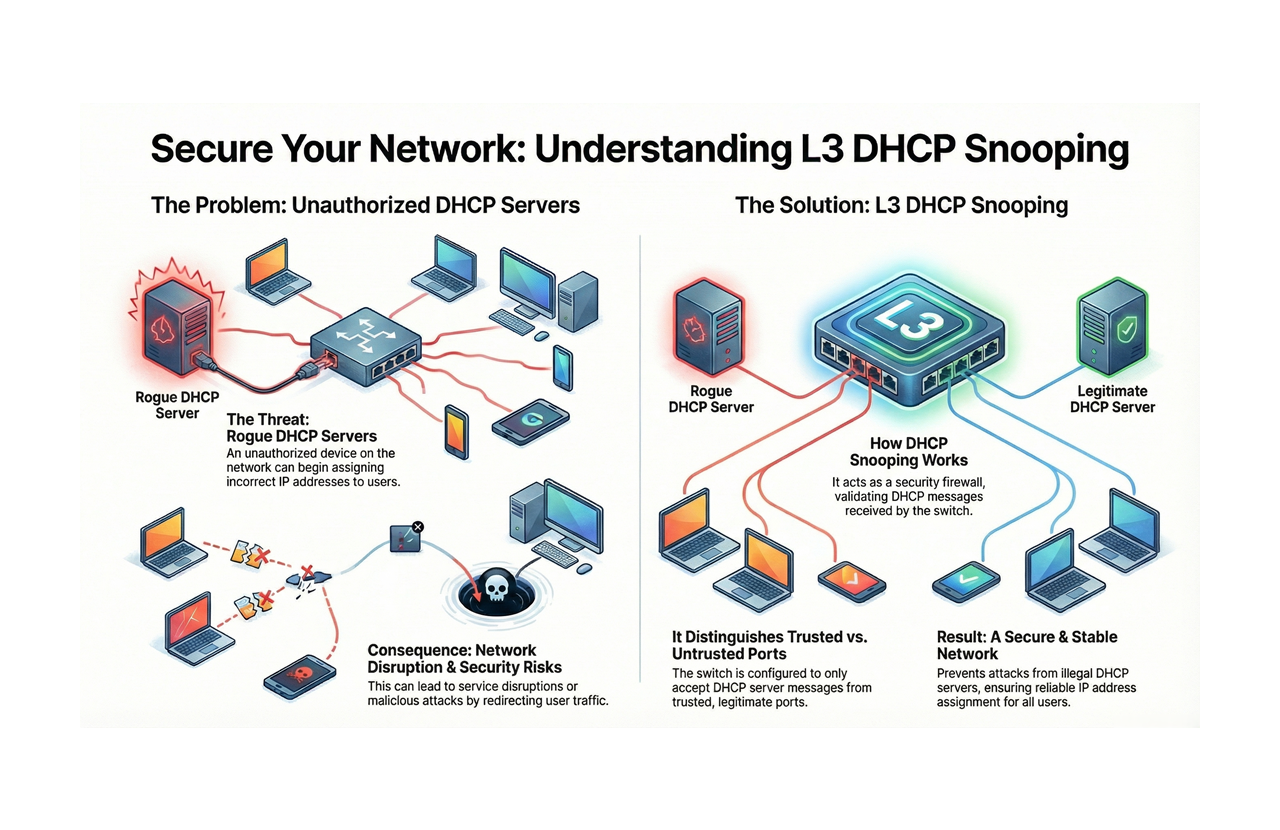

| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN |
| MAC Address | Support MAC address automatic learning and aging Support Static, dynamic, filtered address table |
| Security features | Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol Support Port security, port isolation |
| Access control | Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking |
| QoS | Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm |
| Spanning tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU protection |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast |
| Storm Suppression | Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression |
| Ring protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group) |
| IPv6 | Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS |
| Management and Maintenance | |
| Management and Maintenance | Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection |
| Environment | |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -45°C to +85°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~90%, non-condensing |
| Model | L3-XGF28 L3 28-port Managed Gigabit Fiber Switch with 10G |
| Standard Package | |
| Package Size | 50(L) x 29(W) x 8.5(H) cm |
| Package Weight | N.W: 3.06KGS G.W: 3.63KGS |
| Package Content | Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1 |
| Carton Package | |
| Quantity | 5PCS / 1 Carton |
| Dimensions | 52 x 44.5 x 31 cm |
| Weight | 19.15KGS |
