AirMax4GW: 4G LTE Outdoor Gateway with WiFi

AirMax4GW
AirMax4GW
The AirMax4GW is a standalone 4G LTE outdoor gateway that can distribute 4G or 3G Internet signal through WiFi or Ethernet connections in any location. It is equipped with high gain LTE and WiFi antennas for better reception and transmitting distance.
Bridge between WiFi, Ethernet, and 4G/3G Networks
Bridge between WiFi, Ethernet, and 4G/3G Networks
The AirMax4GW bridges the connections between WiFi, Ethernet, and the 4G LTE Mobile Network. With AirMax4GW, you can connect any WiFi or Ethernet equipped devices to the broadband Internet. On the other hand, you can also provide Internet service coverage through WiFi in any locations.
Dual High Gain Antennas
Dual High Gain Antennas
The AirMax4GW features high gain and high sensitivity 4G LTE antennas. So it can receive 4G or 3G mobile signal where normal mobile phone can not. In addition, it also has a high gain WiFi antenna which can send out wireless signal over large area. This is ideal for operators to install Internet service or connect networking devices to the Internet for their customers.
Remote IPCAM Installations
Remote IPCAM Installations
If you want to install IP cameras in remote locations or in places where it is difficult to get Internet connections, the AirMax4GW is your best solution. AirMax4GW connects the IP cameras to remote recording server and let users do video live view anywhere from Internet. It can do so very securely by using the built-in VPN function.
Internet for Vacation Home and Cottages
Internet for Vacation Home and Cottages
In many countries, people have vacation home or cottages in remote area where it is difficult to deploy wired Internet. AirMax4GW can be installed on the roof top where it can get the best 4G/3G signal reception, then bring the Internet signal through Ethernet cable to the home. Best of all, AirMax4GW's built-in 300Mbps MIMO Wi-Fi can provide wireless connectivity to the entire outdoor area for wireless IP cameras, notebook PC or tablets.
Hotspot Deployment
Hotspot Deployment
The AirMax4GW is the easiest way to deploy Wi-Fi hotspot services. There is no limitation on wiring distance or location of Internet source. It is ready for deployment in any locations. Furthermore, it support 802.1X, UAM server, and URL redirection for easy integration with the operator's authentication network.
Internet Service for Events
Internet Service for Events
When there is Internet service needed for outdoor events such as outdoor concerts, camping, sports event, flea market, business summit,and fairs; the AirMax4GW is the perfect solution for quick deployment. Its powerful and sensitive antennas can receive 4G/3G signal far better than mobile phones and deliver the WiFi over large area.
Parks, Camping Site, and Golf Course
Parks, Camping Site, and Golf Course
The AirMax4GW is the best solution to provide WiFi internet in locations where wires are either prohibited or expensive to deploy. This can be for vacation homes, park, camping site, golf course, or city wide WiFi service deployment.
Policy Based Bandwidth QoS Firewall
Policy Based Bandwidth QoS Firewall
AirMax4GW's enterprise class firewall let administrators control the user's access exactly as needed. You can define the bandwidth and QoS for each device and user to guarantee or limit the bandwidth. You can limit access to certain website or ban certain P2P application from running.

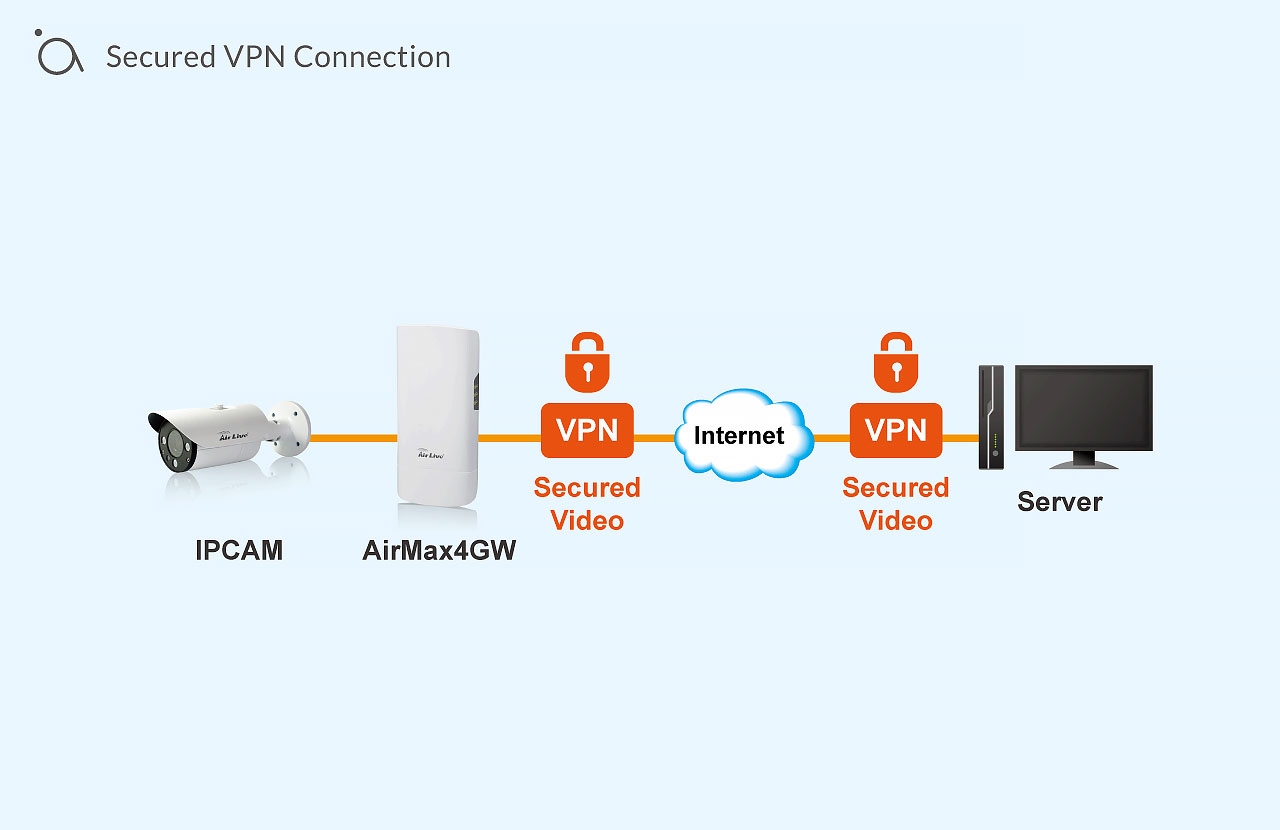

Secured VPN Connection
Secured VPN Connection
The AirMax4GW's VPN function provide secure video transmission over VPN encryption. Therefore, you do not need to worry about leaking sensitive information and keep live video image from prying eyes. Administrators has the choice of using IPsec, PPTP, L2TP, or GRE protocols for encryption.
Captive Portal and External UAM server
Captive Portal and External UAM server
The captive Portal function will redirect wireless users to a specific remote landing web page where provider can show their service information and request users to enter their login information. Together with external 802.1x radius server support, it provides the possibility for WISP and Telecom vendor for authentication based Internet service.
Versatile Management
Versatile Management
The AirMax4GW can be managed via Web, TR069, SNMP, and CLI commands. It provides the operators their preferred way for managing the device.
SMS Short Message
SMS Short Message
The AirMax4GW allow the administrators to send basic commands and get status via SMS message. Therefore, the operators do not need to know the device's IP address and still able to do simple managements and check status with the AirMax4GW.
1
◎ Cellular Gateway for outdoor LTE WiFi Hotspot applications
◎ 1x embedded LTE module with dual-SIM for failover
◎ 1x10/100/1000 LAN PoE-enabled port for local network connectivity
◎ 802.11n 2T2R with 10 dBi directional Antenna
◎ Build-in 4G LTE omni-antenna
◎ Captive Portal Supported
◎ Hardware VPN supported
◎ QoS and Bandwidth management
◎ SNMP, Web, and TR069. SMS for administrator to manage system
◎ IP 55 anti-UV housing
◎ Design for WISP system integrator and telecom application
ModelAirMax4GW
ChipsetMDM9215 (3G/4G)
MTK RT5592 (WiFi)
WANEmbedded LTE Module with 2 SIM slot
LTE Band: 800Mz (Band 20)/900 Mhz (Band 8)/1800Mhz (Band 3)/2600Mhz (Band 7)
3G Band : 900/2100MHz
LAN Port10/100/1000M (Auto-MDI/MDI-X) UTP Port x 1
Antenna10 dBi Directional (WiFi)
2 * 3 dBi Onmi Antenna (LTE)
2 * SMA connector for External LTE
WiFi Frequency2.4G
      - 2.4000~2.4835 GHz
WiFi Operation ModeAP Router
WDS
WDS Hybrid Modes
Wireless SecurityWEP
WPA-PSK
WPA2-PSK
WPA-Radius
802.1x
WizardNetwork Setup Wizard
VPN Setup Wizard
StatusNetwork Status
      - WAN IPv4 status
      - WAN IPv6 status
      - LAN interface status
      - 3G/4G modem status
      - Internet Traffic Status
Wifi Status
      - WiFi Virtual AP List
      - Wifi Traffic Status
LAN Client List
      - Wifi Traffic Status
Firewall Status
      - Packet Filters
      - URL Blocking
      - Web Content Fikters
      - MAC Control
      - Application Filters
      - IPS
      - Options
VPN Status
      - IPSec Status
      - PPTP Server Status
      - PPTP Client Status
      - L2TP Server Status
      - L2TP Client Status
System management Status
      - SNMP Linking Status
      - SNMP Trap Information
      - TR-069 Status
      - UPNP Status
Basic NetworkWAN
      - Physical Interface
      - Internet Setup
LAN & VLAN
      - Ethernet LAN
      - VLAN
WiFi
      - WPS Setup
      - Enable WiFi
      - WiFi Operation Mode
      - Green AP
      - Multiple AP Names
      - Time Schedule
      - Network SSID & Broadcast
      - WLAN Partition
      - Channel
      - WiFi System
      - Authentication
      - Encryption
      - Wireless Client List
      - Beacon Interval
      - DTIM Interval
      - RTS Threshold
      - Fragmentation
      - WMM
      - Short GI
      - Tx Rate
      - RF Bandwidth
      - Transmit Power
IPv6
      - IPv6 Configuration
      - 6to4 WAN Type Configuration
      - LAN Configuration
      - Address Auto-configuration
NAT/Bridging
      - NAT Loopback
      - Virtual Server
      - Special AP & ALG
      - DMZ
Routing
      - static routing
      - Dynamic Routing
DDNS
DHCP Server
Advanced NeteworkFirewall
      - Packet Filters
      - URL Blocking
      - Web Content Filter
      - MAC Control
      - Application Filters
      - IPS
      - Options
QoS & BWM
      - Bandwitdth of Upstream
      - Bandwitdth of Downstream
      - Total Connection Session
      - Rule-based QoS VPN
      - IPSec
      - PPTP
      - L2TP
      - GRE
Redundancy
ApplicationMobile Application
      - SMS
      - USSD
      - Network Scan
      - Remote Mangement
Captive Portal
      - Remote Mangement
SystemSystem related
      - Change Password
      - System Web Log
      - System Tools
Schedule Setting
Grouping
External Servers
MMI
ManagementWeb
Telnet
SNMP
      - V1/V2c/V3/ Trap
SMS
      - Status checking
      - Connect
      - Dissconnect
      - Reconnect
      - Reboot
      - WAN Link up Notification
TR-069
WiFi Output Power (EIRP)ETSI
      - 2.4 GHz : 19±1 dBm
Receive Sensitivity2.4 GHz
      - -90±2 dBm
Power Supply802.3at PoE Input
TemperatureOperating
      - -20~60 ℃
Storage
      - -40~85 ℃



Ordering Information

ModelAirMax4GW
4G LTE Outdoor Gateway with WiFi
EAN Code13 Code:4719869617781
14 Code:14719869617788
Standard Package
Package Size45 * 15.5 * 9.5 cm
Package Weight1.12 kg
Package ContentAirMax4GW, Mounting Kit, Quick Installation Guide, User Manual CD
Carton Package
Quantity5
Dimensions50 * 48 * 19.5 cm
Weight6.905 kg
QIG
NameDescriptionDownloadDate
AirMax4GW - QIG
2015/08/20
User Guide
NameDescriptionDownloadDate
AirMax4GW - User Guide
2015/08/20
Spec Sheet
NameDescriptionDownloadDate
AirMax4GW - Spec Sheet
2015/08/20
CE
NameDescriptionDownloadDate
AirMax4GW - CE
2015/08/21
WISP White Paper
NameDescriptionDownloadDate
AirMax4GW - WISP White Paper
2015/08/25
S.I. White Paper
NameDescriptionDownloadDate
AirMax4GW - S.I. White Paper
2015/08/25
Telecom White Paper
NameDescriptionDownloadDate
AirMax4GW - Telecom White Paper
2015/08/25
Firmware & Software
NameDescriptionDownloadDate
AirMax4GW version 0LSD0.1003_08030900
2015/08/21
AirLive IP Wizard II version1.0.0.3
2016/04/25
GPL Code
NameDescriptionDownloadDate
AirMax4GW - GPL Code
2015/08/25
