Hardware | |
Model | AirLive XGSPON OLT-2XGS |

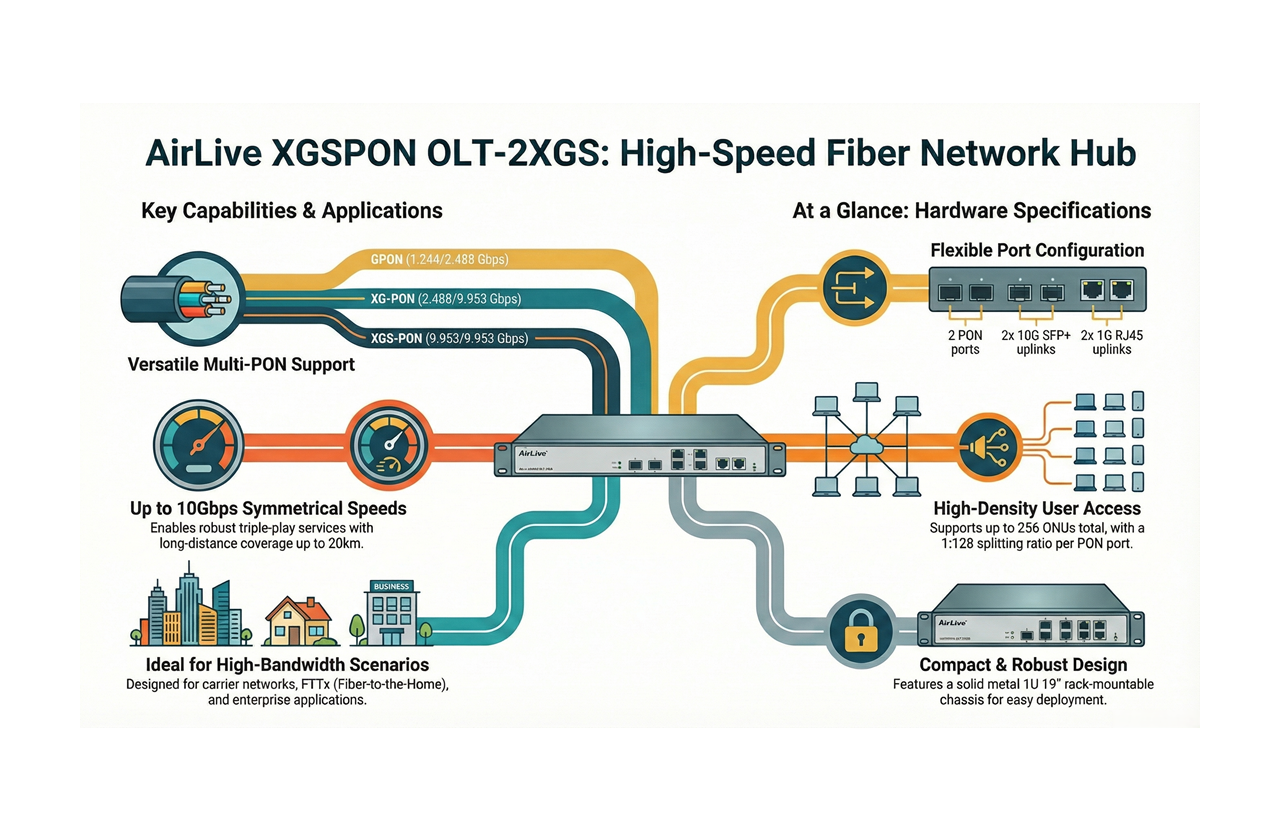

Device Interface | •PON Port: 2x XG(S)-PON (SFP+) •Uplink RJ45: 2x 1GE •Uplink SFP+: 2x 10GE •Console: 1*10/100/1000BASE-T out-band port, 1*Console port, 1*USB2.0 •Fiber Type: 9/125μm SMF •Connector: SC/UPC •Supported ONUs: 256 •GPON port speed: XG-PON ONU: Upstream 2.488Gbps, Downstream: 9.953Gbps •Wavelength: TX 1577nm, RX 1270nmXGS-PON ONU: Upstream 9.953Gbps, Downstream: 9.953Gbps •Max splitting ratio: 1:128 (Module Based) •Transmission Distance: 20KM •Backplane Bandwidth (Gbps): 280 •Port Forwarding Rate(Mpps): 124.992 •Management Mode: WEB, Telnet, CLI |
Firmware features | |
Management Function | Telnet, CLI, WEB, Fan Group Control Port Status monitoring and configuration management Online ONU configuration and management User management Alarm management |
Layer2 Switch | 16K Mac address Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support VLAN translation and QinQ Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Support static LACP, Dynamic LACP QoS based on port, VID, TOS and MAC address Access control list IEEE802.x flow control Port stability statistic and monitoring |
Multicast | IGMP Snooping 1K L2 Multicast Groups 1K L3 Multicast Groups |
DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 |
Layer 3 Route | ARP proxy 16K hardware Host Routes, 1024 hardware Subnet Routes Support static route |
IPv6 | Support NDP Support IPv6 Ping, IPv6 Telnet, IPv6 routing Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc Support MLD v1/v2 snooping(Multicast Listener Discovery snooping) |
PON Function | T-CONT DBA x-GEM traffic In compliant with ITU-T G.9807(XGS-PON) and ITU-T G.987(XG-PON) Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, RSTP, etc Support ONU auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system |
Power Consumption | |
Power | 1x AC 110~264V, 50/60Hz (35W) (Default) 2x AC 110~264V, 50/60Hz (35W) (Option) 1x AC 110~264V, 1x DC 48V (Option) 2x DC 48V (Option) |
Power Consumption | Max 40W |
Environment | |
Working Temperature | 0°C to +50°C |
Storage Temperature | -40°C to +85°C |
Relative Humidity | 5%~90%, non-condensing |
Model | XGSPON OLT-8XGS AirLive XGSPON OLT-2XG 2 Port 10G XG(S)PON OLT with 10G SFP+ |
Standard Package | |
Product Size | 44.2(L) x 20.0(W) x 4.36(H) cm |
Package Size | (L) x (W) x (H) cm |
Package Weight | N.W: 2.485kg (Single Power) G.W: kg |
Package Content | 1 x Device, 1 x Power Cable , Installation Kits, QIG |
Carton Package | |
Quantity | PCS / 1 Carton |
Dimensions | (L) x (W) x (H) cm |
Weight | kg |
Name | Description | Download | Date |
XGSPON OLT-2XGS Spec Sheet | 2024/05/30 |
