Hardware | |
Model | AirLive XGSPON OLT-8XGS |

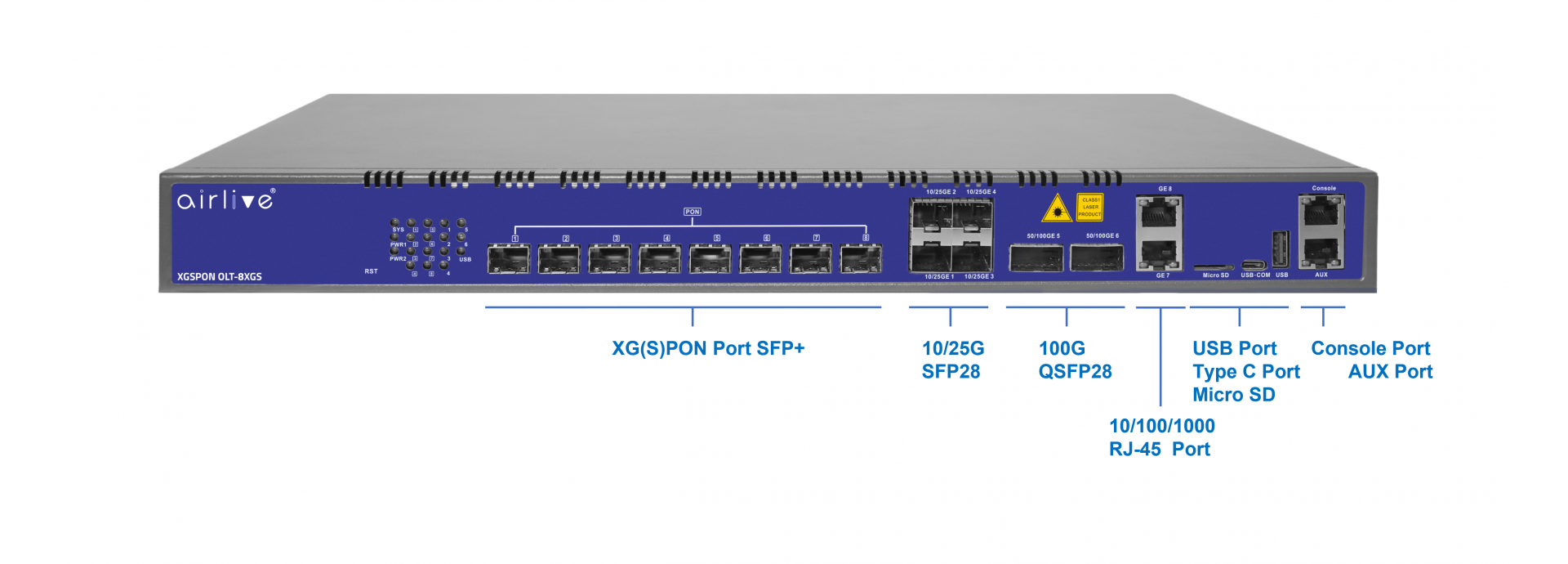

Device Interface | •PON Port: 8x XG(S)-PON (SFP+) N1/N2a •Uplink RJ45: 2x 1GE •Uplink SFP28: 4x 10/25GE •Uplink QSFP28: 2x 100GE •Console: 1*10/100/1000BASE-T out-band port, 1*Console port, 1*USB3.0 Type C Console, 1*MicroSD port •Fiber Type: 9/125μm SMF •Connector: SC/UPC •PON Port TX Power: +4dBm ~ +8dBm •PON Port RX Sensitivity: ≥-29.5dBm •PON Port Saturation Optical Power: -9dBm •Supported ONUs: 2048 •GPON port speed: XG-PON ONU: Upstream 2.5Gbps, Downstream: 10Gbps •Wavelength: TX 1270nm, RX 1577nmXGS-PON ONU: Upstream 10Gbps, Downstream: 10Gbps •Max splitting ratio: 1:256 •Transmission Distance: 20KM •Backplane Bandwidth (Gbps): 970 •Port Forwarding Rate(Mpps): 598.176 •Management Mode: CLI: (Console/Telnet/SSH), WEB, SNMP (EMS) |
Firmware features | |
Management Function | SNMP, Telnet, CLI, WEB, SSH v2; Fan Group Control Port Status monitoring and configuration management Online ONU configuration and management User management Alarm management |
Layer2 Switch | 32K Mac address Support 4096 VLANs Support port VLAN and protocol VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support VLAN translation and QinQ Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Support static LACP, Dynamic LACP QoS based on port, VID, TOS and MAC address Access control list IEEE802.x flow control Port stability statistic and monitoring |
Multicast | IGMP Snooping 2048 IP Multicast Groups |
DHCP | DHCP server, DHCP relay, DHCP snooping DHCP option82 |
Layer 3 Route | ARP proxy 4096 hardware Host Routes,512 hardware Subnet Routes Support 802.1X,Radius,Tacacs+ Support IP source guard Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3; |
IPv6 | Support NDP Support IPv6 Ping,IPv6 Telnet,IPv6 routing Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc Support MLD v1/v2 snooping(Multicast Listener Discovery snooping) |
PON Function | T-CONT DBA x-GEM traffic In compliant with ITU-T G.9807(XGS-PON) and ITU-T G.987(XG-PON) Up to 20KM transmission Distance Support data encryption, multi-cast, port VLAN, separation, RSTP, etc Support ONU auto-discovery/link detection/remote upgrade of software Support VLAN division and user separation to avoid broadcast storm Support power-off alarm function, easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support RSTP,IGMP Proxy |
Power Consumption | |
Power | 150W |
Environment | |
Working Temperature | 0°C to +55°C |
Storage Temperature | -40°C to +85°C |
Working Humidity | 10%~85%, non-condensing |
Storage Humidity | 5%~95%, non-condensing |
Model | XGSPON OLT-8XGS AirLive XGSPON OLT-8XG 8 Port 10G XGSPON OLT with 100G SFP+ |
Standard Package | |
Product Size | 44.2(L) x 33(W) x 4.36(H) cm |
Package Size | (L) x (W) x (H) cm |
Package Weight | N.W: 4.20KGS G.W: KGS |
Package Content | 1 x Device, 1 x Power Cable , Installation Kits, QIG |
Carton Package | |
Quantity | PCS / 1 Carton |
Dimensions | (L) x (W) x (H) cm |
Weight | KGS |
Name | Description | Download | Date |
XGSPON OLT-8XGS Spec Sheet | 2023/05/10 |
