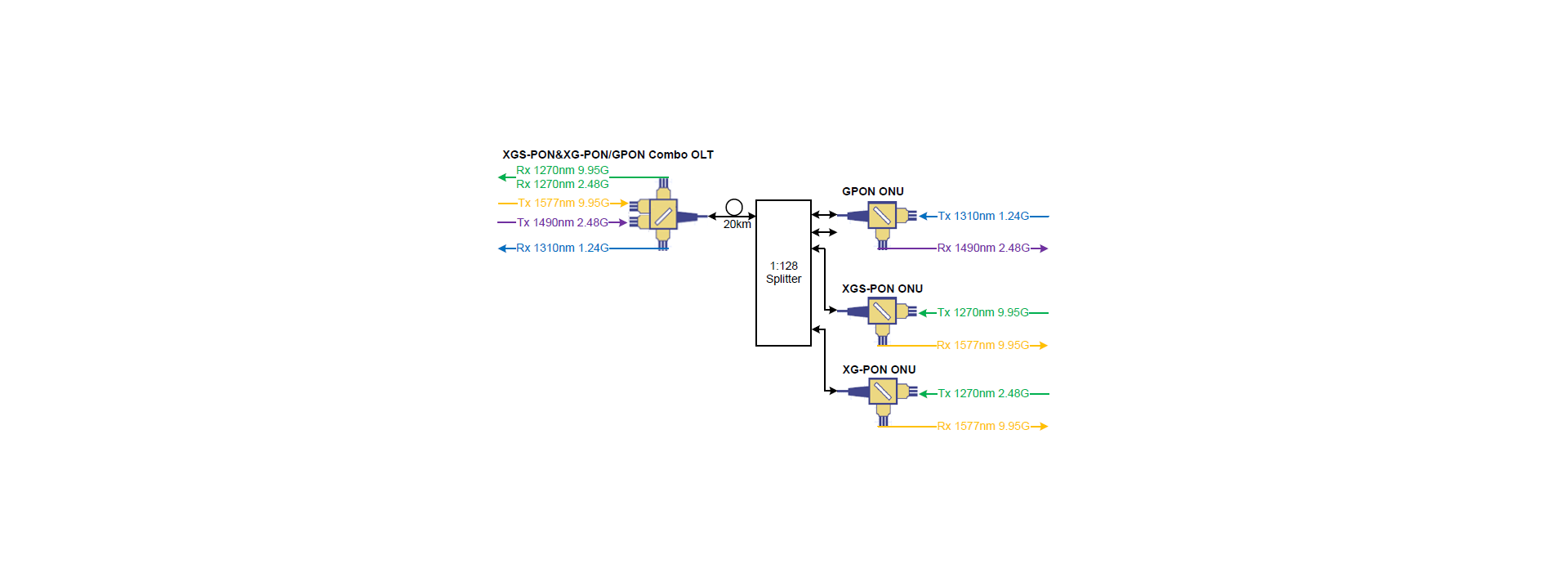

The XG(S)PON Combo OLT SFP+ Transceiver module is designed for triple play use, supporting XGS-PON, XG-PON and GPON transmissions up to a 20km distance. It incorporates a High power 1577nm EML LD and High power 1490nm DFB LD and High sensitivity 1270nm/1310nm APD . This makes that the module can work at bi-directional data links with a TX of 9.953Gbps and a Burst Mode of RX 9.953G/2.488Gbps, as well as bi-directional data links with a TX of 2.488Gbps and a Burst Mode of RX 1.244Gbps. This offers more options and connectivity in combination with the AirLive OLT-2XGS and OLT-8XGS OLT’s.
The transceiver combines a GPON OLT SFP Class C+ module + a XG(S)-PON SFP+ N2 module + WDM1R all into one. Offering more flexibility in the applications which can be used with the module. Housed in a metallic package, the module guarantees excellent EMI and EMC characteristics, ensuring reliable performance in various environments.

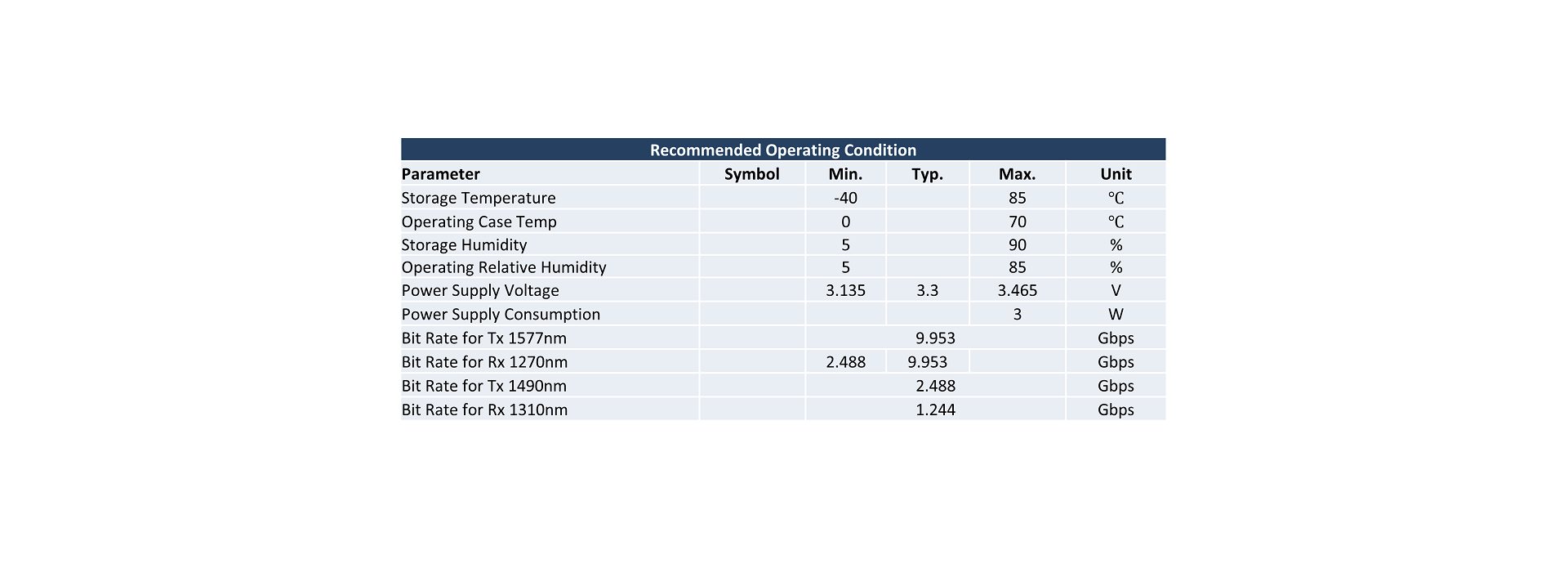

| Model | AirLive XG(S)PON Combo OLT SFP+ N2/C+ |
| Hardware | |
| Power Supply Voltage | 3.13V~3.47V Typical Power Supply Voltage: 3.3V |
| Standard | Complies with SFF-8472 Complies with ITU-T G.9807.1 and ITU-T G.987.2 Complies with ITU-T G.984.2 Complies with FCC 47 CFR Part 15, Class B Complies with FDA 21 CFR 1040.10 and 1040.11 |
| Transmitter (Electrical - Optical) | Optical Center Wavelength XGS-PON: Min.: 1575nm, Max.: 1580nm Optical Center Wavelenght GPON: Min.: 1480nm Max.: 1500nm |
| Receiver -Optical, Electrical | Operating Wavelength XG/XGS-PON: Min.: 1260nm Max.: 1280nm Operating Wavelenght GPON: Min.: 1290nm Typ.: 1310nm Max.: 1330nm |
| RSSI Timing Specification | Optical Signal During Time: Min 1200ns RSSI Trigger width: Min 550ns, RSSI Trigger Delay: Min 150ns I²C Access Prohibited Time: 500us |
| Environment | |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Relative Humidity | 5%~85%, non-condensing |
| Storage Relative Humidity | 5%~85%, non-condensing |
| Model | AirLive XG(S)PON Combo OLT SFP+ N2/C+ XG(S)/GPON OLT Optical Module 10G/2.5G/1.25G 20KM TX1490/1577nm/RX1310/1270nm |
| Standard Package | |
| Product Size | 67.5(L) x 14.0(W) x 8.55(H) mm |
| Package Size | TBD mm (LxWxH) |
| Package Weight | TBD kg |
| Package Content | 1 x Fiber Module |
| Name | Description | Download | Date |
| XG(S)PON Combo OLT SFP+ N2/C+ Spec Sheet | 2024/07/01 |
