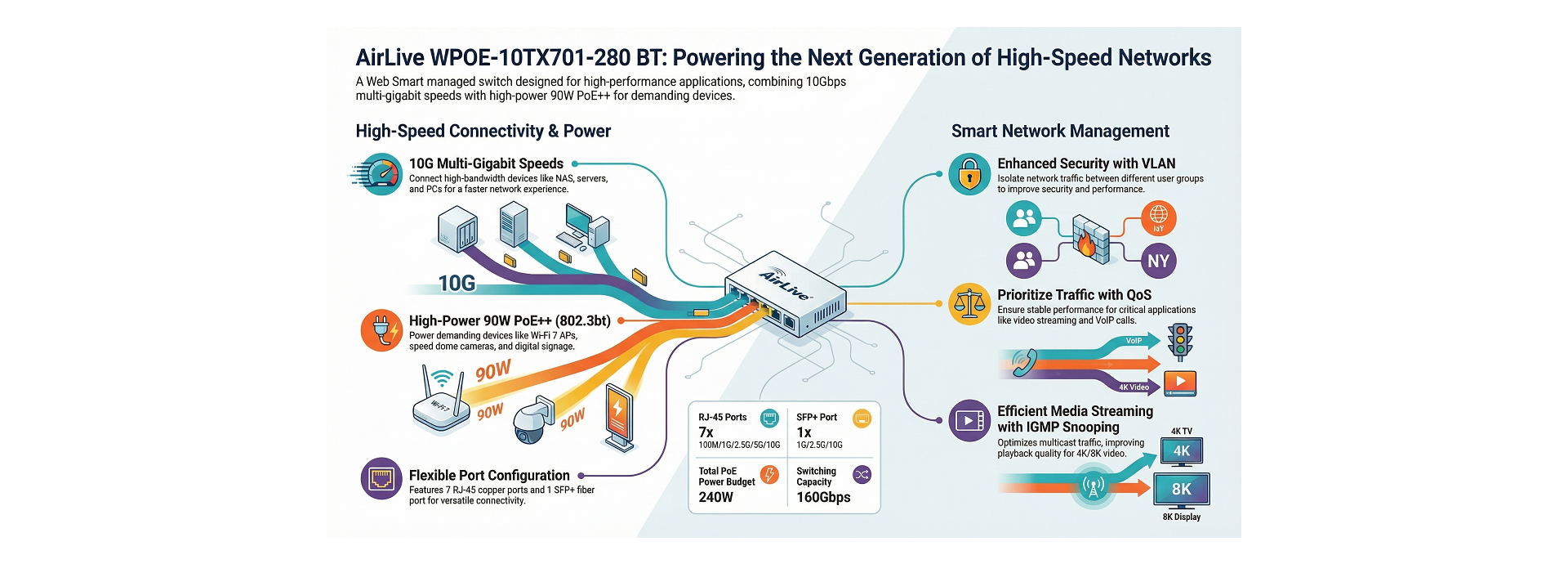

The AirLive Multi-Giga switch, WPOE-10TX701-280 BT, is a WebSmart Managed switch, which supports 7x 10G PoE 90W (802.3bt) RJ45 ports and 1x SFP+ ports for delivering up to 10Gbps extra high-speed connection. Each port can auto-adaptively deliver speed at 100M/1G/2.5G/5G/10G on RJ45 and 1G/2.5G/10G on SFP+ to connected devices. The total PoE power is 240W which can power on several PoE++ devices like the new Wi-Fi 7 Access Points, IP Cameras and Digital Signage products. It supports WEB Management function and is easy to manage and maintain.
The easy to operate WPOE-10TX701-280 BT has several functions like VLAN setting for a more secure connection. QoS to have more control of the bandwidth and many more like, IGMP, Loop Prevention, Port-Base Mirroring, Port Isolation, Bandwidth Control, Security (MAC Address /table /search/static MAC; Storm control and more. With the 10G multi-Giga switch, you can connect to a variety of 10GbE-enabled devices, such as NAS | NVR | PC | Server, for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.

With the AirLive 10G Multi-Giga switch WPOE-10TX701-280 BT, you can connect to a variety of 10GbE-enabled devices, such as Access Point | IP Camera |NAS | NVR | PC | Server and more , the RJ45 and SFP+ ports are fully auto adaptive and can also work at multiple speeds for enjoying faster experience and handle bandwidth-hungry applications.

Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard and the unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

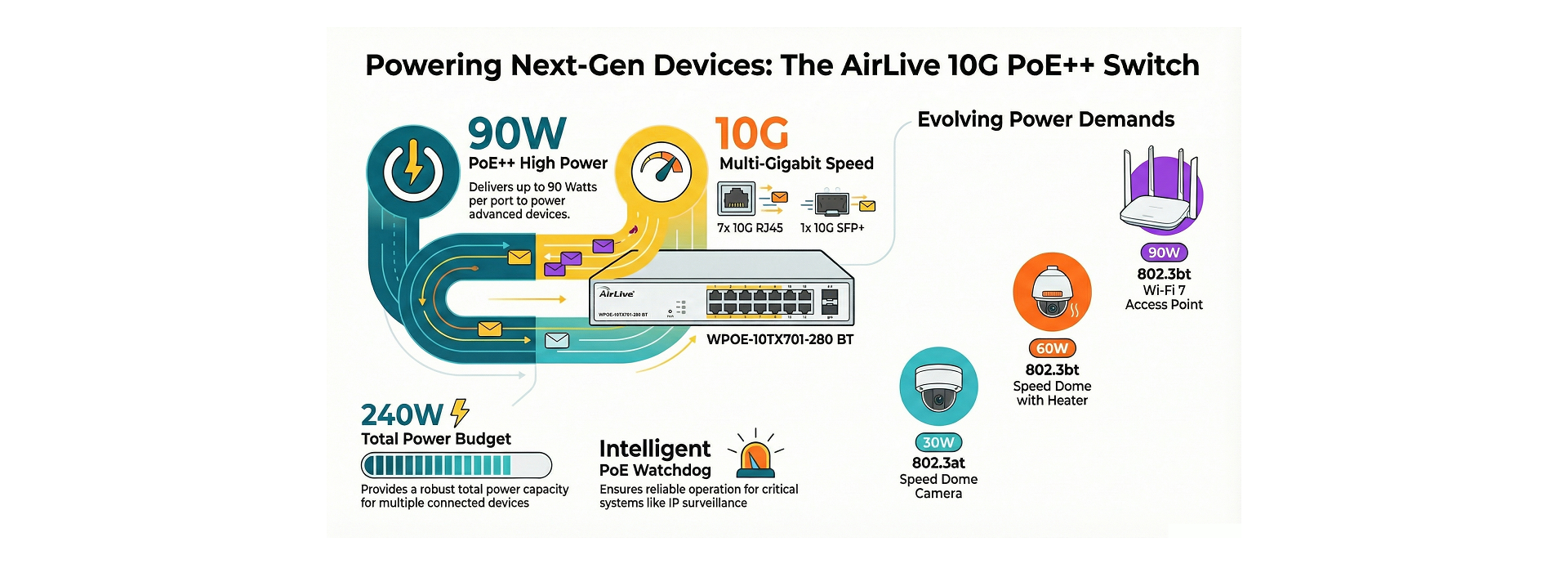

AirLive WPOE-10TX701-280 BT supports the high-power output PoE++ at 90W for ports 1~7. This higher output allows it to power more device than just an IP camera or Wi-Fi 5/6 Access point. The 90W PoE can be used to power on high power needed PoE Systems, Like the AirLive TOP-100BE Wi-Fi Access Point has a 10G RJ45 WAN port and require 802.3bt 90W power to work, Other products that need high power are Digital Signage or PoE LED lighting and much more. The new range of 10G PoE switches with 802.3bt support offer you more flexibility on the usage, as you are no longer restricted to only 30W or low transfer speeds.

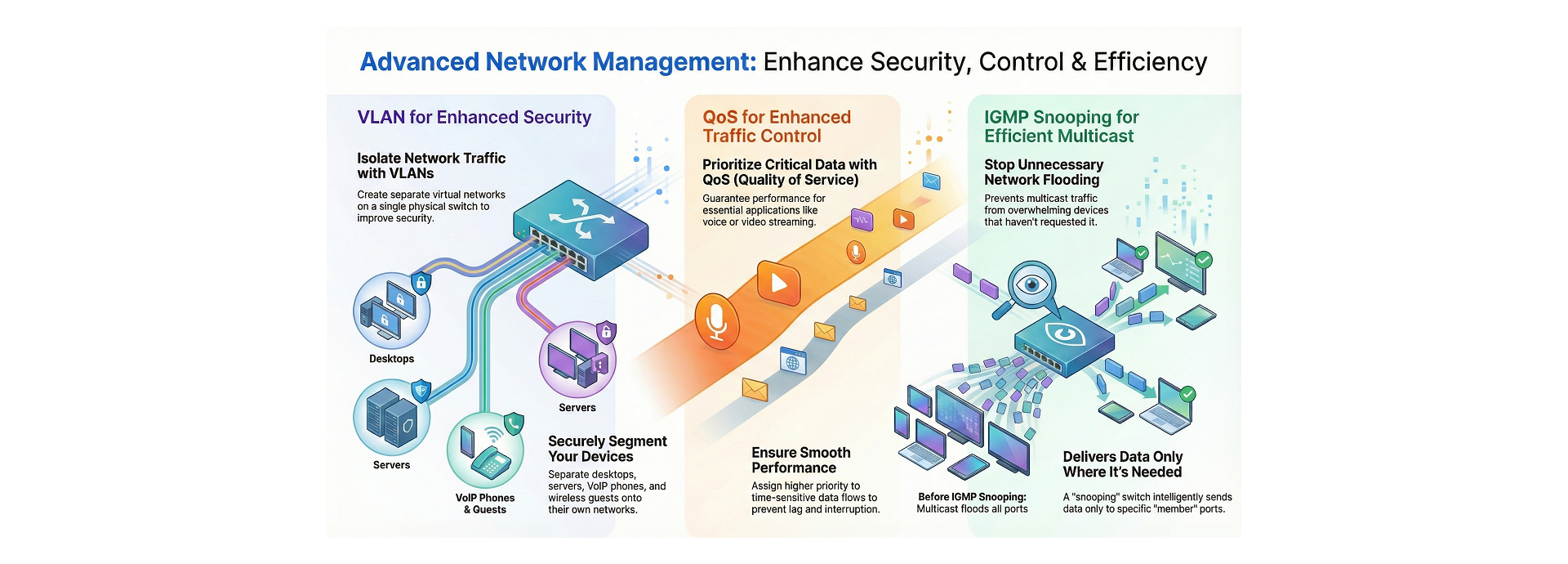

The VLAN 802.1Q VLAN tagging settings can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. With the help of VLAN interface, switches can communicate with other network layer devices.

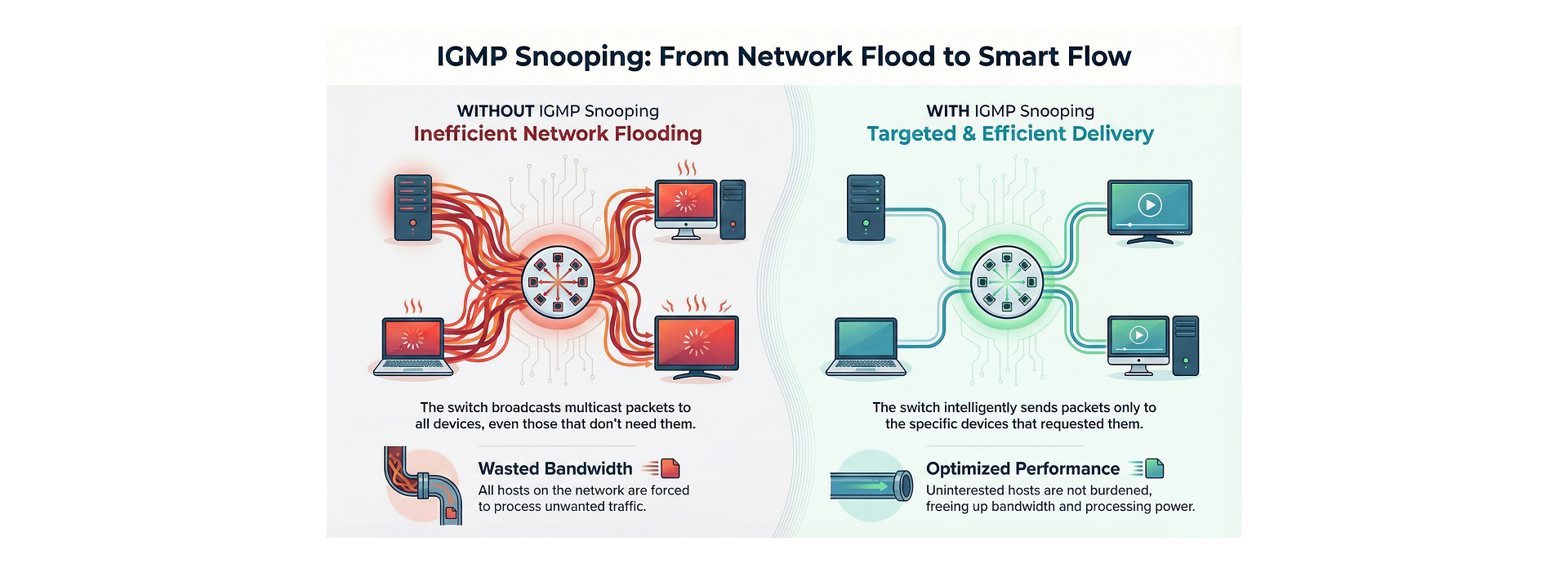

Multicast protocols is compliant with IGMP v1/v2/v3 and supports abundant multicast features such as IGMP v2/v3 snooping and fast leave. By analyzing the IGMP messages received, L2 devices establish a mapping between ports and MAC multicast addresses and forward the multicast data accordingly.
