Hardware | |
Model | WLAN-128GM |
Device Interface | •Main Chip: MTK MT7621 •Flash:16MB •SSD:256MB •Ethernet (LAN): 4 x RJ45 10/100/1000mbps •WAN: 1x RJ-45 10/100/1000mbps •Network Protocol: IEEE 802.3, 802.3u, 802.3ab, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP, CAPWAP Protocol •Heat Dissipate: Super silent ball fan •Power Input: 1 x 12VDC •Power:AC:100-240V,50HZ |
WAN | PPPoE, DHCP, Static IP, by Pass mode |

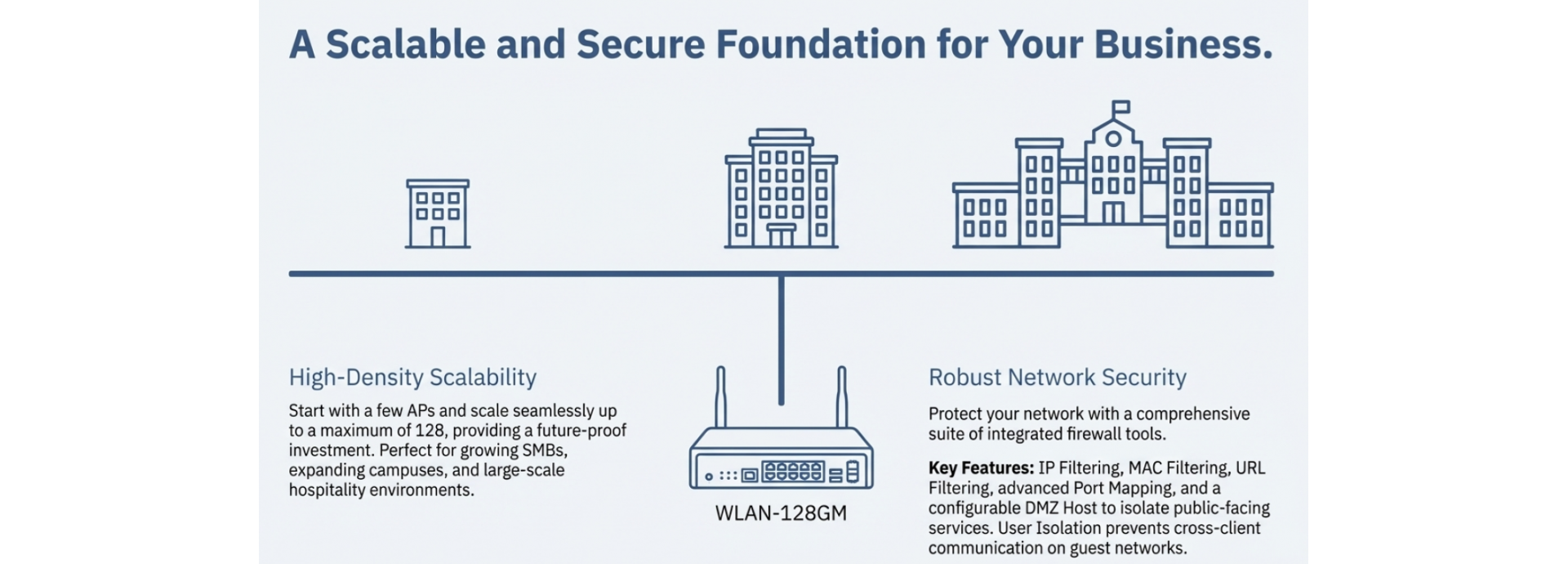

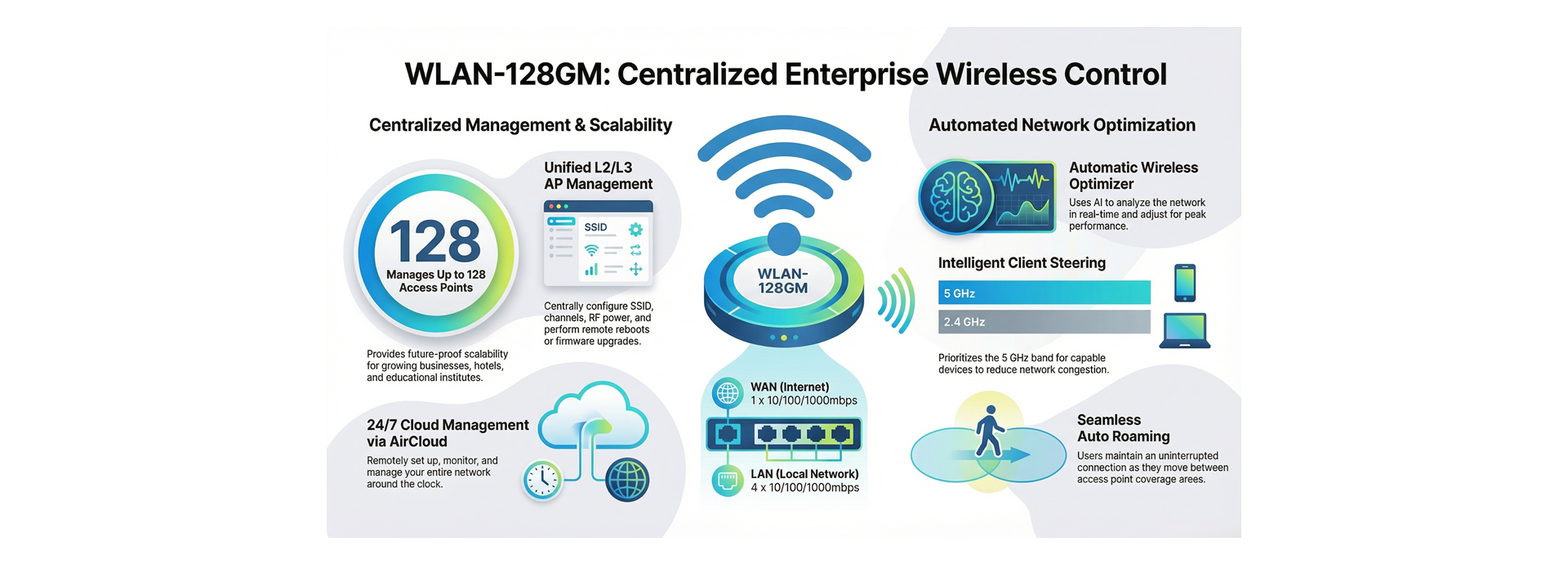

Firmware features | AP Management: Max to manage 128 PCS wireless AP Centrally and remotely to manage/configure wireless AP AP Template deploy View user’s status Wireless Country Code Reboot/Reset Web Password Delete AP Online User List AP Configure AP Template: Device Add Device Configure Wireless Device Wireless Frequency: 2.4G/5.8G Encryption VLAN ID Virtual AP1~4 Country Code Max Station User Isolation Short GI Beacon Interval Coverage Threshold Fragment Threshold RTS Threshold Reboot Regularly Device Web Password |
Device Upgrade | Online upgrade Local Upgrade Firmware Upgrade |
Device Service | AC Enable\Disable DHCP Enable\Disable Server IP Address Address Count Lease Time Allocated IP IP List Static Binding |
IPTV Setting | Enable IPTV mode IPTV tags Topology Graph |

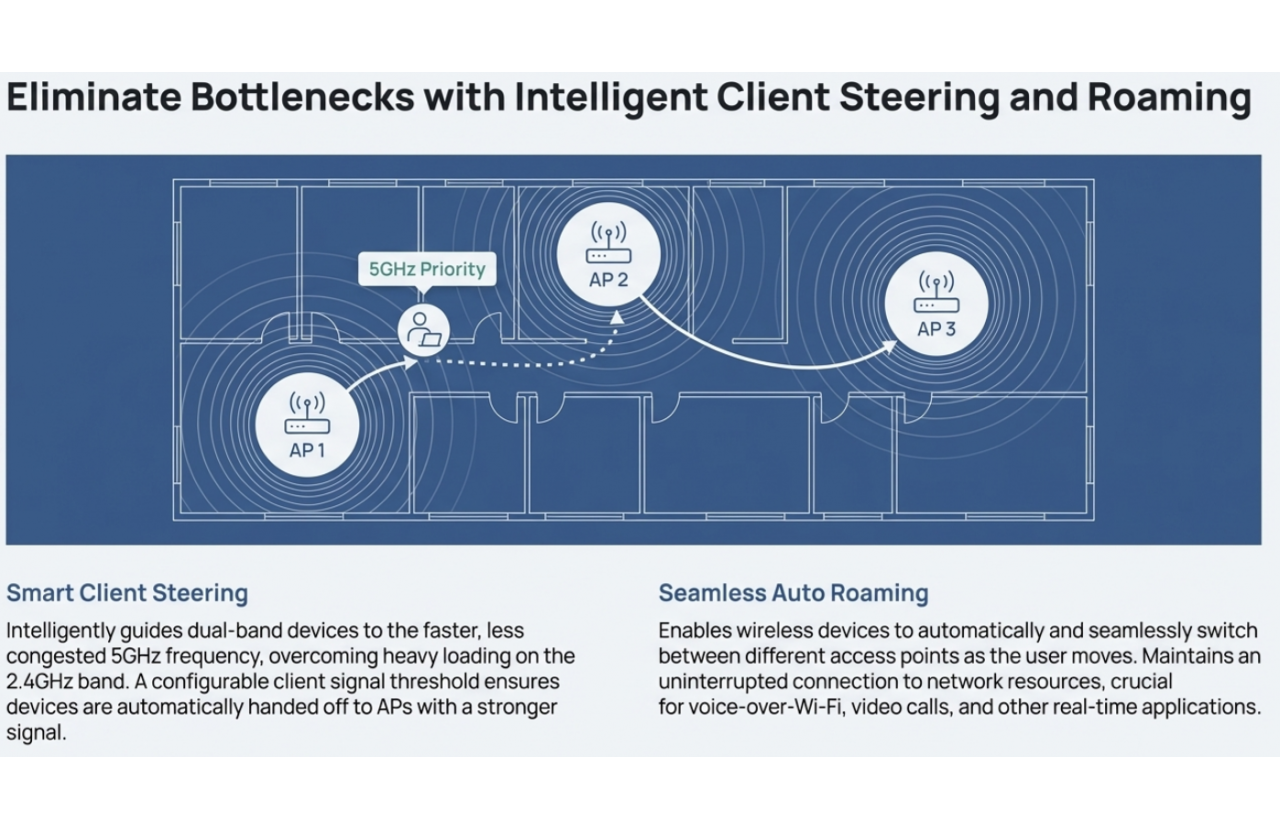

Device Auto Roaming | Auto Roaming 5G priority |
Network | Lan Setting IP Address Subnet DHCP Service Start/End IP Primary/Secondary DNS DHCP Lease Time DHCP Allocation Number |
WAN Setting | Internet Access: DHCP/Static IP/PPPoE/ByPass MTU Line Detection |
Cloud | Cloud Enable/Disable Cloud Server Latitude/Longitude Binding State |
User | User List Link Blacklist |
User Speed Limit | One Key Enable/Disabled IP Group Time Group Up/Down Remake |
Firewall | IP Filter Rule Name Protocol TCP/UDP IP Address Search External Port Internal Port MAC Filter Name Time Group Mac Address Search Mac Address URL Filter Name Time Group URL Address Port Map Name Protocol TCP/UDP IP Address Search External/Internal Port DMZ Host DMZ IP Address Search |
System | System Time Current version Upgrade Type Online Upgrade Local Upgrade Upgrade Time Restore Default Configure Upgrade |
Maintain | Remote Login Remote Telnet Reboot Regularly DHCP Conflict Detection Capture packet Network Protocol Source Address Target Address Target Port Number Ping |
Environment | |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +70°C |
Working Humidity | 5%~97%RH (No condensation) |
Model | WLAN-128GM Enterprise Gateway & Wireless Controller |
Standard Package | |
Product Size | 44(L) x 24(W) x 4.4(H) cm |
Package Size | 50(L) x 28.5(W) x 8(H) cm |
Package Weight | N.W: TBC KGS G.W: TBC KGS |
Package Content | |
Carton Package | |
Quantity | 5 PCS / 1 Carton |
Dimensions | 51.5(L) x 42.5(W) x 30.8(H) cm |
Weight | 15.21KGS |
