USB-18AX: Wi-Fi 6 AX 1800Mbps USB3.0 Wireless Ethernet Adapter

Upgrading your notebook | PC to advanced Wi-Fi 6
Upgrading your notebook | PC to advanced Wi-Fi 6
AirLive USB-18AX WiFi 6 USB 3.0 WiFi 6 adapter is developing for upgrading you Notebook or PC to the ultrafast speed 1800Mbps and enjoying advanced WiFi 6 technology. Compliant with 802.11ax WiFi 6 technology, it supports most of Wi-Fi 6 advantages such as OFDMA | MU-MIMO | OBSS | Range Boost better wireless signal and coverage; 1024 QAM data encryption for large data uploading/downloading efficiently, WPA3 enhanced security. With USB-18AX installed, your notebook or PC can connect to Wi Fi 6 router, such as AirLive W6184QAX, and to enjoy the latest wireless technology at ultra high speed wireless connection.

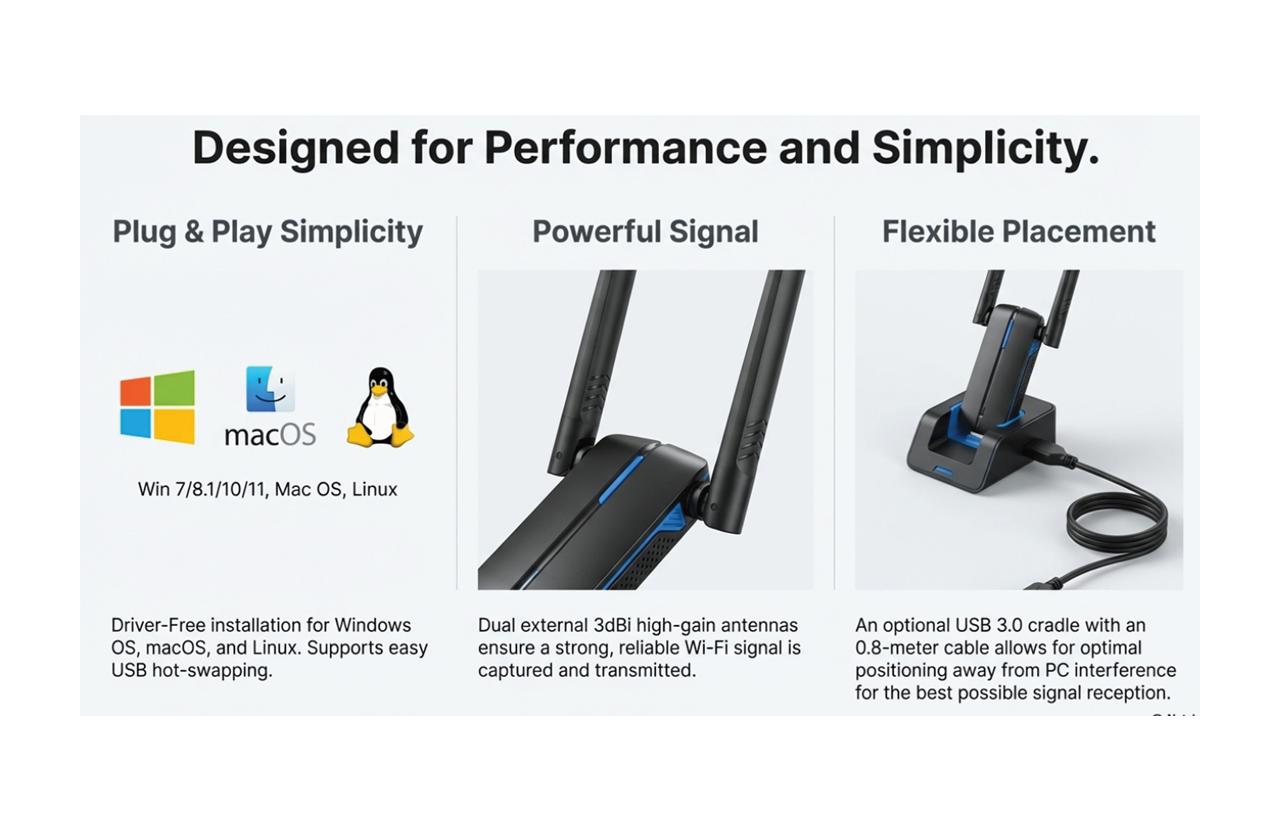

Driver Free Installation
Driver Free Installation
Plug and Play for macOS and Linux, Integrated driver for Windows OS with just one click to install automatically.
Super fast WiFi Speed
Super fast WiFi Speed
USB-18AX supports dual bands WiFi 6 technology. It is almost 1.5x faster comparing to Wi-Fi 5 11ac or, 4X faster than 11n.

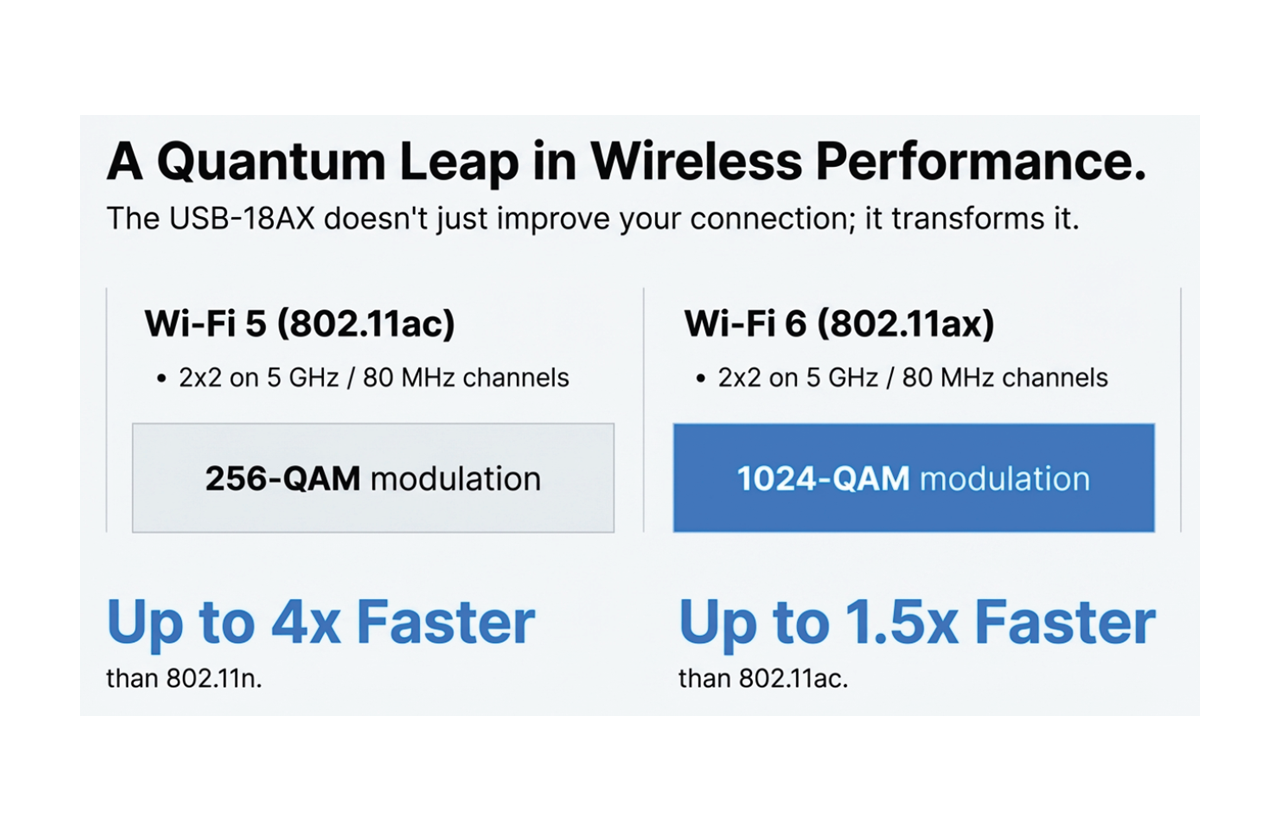

Compare: 18AX USB to AC USB wireless adapter
WiFi6 USB-18AX: 2x2 802.11ax on 5 GHz / 80 MHz channels with 1024QAM modulation
WiFi5 USB 11AC: 2x2 802.11ac on 5 GHz / 80 MHz channels with 256QAM modulation
Features
  • Upgrades Notebook and PC to WiFi 6 via USB with speed up to 1800Mbps
  • 802.11ax/ac/a/b/g/n compliant, dual bands, 2x2 2T2R
  • Driver Free installation for windows OS
  • Enjoys WiFi 6 technology and great transmission in high density environments with OFDMA, MU-MIMO and BSS coloring
  • External antennas and optional cradle ensures powerful WiFi signal

  • Supports WPA3 for enhanced WiFi security and more robust authentication
  • Easy installation: Plug-and-Play, USB hot-swapping
  • Supports Windows Win7/Win8.1/Win10 (32/64bit), Mac OS and Linux.
  • Great upgrade for online gaming and online streaming
Enjoy Wi-Fi 6 Technology and Advantages
Enjoy Wi-Fi 6 Technology and Advantages
to upgrade wireless connection to 1800Mbps high speed, AirLive USB-18AX Wi-Fi 6 USB 3.0 adapter contributes Wi-Fi 6 advantages which is much better than Wi-Fi 5 11ac or 11n. The OFDMA | MU-MIMO | OBSS | Range Boost for having strong wireless signal and wide coverage; 1024 QAM data encryption for large data uploading/downloading efficiently, WPA3 enhanced security.

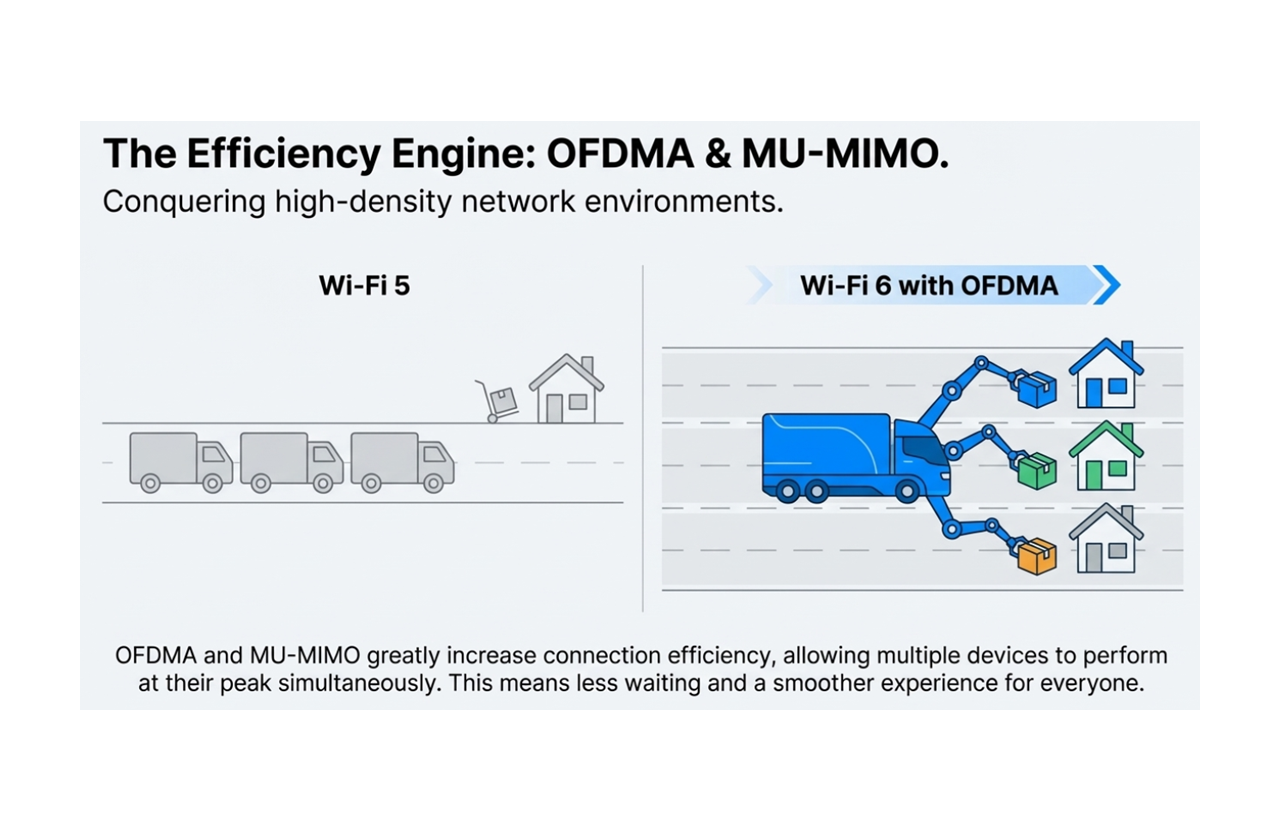

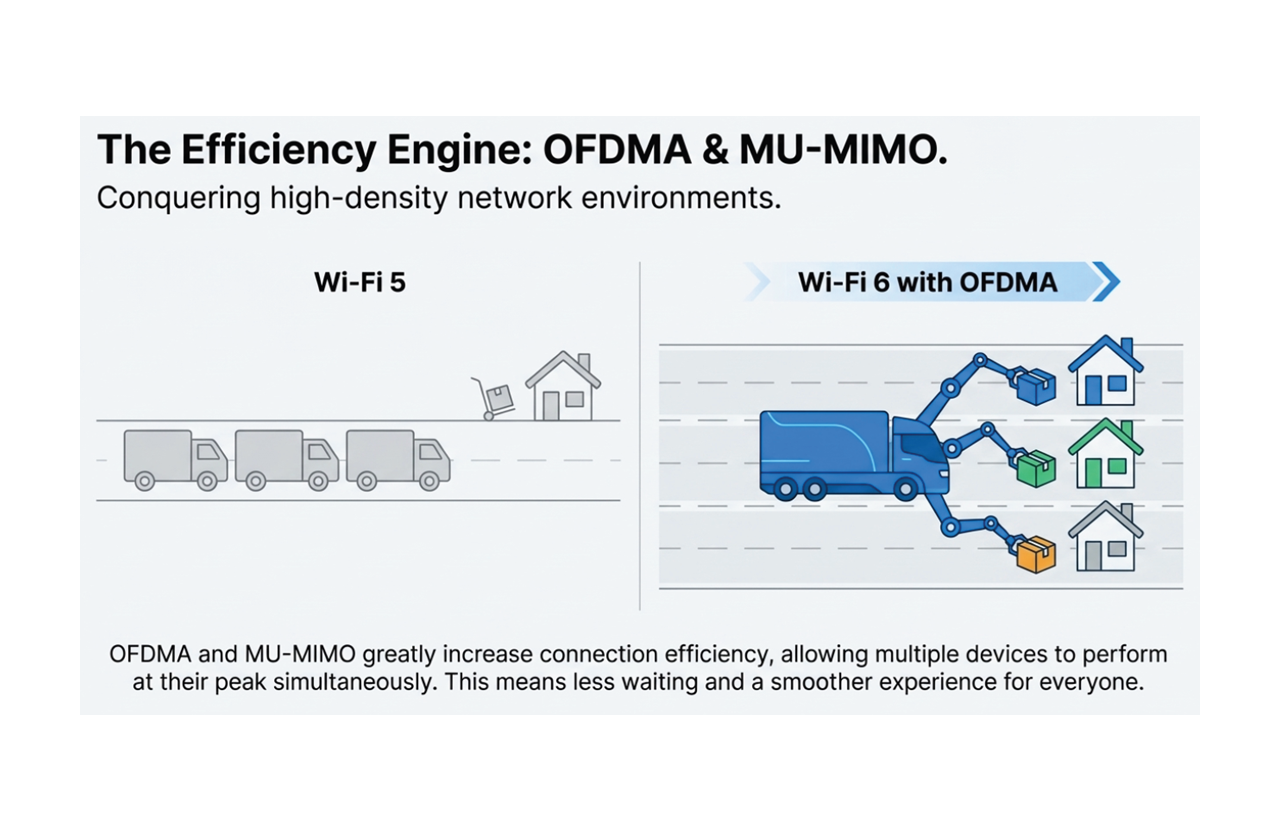

4X Greater Scalability and Connections
4X Greater Scalability and Connections
OFDMA and MU-MIMO greatly increase connection efficiency; OBSS prevents interference; BSS coloring Wi-Fi signal follow; 1024QAM enables multiple sets of devices and clients perform at the same time or enhance up throughput and capacity, plenty of headroom for future growth.
Works with WiFi 6 compatible router, such as AirLive W6184QAX, to enjoy all the benefits of the Wi-Fi 6 standard.
Color Wi-Fi Signal
Color Wi-Fi Signal
BSS Wi-Fi 6 technology virtually colors WiFi signal which is similar as beam-forming technology delivering data to target directly and bringing efficient transmission. OBSS prevents interference.
75%~80% Boosts WiFi Range and Coverage
75%~80% Boosts WiFi Range and Coverage
OFDMA divides frequency channels into smaller sub-channels; OBSS identify local traffic and tune out noise that interference avoidance.
Enhanced WPA3 Network Security
Enhanced WPA3 Network Security
Wi-Fi 6 WPA3 Security improves network security, enable next-generation authentication and best-in-class encryption.
Enjoy 1800mbps Downloading and Stream Media
Enjoy 1800mbps Downloading and Stream Media
Use USB-18AX to download and stream media from YouTube, Netflix or other services without waiting for caching, or stream media over the network from your NAS (network attached storage) at super-fast speeds. Stream or download HD movies faster and more reliable than ever with 802.11ax Wi-Fi.
Hardware
ModelAirLive USB-18AX
Device Interface1 x USB 3.0 type A
2x 3dbi Antenna
Wireless speed2T2R Dual Bands 2.4G/5GHz
802.11ax (2.4GHz):Max 573.5 Mbps
802.11ax (5GHz):Max 1201 Mbps
StandardSupport USB3.0/2.0/1.1 compliant
2.4GHz: IEEE 802.11b, 802.11g, 802.11n, 802.11ax
5.8GHz: IEEE 802.11ac, 802.11a, 802.11n, 802.11ax
Support Operation SystemWindows 7/8.1/10/11 (32/64bit), Mac Os, Linux
Support Frequency Band2.4000 - 2.4835GHz*
5.150 - 5.825GHz*
CE: Band 1: 5.150~5.250(GHz)
Subject to local regulations
Support Frequency Band1~14(2.4Ghz); 36~165(5.8G)
SecurityWEP 64/128-bit, WPA, WPA2, WPA3
Modulation TypeOFDM/CCK/16-QAM/64-QAM
Environment
Operating Temperature0°C to +50°C
Storage Temperature-10°C to +70°C
Humidity5%~90%, non-condensing



Ordering Information

ModelUSB-18AX:
WiFi6 AX 1800Mbps USB3.0 Wireless Ethernet Adapter
ACC-USBBase-1:
USB3.0 Cradle type A to A, with cable 0.8 meter (option)
Standard Package
Package Size90(L) x 30(W) x 14.5(H) cm
Package WeightN.W: TBD KGS
G.W: TBD KGS
Package Content1 x Wireless Ax1800 USB adapter
Carton Package
Quantity250PCS / 1 Carton
Dimensions54 x 43 x 32 cm
Weight TBD KGS
QIG
NameDescriptionDownloadDate
USB-18AX QIG
2022/06/22
Spec Sheet
NameDescriptionDownloadDate
USB-18AX Spec Sheet
2022/06/21
CE
NameDescriptionDownloadDate
USB-18AX CE RED
2022/06/22
FCC
NameDescriptionDownloadDate
USB-18AX FCC
2022/06/23
Firmware & Software
NameDescriptionDownloadDate
USB-18AX Drivers
Window/Mac OS/Linux Drivers
2022/06/23
