SNMP-GSH802M: L2+ Managed Gigabit Switch

ADD INQUIRY
SNMP managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data
SNMP managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data
The AirLive SNMP-GSH802 is an L2+ managed 10-port Gigabit switch including 8 RJ-45 ports and 2 Gigabit SFP ports. It supports comprehensive SNMP management function such as IGMP EAPS Ring Network, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Providing VLAN Division Policy function for setting higher priority for Voice, or data that prevents package loss or lags. Furthermore, All port runs at Gigabit high speed; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/MDIX auto flip function, non blocking line speed transmission of all ports.
Features
  • All 10-port, each port delivers Gigabit high speed
  • Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
  • Surveillance VLAN property and Voice VLAN support for high priority transmission
  • Clear Statues display including traffic, CPU, Memory, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.
Specifications
  • 8 x 10/100/1000 RJ-45
  • 2 x 1000 SFP
  • 1 x console port
  • Surge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact
  • L2+ SNMP v1/2/3, Trap
  • Authentication: 802.1x, AAA, TACACS+
  • SNMP, WEB, CLI, SSH, Telnet, RMON
  • VLAN Division (Surveillance, Voice, MED Conference, Data)
  • DHCP Snooping prevents unauthorized router installed
  • Support 802.3az Energy Efficient Ethernet
  • Fan-less design
Automatic Surveillance VLAN Support
Automatic Surveillance VLAN Support
SNMP-GSH802M supports unique “VLAN division” function for setting up important VLAN group at high priority to make sure whole system’s performance and reliability. Its VLAN Division function including Surveillance VLAN, Voice VLAN, MED Network (Video Conferring) and Data VLAN. For example, when enable Surveillance VLAN functions that ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.
VLAN Policy for Video Conferring/Voice/Data
VLAN Policy for Video Conferring/Voice/Data
A VLAN policy for video conferencing, voice, and data separates network traffic for optimized performance and security. This allows for efficient management of different types of network traffic, such as video conferencing, voice communications, and data transfers, to ensure smooth and secure network operations
DHCP Snooping Support
DHCP Snooping Support
DHCP snooping is a network security feature that helps prevent malicious attacks by monitoring and filtering untrusted DHCP messages. It verifies the DHCP packets received on a network and only allows those from trusted sources, such as a DHCP server, to be processed, protecting against rogue DHCP servers that can potentially assign incorrect IP addresses to devices on the network.

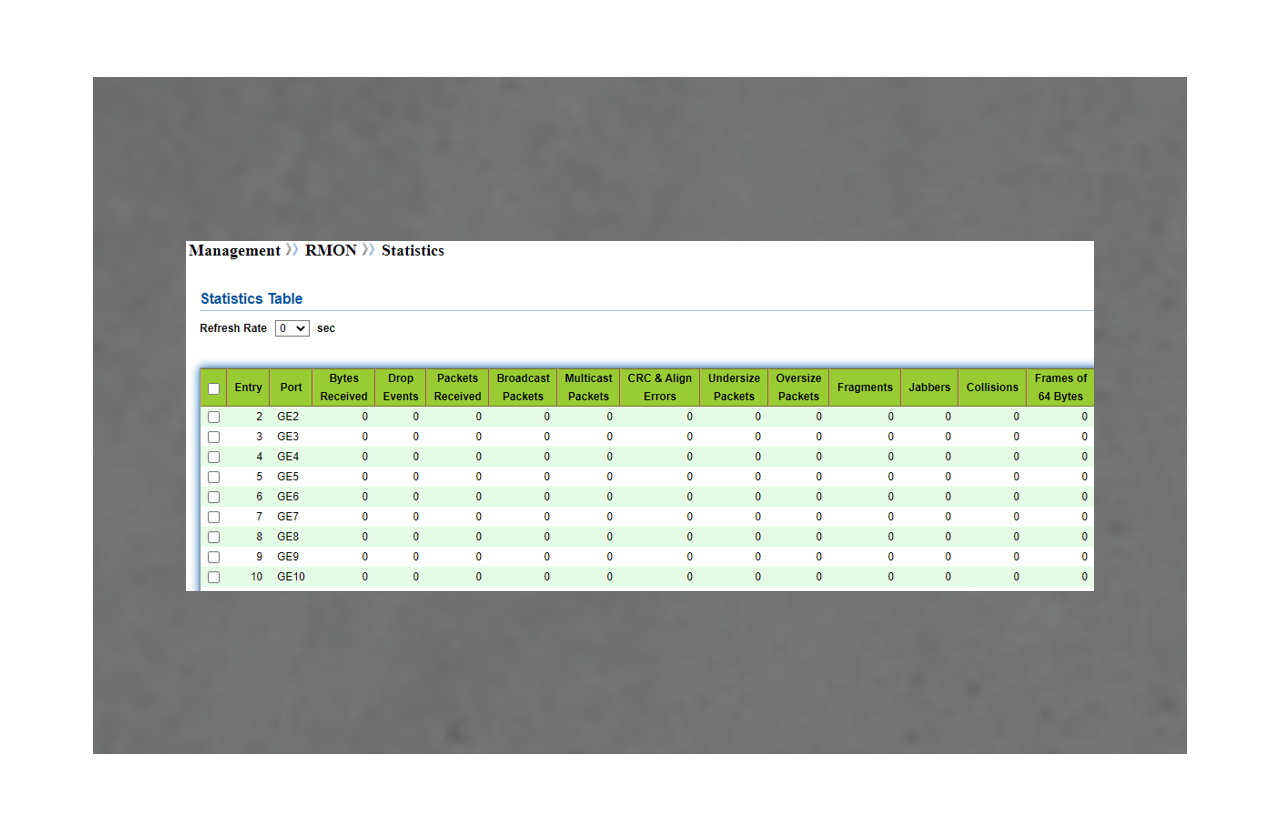

RMON Statistics Support
RMON Statistics Support
RMON (Remote Monitoring) statistics support is a feature in networking equipment that allows for remote monitoring and management of network performance. It provides information on network traffic, such as packet and byte counts, and allows network administrators to monitor network performance and troubleshoot network issues from a remote location. RMON statistics help provide detailed network visibility and are an important tool for network management and optimization.
Fiber for cross-floor connection or Long Distance
Fiber for cross-floor connection or Long Distance
Fiber optic technology is used for long distance communication due to its high bandwidth capacity and immunity to electromagnetic interference. Fiber optic cables are made of thin glass or plastic fibers that carry light signals over long distances, providing fast and reliable data transmission. This makes fiber optics ideal for applications where large amounts of data need to be transmitted over long distances, such as in long-haul telecommunications, data center networks cross-floor connections.
Hardware
ModelSNMP-GSH802M
Device Interface8 x 10/100/1000 RJ-45
2 x ports Gigabit SFP
10-port totally
1 x RJ45 console port
StandardIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Standard method for performing link aggregation
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and Authentication Protocol
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/LLDP-MED Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), 1-8 Link/Act, 9-10 Link
Lighting Surge ProtectionSurge Protection: General 4KV, Differential 2KV, ESD 8KV air, 6KV contact
MechanicalSolid metal 10” 1U rack-mountable, fan-less
Power
Power InputAC100~240VAC,
Power Consumption<24W
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850/1310nm (0-2Km)
Single-mode Fiber: 1310/1550/1490nm (0-120Km)
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 20Gbps
Switch packets Capacity; 14.88Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
VLANs: 4096
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
MTBF: 100000
L2 Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port mirroring
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
Support based on IP, MAC, mixed load-balancing modes
Support Maximum 8 aggregation groups
VLANSupport 4K VLAN
Access, Trunk, Hybrid
Support Port-based, Protocol-Based, MAC-Base VLAN partitioning
Support Generic GVRP dynamic VLAN registration
Voice VLAN
MACSupport static, dynamic, filtered, addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
Support Multi-instance, Support Aggregate interface
Support BPDU protection
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP DDM
Layer 3 switchingIPv4 Static Routing
IPv6 Static Routing
DHCP Server
L2 Management Extension Function
ACL (Access Control List)Based on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port
QoSBased on 802.1p (CoS) classification
Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol, LLDP with LLDP-MED extensions (IPv4 ACL, IPv6ACL, MAC ACL)
User SettingsADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
IPv6Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet
Support IPv6 SSH
Support IPv6 HTTP, IPv6 HTTPS
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACACS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
System Management
CLISupport serial port command line management
SSHSupport SSHv1/2 remote management
TelnetSupport Telnet remote management
WEBSupport Layer2 setting, layer2 and layer3 monitor
SNMPSNMP V1/V2/V3; support trap (ColdStart, Warmstart, LinkDown, LinkUp)
RMON (remotely management)Support RMON1
Other FunctionsSupport DHCP Snooping, Option 82, DHCP Server
Support dynamic ARP detection
Support DNS certification
Support Port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelSNMP-GSH802M
L2+ Managed Gigabit switch, 10 Ports including 2-port SFP Fiber
Standard Package
Package Size31.2(L) x 26(W) x 8.4(H) cm
Package WeightN.W: 1.01KGS
G.W: 1.54KGS
Package Content1 x Switch, 1 x Power cord, 1 x Serial cable, 1 x Mounting bracket 1-pair
Carton Package
Quantity10 PCS / 1 Carton
Dimensions54(L) x 43.5(W) x 33.2(H) cm
Weight16.4 KGS
Spec Sheet
NameDescriptionDownloadDate
SNMP-GSH802M Spec Sheet
2023/03/08
Tutorial on how to configure Surveillance VLAN to IPcameras?
step 1
login to switch and click vlan-surveillance vlan-Surveillance OUI


step 2 apply to vlan-surveillance vlan-Property

click save apply configure

How to setup Voice VLAN
How to setup Voice VLAN for a VoIP Phone and Computer on the same port. Please click the PDF file.
