SNMP-GSH2404M: L2+ Managed Gigabit Switch

ADD INQUIRY
SNMP managed Switch with Advanced VLAN Policy for | Voice | Data
SNMP managed Switch with Advanced VLAN Policy for | Voice | Data
The AirLive SNMP-GSH2404M is an L2+ managed 28-port Gigabit switch including 24 RJ-45 ports and 4 Gigabit SFP ports. It supports comprehensive SNMP management function such as IGMP EAPS Ring Network, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Providing VLAN Division Policy function for setting higher priority for Voice, or data that prevents package loss or lags. Furthermore, All port runs at Gigabit high speed; the MAC address self-learning function ensures error free data transmission; the store and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the impact of a large amount of instantaneous data on the network; the port supports MDI/MDIX auto flip function, non blocking line speed transmission of all ports.
Features
  • All 28-port, each port delivers Gigabit high speed
  • Extend the network further with 4 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • IPv6 Management
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
  • VLAN property and Voice VLAN support for high priority transmission
  • Clear Statues display including traffic, CPU, Memory, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.
Major Specifications
  • 24 x 10/100/1000 RJ-45
  • 4 x 1000 SFP
  • Lighting Surge ESD protection: 6KV / Port ESD Static Protection: 15KV /Switch
  • L2+ SNMP v1/2/3, Trap
  • Authentication: 802.1x, AAA, TACACS+
  • SNMP, WEB, CLI, SSH, Telnet, RMON
  • VLAN Division (Surveillance, Voice, MED Conference, Data)
  • DHCP Snooping prevents unauthorized router installed
  • Support 802.3az Energy Efficient Ethernet
  • Panel indicator monitoring the status and help failure analysis
  • Fan-less design, Natural Cooling, 1U Rack Mount
Automatic Surveillance VLAN Support
Automatic Surveillance VLAN Support
Choose Surveillance Mode on the Web Interface for a smooth surveillance experience with user-friendly features. Your security devices are detected automatically and segregated into a dedicated Auto Surveillance Virtual LAN, ensuring secure and efficient handling of video surveillance data. Utilize Surveillance Mode in the Web UI for easy and effortless surveillance network management. Features are designed for user convenience and the system will automatically detect your security devices and allocate them into a separate Auto Surveillance VLAN for secure and efficient handling of video surveillance traffic.

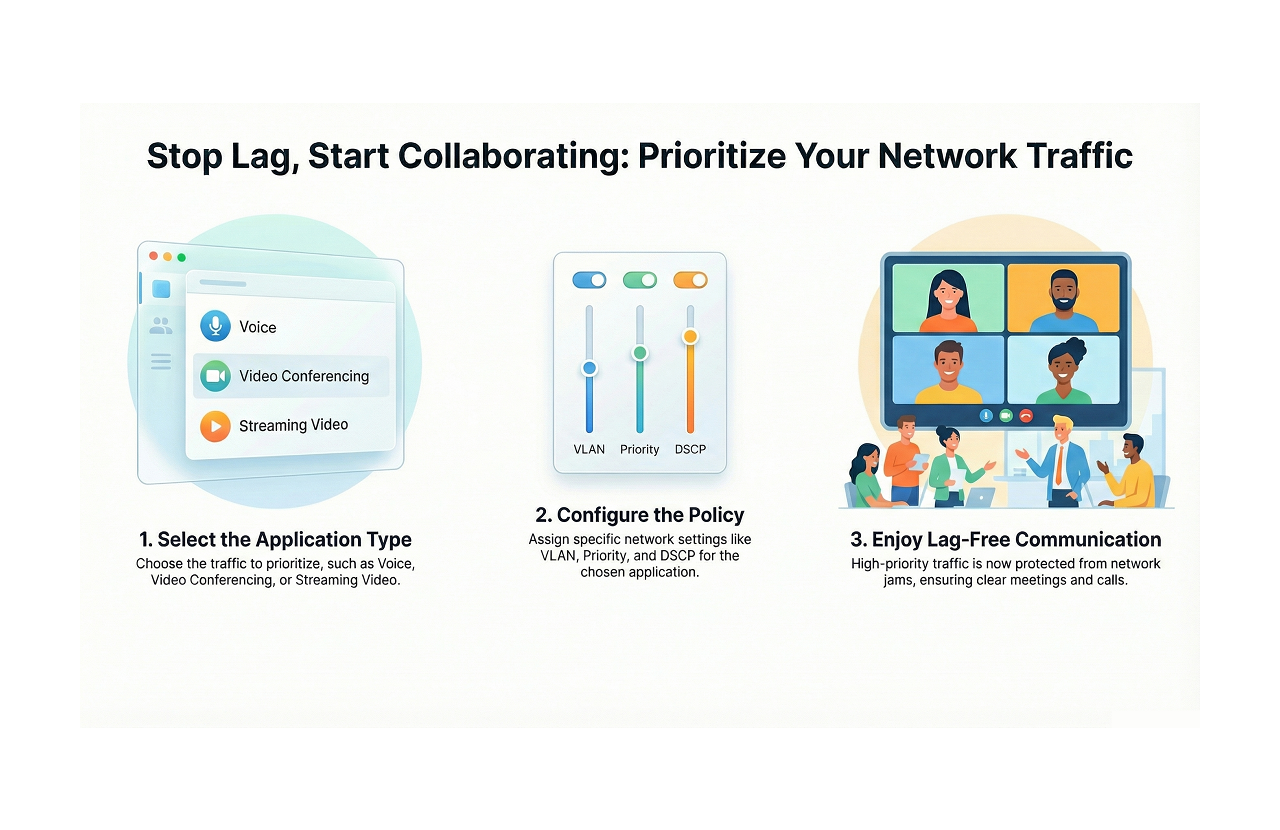

VLAN Policy for Video Conferring/Voice/Data
VLAN Policy for Video Conferring/Voice/Data
A VLAN policy for video conferencing, voice, and data separates network traffic for optimized performance and security. This allows for efficient management of different types of network traffic, such as video conferencing, voice communications, and data transfers, to ensure smooth and secure network operations.

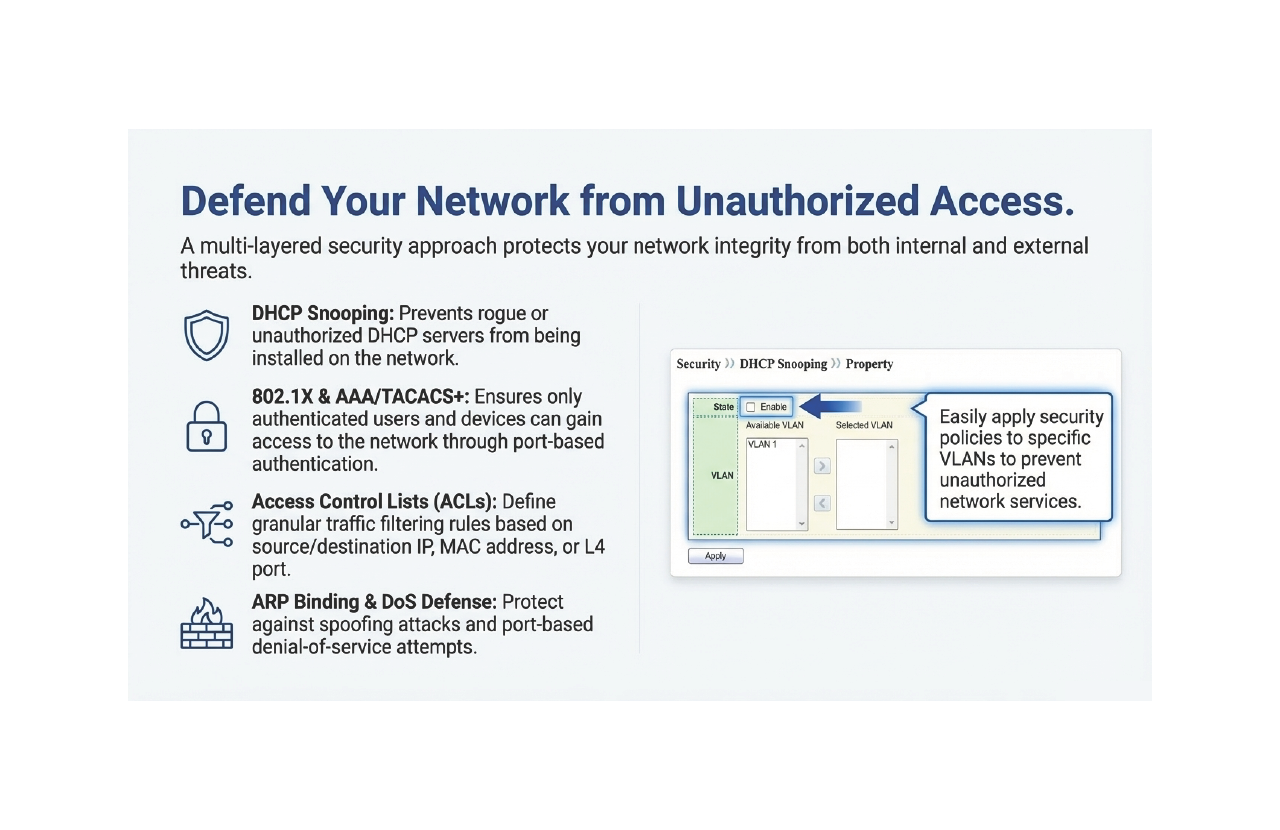

DHCP Snooping Support
DHCP Snooping Support
DHCP snooping is a network security feature that helps prevent malicious attacks by monitoring and filtering untrusted DHCP messages. It verifies the DHCP packets received on a network and only allows those from trusted sources, such as a DHCP server, to be processed, protecting against rogue DHCP servers that can potentially assign incorrect IP addresses to devices on the network.

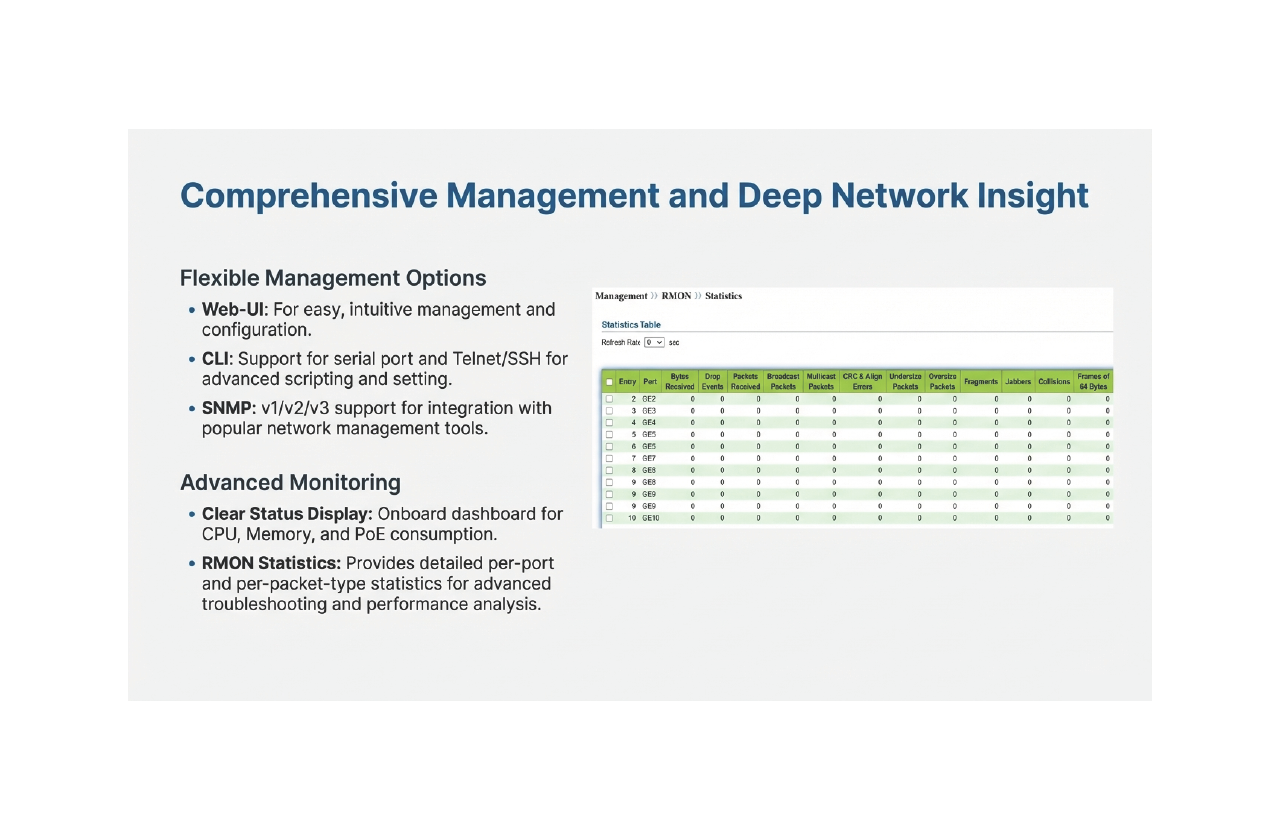

RMON Statistics Support
RMON Statistics Support
RMON (Remote Monitoring) statistics support is a feature in networking equipment that allows for remote monitoring and management of network performance. It provides information on network traffic, such as packet and byte counts, and allows network administrators to monitor network performance and troubleshoot network issues from a remote location. RMON statistics help provide detailed network visibility and are an important tool for network management and optimization.

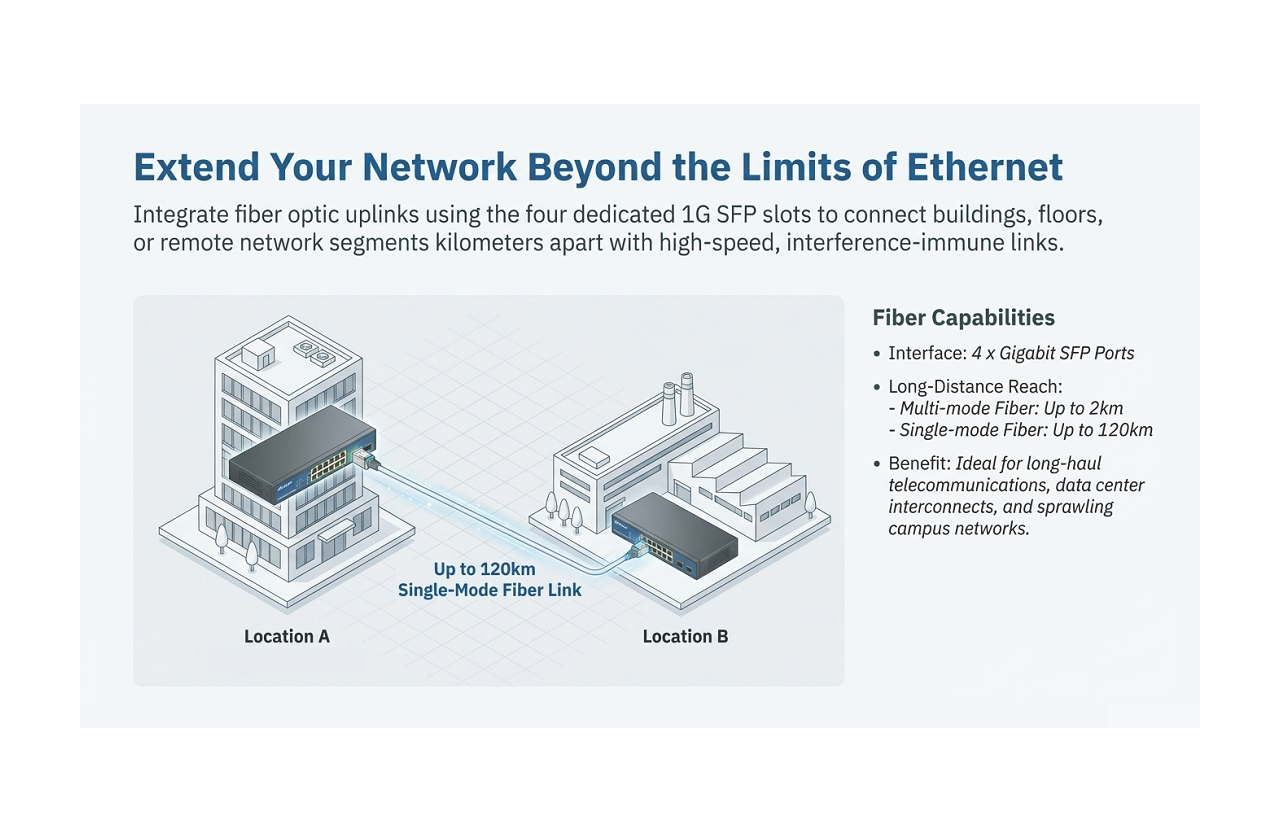

Fiber for Long Distance
Fiber for Long Distance
Fiber optic technology is used for long distance communication due to its high bandwidth capacity and immunity to electromagnetic interference. Fiber optic cables are made of thin glass or plastic fibers that carry light signals over long distances, providing fast and reliable data transmission. This makes fiber optics ideal for applications where large amounts of data need to be transmitted over long distances, such as in long-haul telecommunications and data center networks.
Hardware
ModelSNMP-GSH2404M
Device Interface24 x 10/100/1000 RJ-45
4 x ports Gigabit SFP
28-port totally
1 x RJ45 console port
StandardIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Standard method for performing link aggregation
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and Authentication
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/LLDP-MED Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), Link, ACT.
Lighting Surge Protection6KV (general mode), 4KV (differential mode), ESD15KV
MechanicalSolid metal 19” 1U rack-mountable, fan-less
Power
Power InputAC100~240VAC, Total power 36W
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 56Gbps
Switch packets Capacity; 41.66Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
Optical characteristicsMulti mode: 850/1310nm (0-2KM)
Single mode: 1310/1550/1490nm (0-120KM)
L2 Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port mirroring
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
VLANAccess, Trunk, Hybrid
Support VLAN division based on port, protocol, and MAC address, VLAN tunnel.
Support Generic GVRP dynamic VLAN registration
Voice VLAN
MACSupport static addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1s Spanning Tree protocol
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP/SFP+ DDM
Layer 3 switchingIPv4 Static Routing
IPv6 Static Routing
ARP
L2 Management Extension Function
ACL (Access Control List)Support L2 to L4 packet filtering function.
Based on source MAC, destination MAC, IP Protocol type, source IP, destination IP, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL
Support ACL based on Port and VLAN
QoSBased on 802.1p (CoS) classification
Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol
User SettingsADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACACS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
System Management
CLISupport serial port command line management
SSHSupport SSHv1/2 remote management
TelnetSupport Telnet remote management
WEBSupport Layer2 setting, layer2 and layer3 monitor
SNMPSNMP V1/V2/V3; support trap (ColdStart, Warmstart, LinkDown, LinkUp)
RMON (remotely management)Support RMON1
Other FunctionsSupport DHCP Snooping, Option 82, DHCP Server
Support dynamic ARP detection
Support TACACS+ certification
Support DNS certification
Support Port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelSNMP-GSH2404M
L2+ Managed Gigabit Switch, 28 Ports including 4 port SFP Fiber
Standard Package
Package Size44(L) x 20.4(W) x 4.4(H) cm
Package WeightN.W: 2.45KGS
G.W: 3.06KGS
Package Content1 x Switch, 1 x Power code, 1 x Mounting bracket 1-pair
Carton Package
Quantity5 PCS / 1 Carton
Dimensions52(L) x 44.5(W) x 31(H) cm
Weight16.3 KGS
Spec Sheet
NameDescriptionDownloadDate
SNMP-GSH2404M Spec Sheet
2023/03/03
Tutorial on how to configure Surveillance VLAN to IP Cameras?
step 1
login to switch and click vlan-surveillance vlan-Surveillance OUI


step 2 apply to vlan-surveillance vlan-Property

click save apply configure

How to setup Voice VLAN
How to setup Voice VLAN for a VoIP Phone and Computer on the same port. Please click the PDF file.
