POE-GSH802M-120: Managed 120W Gigabit PoE+ Switch

ADD INQUIRY
SNMP & PoE managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data
SNMP & PoE managed Switch with Advanced VLAN Policy for Video Conferring | Surveillance | Voice | Data
The AirLive POE-GSH802M-120 is a L2+ managed 10-port Gigabit PoE+ switch including 8 PoE ports and 2 Gigabit SFP ports with high 120W PoE power. Each PoE port is 802.3at/af compliant up to 30W, automatically adaptive. Data and Power supply will be transferred over Cat. 5e cables at the same time. For non-PoE device detected, only data is transferred.

The 10-port Gigabit management switch offers comprehensive SNMP management functions including IGMP, VLAN Division, Port aggregation, QoS port mirroring, bandwidth control. Its unique “VLAN Division Policy function” allows setting “Video Conference, Surveillance, Voice, or Data” such important VLAN group at higher priority that prevents package loss or lags.
Features
  • All 10-port, each port delivers Gigabit high speed
  • Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • 120W High PoE power, ensure full power for connected device
  • Automatically detect and offer power for connected PD
  • Support L2+ SNMP and WEB Smart management function, including DHCP Snooping, VLAN, IGMP, QoS, Spanning Tree, MAC Binding and Bandwidth Control
  • Surveillance VLAN property and Voice VLAN support for high priority transmission
  • Support PoE management
  • Support PoE watchdog to automatically detect and restart crashed PD
  • Clear Statues display including traffic, CPU, Memory, POE consumption, per-port status
  • Web-UI for easy management; CLI and Command Script for advance setting; SNMP used for popular network tools management.
Major Specifications
  • 8 x 30W PoE 10/100/1000
  • 2 x 1000 SFP
  • 802.3at/802.3af compliant
  • Each port up to 30Watts; PoE Power 120W
  • Lighting Surge ESD protection: 6KV / Port ESD Static Protection: 15KV /Switch
  • L2+ SNMP v1/2/3, Trap
  • PoE management, PoE Watchdog
  • Authentication: 802.1x, AAA, TACACS+
  • SNMP, WEB, CLI, SSH, Telnet, RMON
  • VLAN Division (Surveillance, Voice, MED Conference, Data)
  • DHCP Snooping prevents unauthorized router installed
  • Support 802.3az Energy Efficient Ethernet
  • Fan-less design
Efficient PoE Watch Guard | PoE Watch dog technology and PoE Management
Efficient PoE Watch Guard | PoE Watch dog technology and PoE Management
POE-GSH802M-120 supports 120W high power and each port up to 30W auto adaptively. With PoE management function to control PoE port setting, Timer setting and Timer reboot setting and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system.

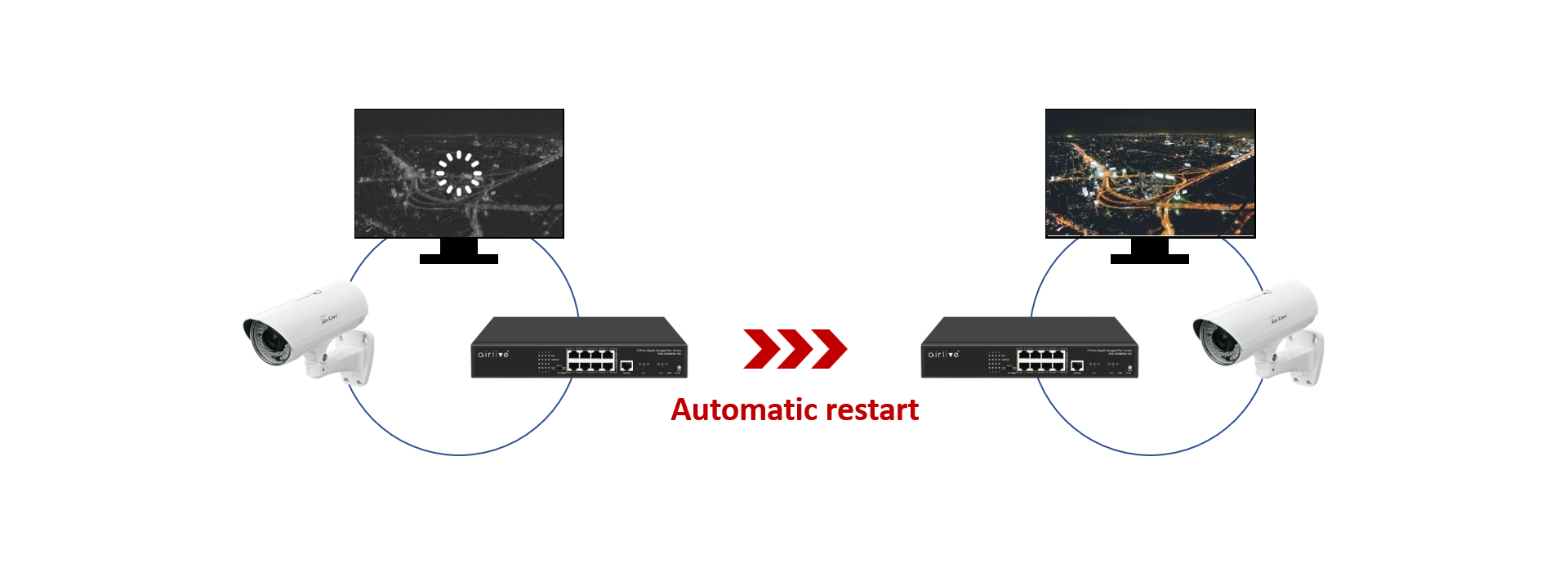

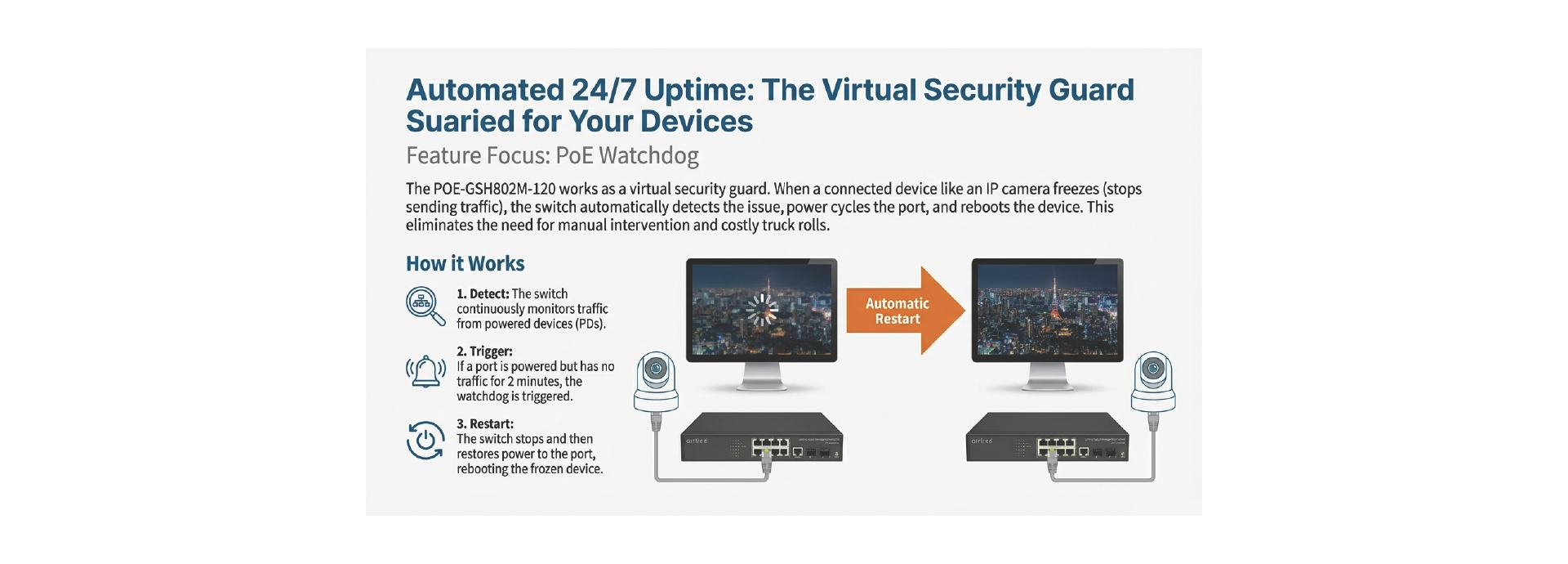

After PoE Watchdog function enabled, the POE-GSH802M-120 can work as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on. PoE Watchdog is specially helpful for camera. For example, when turning on the function, the switch will detect the front-end camera for 24/7. If there is no traffic output from the camera, it will be judged that the camera is frozen and the front-end camera will be restarted through PoE power failure to solve the problem.

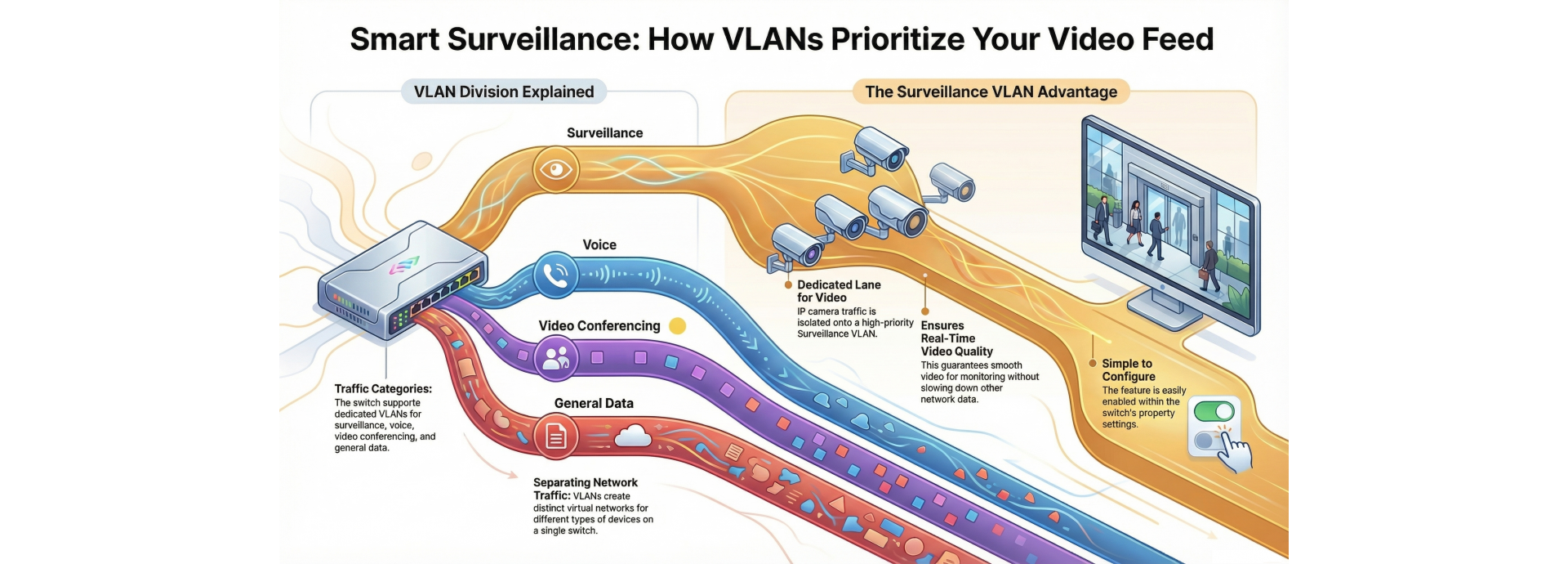

Surveillance VLAN Support
Surveillance VLAN Support
POE-GSH802M-120 supports unique “VLAN division” function for setting up important VLAN group at high priority to make sure whole system’s performance and reliability. Its VLAN Division function including Surveillance VLAN, Voice VLAN, MED Network (Video Conferring) and Data VLAN. For example, when enable Surveillance VLAN functions that ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.
VLAN Policy for Video Conferring/Voice/Data
VLAN Policy for Video Conferring/Voice/Data

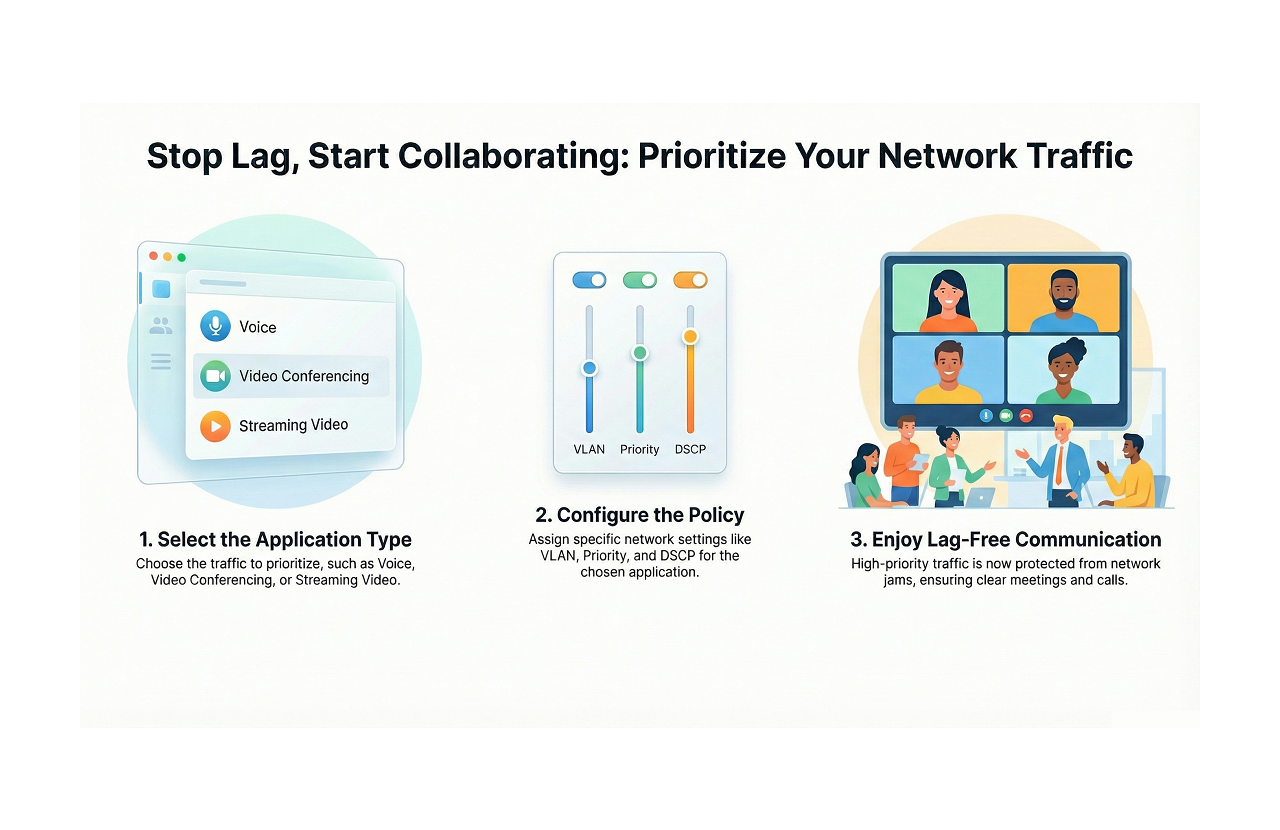

User can define policy for video conferring / voice data in high priority. Ensure your video meeting will not lag coursing by any networking jam.
DHCP Snooping Support
DHCP Snooping Support

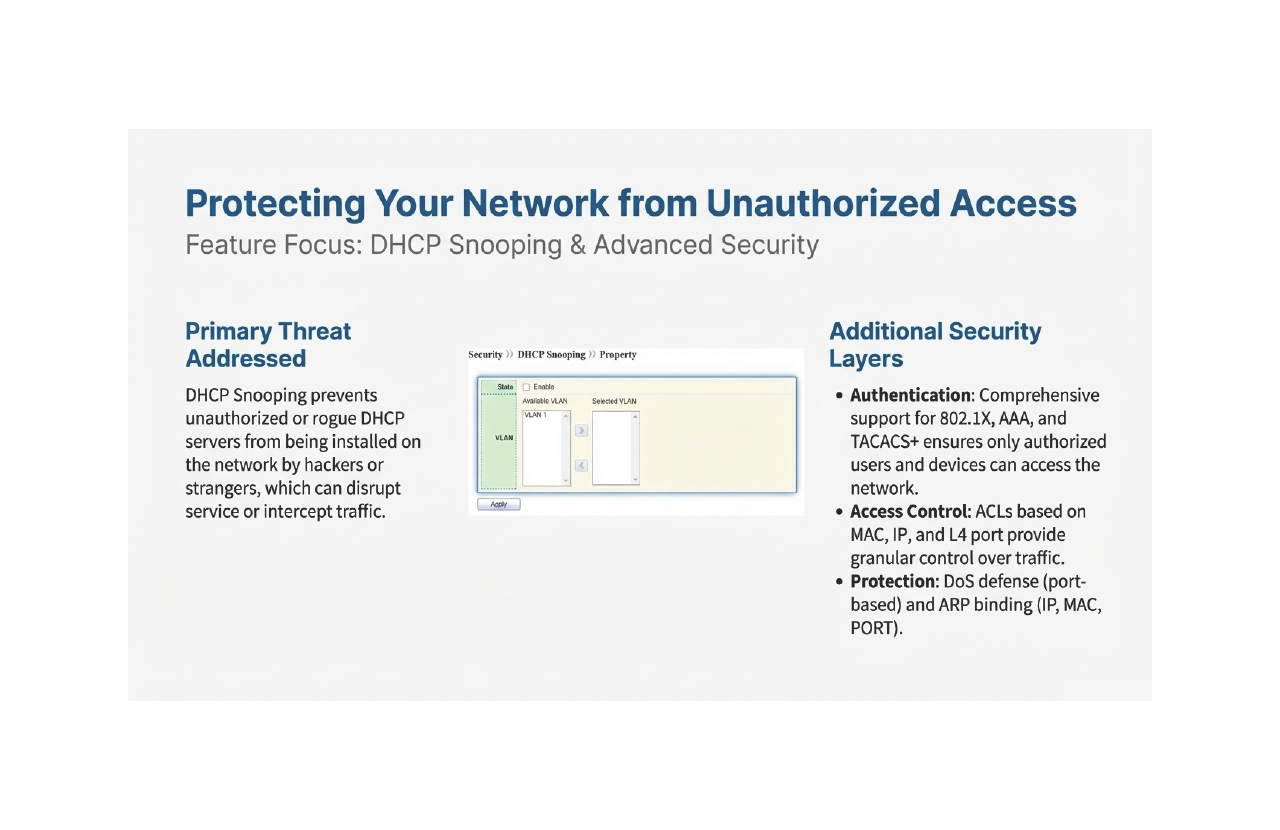

Managing DHCP server; prevent stranger / Hacker.
RMON Statistics Support
RMON Statistics Support

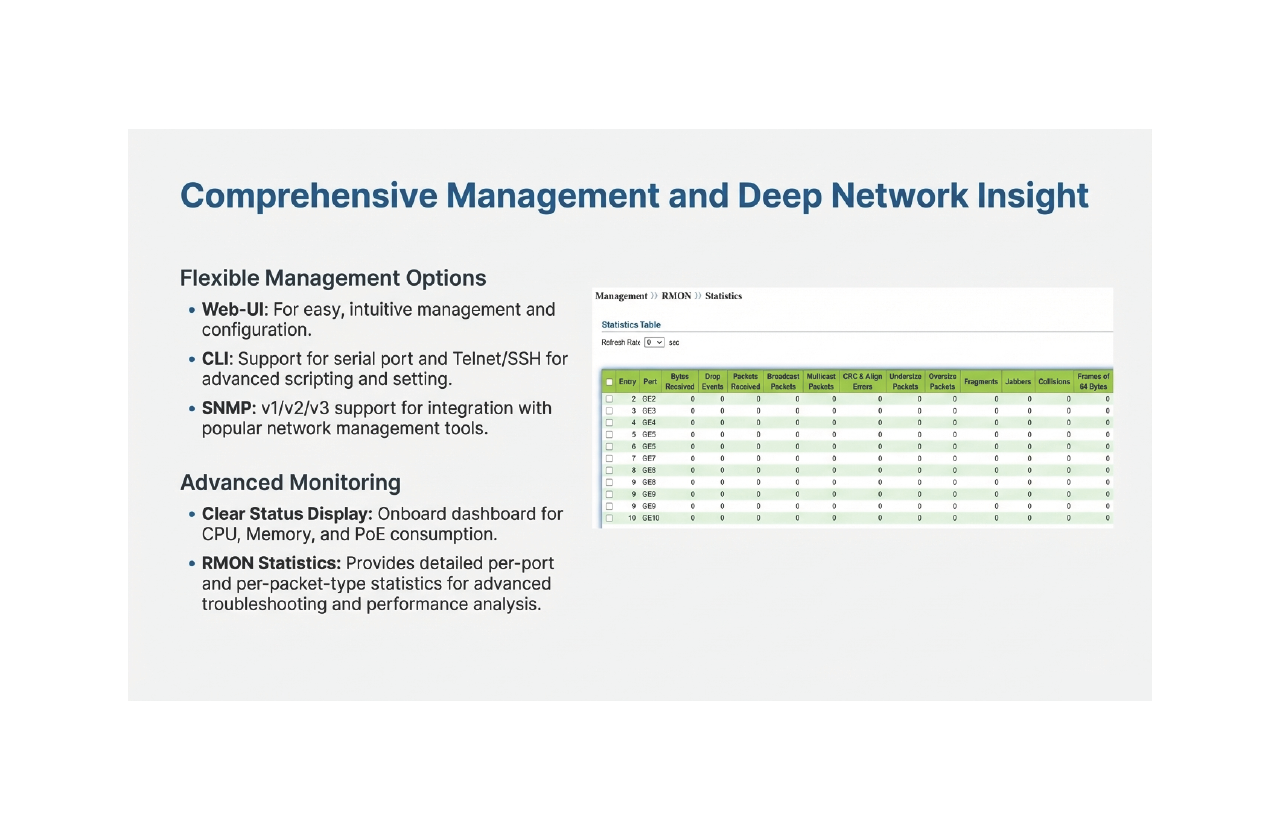

For each port and different packets item.

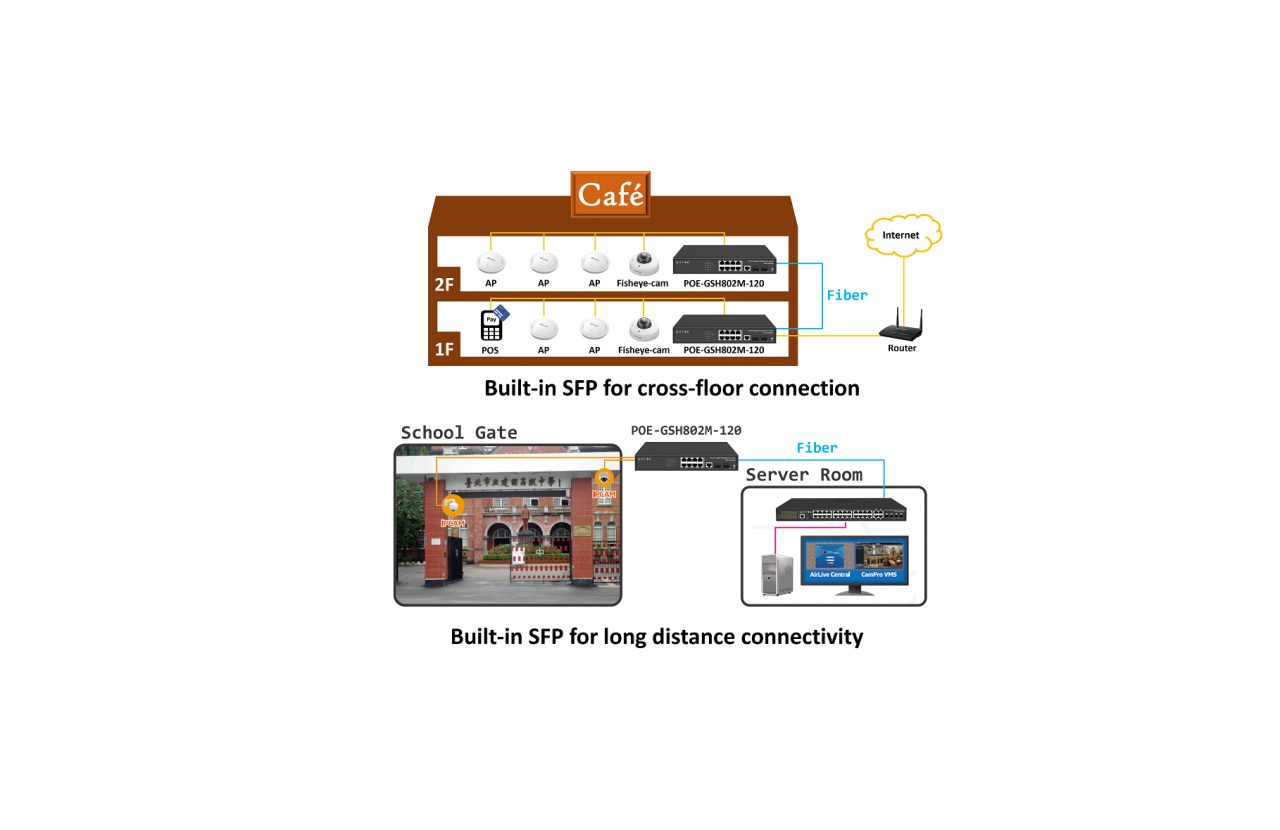

Fiber for cross-floor connection or Long Distance
Fiber for cross-floor connection or Long Distance

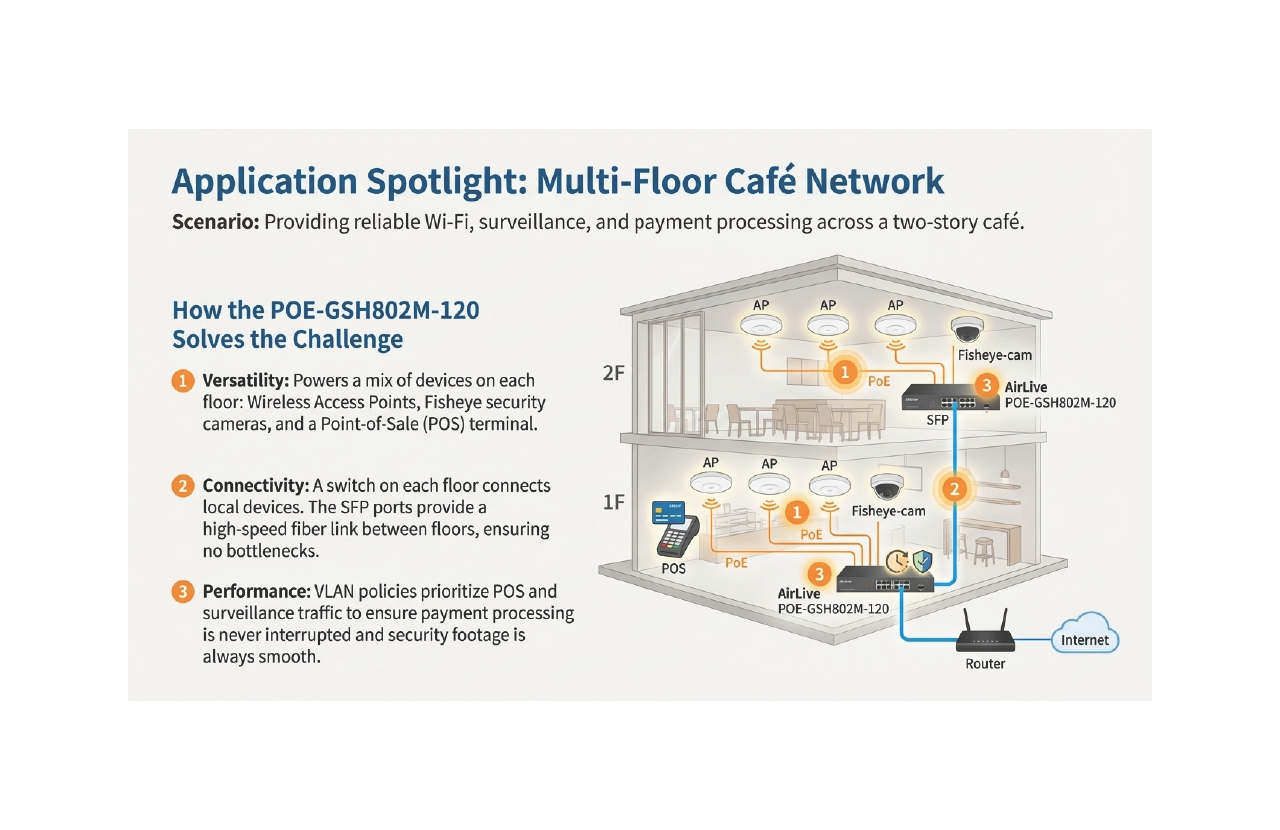

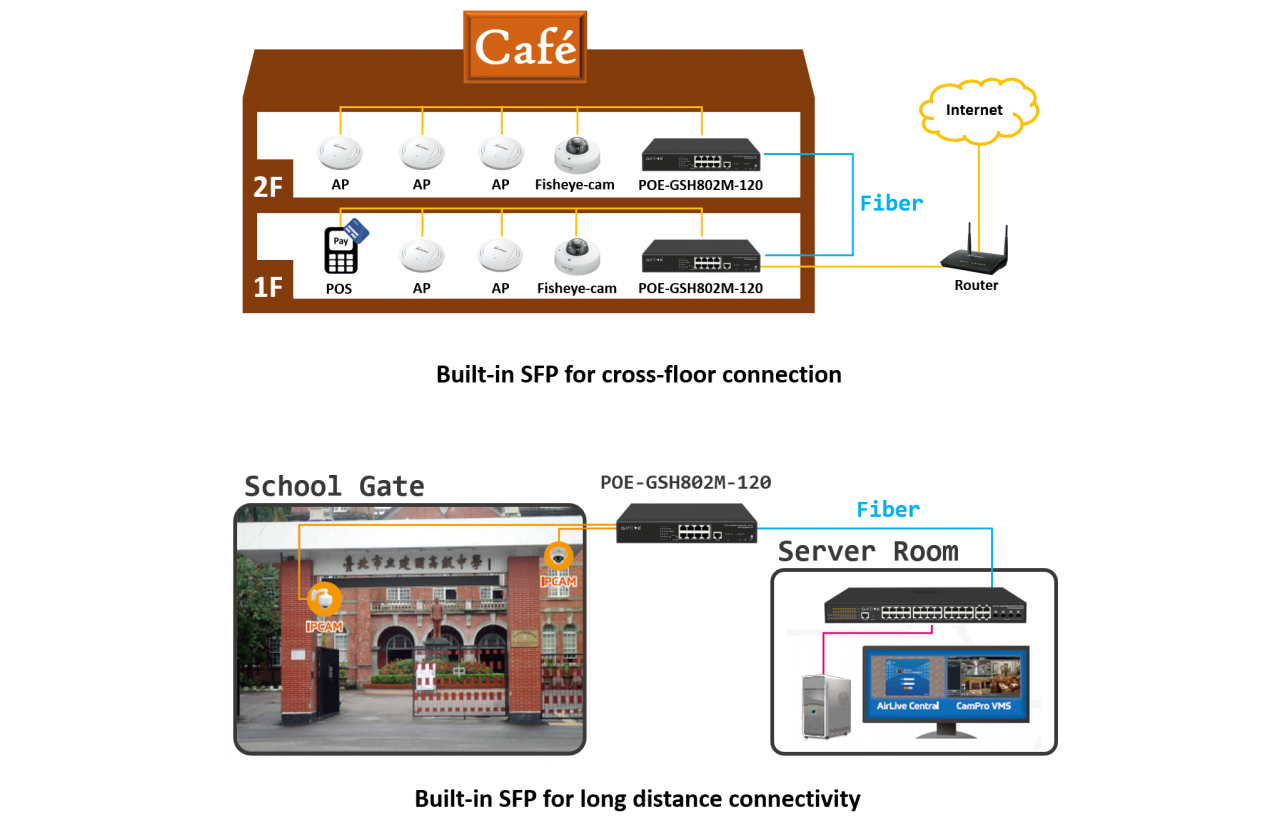

Extend the network further with SFP slots.

Hardware
ModelAirLive POE-GSH802M-120

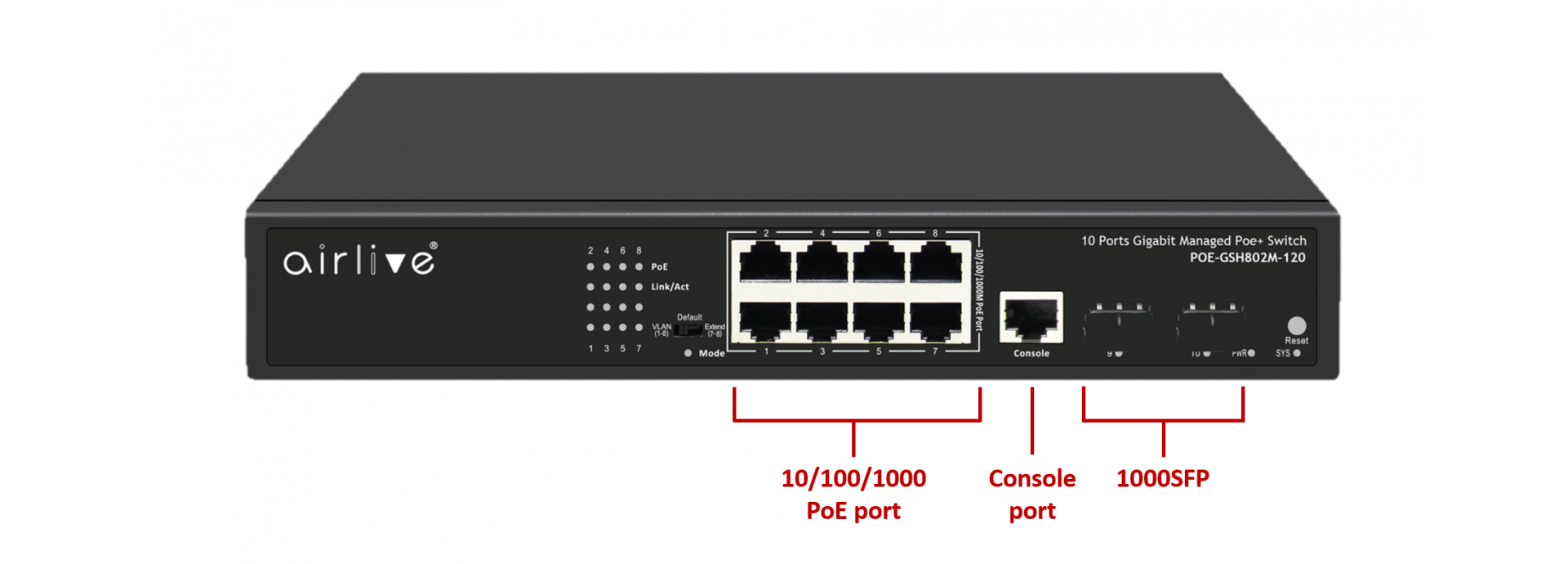

Device Interface8 x 30W PoE 10/100/1000 RJ45
2 x ports Gigabit SFP
10-port totally
1 x RJ45 console port
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Standard method for performing link aggregation
IEEE802.1d Spanning Tree (STP)
IEEE802.1w Rapid Spanning Tree (RSTP)
IEEE802.1s Multiple Spanning Tree (MSTP)
IEEE802.1p Class of Service (QoS / CoS) traffic Prioritization (Multicast filtering function)
IEEE802.1Q VLAN Bridge Operation
IEEE802.1x Client/Server Access control and Authentication
IEEE802.3at/af PoE
IEEE802.3az Energy Efficient Ethernet
IEEE802.1ab LLDP/LLDP-MED Device Link Layer Discovery Protocol
LED IndicatorsPWR (power supply), SYS(System), 1-8 PoE, 1-8 Link & ACT , 9-10 Link & Act, Mode (DIP Indicator), VLAN/Default/Extend
Lighting Surge Protection6KV (general mode), 4KV (differential mode), ESD15KV
MechanicalSolid metal 10” 1U rack-mountable, fan-less
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port8
PoE Power Output / PoE Portmax. 30 watts
PoE Power Output / PoE switchmax. 120 watts
Power InputAC100~240VAC, 120W
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140μm
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 20Gbps
Switch packets Capacity; 14.88Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Packet Buffer: 4Mb
Flash Memory: 16MB
DDR SDRAM: 128MB
L2/L2+ Management Function
Port ManagementEnable / Disable Port
Speed, Duplex, MTU setting
Flow-Control
Port Information Check
Port MirroringSupport both side-way port mirroring
Port Speed LimitPort-based input/output bandwidth management
Port IsolationSupport the downlink port isolation, and able to communicate with the uplink port
Storm SuppressionSupport unknown unicast, multicast, unknown multicast
Broadcast type storm suppression
Storm suppression based on bandwidth regulation and storm filtering
Link AggregationSupport static manual aggregation
Support LACP dynamic aggregation
Support based on IP, MAC, mixed load-balancing modes
Support Maximum 8 aggregation groups
VLANSupport 4K VLAN
Access, Trunk, Hybrid
Support Port-based, Protocol-Based, MAC-Base VLAN partitioning
Support Generic GVRP dynamic VLAN registration
Voice VLAN
MACSupport static, dynamic, filtered, addition, deletion
MAC address learning limit
Dynamic aging time setting
Spanning TreeSupport STP 802.1d Spanning Tree protocol
Support RSTP 802.1w Spanning Tree protocol
Support MSTP 802.1w Spanning Tree protocol
Support Multi-instance, Support Aggregate interface
Support BPDU protection
MulticastSupport Static addition, deletion
Support IGMP-Snooping
Support MLD-Snooping
Support v1/2/3 dynamic multicast monitor
DDMSupport SFP DDM
Layer 3 SwitchingIPv4 Static Routing
IPv6 Static Routing
DHCP Server
L2/L2+ Management Extension Function
ACL (Access Control List)Based on source MAC, destination MAC, Protocol type, source IP, destination IP, L4 port
QoS

Based on 802.1p (CoS) classification

Based on DSCP Classification
Classification based on source IP, destination IP and port number
Support SP, WRR scheduling strategy
Support flow rate limit CAR
LLDP DiscoverySupport LLDP discovery protocol, LLDP with LLDP-MED extensions (IPv4 ACL, IPv6ACL, MAC ACL)
User SettingsADD/Delete users
LogUser login, operation, status, events
Anti-attack (Security)DOS defense (port-based)
Support CPU protection and limits the rate of sending CPU packets
ARP binding (IP, MAC, PORT binding)
IPv6Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet
Support IPv6 SSH
Support IPv6 HTTP, IPv6 HTTPS
Certification | AuthenticationSupport 802.1x port authentication
Support AAA authentication
Support TACAS+ authentication
Network diagnosisSupport Ping, Telnet, Trace
System ManagementDevice reset, configuration save/restore, upgrade management, time setting, etc.
System Management
CLISupport serial port command line management
SSHSupport SSHv1/2 remote management
TelnetSupport Telnet remote management
WEBSupport Layer2 setting, layer2 and layer3 monitor
SNMPSNMP V1/V2/V3; support trap (ColdStart, Warmstart, LinkDown, LinkUp)
RMON (remotely management)Support RMON1
PoESupport PoE power
Other FunctionsSupport DHCP Snooping, Option 82, DHCP Server
Support dynamic ARP detection
Support DNS certification
Support Port security settings
Support MVR protocol
Support cable detection VCT function
Support UDLD protocol
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +85°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~90%, non-condensing



Ordering Information

ModelPOE-GSH802M-120
L2 Managed Gigabit PoE+ 802.3at switch, 120W
10 Ports including 2-port SFP Fiber
Standard Package
Product Size26.5(L) x 18.1(W) x 4.4(H) cm
Package Size31.2(L) x 26(W) x 8.4(H) cm
Package WeightN.W: 1.2KGS
G.W: 1.7KGS
Package Content1 x Switch
1 x Power cord
1 x Serial cable
1 x Mounting bracket 1-pair
Carton Package
Quantity10 PCS / 1 Carton
Dimensions54(L) x 43.5(W) x 33.2(H) cm
Weight18 KGS
QIG
NameDescriptionDownloadDate
POE-GSH802M-120 QIG
POE-GSH802M-120 QIG
2023/11/30
User Guide
NameDescriptionDownloadDate
POE-GSH802M-120 User Guide (V2)
POE-GSH802M-120 User Guide V2
2024/10/21
POE-GSH802M-120 User Guide
POE-GSH802M-120 User Guide
2021/05/27
POE-GSH802M-120 User Guide (ES)
POE-GSH802M-120 User Guide (ES)
2022/11/18
Spec Sheet
NameDescriptionDownloadDate
POE-GSH802M-120 Spec Sheet
120W Managed Gigabit PoE+ switch
2023/11/30
POE-GSH802M-120 Spec Sheet(ES)
120W Managed Gigabit PoE+ switch
2022/10/24
CE
NameDescriptionDownloadDate
AirLive L2+ and L3 Switch Series CE+RoHS
AirLive L2+ and L3 Switch Series CE+RoHS
2022/06/07
FCC
NameDescriptionDownloadDate
AirLive L2+ and L3 Switch Series FCC
AirLive L2+ and L3 Switch Series FCC
2022/06/07
Firmware & Software
NameDescriptionDownloadDate
POE-GSH802M-120 Firmware
Initial Release
2021/06/30
Tutorial on how to configure Surveillance VLAN to IP Cameras?
step 1
login to switch and click vlan-surveillance vlan-Surveillance OUI


step 2 apply to vlan-surveillance vlan-Property

click save apply configure

How to setup Voice VLAN
How to setup Voice VLAN for a VoIP Phone and Computer on the same port. Please click the PDF file.

Download
