POE-GSH420-60 AT 6-port Gigabit POE+ Switch, 802.3af/at, 65W

ADD INQUIRY
802.3af/at PoE Gigabit Switch, with 2x RJ-45 Uplink
802.3af/at PoE Gigabit Switch, with 2x RJ-45 Uplink
The AirLive POE-GSH420-60 Gigabit switch is compliant with 802.3af(15W)/802.3at(30W). It supports 4 Gigabit PoE+ ports and 2 Gigabit RJ-45 uplink ports. The total PoE power is 60W. The AirLive POE-GSH420-60 switch is a plug and play unmanaged PoE switch with VLAN and 250meter cabling extension, which can be easily set up via its DIP switch. The two Gigabit Uplink ports help with connecting the switch to a larger network making the it the most cost-efficient client switch for various applications at Home or Office. Connect several PoE devices to the switch, Access Points or normal IP cameras can connect to any of the PoE ports on the switch and be powered on up to max 30W (at).
Features
  • All 6-port, each port delivers Gigabit high speed
  • 4 x PoE port 10/100/1000 (up to 30W)
  • Extend the network further with 2 x 10/100/1000Mbps RJ-45 Uplink ports
  • PoE power, supports 802.3af/802.3at PoE+
  • Internal Power, 60W
Features
  • VLAN Mode: gives the switch extra security as Port isolation Setting by hardware DIP switch
  • Extended Mode: transmission of up to 250M in Extend Mode Setting by hardware DIP switch
  • PoE Watchdog in Extended Mode
  • Surge Protection; ESD Protection
VLAN Mode
VLAN Mode
VLAN mode: This additional feature gives the switch extra security for the users connected to it. The VLAN mode works as Port isolation, meaning that when it’s enabled the users connected to the LAN ports cannot communicate with each other but only communicate with the UP-Link ports (port 5/6). This way there is an extra layer of security and data will not be shared between the users. This can be used in a small office to separated guests from the company network or in a home to separate tenants.
Extend Mode
Extend Mode

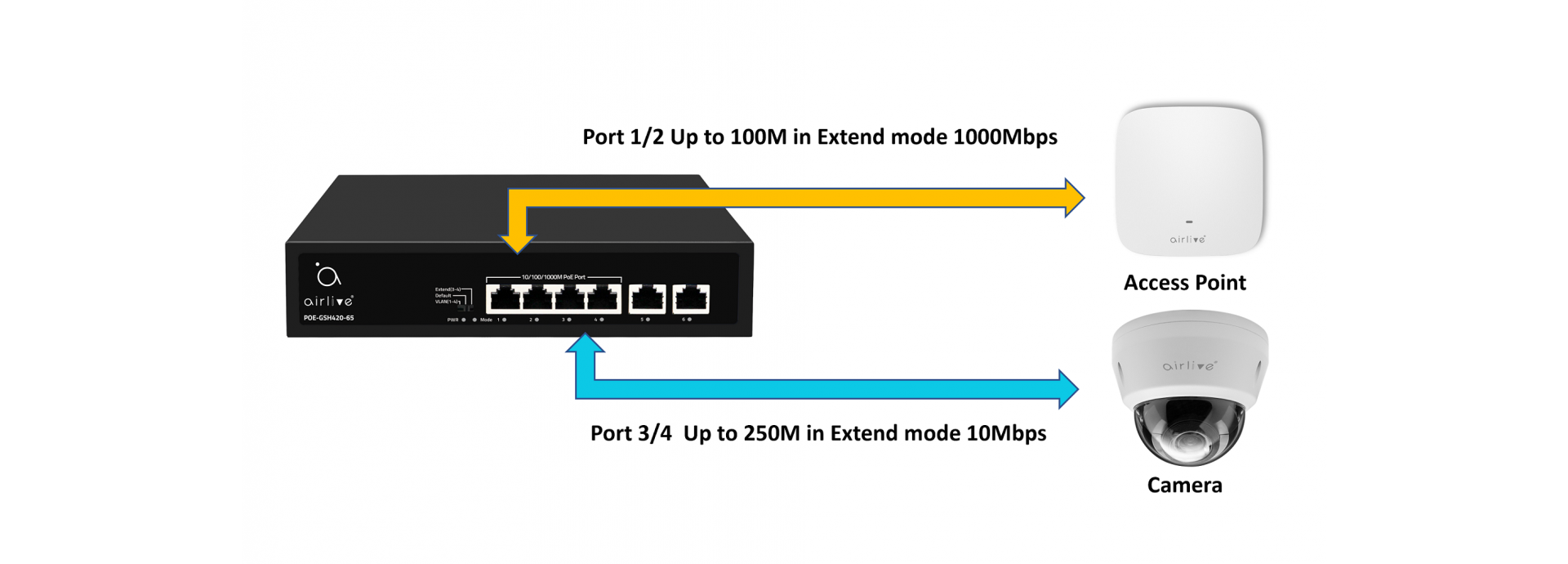

Extend mode:  The POE-GSH420-60 switch can be set in Extend mode to reach a distance of up to 250m, this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 3 and 4 on the switch and when enabled the transmission rate will be 10Mbps. PoE Watchdog is also enabled when Extend mode is on.
ges
* No independent power supply system required

*Two-in-one network and power cable

*Shortened construction period

*Reduced costs of power and network deployment

*PoE power, supports 802.3af/802.3at PoE+

*VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
Hardware
ModelPOE-GSH420-60 AT
Device Interface4 x 30W PoE 10/100/1000 RJ45
2 x 10/100/1000 RJ-45 Uplink
StandardsIEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3af/at PoE
IEEE802.3x
Industry standard compliantEMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD), EN61000-4-4(EFT), EN61000-4-5(Surge)
LED IndicatorsPWR (power supply), Mode (DIP): VLAN, Default, Extend, Link and Data
MechanicalMetal
Power and PoE
ProtocolIEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port4
PoE Power Output / PoE Portmax. 30W (port 1~4)
PoE Power Output / PoE switch60W
Surge and ESD protection
Surge and ESD protectionCommon mode 4KV, ESD: Air 8KV, Contact 6KV
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 12Gbps
Forwarding Rate: 8.928Mpps
MAC Address: 2K
Packet Buffer: 1Mb
Jumbo Frame: 9216bytes
Transfer mode: Store and forward
MTBF:100000 hour
DIP Switch Control
VLAN

Port isolation mode. In this mode PoE ports (1~4) cannot communicate with each other and can only communicate with the UP-Link ports 5~6.

DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m,   the transmission rate is 10M/100/1000M adaptive
ExtendExtension mode, PoE power supply and data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 3~4 only. Note: VLAN and Extend mode cannot be used at the same time. PoE Watchdog is always active.
Power Supply
Input VoltageAC100~240V
Power Supply52V/1.25A (65W) Internal
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelPOE-GSH420-60 AT: 4 x PoE 10/100/1000, 2 x 1G RJ-45 Uplink, 60W
Standard Package
Product Size20(L) x 11.8(W) x 4.4(H) cm
Package Size24.5(L) x 19(W) x 6(H) cm
Package WeightN.W: 0.61KGS
G.W: 0.91KGS
Package Content1 x Switch, 1 x Power code
Carton Package
Quantity20 PCS / 1 Carton
Dimensions52(L) x 32(W) x 40(H) cm
Weight19.2 KGS
Spec Sheet
NameDescriptionDownloadDate
POE-GSH420-60 AT Spec Sheet
2023/08/14
CE
NameDescriptionDownloadDate
AirLive SoHO PoE Switch Series CE+RoHS
AirLive SoHO PoE Switch Series CE+RoHS
2022/06/07
