Hardware | |
Model | AirLive ONU-10XG-AX304P-2.5G |
Device Interface | •PON Port: 1x 10G PON: Class B+ •Connector: SC single mode, SC/UPC •TX optical power: 5dBm (XG-PON) •RX sensitivity: -28dBm •Overload optical power: -7dBm •Wavelength: XG-PON: RX 1577nm/TX 1270nm •Transmission Distance: 20km •10G PON layer: ITU-T G.987 (XG-PON) •XG-PON ONU Speed: Upstream 2.488Gbps, Downstream: 9.953Gbps •LAN / POTS / USB Port: 1 x 10/100/1000/2500M RJ-45 Port 3 x 10/100/1000M RJ-45 Port 1 x POTS RJ-11 Port 1 x USB3.0 Port (Storage) •LED: PON/LOS, WAN, USB, PHONE, Wi-Fi |

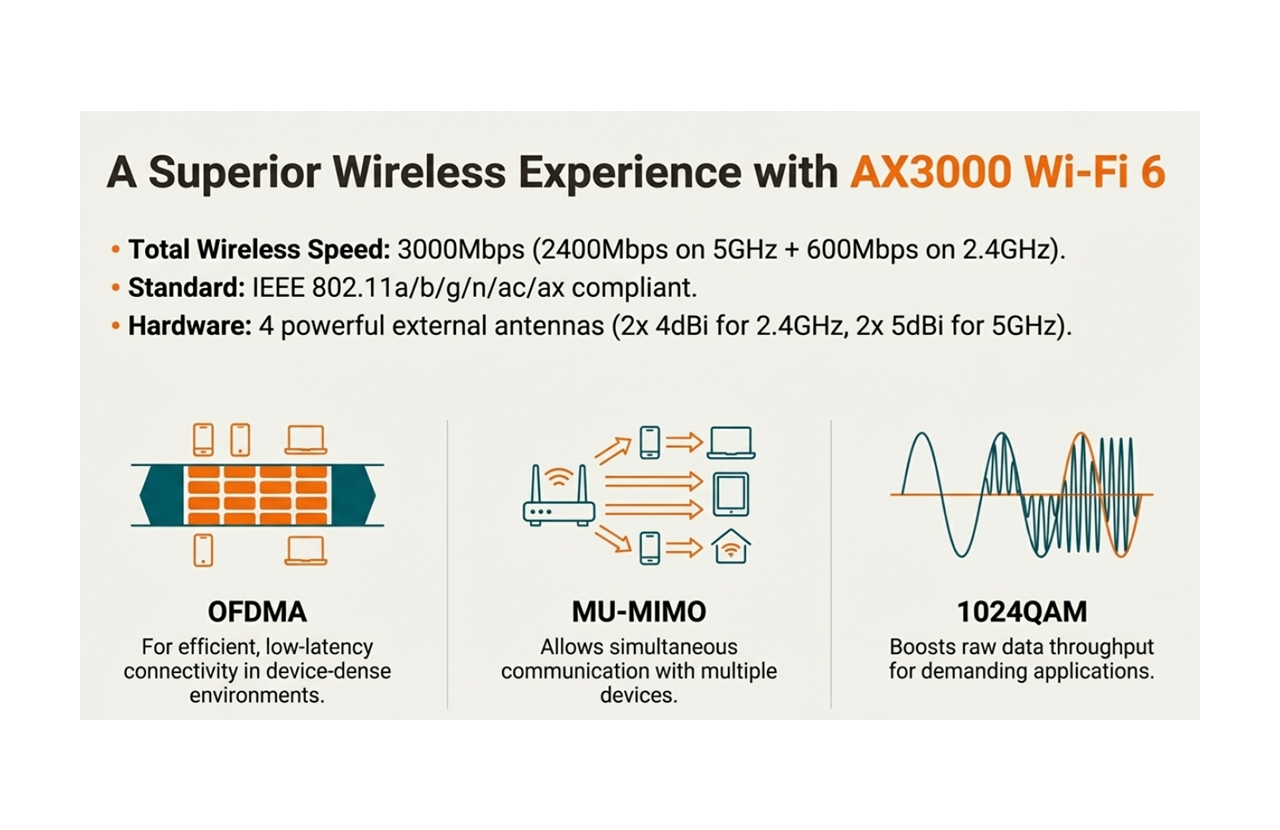

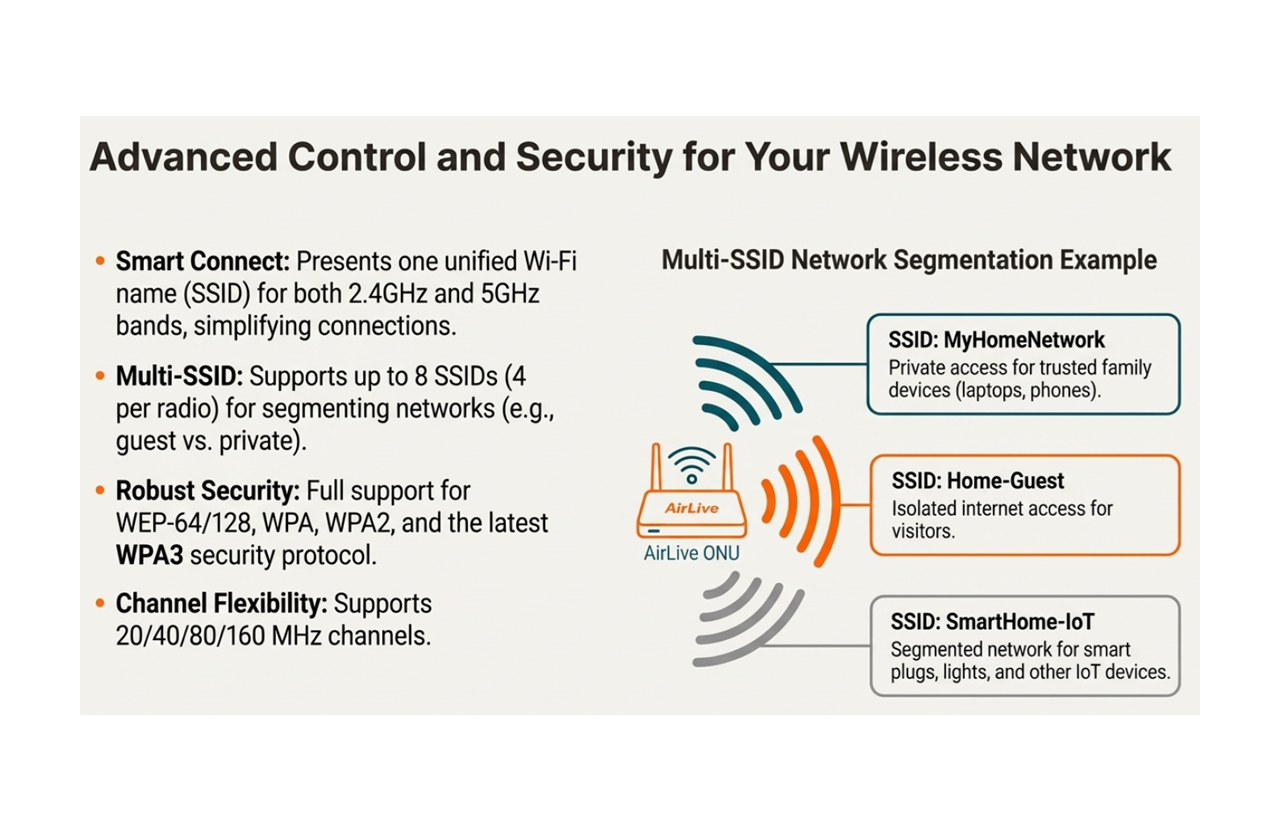

Wi-Fi | •Standard: IEEE 802.11a/b/g/n/ac/ax, 2x2, 20/40/80/160 MHz channels •Antenna: 4x 2x 4dBi (2.4GHz), 2x 5dBi (5Ghz) external antennas •Security: WEP-64/WEP-128/ WPA/WPA2/WPA3 •Modulation : OFDMA, MU-MIMO, Dynamic QoS, 1024QAM •Wi-fi Advanced: Wireless client isolation •Wireless Channel: 2.4G (2412-2472MHz): Channel 1~13 (region dependent) 5.8G (5170-5875MHz): Channel 36~48, 36~64,100~140,149~165 (region dependent) •Wireless Speed: 3000Mbps Wireless High Speed (600Mbps + 2400Mbps) •Wireless TX Power: 2.4G: ≤22dbm, 5.8G: ≤23dbm (region dependent) •Wireless: Multi-SSID 8 (4 per radio), Smart Connect One Wi-Fi name - One SSID for 2.4GHz and 5GHz dual band |

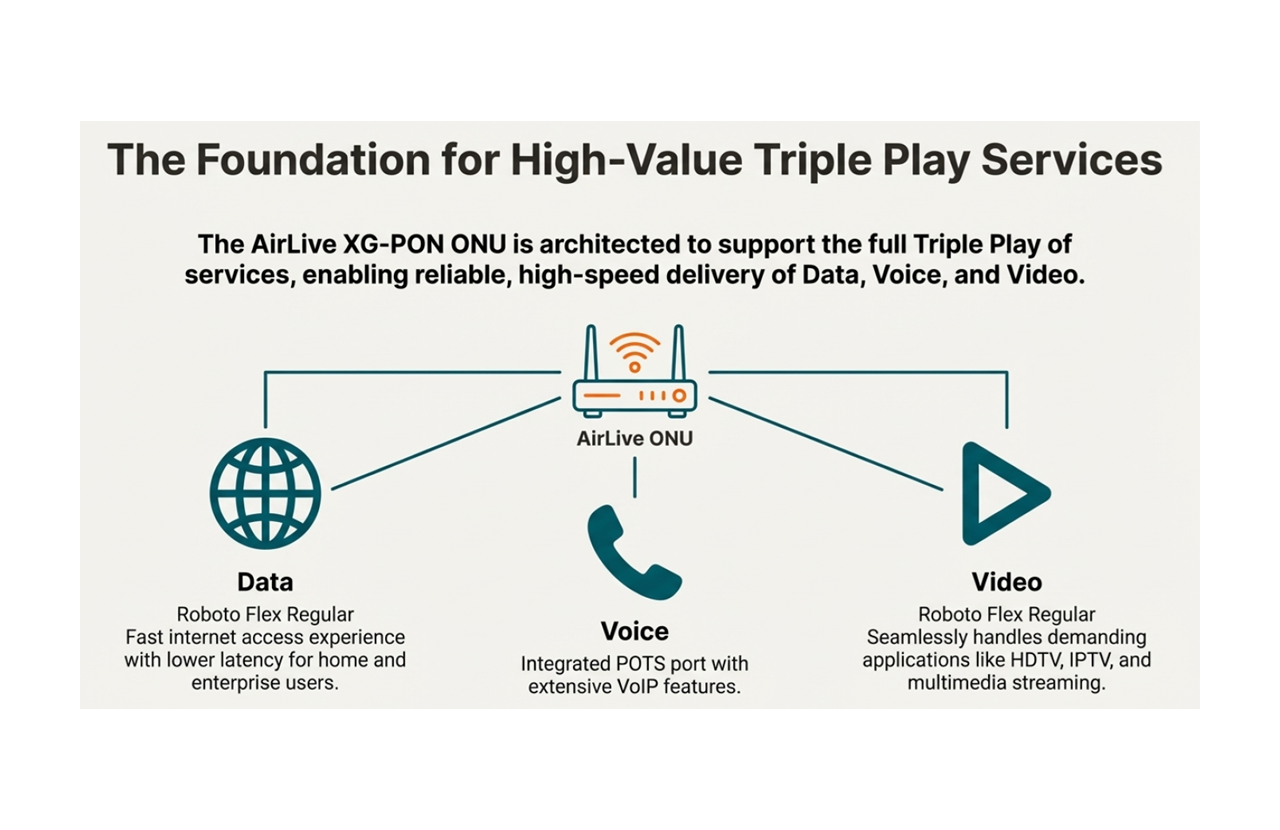

VoIP | •Support SIP and IMS SIP •Support G.711a/G.711u/G.722/G.729 Codec •Support Echo cancellation, VAD/CNG,DTMF Relay •Support T.30/T.38 FAX •Support Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference •Support Line testing according to GR-909 |

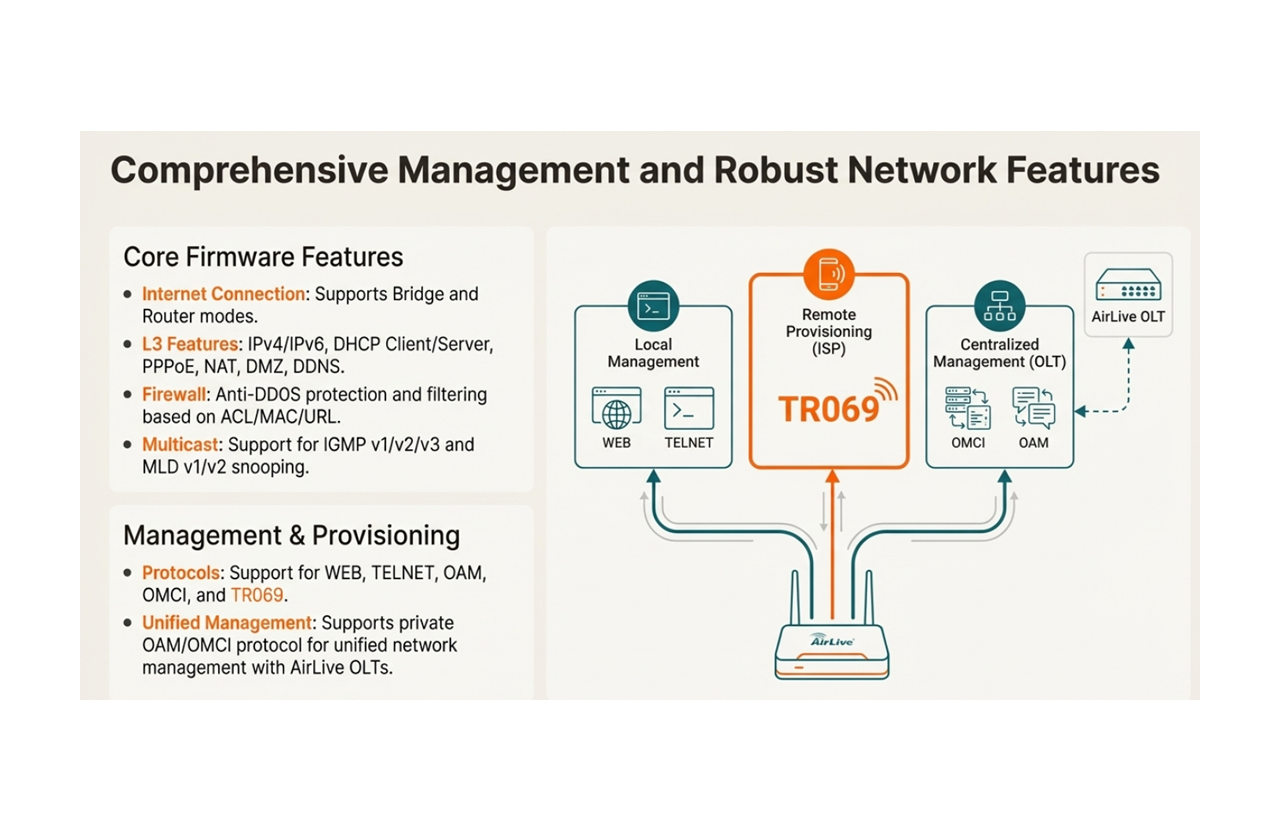

Firmware Features | |
Internet Connection | Support Bridge/Router mode |
Multicast | Support IGMP v1/v2/v3 Support IGMP snooping Support MLD v1/v2 snooping |
L2 | 802.1D&802.1ad bridge 802.1p Cos 802.1Q VLAN |
L3 | IPv4/IPv6 DHCP Client/Server PPPoE NAT DMZ DDNS |
Firewall | Anti-DDOS Filtering Based on ACL/MAC/URL |
Management | Support WEB/TELNET/OAM/OMCI/TR069 Support private OAM/OMCI protocol and Unified network management of AirLive OLT |
Power Supply | |
Power Input | 12V, 2A external AC-DC power adaptor |
Power Usage | Power Usages Max: ≤ 24W |
Environment | |
Working Temperature | -0°C to +55°C |
Storage Temperature | -40°C to +70°C |
Working Humidity | 5%~95%, non-condensing |
Storage Humidity | 5%~95%, non-condensing |

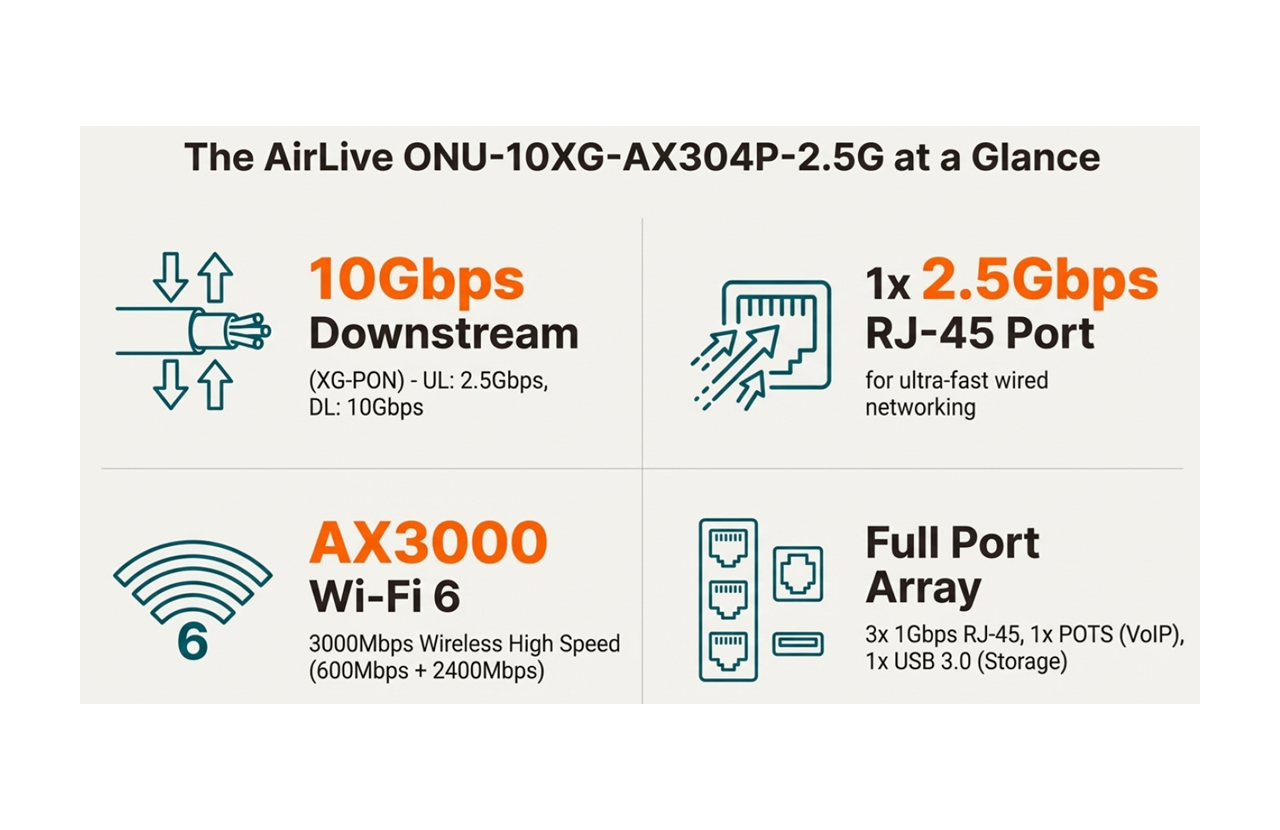

Model | ONU-10XG-AX304P-2.5G AirLive 10G XGPON ONU 1 PON Port XGPON ONU with 1x 2.5GE RJ45, 3x 1GE RJ45, AX3000 Wi-Fi 6, 1x POTS RJ11, 1x USB 3.0 Port |
Standard Package | |
Product Size | 24.4(L) x 13.1(W) x 3.6(H) cm |
Package Size | 26.5(L) x 23.6(W) x 5.6(H) cm |
Package Weight | N.W: 0.425kg G.W: kg |
Package Content | 1 x Device, 1 x Power Adapter, QIG |
Carton Package | |
Quantity | 20PCS / 1 Carton |
Dimensions | 55.0(L) x 45.0(W) x 30.0(H) cm |
Weight | kg |
