Live-2TX801: 2.5Gbps Base-T Multi Gigabit Switch, plug and play

ADD INQUIRY

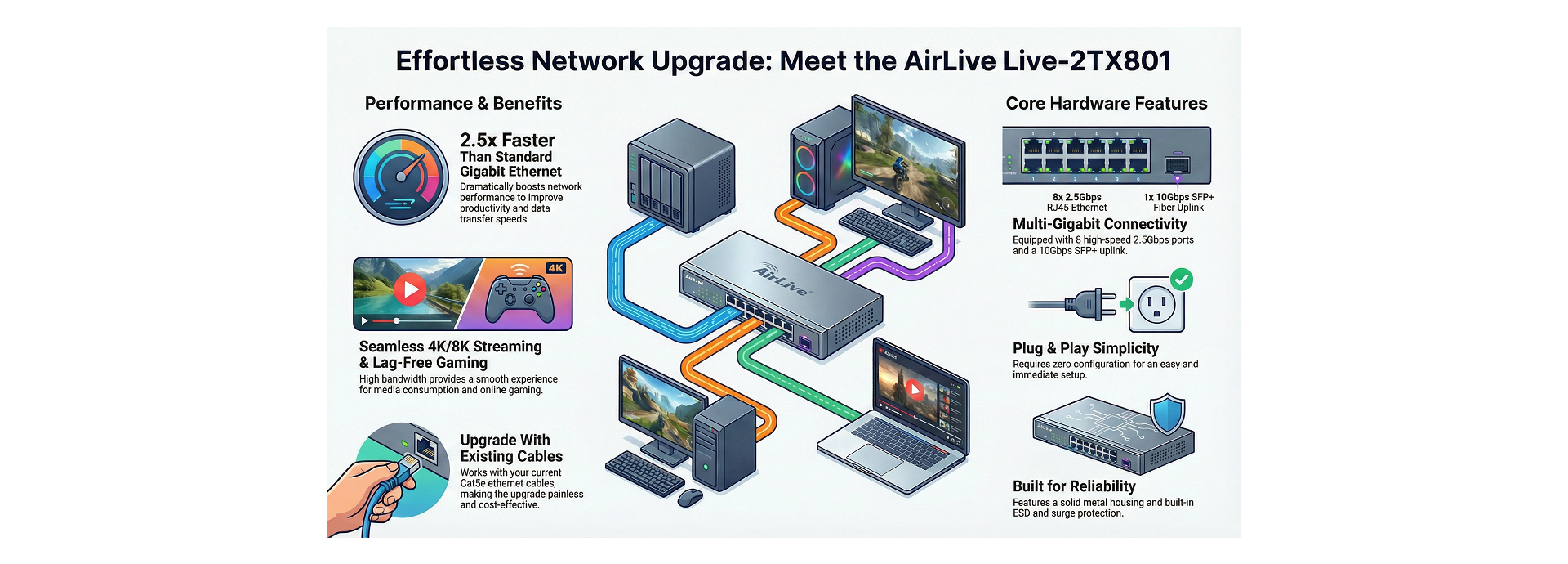

2.5Gbps & SFP+ 10G Super High speed Network Connectivity
2.5Gbps & SFP+ 10G Super High speed Network Connectivity
The AirLive Live-2TX801 network switch are equipped with 8-ports 100M/1G/2.5G RJ45 and 1-port SFP+ Fiber at 1G/10Gbps. All ports at Multi Gigabit high speed, auto-negotiation, auto-detection, providing satisfied bandwidth for connected devices such as PC/Notebook/Server/NAS/gaming machine/multi-media equipment, large data transmission.

Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed. Even, when doing backup to a NAS drive or Core switches, use the SPF+ Fiber port as uplink to a larger network at 10Gbps extreme high speed.
Features
  • 8 x 10/100/1000/2500Mbps RJ45
  • 1x 10G SFP+
  • All ports at Multi Gigabit high speed, auto-negotiation
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
Features
  • Super Fast 2.5Gbps RJ-45 and 10Gbps SFP+ Networking
  • Existing Cat5e cable suitable, painless upgrading
  • Plug and Play, Zero configuration
  • Compact size for Home or SMB Network Connectivity

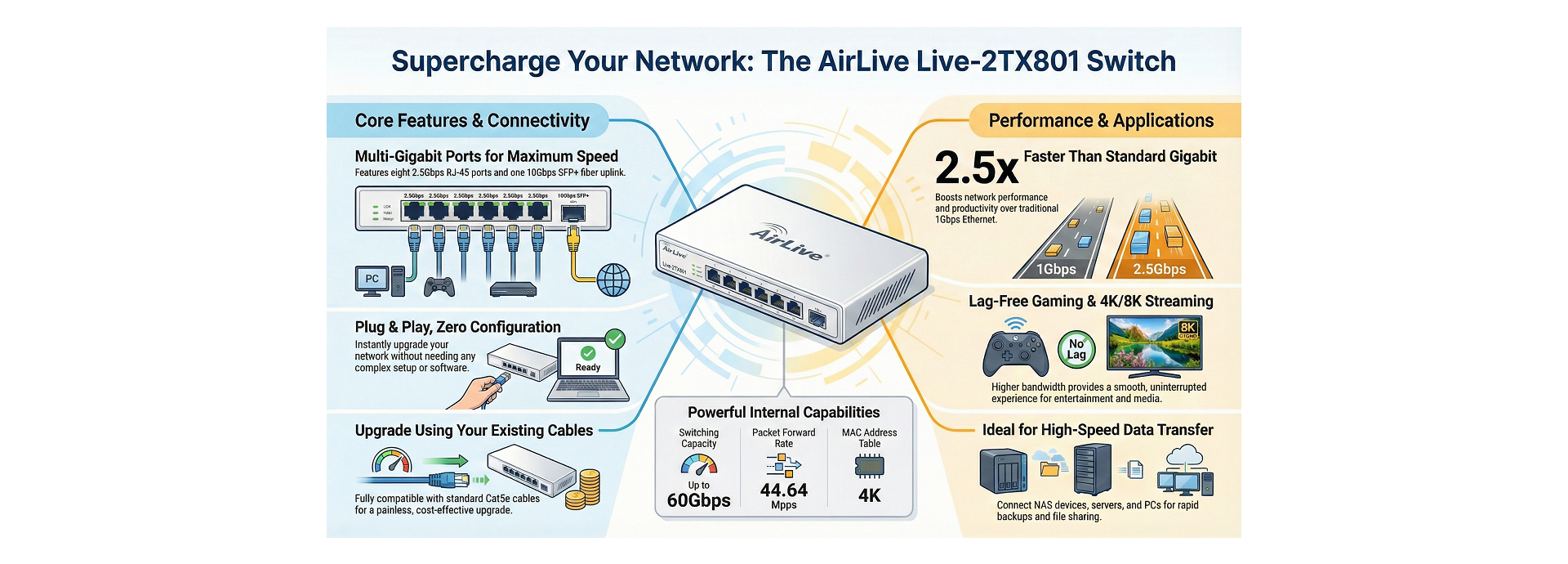

Painless Upgrading your Network Connection to 2.5Gbps & SFP+ 10G Super High speed
Painless Upgrading your Network Connection to 2.5Gbps & SFP+ 10G Super High speed

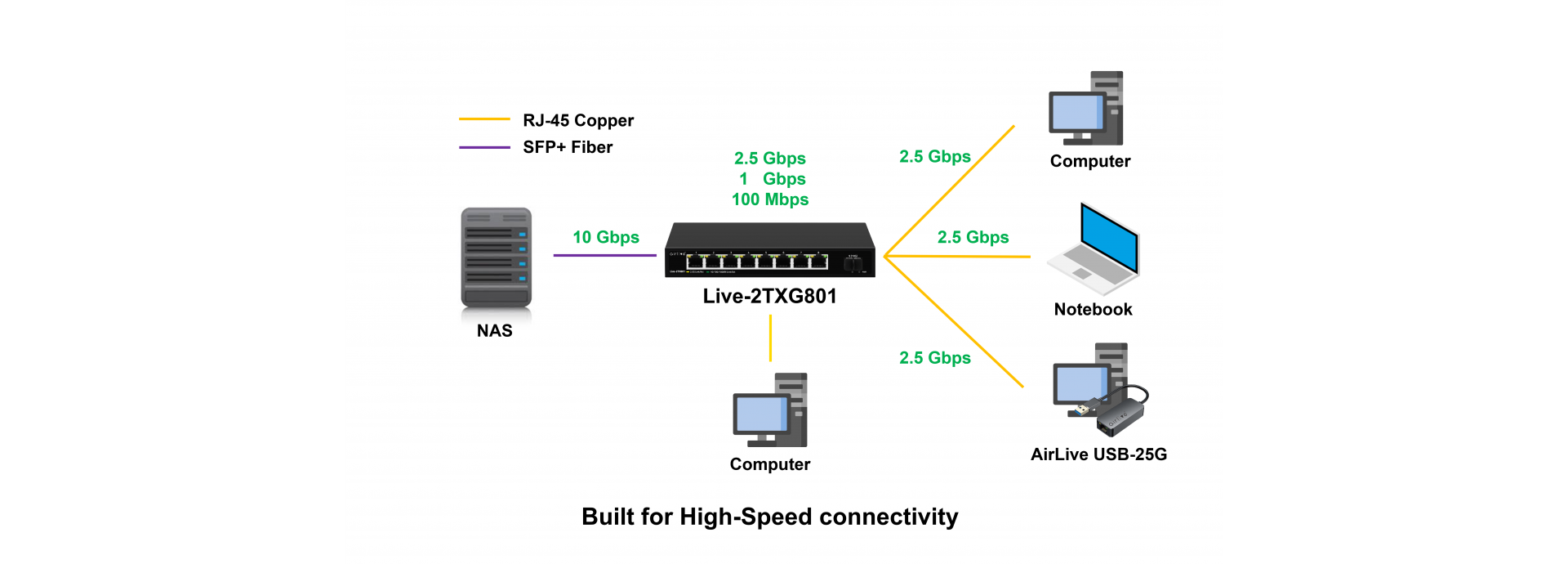

With the AirLive Live-2TX801 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using your existing normal Cat.5e network cable, plug-and-play, painless.
Features&Applications
Features&Applications
2.5 Times Faster
2.5GbE is 2.5 times faster than standard Ethernet (1GbE), high network performance to boost productivity
Works with existing cables
No special cables or connectors are required to take advantage of 2.5GbE. Simply use your existing CAT5e cables as normal with your new 2.5GbE infrastructure.
Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming
No lag when you are Gaming.
Hardware
ModelAirLive Live-2TX801
Device Interface8 x 10/100/1000/2500 RJ45
1x 1.25G/2.5/10G SFP +
9-port totally
StandardsIEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet (optical fiber)
IEEE802.3x Flow Control and Back Pressure
Industry standard compliantEMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge)
LED IndicatorsPWR (power supply),Link/Act (Indicator), 2.5G (Indicator).
ESD ProtectionSupport Surge Protection: General 6KV, Differential 2KV, ESD 8KV Air, 6KV Contact.
MechanicalSolid Metal Housing, Desktop
Power
Power Input12V/2A Power Adapter
Power Usages Max24W
Switch Architecture | Performance
Switching architecture: Store and ForwardSwitch Capacity: Back-plan up to 60Gbps
Pack forward rate; 44.65Mpps
MAC Address: 4K
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance10Base-T: Cat3,4,5 UTP(≤100 meter)
100Base-TX: Cat5 or later UTP(100 meter)
1000Base-TX: Cat5e or later UTP(100 meter)
2500Base-TX: Cat5e or later UTP(100 meter)
Fiber MediumMulti-mode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Environment
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
Operating Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelLive-2TX801
9-port 2.5Gbps Multi Gigabit Switch, incl 8 x 2.5G RJ45 and 1x SFP+ 10G, Plug and Play, auto-negotiation
Standard Package
Product Size19.0(L) x 10.0(W) x 2.8(H) cm
Package Size24.5(L) x 19.0(W) x 6.0(H) cm
Package WeightN.W: 0.49KGS
G.W: 0.71KGS
Package Content1 x Switch, 1 x Power adapter
Carton Package
Quantity20 PCS / 1 Carton
Dimensions52.0(L) x 32.0(W) x 40.0(H) cm
Weight15.2 KGS
QIG
NameDescriptionDownloadDate
Live-2TX801 QIG
2023/03/27
Spec Sheet
NameDescriptionDownloadDate
Live-2TX801 Spec Sheet
2024/02/19
CE
NameDescriptionDownloadDate
AirLive MultiGiga Switch Series CE+RoHS
AirLive MultiGiga 2.5G, 10G, 100G Switch Series CE+RoHS
2024/06/17
