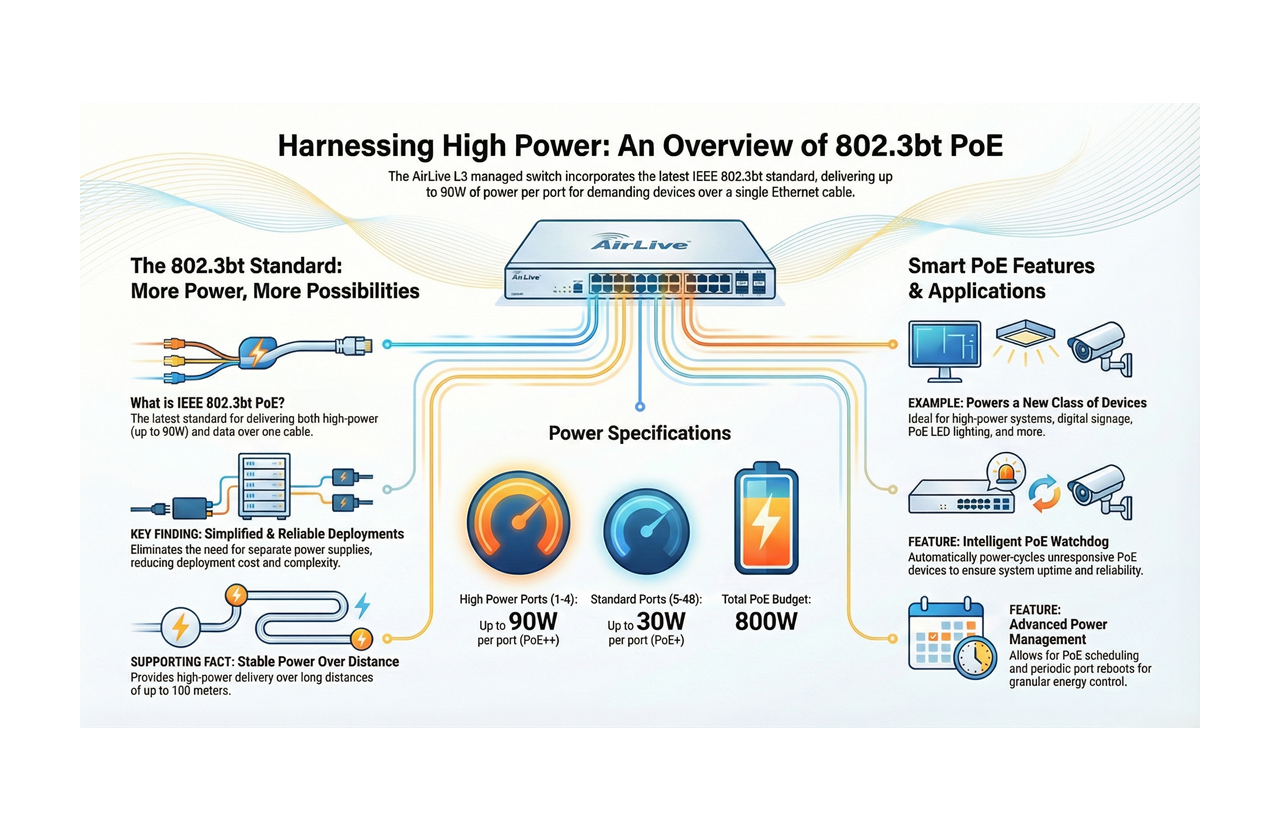

AirLive L3POE-XGS4804 High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#1~4). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application.
Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:
The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation.
AirLive L3POE-XGS4804, supporting 48 GE SFP/4 10GE SFP+ ports, is one of the L3-XGF series switches. This series delivers high-performance, super-reliable 10 GE switches with comprehensive Quality of Service and security capabilities upload. The L3POE-XGS4804 is ideal for use as access switches in large-scale data centers and core switches in campus networks.
Rich L3 Features
The AirLive L3POE-XGS4804 Series is a next-generation multiservice switch collection that offers remarkable performance and enhanced security. The switches offer high CPU capacity, improved hardware processing power and easier user operation. The L3POE-XGS4804 series supports flexible gigabit access and scalability of high-density 10G ports. All models provide fixed 10G fiber ports, With high switching capacity, the L3POE-XGS4804 support wire-speed L2/L3 forwarding and high routing performance for IPv4 and IPv6 protocols. With end-to-end service delivery and a wide range of security configurations available, the L3POE-XGS4804 series meets the high-speed, security, and intelligence needs of enterprise networks.
Layer 3 switch is a specialized hardware device used in network routing. It supports routing protocols, inspects incoming packets, make dynamic routing decisions based on the source and destination address insides. Besides, Layer 3 switches are much lower network latency since packets don't have to take additional steps through a router. It is widely used in Data centers and Universities, Factory Industrial Park, Enterprises where there is a large setup of computer networking. Owning to its features like static and dynamic routing and its fast switching speed than a router, it is used in LAN connectivity of several VLAN and LAN networks.

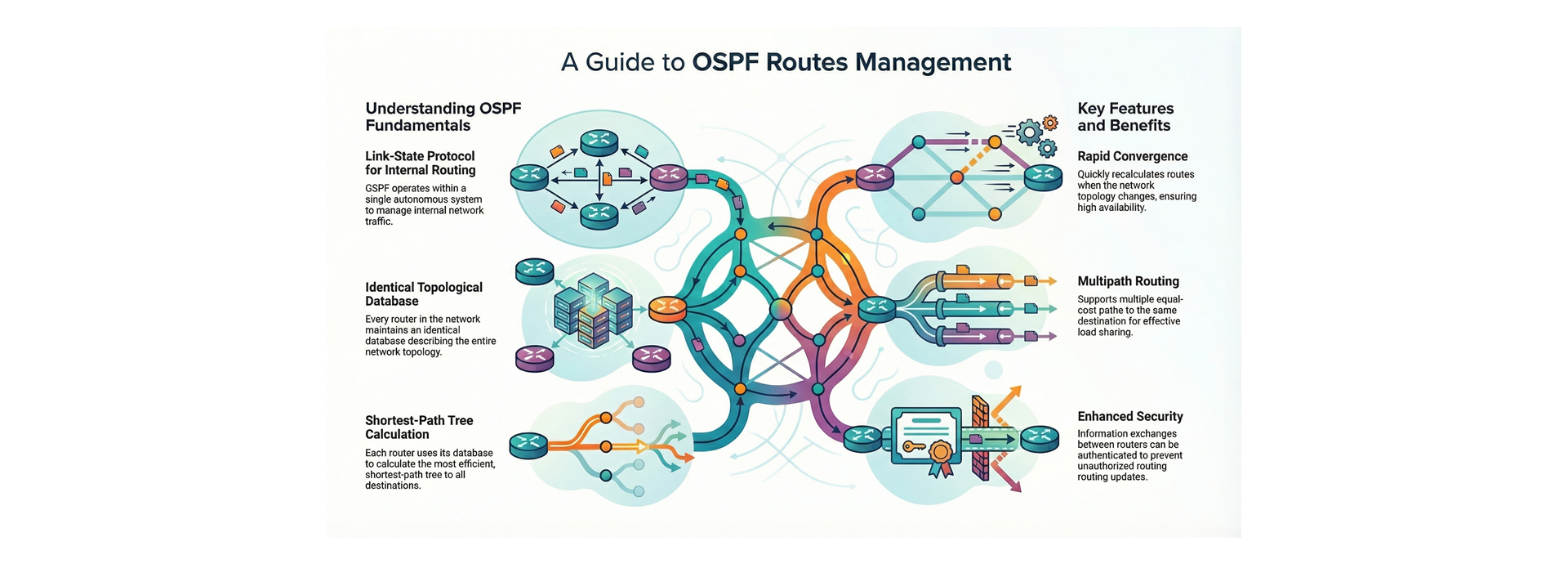

The L3POE-XGS4804 series offers high performance hardware including 802.3bt (90W port 1~4) PoE power, IP routing. Static route, OSPF, and RIP provide dynamic routing by exchanging routing information with other Layer 3 switches and routers. With the L3POE-XGS4804 series, customers could easily achieve a Policy-based Route (PBR), which is important when they need a Switch to switch application and short network heal time.
What Is a Layer 3 Switch?
A Layer 3 switch is a specialized hardware device used in network routing. Layer 3 switches technically have a lot in common with typical routers, and not only in physical appearance. Both can support the same routing protocols, inspect incoming packets, and make dynamic routing decisions based on the source and destination addresses inside.
One of the main advantages of a Layer 3 switch over a router is in the way routing decisions are performed. Layer 3 switches are much low network latency since packets don't have to take additional steps through a router.
Major Specifications
| Hardware | |
| Model | AirLive L3POE-XGS4804BT-850 |
| Device Interface | 48 x 10/100/1000M PoE 30W Ports (Port 1~4 PoE 90W) 4 x 10G SFP+ Ports 1 x RJ45 Console Port 1 x USB Port |
| Standards | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP IEEE 802.3ah：OAM IEEE 802.3af（15.4W） IEEE 802.3at（30W） IEEE 802.3bt（90W） |
| LED Indicators | PWR(Power indicator),SYS(System lights),Link(Link light), Act(data light) |
| Lighting Surge Protection | Common mode≥6KV, ESD: Contact≥6KV. Air≥8KV; |
| Mechanical | Solid metal 19” 1U rack-mountable, IP30 |
| Power and POE | |
| Protocol | IEEE802.3bt (90W, IEEE802.3at (30W), IEEE802.3af (15.4W) |
| PoE Port | 48 |
| PoE Power Output / PoE Port 1~4 | max. 90 watts |
| PoE Power Output / PoE Port 5~48 | max. 30 watts |
| PoE Power Output / PoE switch | max. 720 watts |
| Switch Power Usage | max. 57.2 watts |
| Power Input | AC100~240VAC |
| PoE Software Function | Support PoE time management Support PoE automatic monitoring and watchdog Support PoE Port power supply and power configuration |
| Switch Architecture | Performance | |

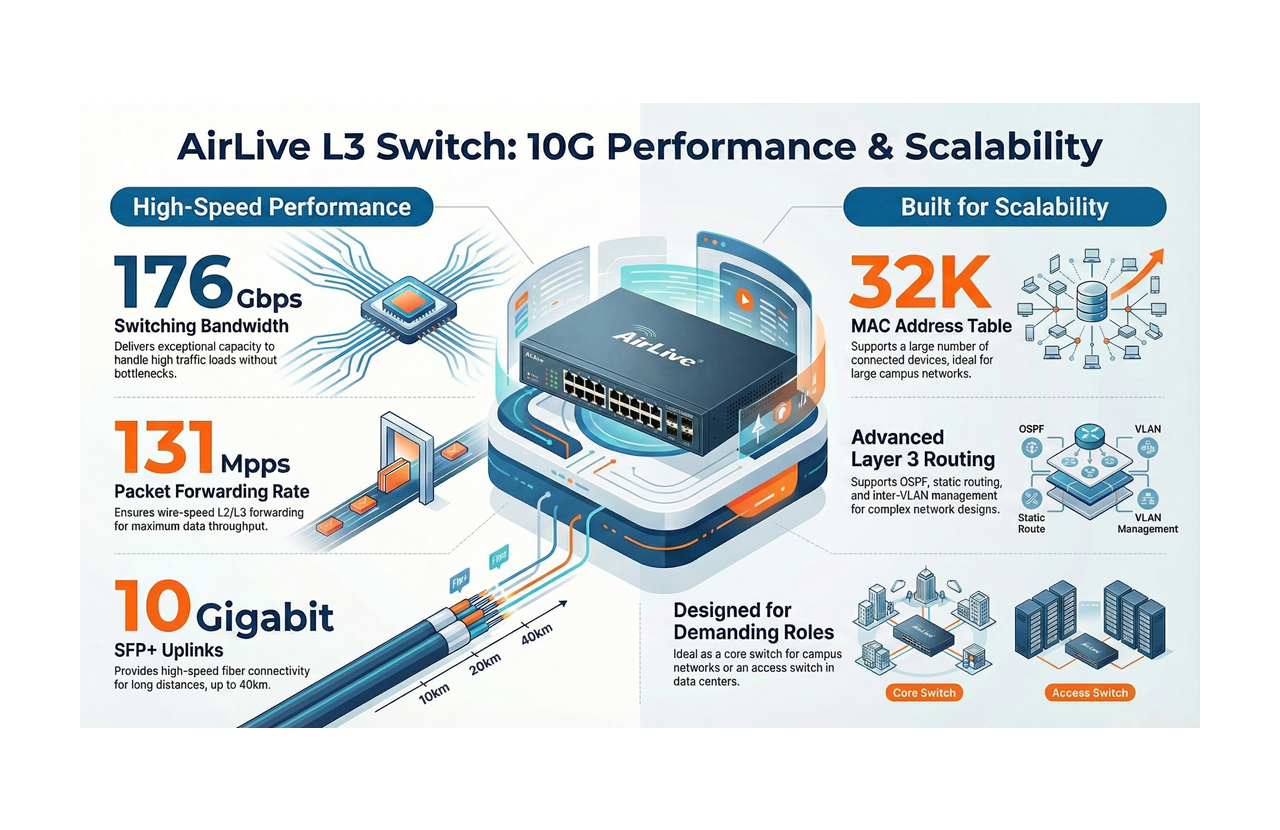

| Switching architecture | Bandwidth:176Gbps Packet Forwarding Rate:131Mpps DDR SDRAM:512MB Flash Memory:32MB Package cache:16Mbit MAC Address:32K Jumbo frame:12Kbytes VLANs:4096 MTBF:100000 hour |
| Fiber Medium | Multi-mode Fiber: 50/125 、 62.5/125 、 100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
| ERPS Ethernet Ring Protection | |
| ERPS Ethernet Ring Protection | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. |
| Software Function | |
| Basic functions | Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving |

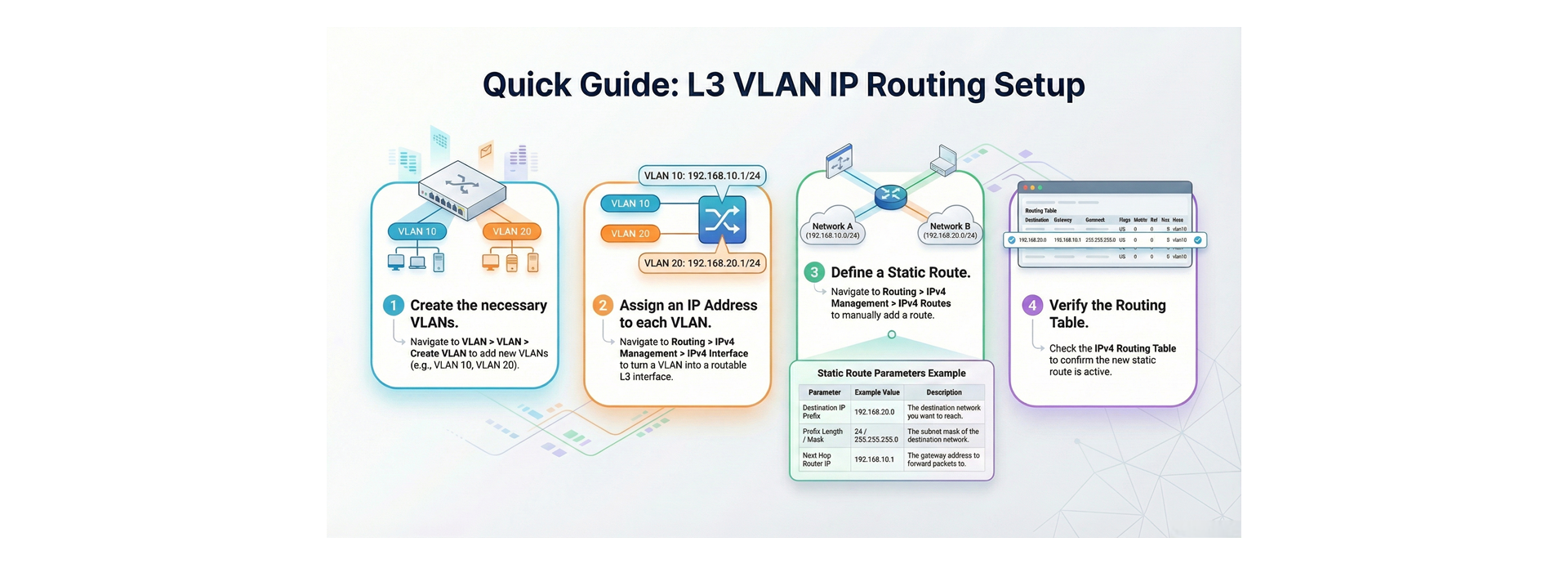

| Layer 3 Interface | Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration |
| Layer 3 Routing | Support IPv4 static routing Support IPv6 static routing |

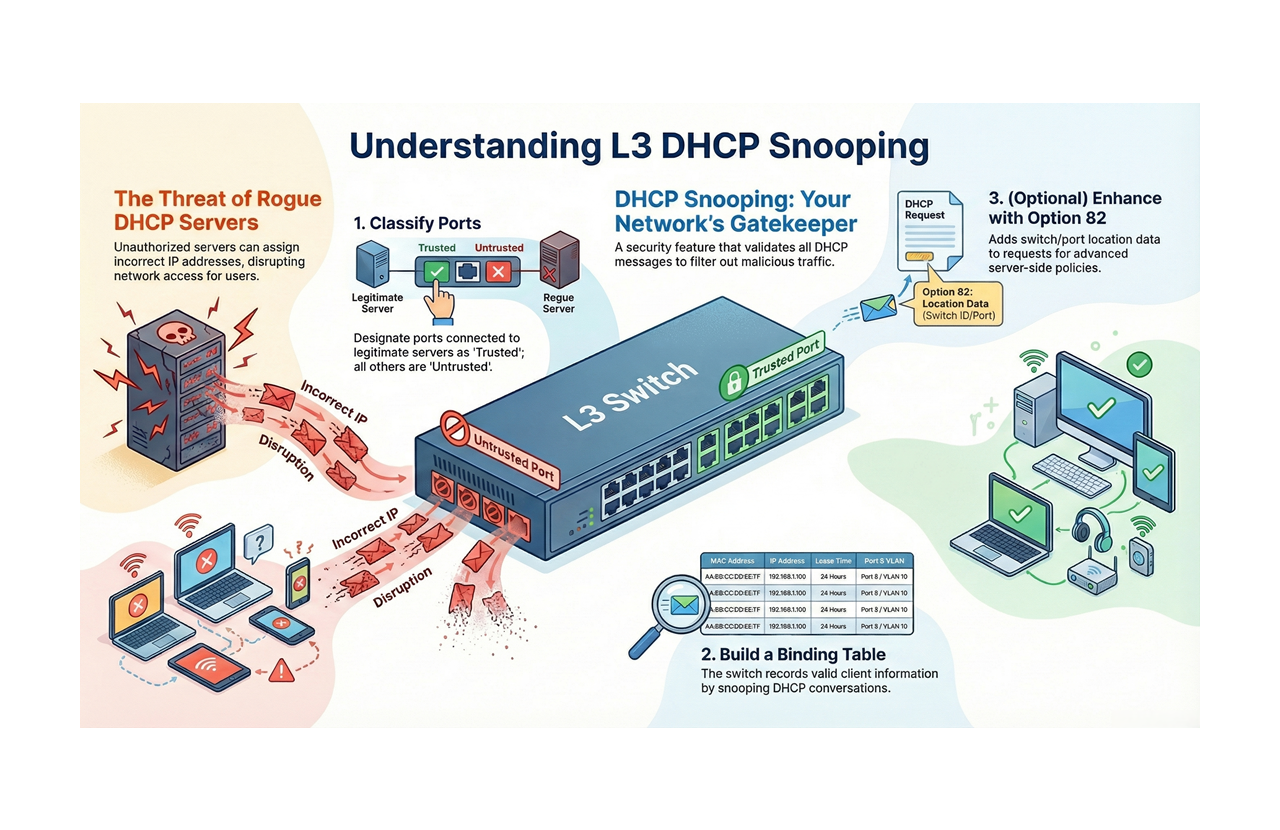

| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN |
| MAC Address | Support MAC address automatic learning and aging Support Static, dynamic, filtered address table |
| Security features | Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol, TACASC+ Support Port security, port isolation |
| Access control | Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking |
| QoS | Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm |
| Spanning tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU protection |

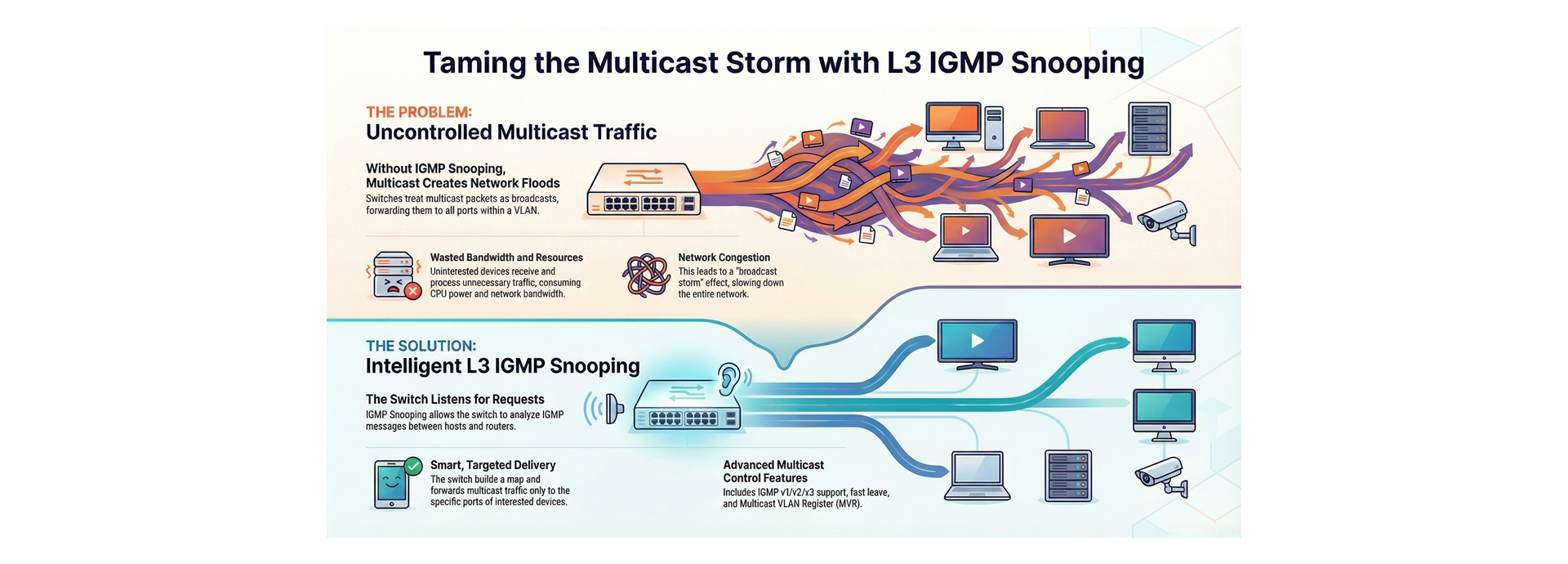

| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast |
| Storm Suppression | Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression |
| Ring protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group) |
| IPv6 | Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS |
| Management and Maintenance | |
| Management and Maintenance | Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection Support DNS Client |
| Environment | |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~90%, non-condensing |
| Model | L3POE-XGS4804-850 BT L3 Managed Gigabit PoE++ 802.3at/bt switch, 850W 48-Port including 4 10G SFP+ Fiber ports. |
| Standard Package | |
| Product Size | 44(L) x 36(W) x 4.45(H) cm |
| Package Size | 58(L) x 44(W) x 12(H) cm |
| Package Weight | N.W: 5.78KGS G.W: 7.06KGS |
| Package Content | PoE Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1 |
| Carton Package | |
| Quantity | 2PCS / 1 Carton |
| Dimensions | 60 x 46 x 27.8 cm |
| Weight | 15.1KGS |
