AirLive IGM-14104BT-2.5G High Power over Ethernet (HiPoE) Switch Series pushes the frontier with leading IEEE802.3bt standard, delivering 90W power output per port(Port#9~10). The HiPoE switch guarantees the best security, efficiency, stability and energy-saving experiences.
The HiPoE switch is highly adaptive to a breadth of scenarios, eliminating rigid ties to expensive deployment costs, slow implementation cycle, unstable power supply, management complexity, and unsatisfactory security problems that alternative solutions have been struggling to solve. The switch fully addresses high PoE access needs for low power scenario as well as high power Digital Signage application in outdoor venue.

Stable and Reliable Power Supply
High-power (90 W) and long-distance (100 m) power supply is provided. Compared with the conventional centralized power supply mode:

The HiPoE technology complies with international standards; adjusts line loss and lowers voltage intelligently, reducing errors caused by manual adjustment; and provides independent power supply over single ports, achieving faulty domain isolation


Reliable L2+ Industrial-grade Managed Security POE++ Switch for Critical location

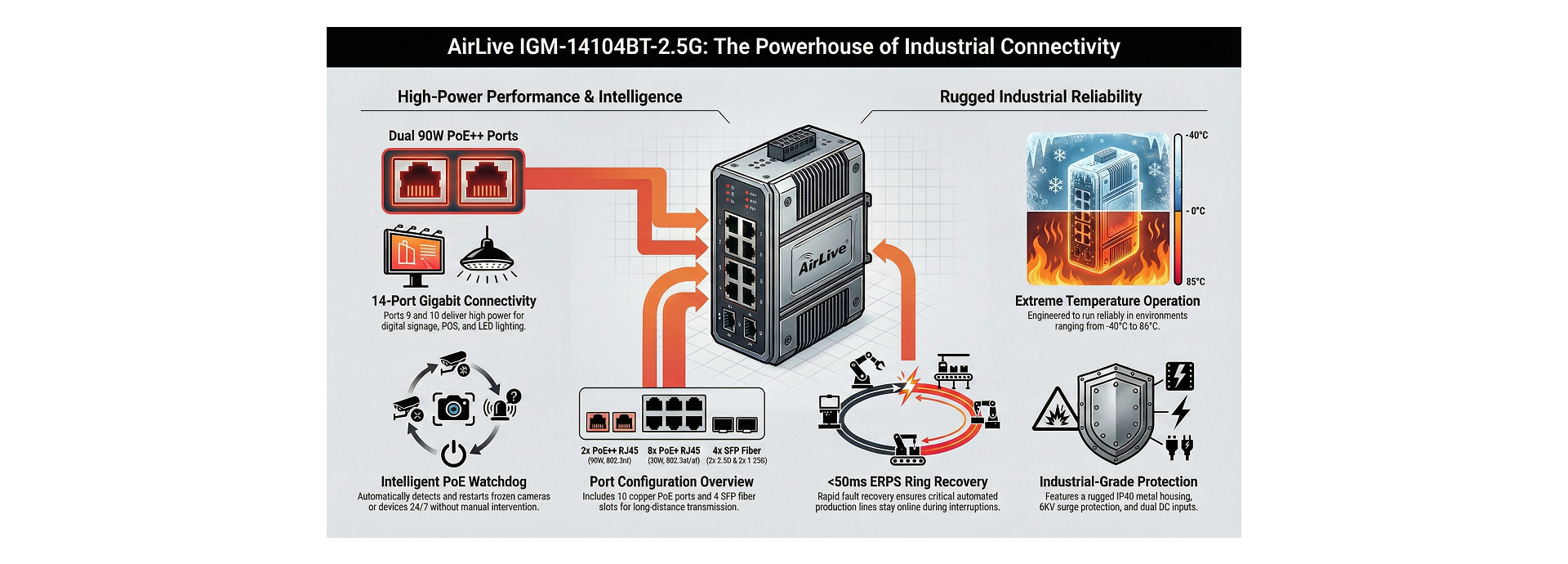

The AirLive IGM-14104BT-2.5G is a L2+ managed 14-port Gigabit PoE++ switch including 2 PoE++ ports, 6 PoE+ ports. Port 9~10 are 10/100/1000BASE-T 802.3bt (90W) compliant and port 1~8 are 10/100/1000BASE-T 802.3at/af (30W) compliant automatically adaptive, and 2 fiber optic ports at 2500Mbps and 2 fiber optic ports at 1250Mbps. Made for extreme environments with its wide temperature range from -40°c to 85°c and rugged IP40 metal housing; Dual power inputs using a 4pin terminal block (DC48~55V).

The 14-port Industrial Gigabit management switch offers comprehensive SNMP management functions including IGMP, VLAN , Port aggregation, QoS port mirroring, bandwidth control. Ring Network Protocol ERPS is supported. ERPS supports multi-ring and multi-domain structures. It supports main device backups, load sharing and other work methods in 50ms switching, making for one of the lowest fault recovery time and makes sure that your critical industrial network keeps working.

Airlive Power over Ethernet (PoE) products are suitable for commercial and industrial applications which provide highly reliable power and data transmission in compliance with the 802.3bt standard, industrial design, long-distance PoE technology, and The unique intelligent PoE watchdog control function can meet all the requirements of IP surveillance, IP communications, POS systems, PoE lighting and other applications.

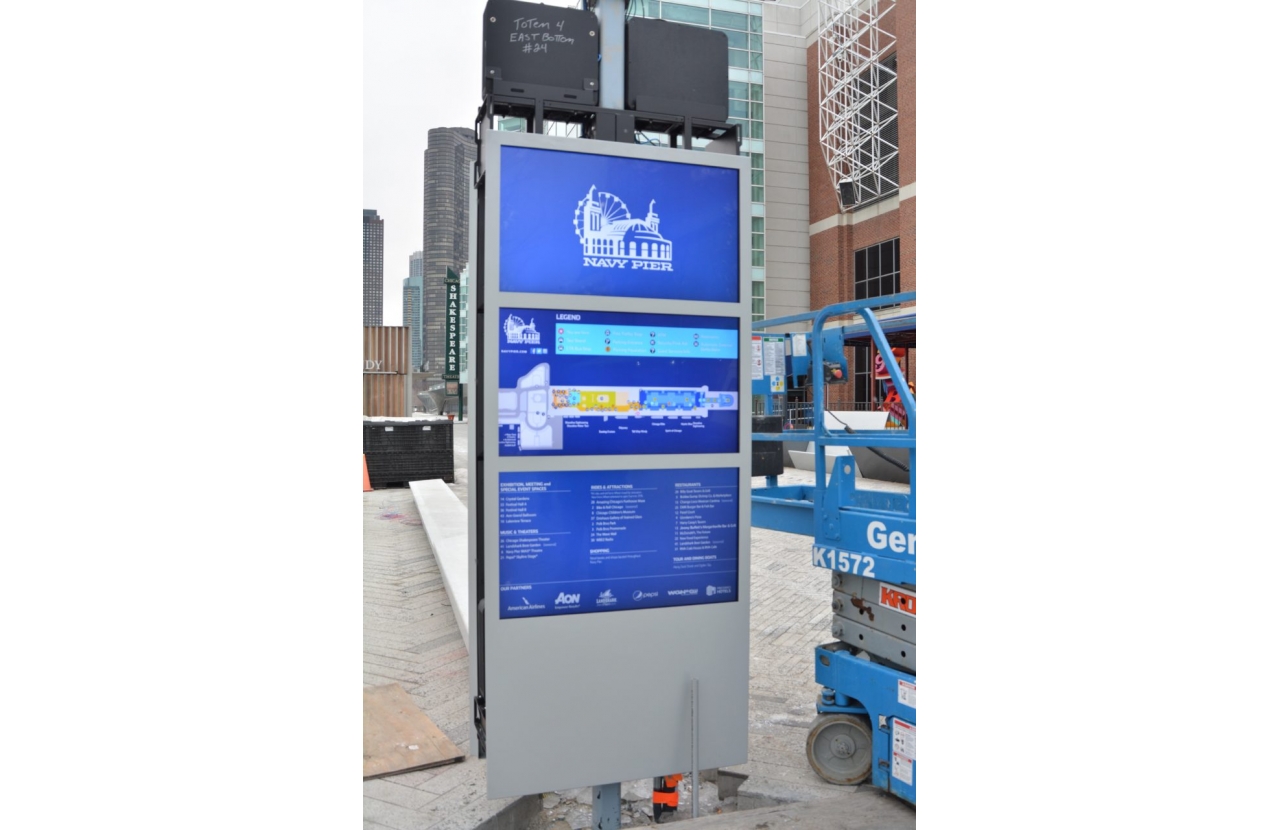

AirLive IGM-14104BT-2.5G Industrial switch supports the high-power output PoE++ at 90W for ports 9 and 10. This higher output allows it to power more device then just an IP camera or Access point. The 90W PoE can be used to power on high power needed PoE Systems, Digital Signage or even PoE LED lighting and much more. Giving you much more flexibility on the usage, as you are no longer restricted to only 30W.

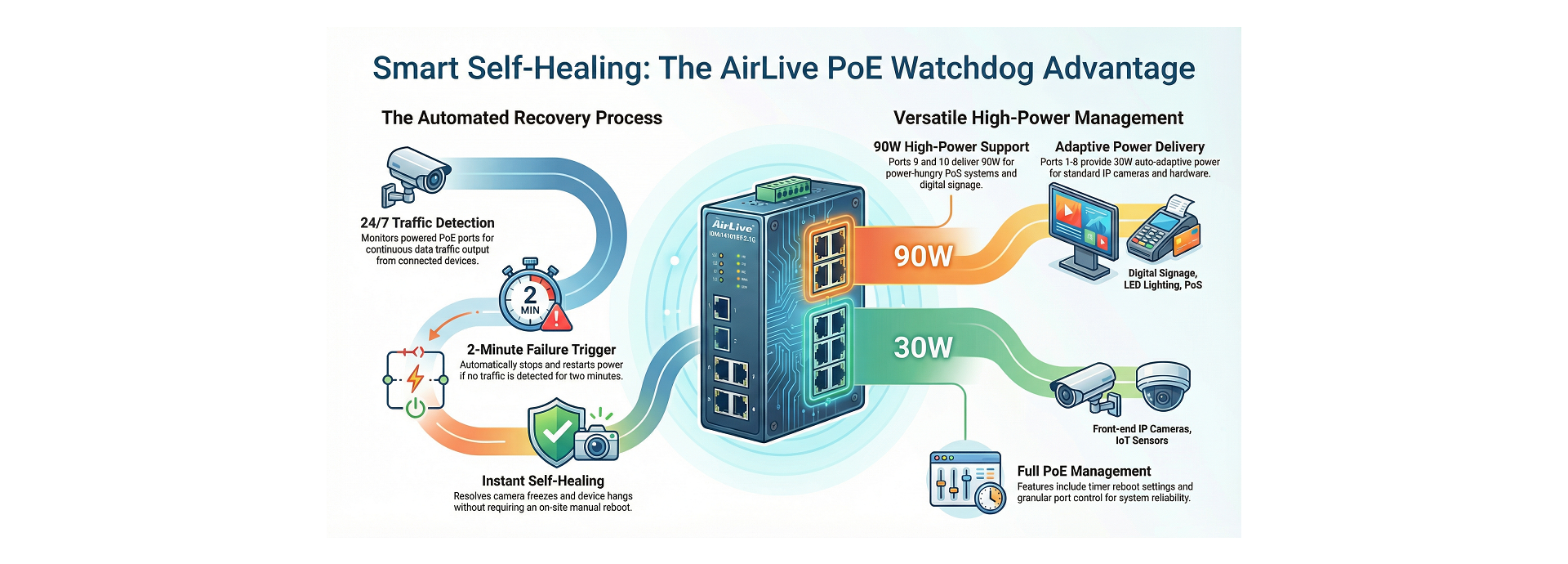

The Switch IGM-14104BT-2.5G supports high power on port 9~10 at 90W and 30W on ports 1~8 auto adaptively. With PoE management function to control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system. PoE 90W supports devices which need more power, this can be for example a PoS system, Digital Signage, or LED lighting.

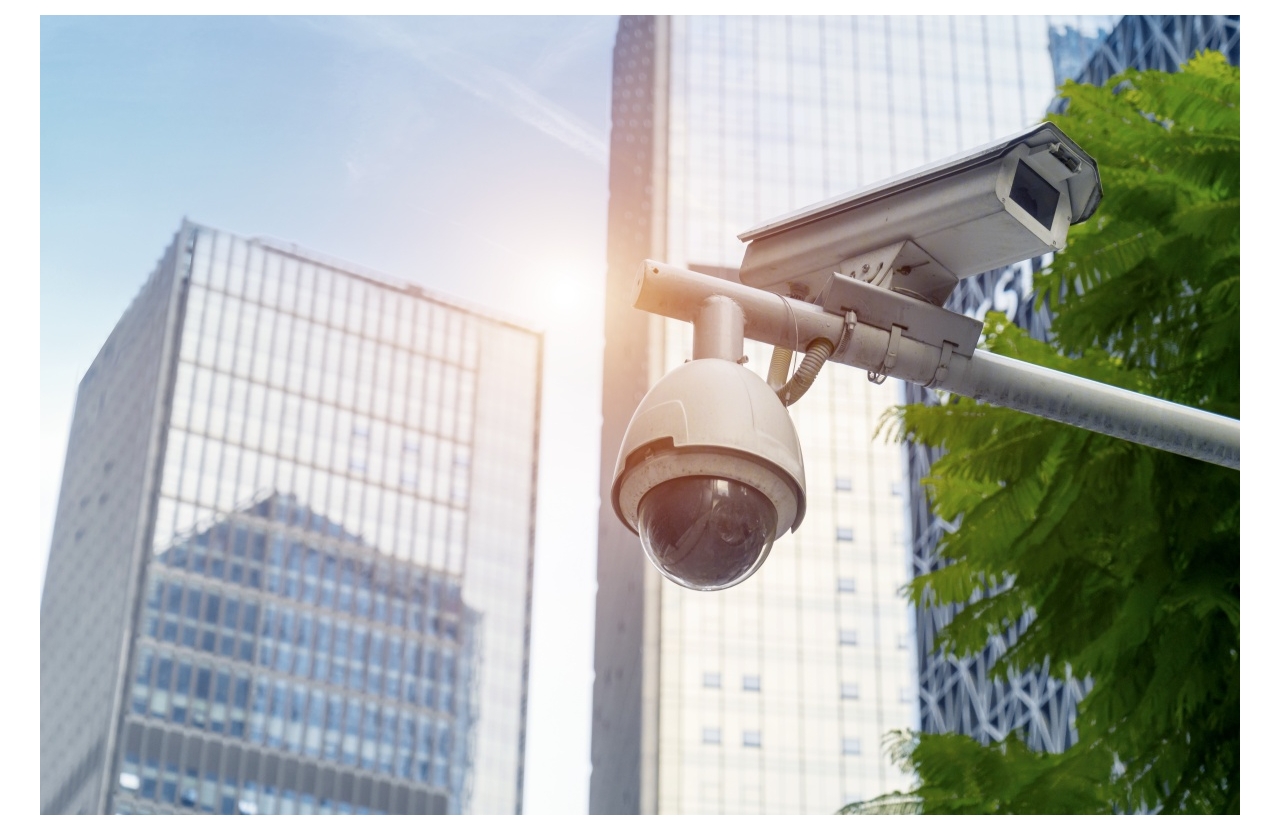

After PoE Watchdog function enabled, the IGM-14104BT-2.5G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on. PoE Watchdog is especially helpful for camera. For example, when turning on the function, the switch will detect the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera will be restarted through PoE power failure to solve the problem.

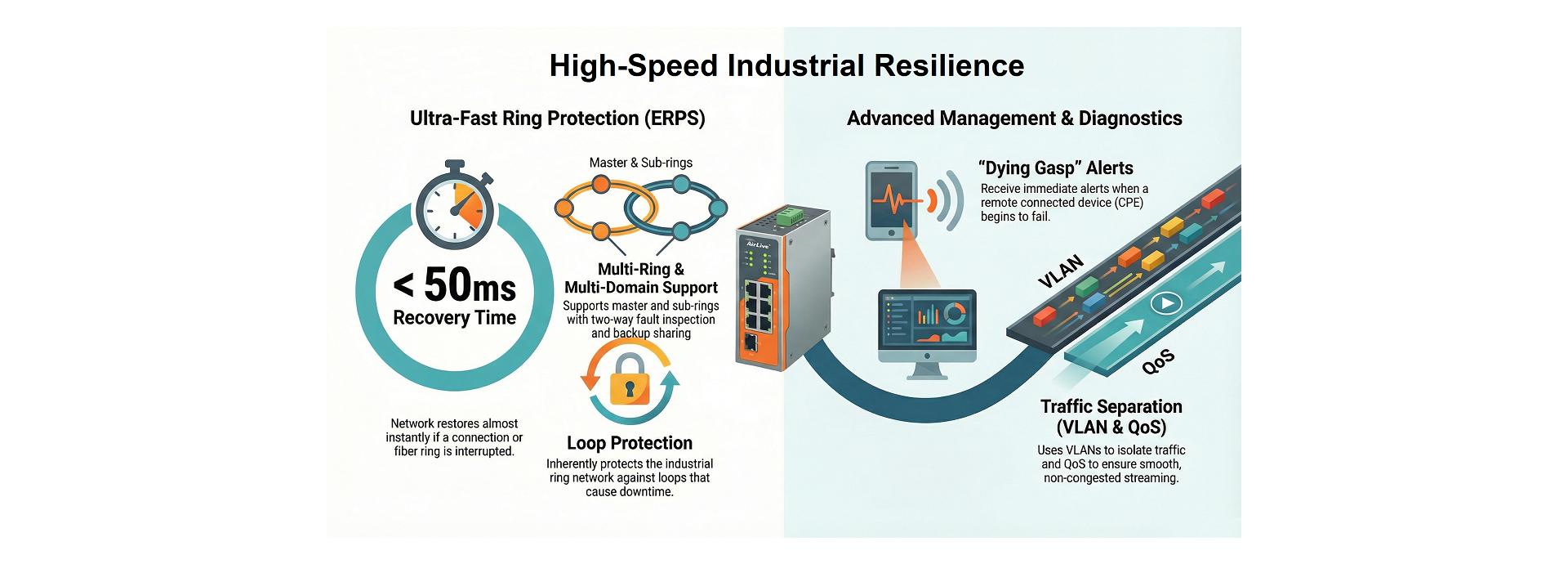

ERPS is supported by the IGM-14104BT-2.5G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backups, load sharing and other work methods in <50ms switching.

This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover within 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.

AirLive IGM-14104BT-2.5G Industrial switch meets the high standard demands of providing reliable networking connectivity, able to withstand harsh industrial environment, and cost-effectively.

The IGM-14104BT-2.5G is management switch which is packed with feature, use the many VLAN functions to separated the traffic on your network, use Dying Gasp to get an alert when a remote connected device (CPE) is failing. Or use the QoS functions to stream your network in a smooth and non congested network these and many more functions can be found in the AirLive industrial Switch.

The IGM-14104BT-2.5G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under harsh environment and require stable network and PoE power such as parking lot or IP surveillance. The IGM-14104BT-2.5G has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.
