HomeProductsIndustrial SwitchIndustrial Unmanaged Gigabit PoE+ 802.3at Switch IG-642RPOE: Industrial Unmanaged Gigabit PoE+ Switch

IG-642RPOE: Industrial Unmanaged Gigabit PoE+ Switch

ADD INQUIRY
Reliable Industrial-grade Unmanaged POE Switch for extreme environment
Reliable Industrial-grade Unmanaged POE Switch for extreme environment

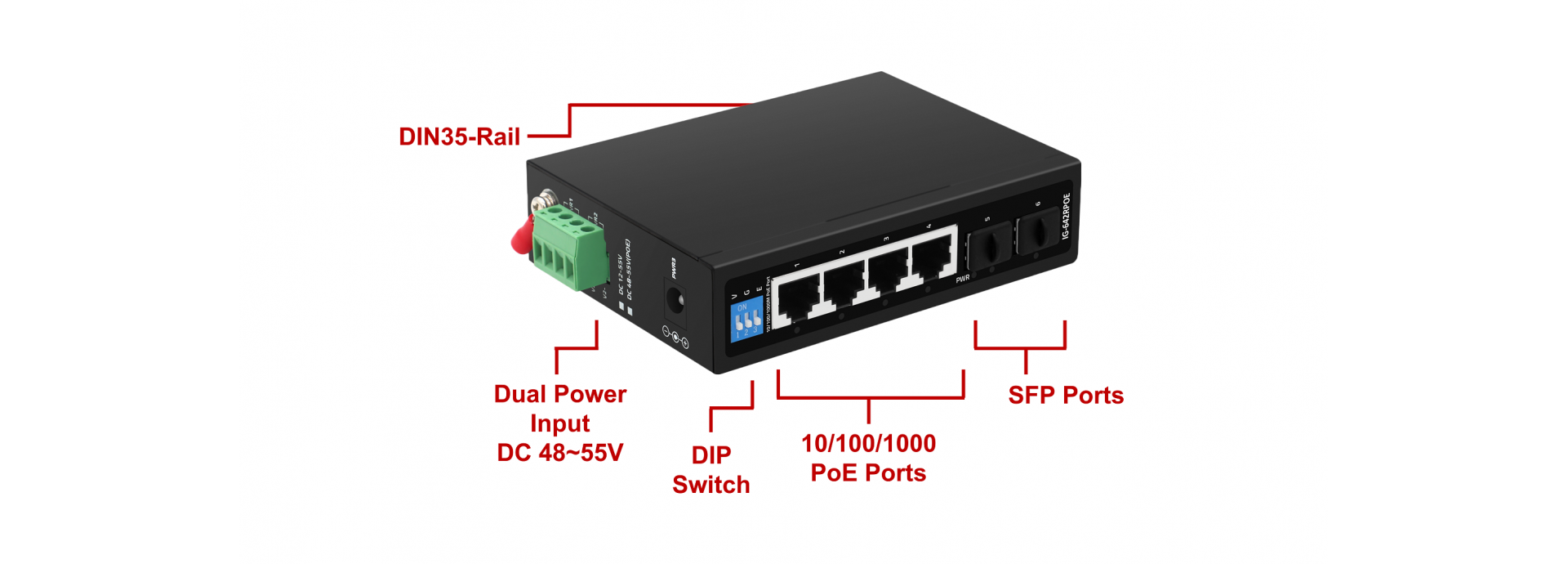

The AirLive IG-642RPOE is an Unmanaged Gigabit PoE switch with 4 PoE 10/100/1000 BASE-T 802.3af/at ports, each port supplying up to 30 watts of power automatically adaptive, and 2 Gigabit SFP Uplink ports help with connecting the switch to a larger network. Made for extreme environments with its wide temperature range from -40°c to 75°c and rugged metal housing; Dual power inputs using a 4pin terminal block (DC48~55V).
Features
  • All 6-port, each port delivers Gigabit speed
  • Supports 4 PoE Ports up to 30W /per PoE Port
  • Extend the network further with 2 SFP slots that accept fiber transceivers and go beyond the limits of Ethernet
  • Automatically detect and offer power for connected PD
Features
  • DIP Switch
  • VLAN Mode, Extended Mode: transmission of up to 250M in Extend Mode
  • Surge Protection; ESD Protection
Built for Harsh Environment
Built for Harsh Environment

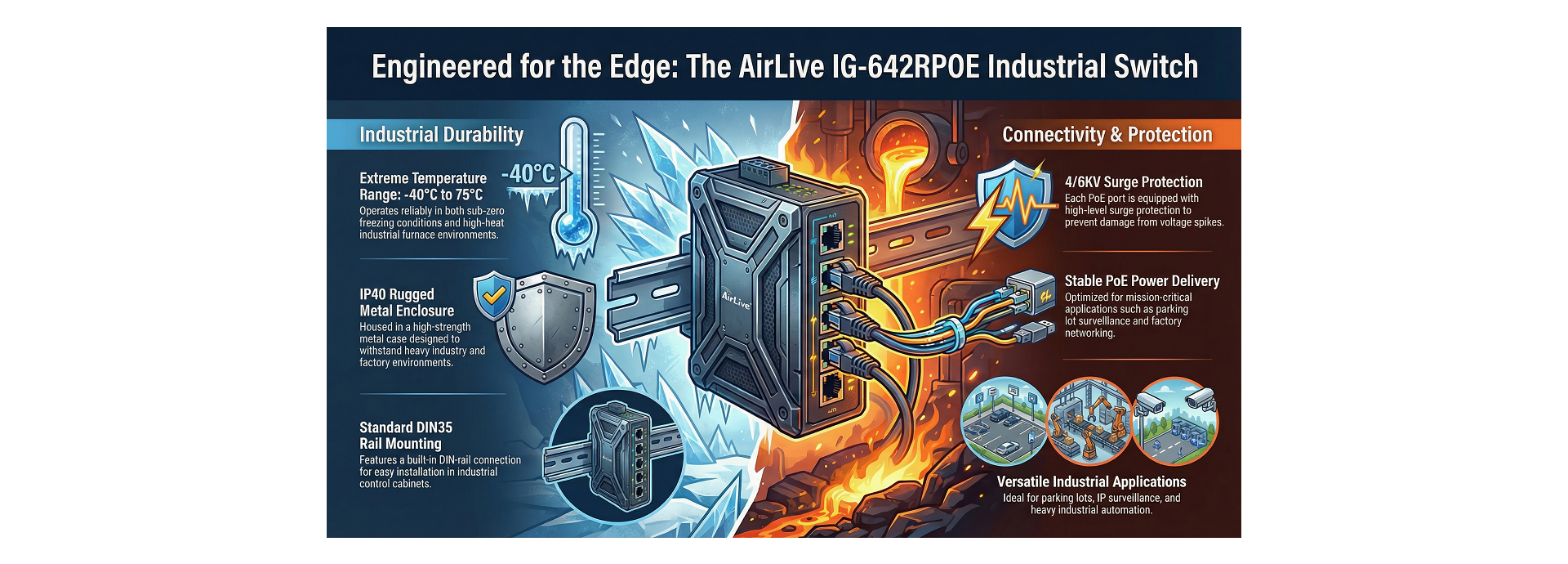

The IG-642RPOE switch can operate from -40°C ~ 75°C. And each POE port has 4/6KV surge protection (depending on model). It is the ideal solution for applications which work under harsh environment and require stable network and PoE power such as parking lot or IP surveillance. The IG-642RPOE has a rugged high strength metal case which is rated at IP40 and has a DIN35 Rail connection making it suitable for network use in a heavy industry or factories. AirLive Industrial switches can be placed in almost any harsh environment.
Fiber for Long Distance
Fiber for Long Distance
Extend the network further with the 1.25G SFP slot/
Multimode fiber: 850nm, 1310nm transmission distance: 550m/2Km
Single-mode fiber: 1310nm, 1550nm transmission distance: 20/40/60/80/100/120km
(Distance depended on module used (not included))
Dual Power Inputs
Dual Power Inputs
The AirLive IG-642RPOE supports 2 DC power inputs, DC48~55V, for power redundancy.  Which greatly improves the reliability and uptime of a sensitive  network in a harsh environment.  When one of the DC power inputs fails, the second input will continue to power on the switch. / DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
VLAN and Extend Mode
VLAN and Extend Mode

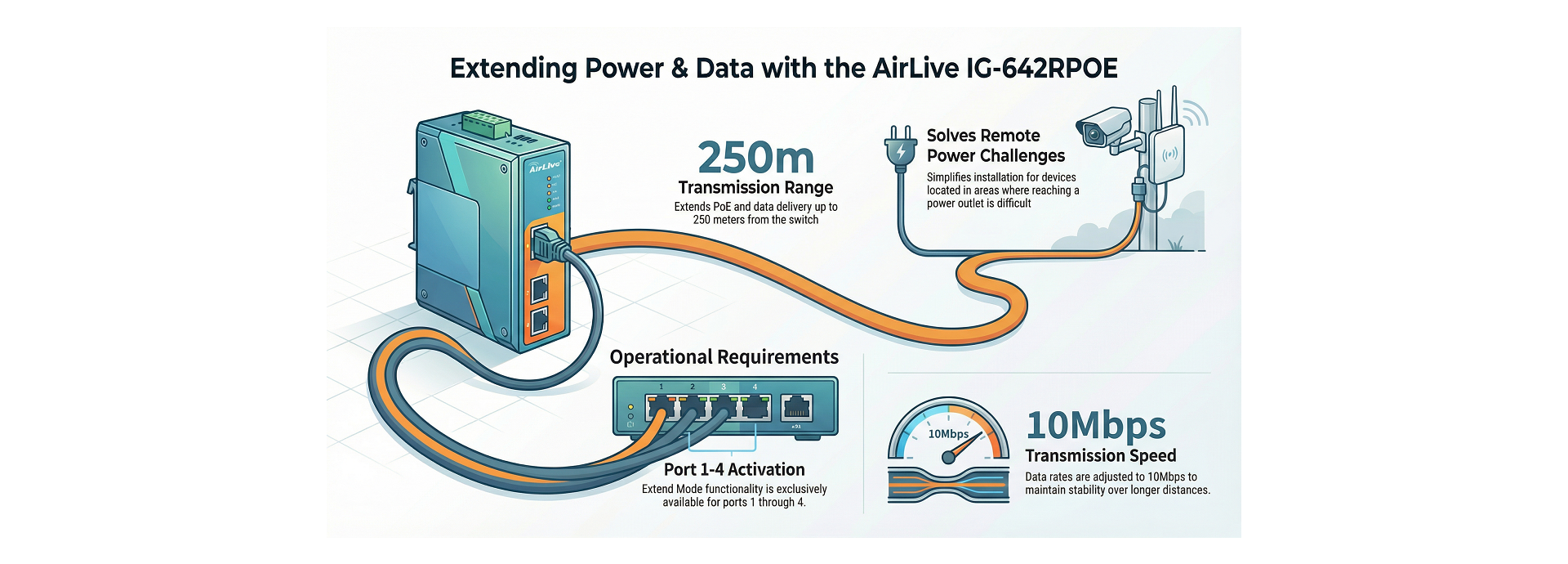

The IG-642RPOE switch can be set in Extend mode to reach a distance of up to 250m (limited to 10Mbps), this can be very useful in locations where it hard to get power to turn on your PD device. The Extend mode makes this easier. The Extend mode is only for Port 1~4 on the switch and when enabled the transmission rate will be 10Mbps. VLAN mode:  When the Port Isolation mode is enabled the PoE ports (1~4) cannot communicate with each other and can only communicate with the Up-Link port 5/6.
ges

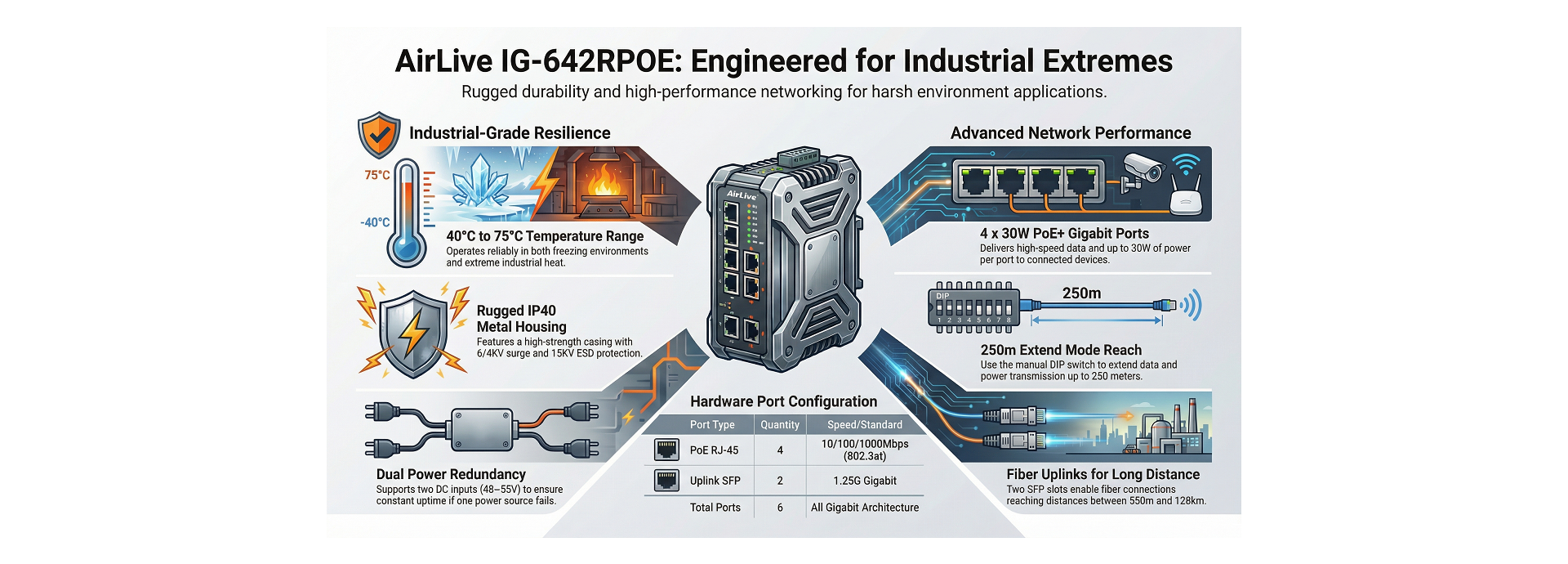

* –40°C to 75°C operating temperature range and IP40 protection for application in various tough environments

* Supports PoE+ up to 30W

* Extend network further with 2x 1.25G SFP slots that accept fiber transceivers and go beyond the limits of Ethernet

* Hardware VLAN and 250m Extend mode

* Optimized network deployment and low network construction costs

* Flexible installation modes of DIN-rail
Hardware
ModelAirLive IG-642RPOE
Device Interface4 x 30W PoE 10/100/1000 RJ-45
2 x 1.25G SFP
6-port totally
StandardsIEEE802.3
IEEE802.3i
IEEE802.3u 100Base-TX / 100Base-FX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3z Gigabit SX/LX (optical fiber)
IEEE802.3at/af PoE
LED IndicatorsPWR (power supply), 1- 6 Link & ACT
Industry standardEMI: FCC Part 15, CISPR (EN55032) class A
EMS:
EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Lighting Surge / ESD Protection:
Surge 6/4KV, ESD 15KV(Air), 8KV (Contact).
Mechanical:
High-strength metal case IP40, DIN35 Rail Mounting
Power and PoE
Protocol IEEE802.3at (30W), IEEE802.3af (15.4W)
PoE Port4
PoE Power Output / PoE Port 1~4max. 30 watts per port, (depends on power source used.)
Switch Architecture | Performance
Fiber MediumMulti-mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-mode Fiber: 1310nm, 1550nm
Transmission Distance 20/40/60/80/100/120Km
Switching architecture: Store and ForwardBandwidth: 12Gbps
Packet Forwarding Rate 8.928Mpps
MAC Address: 8K
Jumbo Frames: 9.6Kbytes
Transfer Mode: Store and Forward
MTBF: 100000 hours
DIP Switch Control
VLANPort isolation mode. In this mode ports (1~4) cannot communicate with each other and can only communicate with the UP-Link port 5/6
DefaultNormal mode, all port can communicate with each other, the transmission distance is within 100m, the transmission rate is 10M/100/1000M adaptive.
ExtendExtension mode, data transmission distance can be extended to 250 meter at the transmission rate 10Mbps Port 1~4 only.
Power Supply
Input VoltageDC 48~55V
Input Type4 Pin Terminal (block V1+V1- V2+ V1- Supports Dual Power Input)
DC 2.1 (DC 2.1 cannot be used together with V1 and V2)
Environment
Operating Temperature-40°C to +75°C
Storage Temperature-40°C to +85°C
Humidity5%~95%, non-condensing



Ordering Information

ModelIG-642RPOE
Industrial Unmanaged Gigabit PoE+ Switch
6 Ports Including 4 x PoE 10/100/1000Mbs RJ-45, 2 x Uplink SFP
Standard Package
Product Size12(L) x 8.7(W) x 3(H) cm
Package Size17.5(L) x 13(W) x 5.5(H) cm
Package WeightN.W: 0.441KGS
G.W: 0.530KGS
Package Content1 x Switch, 1 x Pull Arm
Standard Carton Package
Quantity40 PCS / 1 Carton
Dimensions54(L) x 29(W) x 37.5(H) cm
Carton Weight22.2KGS
