GPON OLT-422: 4 PON Ports GPON OLT with 10G SFP+

ADD INQUIRY
Overview
Overview

The Gpon OLT-422 also complies with ITU-T G.984/G.988 standards, which are the technical requirements for GPON OLTs in network access. This ensures that the device is interoperable with other GPON-compliant equipment and can be used in a variety of network environments.

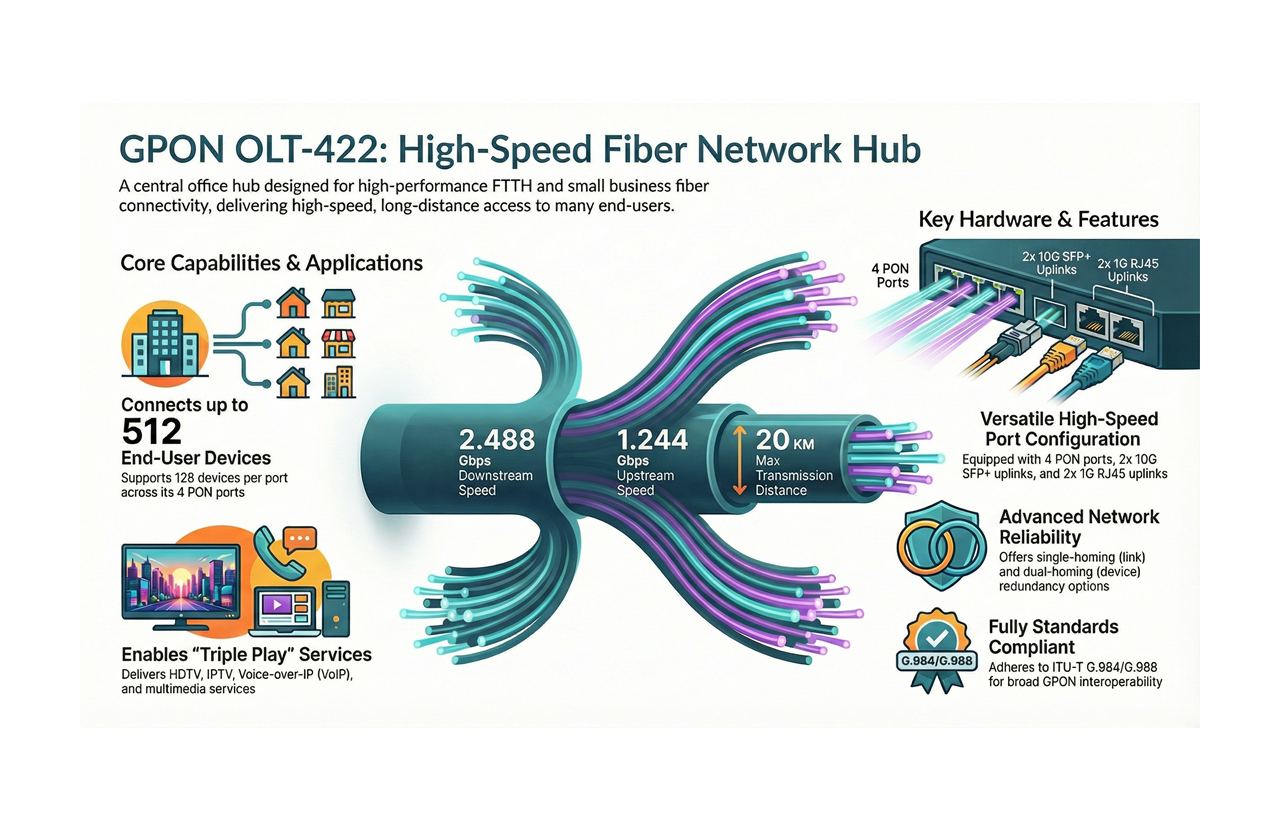

The GPON OLT-422 seems to be a versatile and effective solution for managing up to 512 ONU devices in a fiber broadband network. Its ease of installation and maintenance make it an attractive option for small to medium-sized deployments.



GPON OLT-422 this device is designed for use in FTTH (Fiber-to-the-Home) and small business applications, and has a single PON port with a splitting ratio of 1:128. It can transmit data up to a distance of 20KM, and has high uplink and downlink bandwidth capabilities of 1.25Gbps/2.5Gbps.

Highlight Feature
Highlight Feature
Features
  • 4 PON ports, 2*SFP+ 10G, 2*RJ45 1G, 1U 19"
  • Upstream 1.244Gbps, Downstream 2.488Gbps
  • Each PON port supports up to 128 ONUs, total up to 512 ONUs
  • Redundant Power (*Option)

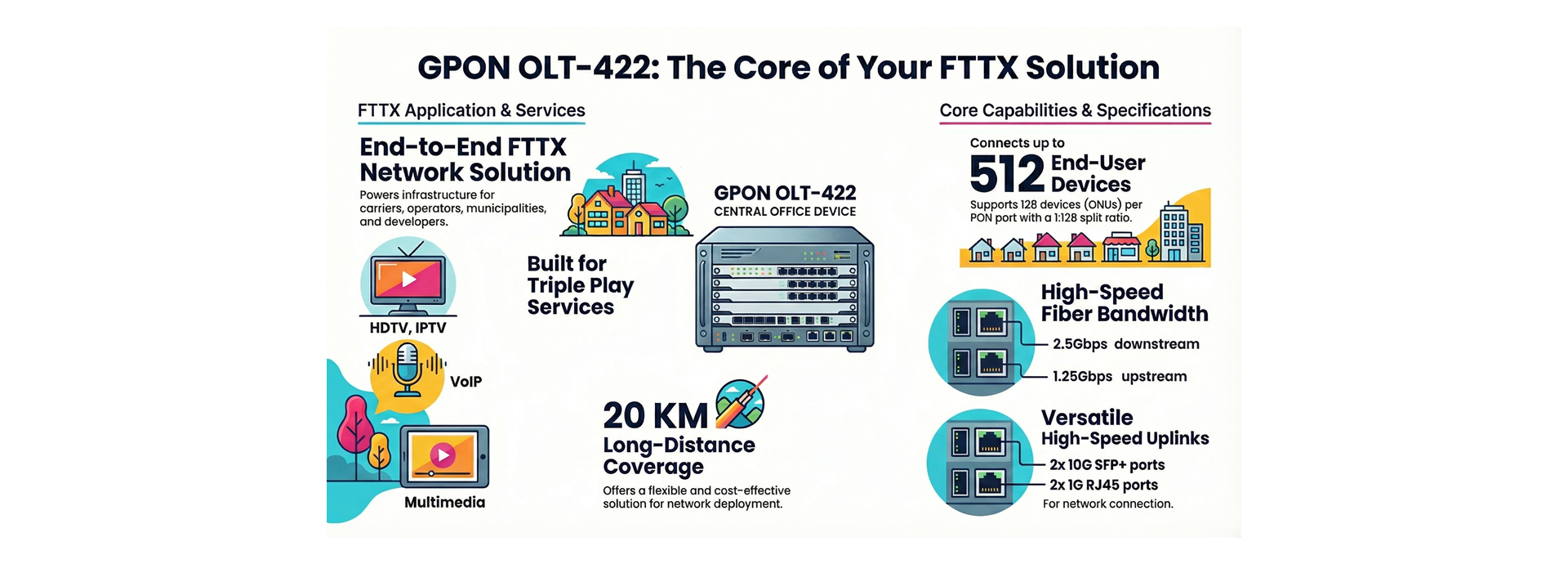

FTTX Application
FTTX Application

GPON OLT-422  offers a complete, end-to-end network infrastructure application products for FTTX networks. From the CO to the customer premises, regional carriers, independent operators, municipalities, Multiple System Operators (MSOs), utilities, and developers worldwide have tapped the experience and innovation to build their FTTX networks.

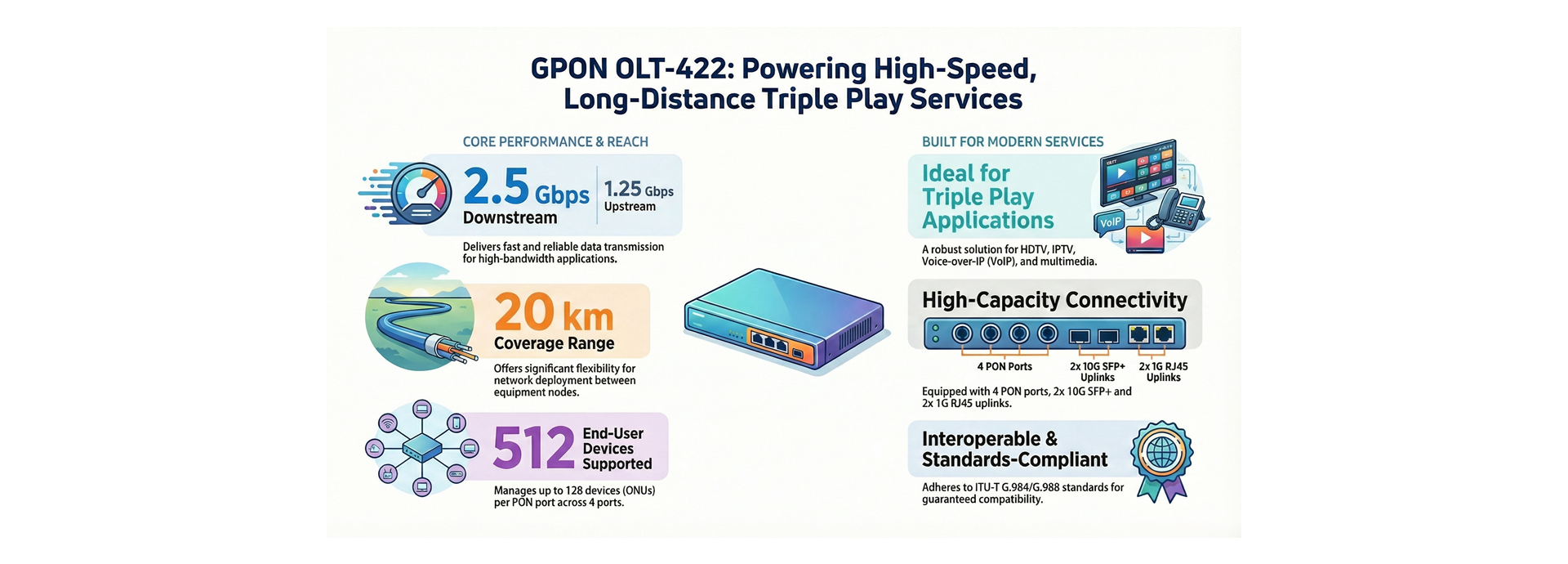

High-speed and Long-distance Coverage for Triple Play Services
High-speed and Long-distance Coverage for Triple Play Services

The GPON OLT-422  offers a robust solution for providing high-speed and long-distance coverage in triple play service applications such as HDTV, IPTV, voice-over-IP (VoIP), and multimedia. It supports downstream bandwidths of up to 2.5Gbps and upstream bandwidths of 1.25Gbps, enabling fast and reliable data transmission. With a coverage range of up to 20km between equipment nodes, the OLT-422  is a cost-effective access technology that offers flexibility for network deployment. Its reliable and scalable network ensures a seamless and efficient experience for users.

Hardware
ModelAirLive GPON OLT-422

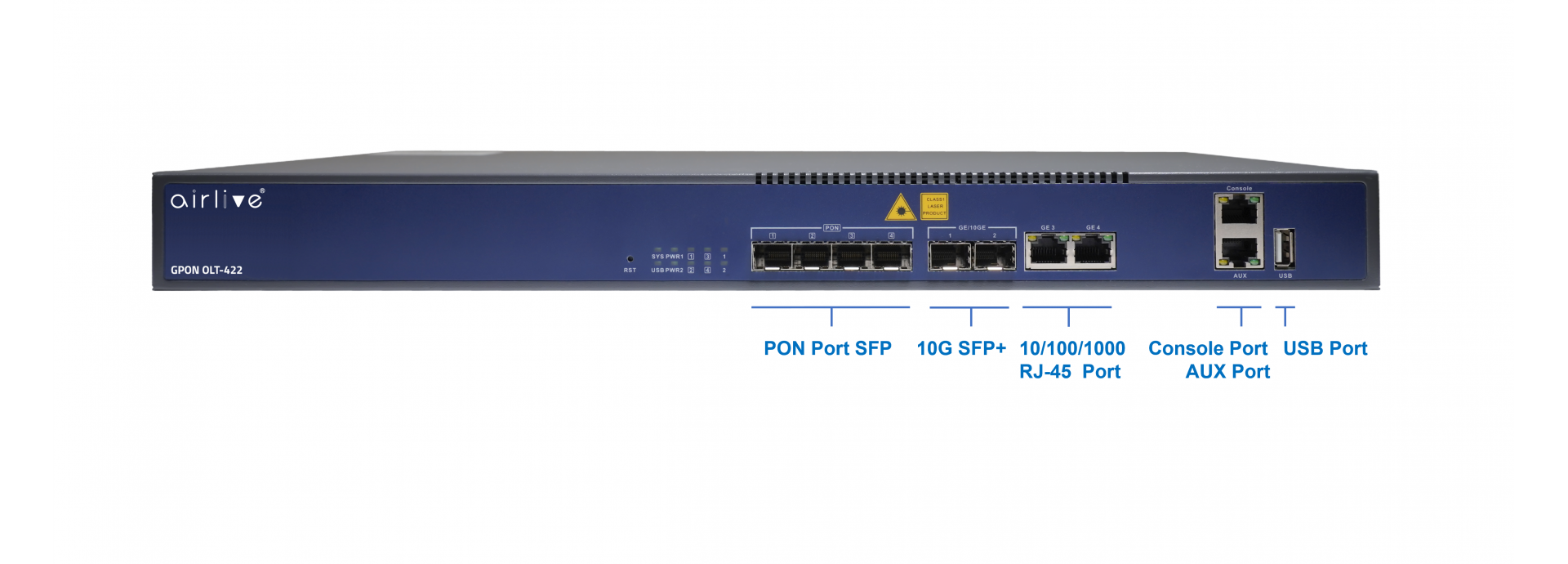

Device Interface•PON Port: 4x SFP
•Uplink RJ45: 2x 1 GE
•Uplink SFP+: 2x SFP+ (10GE)
•Console: 1*10/100/1000BASE-T out-band port, 1*Console port, 1*USB2.0
•Fiber Type: 9/125μm SMF
•Connector: SC/UPC
•Supported PON module level: Class B+, C, C+, C++, C+++
•Support ONU: 512
•GPON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps
•Wavelength: TX 1490nm, RX 1310nm
•Max splitting ratio: 1:128
•Transmission Distance: 20KM
•Backplane Bandwidth (Gbps): 104
•Port Forwarding Rate(Mpps): 47.616
•Management Mode: WEB/SNMP/Telnet/CLI
Firmware features
Management FunctionSNMP, Telnet, CLI, WEB, SSH v2;
Fan Group Control
Port Status monitoring and  configuration management
Online ONU configuration and  management
User management
Alarm management
Layer2 Switch32K Mac address
Support 4096 VLANs
Support port VLAN and protocol VLAN
Support VLAN tag/Un-tag, VLAN  transparent transmission
Support VLAN translation and QinQ
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Support static LACP, Dynamic LACP
QoS based on port, VID, TOS and MAC  address
Access control list
IEEE802.x flow control
Port stability statistic and  monitoring
Multicast
 		IGMP Snooping
2048 IP Multicast Groups
DHCPDHCP server, DHCP relay, DHCP snooping
DHCP option82
Layer 3 RouteARP proxy
4096 hardware Host Routes,512 hardware Subnet Routes
Support 802.1X,Radius,Tacacs+
Support IP source guard
Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3
IPv6Support NDP;
Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
Support ACL based on source IPv6 address,  destination IPv6 address, L4 port, protocol  type, etc;
Support MLD v1/v2 snooping(Multicast  Listener Discovery snooping)
PON FunctionTcont DBA
Gem port traffic
In compliant with ITU-T984.x standard
Up to 20KM transmission Distance
Support data encryption, multi-cast, port  VLAN, separation, RSTP, etc
Support ONU auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy  for link problem detection
Support broadcasting storm resistance  function
Support port isolation between different ports
Support ACL and SNMP to configure  data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support RSTP,IGMP Proxy
Power Consumption
Power1x AC 110~264V, 50/60Hz (35W) (Default)
2x AC 110~264V, 50/60Hz (35W) (Option)
1x AC 110~264V, 1x DC 48V (Option)
2x DC 48V (Option)
Environment
Working Temperature0°C to +50°C
Storage Temperature-40°C to +85°C
Relative Humidity5%~90%, non-condensing



Ordering Information

ModelGPON OLT-422
AirLive GPON OLT-422 4 PON Ports GPON OLT  with 10G SFP+
Standard Package
Product Size44.2(L) x 22.9(W) x 4.36(H) cm
Package Size(L) x (W) x (H) cm
Package WeightN.W: 2.95KGS
G.W: 4.15KGS
Package Content1 x Device, 1 x Power Cable , Installation Kits, QIG
Carton Package
Quantity PCS / 1 Carton
Dimensions(L) x (W) x (H) cm
WeightKGS
Spec Sheet
NameDescriptionDownloadDate
GPON OLT-422 Spec Sheet
2024/03/01

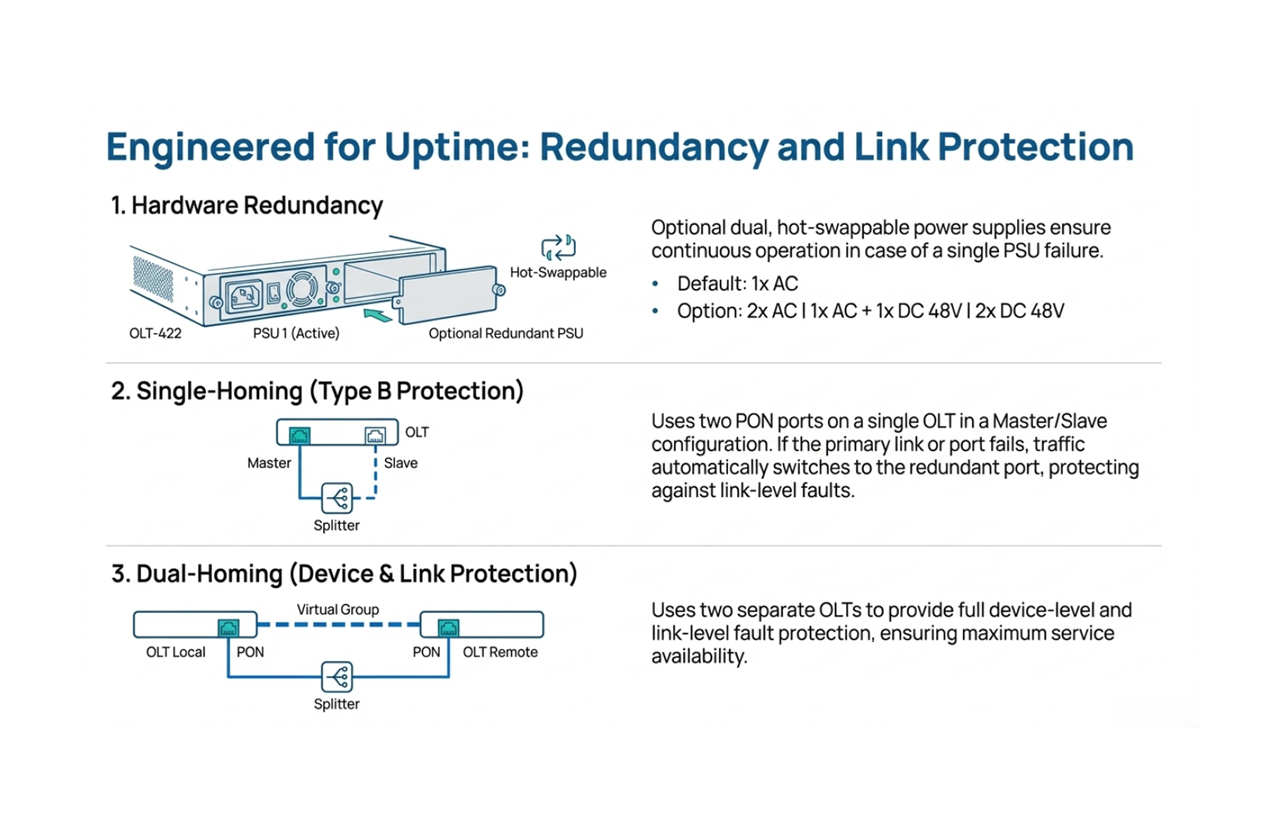

How to setup OLT Protection, Single and Dual Homing.
Single-Homing uses 1 OLT and for example 2 PON ports. 1 PON port is Master the other PON is Slave.
When one of the ports or links fails it automatically enables the other redundant port to continue working. It will not protect against equipment failure.
Dual-Homing uses 2 OLTs one local and one remote. The two OLTs form a virtual device group, and each OLT has a downstream PON port that together forms a primary backup relationship, forming type B protection. Dual-homing can achieve device level and link level fault protection.

Please click the PDF file.
