GPON OLT-222: 2 PON Ports GPON OLT with 10G SFP+

ADD INQUIRY
Overview
Overview

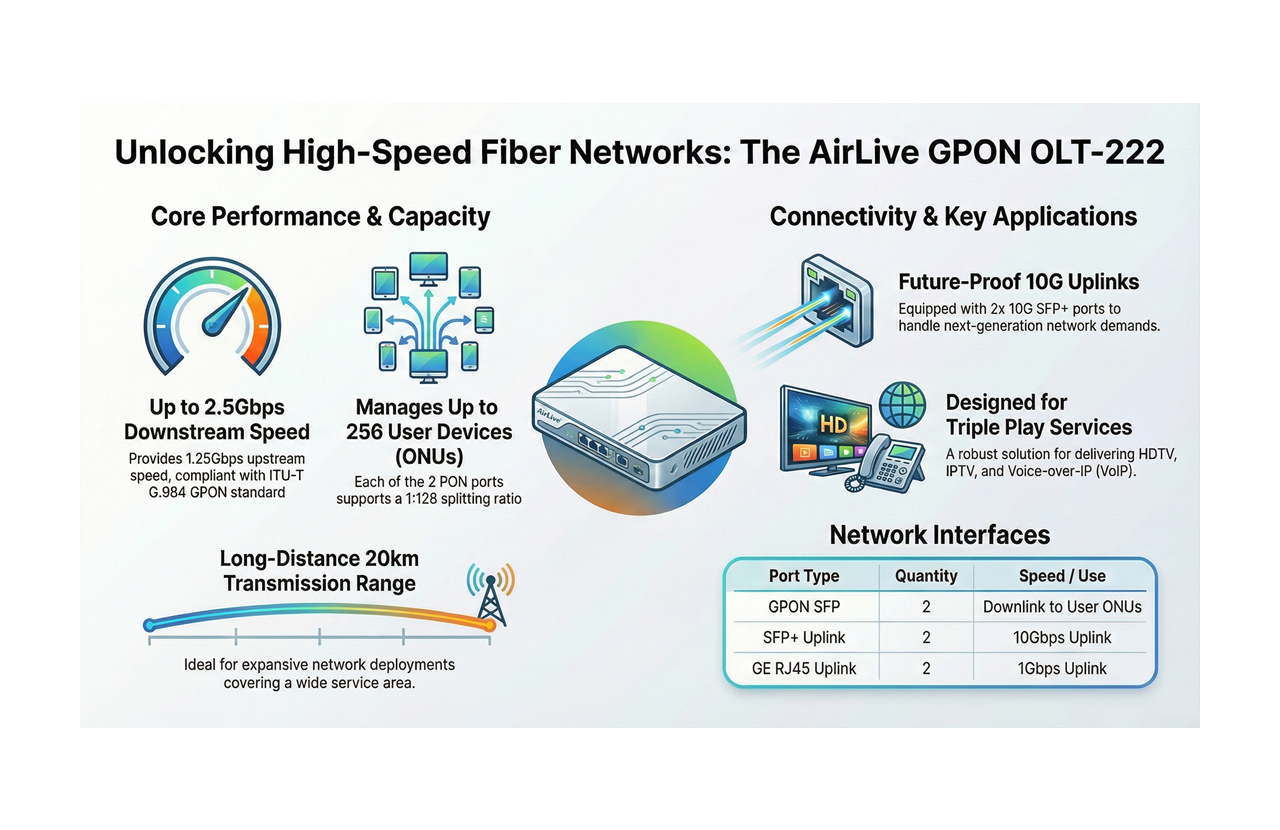

The AirLive GPON OLT-222 is a GPON OLT that caters to optical fiber communication networks. It conforms to the international standard ITU-T G.984 with 1.25Gbps upstream and 2.5Gbps downstream speed. IT is an ideal fit for high-bandwidth scenarios such as carrier networks, FTTx, and enterprise networks. The compact 1U chassis of the GPON OLT-222 makes it easy to deploy. The GPON OLT-222 boasts many ports, providing 2*GE (RJ45) + 2*10GE (SFP+) uplink ports for full line-speed data forwarding. It also offers 2x GPON downlink interfaces with a splitting ratio of 1:128 to access the user's ONT. This device is designed for use in FTTH (Fiber-to-the-Home) and small business applications the require high data transfer speeds. To use a GPON SFP module is needed. The GPON OLT-222 is a versatile and effective solution for managing up to 256 ONU devices in a fiber broadband network. Its ease of installation and maintenance make it an attractive option for small to medium-sized deployments. It can transmit data up to a distance of 20KM.
Highlight Feature
Highlight Feature
Features
  • 2 PON ports, 2*SFP+ 10G, 2*RJ45 1G, 1U 19"
  • Upstream 1.244Gbps, Downstream 2.488Gbps
  • Each PON port supports up to 128 ONUs, total up to 256 ONUs
  • Redundant Power (*Option)

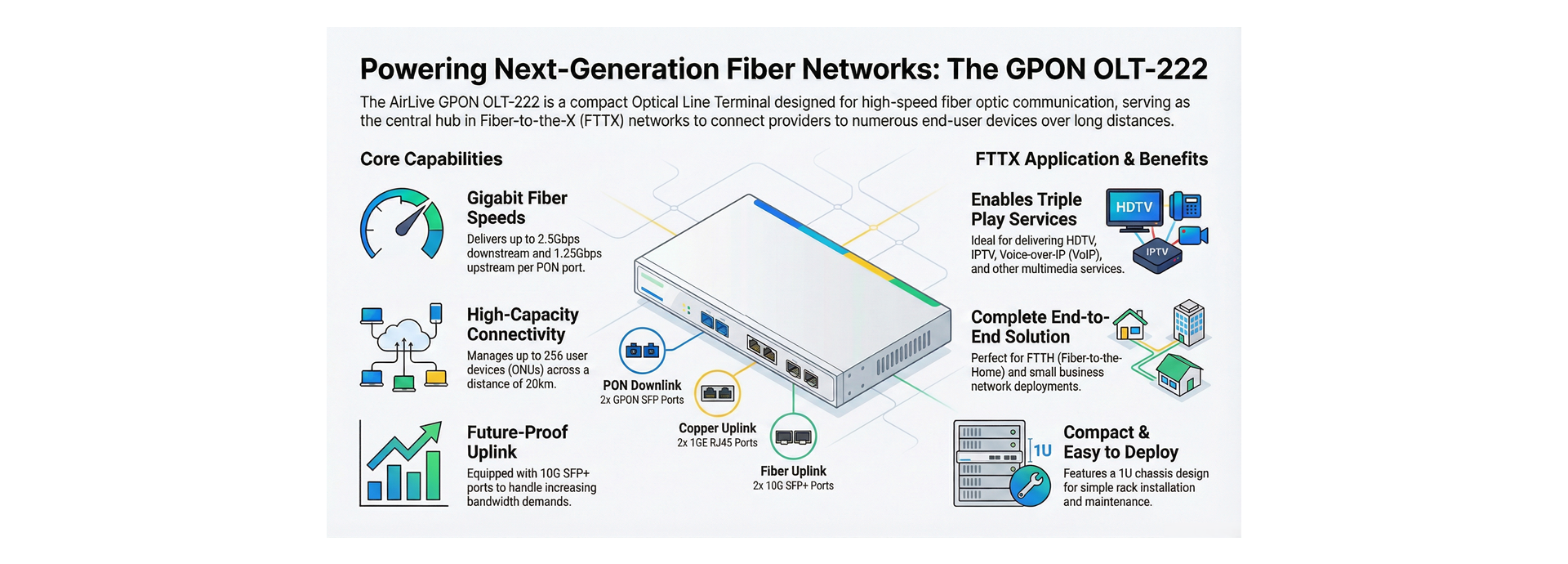

FTTX Application
FTTX Application
GPON OLT-222 offers a complete, end-to-end network infrastructure application products for FTTX networks. From the CO to the customer premises, regional carriers, independent operators, municipalities, Multiple System Operators (MSOs), utilities, and developers worldwide have tapped the experience and innovation to build their FTTX networks.

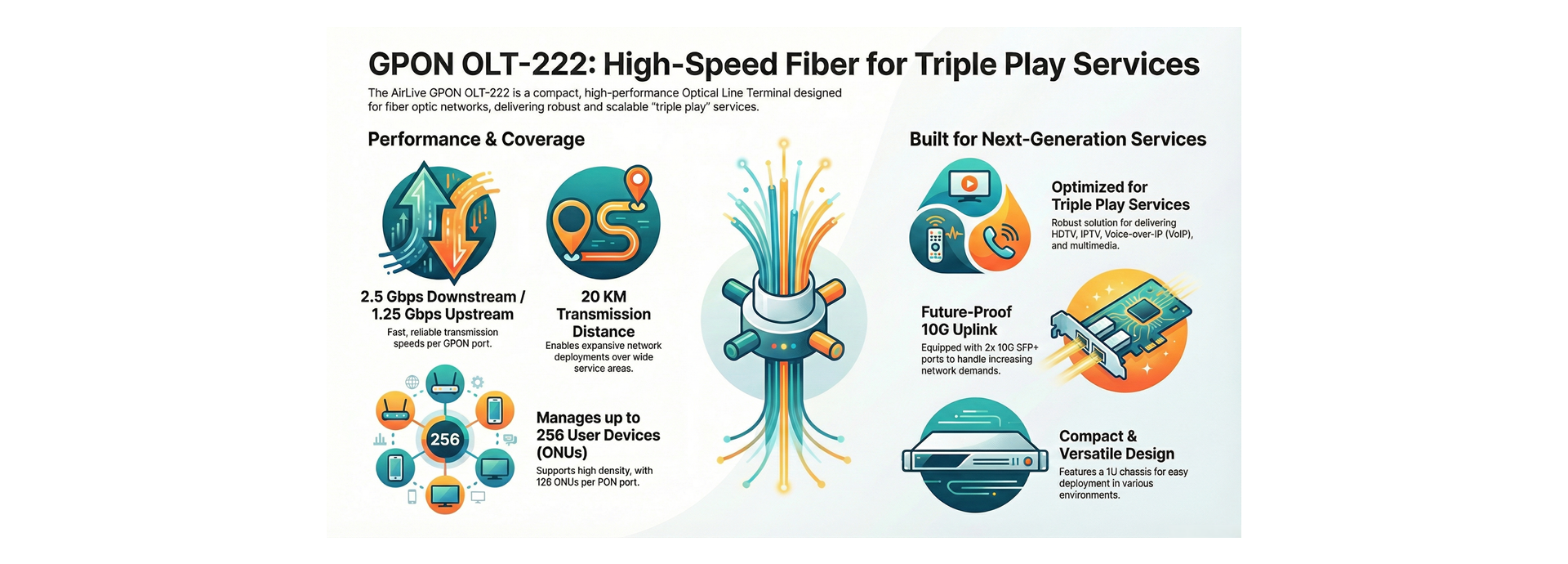

High-speed and Long-distance Coverage for Triple Play Services
High-speed and Long-distance Coverage for Triple Play Services
The GPON OLT-222 offers a robust solution for providing high-speed and long-distance coverage in triple play service applications such as HDTV, IPTV, voice-over-IP (VoIP), and multimedia. It supports downstream bandwidths of up to 2.5Gbps and upstream bandwidths of 1.25Gbps, enabling fast and reliable data transmission. Capable of transmitting data up to a distance of 20KM, it's perfect for expansive network deployments. Scalable Network Management: Manage up to 256 ONU devices with ease, making it an ideal solution for growing network infrastructures. Its reliable and scalable network ensures a seamless and efficient experience for users. Future-Proof Technology: Equipped with a 10G SFP+ uplink, the device is ready to handle the increasing demands of next-generation network applications.
Hardware
ModelAirLive GPON OLT-222
Device Interface•PON Port: 2x GPON SFP
•Uplink RJ45: 2x 1GE RJ45
•Uplink SFP+: 2x 10G SFP+
•Console: 1x 10/100/1000BASE-T out-band port, 1x Console RJ45 port,
1x Console USB-COM Type C port, 1x USB2.0 port
•Fiber Type: 9/125μm SMF
•Connector: SC/UPC
•Supported PON module level: Class C++, C+++, C++++
•PON Port Specification (Class C+++): TX Power: +4.5~+10dBm, Rx Sensitivity: ≤ -30dBm,
Saturation Optical Power: -12dBm
•Support ONU: 256
•GPON port speed: Upstream 1.244Gbps, Downstream 2.488Gbps
•Wavelength: TX 1490nm, RX 1310nm
•Max splitting ratio: 1:128
•Transmission Distance: 20KM
•Backplane Bandwidth: 208Gbps
•Port Forwarding Rate: 40.176Mpps
•Management Mode: WEB/Telnet/CLI
Firmware features
Management FunctionTelnet, CLI, WEB
Fan Group Control
Port Status monitoring and configuration management
Online ONU configuration and management
User management
Alarm management
Layer2 Switch16K MAC address
Support 4096 VLANs
Support port VLAN
Support VLAN tag/Un-tag, VLAN transparent transmission
Support VLAN translation and QinQ
Support storm control based on port
Support port isolation
Support port rate limitation
Support 802.1D and 802.1W
Support static LACP, Dynamic LACP
QoS based on port, VID, TOS and MAC address
Access control list
IEEE802.x flow control
Port stability statistic and monitoring
Multicast
 		IGMP Snooping
1K L2 Multicast Groups
1K L3 Multicast Groups
DHCPDHCP server, DHCP relay, DHCP snooping
DHCP option82
Layer 3 RouteARP proxy
16K hardware Host Routes,1024 hardware Subnet Routes
Support static route
IPv6Support NDP
Support IPv6 Ping, IPv6 Telnet, IPv6 routing
Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol  type, etc;
Support MLD v1/v2 snooping(Multicast Listener Discovery snooping)
PON FunctionTcont DBA
Gemport traffic
Compliant with ITU-T G.984 standard
Up to 20KM transmission Distance
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Support ONU auto-discovery/link detection/remote upgrade of software
Support VLAN division and user separation to avoid broadcast storm
Support power-off alarm function, easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Power Consumption
Power1x AC 100~240V, 50/60Hz (35W) (Default)
2x AC 100~240V, 50/60Hz (35W) (Option)
1x AC 100~240V, 1x DC 48V (Option)
2x DC 48V (Option) Working Voltage Range: -36~-75V
Environment
Working Temperature-20°C to +60°C
Storage Temperature-40°C to +70°C
Relative Humidity5%~95%, non-condensing
MTBF200000 hrs.



Ordering Information

ModelGPON OLT-222
AirLive GPON OLT-222 2 PON Ports GPON OLT with 10G SFP+
Standard Package
Product Size44.2(L) x 22.9(W) x 4.36(H) cm
Package Size57.5(L) x 38.0(W) x 11.5(H) cm
Package WeightN.W: 2.485kg
G.W: 3.895kg
Package Content1 x Device, 1 x Power Cable , Installation Kits, QIG
Carton Package
Quantity 1PCS / 1 Carton
Dimensions57.5(L) x 38.0(W) x 11.5(H) cm
Weight3.895kg
Spec Sheet
NameDescriptionDownloadDate
GPON OLT-222 Spec Sheet
2025/04/24
