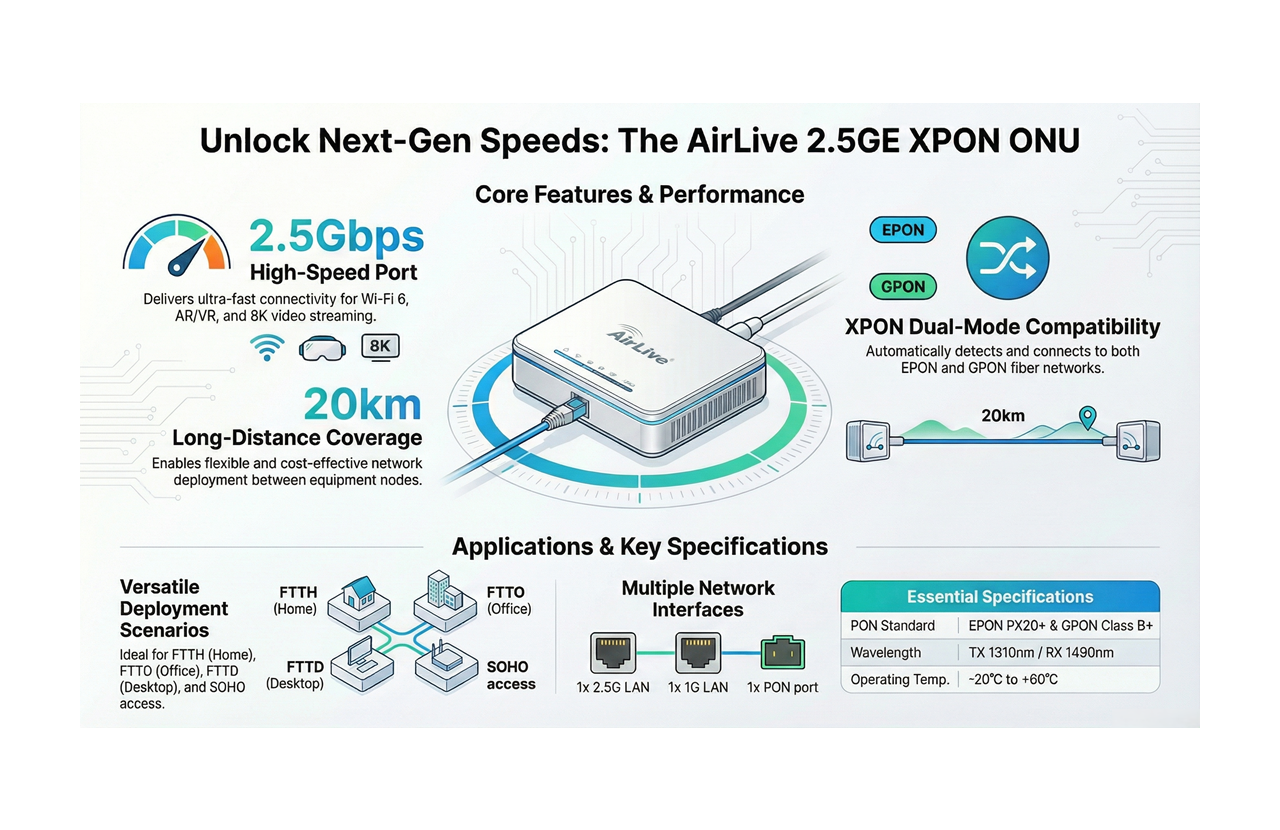

The 2.5GE XPON ONU is a recently launched ONU that caters to new optical fiber communication networks.

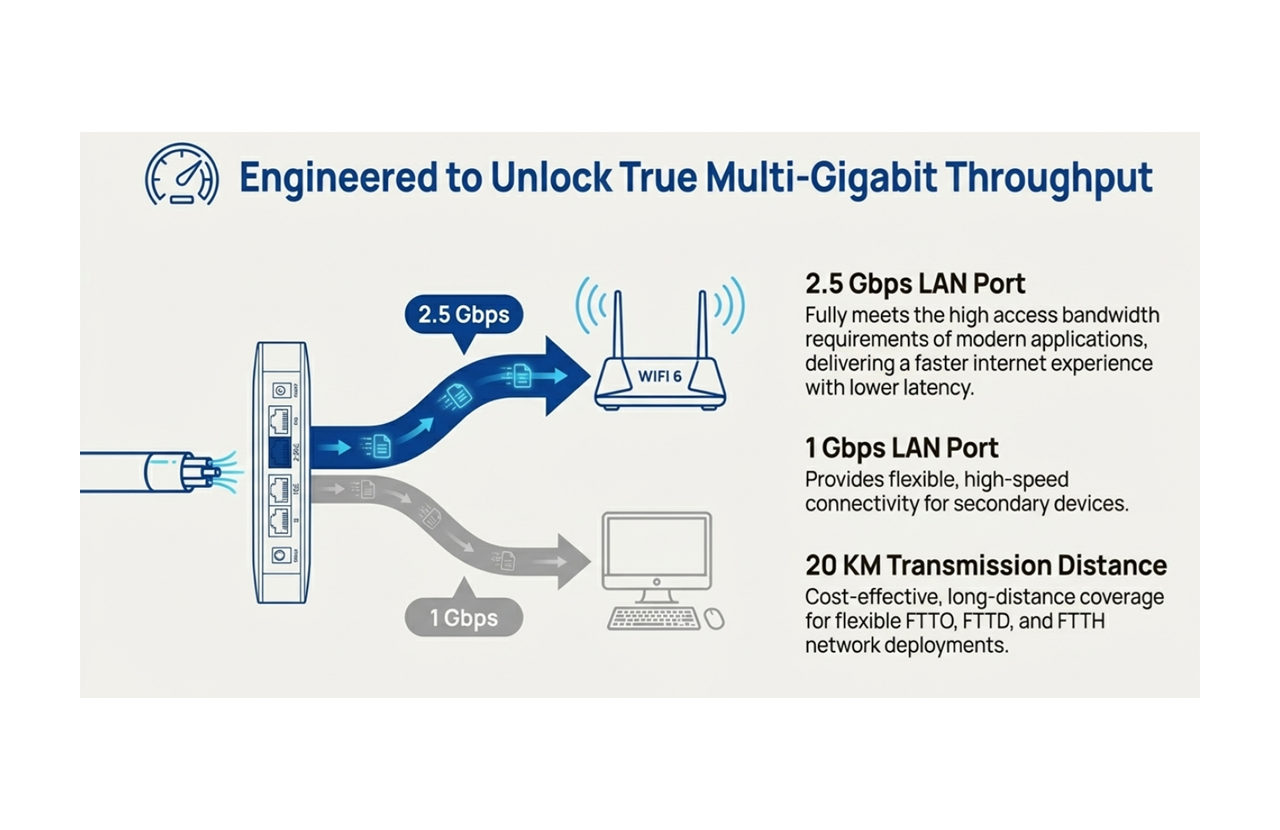

It conforms to international standards like ITU-T G.984 and IEEE802.ah. The ONU comes with 1 x 2.5GE + 1GE RJ-45 port. The ONU's 2.5GE network port can fully meet the high access bandwidth requirements of WIFI 6 technology, AR/VR technology, 8K video and more, it can bring fast Internet access experience and lower Internet latency for home users and enterprise users.
The ONU is specially designed to meet the needs for FTTO (office), FTTD (desktop), FTTH (home), SOHO broadband access, video surveillance, etc. It is based on XPON technology, with high reliability, easy maintenance, and can provide QoS guarantee for different services.
| Hardware | |
| Model | AirLive 2.5GE XPON ONU |
| Device Interface | •PON Port: 1x (EPON PX20+ & GPON Class B+) •Connector: SC single mode, SC/UPC •TX optical power: 0～+4dBm •RX sensitivity: -27dBm •Overload optical power: -3dBm(EPON) or -8dBm(GPON) •Wavelength: TX 1310nm, RX 1490nm •Transmission Distance: 20KM •LAN Port: 1x 2.5G RJ-45, 1x 1G RJ-45 •Power: 12V, 0.5A External Power Adapter •LED: POWER, PON, LOS, WAN, LAN1, LAN2 |
| Firmware Features | |

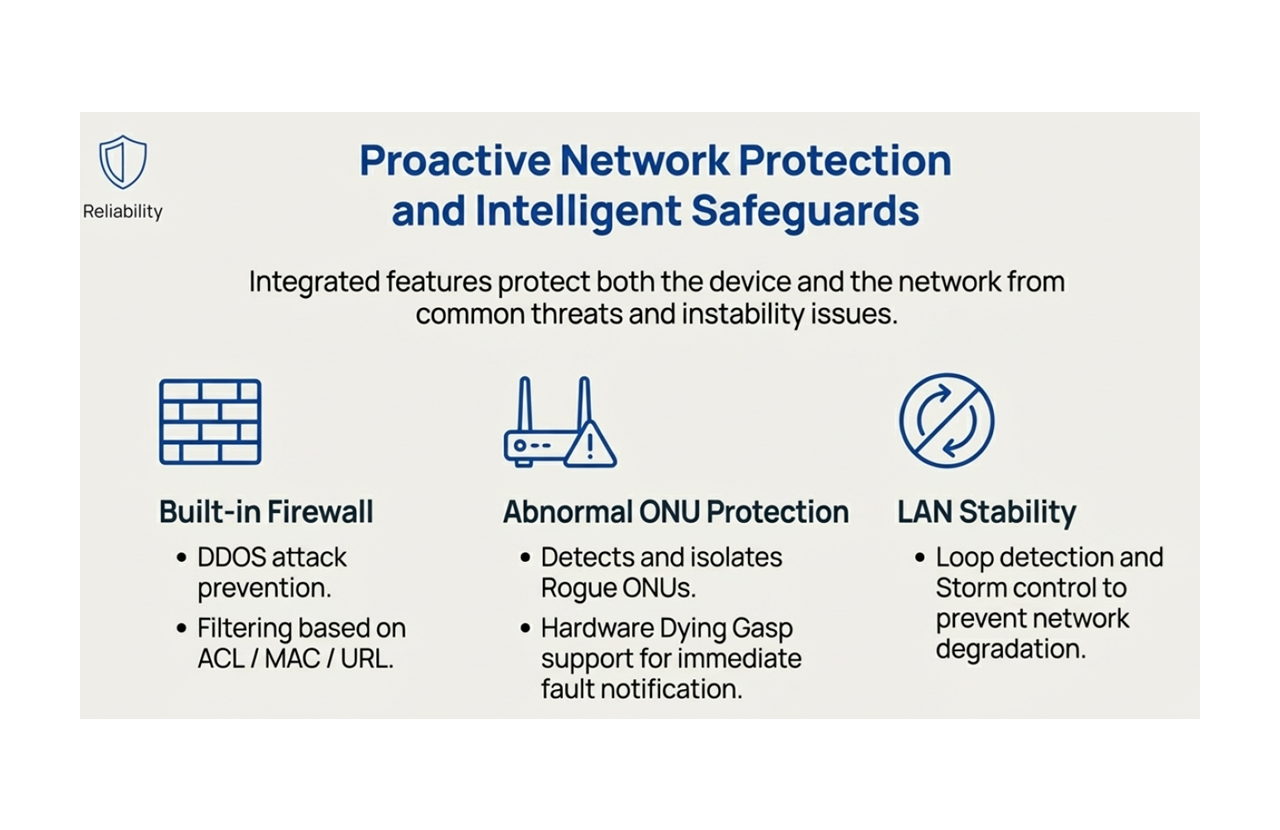

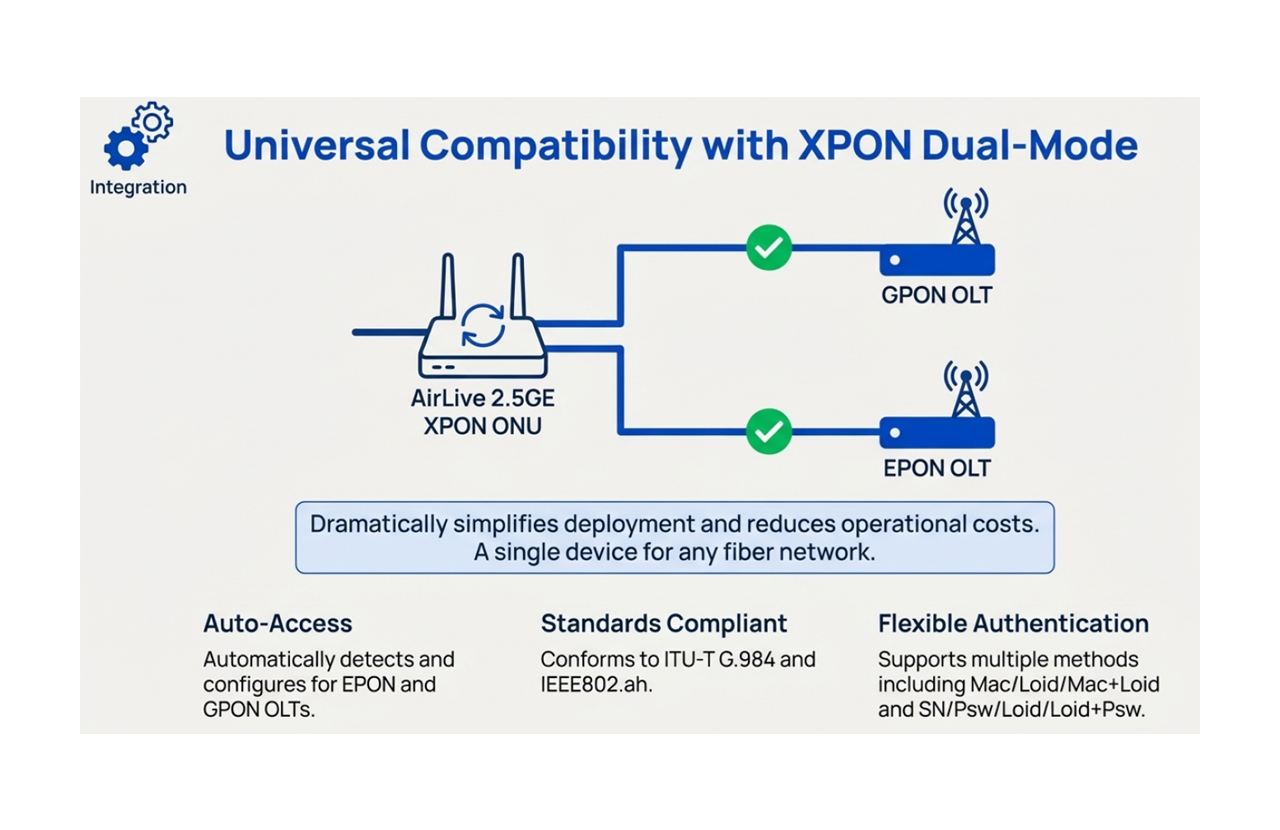

| Function features | •XPON: Dual-mode, Auto-access to EPON/GPON OLT •Uplink Mode: Bridging and Routing Mode •Abnormal protection: Detecting Rogue ONU, Hardware Dying Gasp •Firewall: DDOS, Filtering Based on ACL/MAC/URL |
| Basic | Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration,and auto firmware upgrade Support SN/Psw/Loid/Loid+Psw Authentication |
| LAN | Support Port rate limiting Support Loop detection Support Flow control Support Storm control |

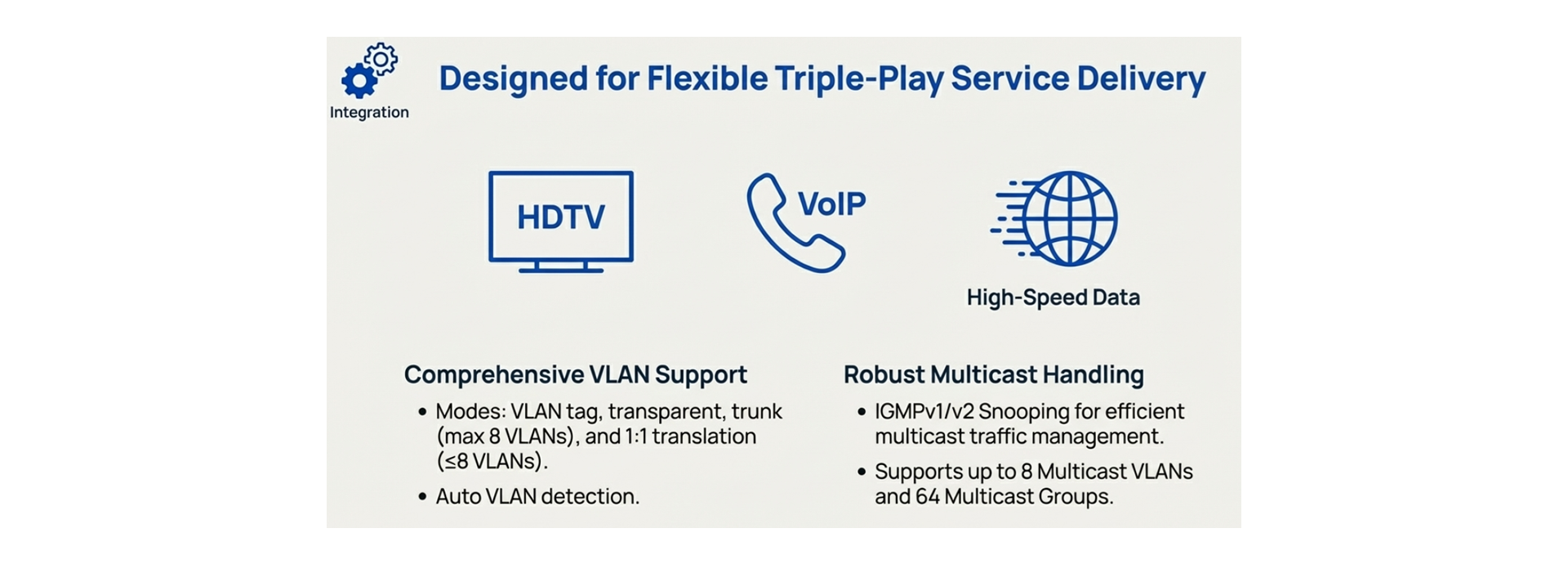

| VLAN | Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode (max 8 vlans) Support VLAN 1:1 translation mode (≤8 vlans) Auto VLAN detection |
| Alarm | Support Dying Gasp Support Port Loop Detect Support Eth Port Los |
| IPv6 | Support NDP; Support IPv6 Ping,IPv6 Telnet,IPv6 routing; Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc; Support MLD v1/v2 snooping(Multicast Listener Discovery snooping)) |
| Multicast | Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64 |
| QoS | Support 4 queues Support SP and WRR Support 802.1P |
| Layer 3 | Support IPv4/IPv6 Support DHCP/PPPOE/Static IP Support Static route Support NAT |

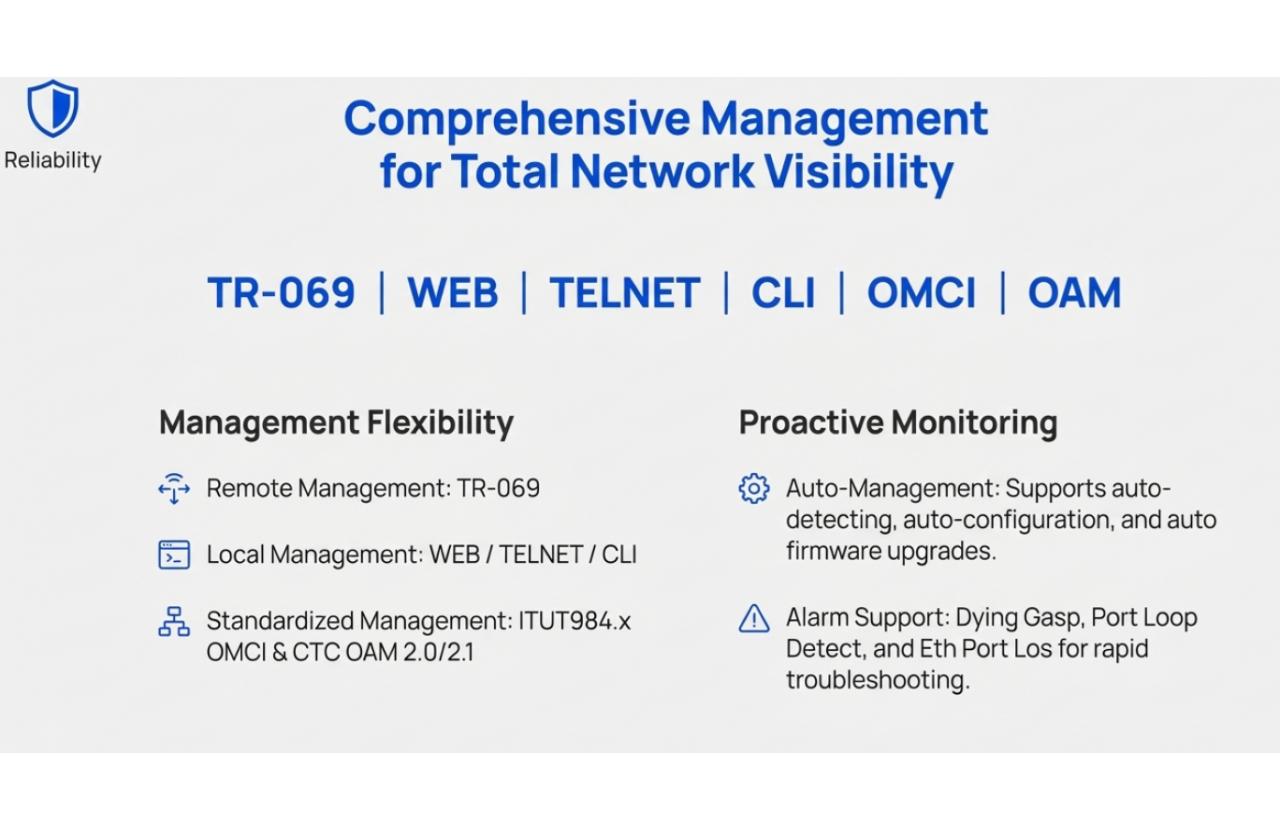

| Management | Support TR069/WEB/TELNET/CLI Support ITUT984.x OMCI Support CTC OAM 2.0 and 2.1 |
| Power Supply | |
| Power | 12V, 0.5A external AC-DC power adaptor |
| Environment | |
| Working Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 10%~90%, non-condensing |
| Model | 2.5GE XPON ONU AirLive 2.5GE XPON ONU 1 PON Port XPON ONU with 2.5GE RJ45 |
| Standard Package | |
| Product Size | 10(L) x 9.2(W) x 2.95(H) cm |
| Package Size | 21(L) x 15.7(W) x 4.1(H) cm |
| Package Weight | N.W: 0.107KGS G.W: 0.195KGS |
| Package Content | 1 x Device, 1 x Power Adpater, QIG |
| Carton Package | |
| Quantity | PCS / 1 Carton |
| Dimensions | (L) x (W) x (H) cm |
| Weight | KGS |
| Name | Description | Download | Date |
| 2.5GE XPON ONU QIG | 2023/08/17 |
| Name | Description | Download | Date |
| 2.5GE XPON ONU User Guide | 2023/08/30 |
| Name | Description | Download | Date |
| 2.5GE XPON ONU Spec Sheet | 2023/05/25 |
| Name | Description | Download | Date |
| 2.5GE XPON ONU CE | 2023/08/08 |
| Name | Description | Download | Date |
| 2.5GE XPON ONU Firmware V1.1.5 | Version V1.1.5_241120 | 2024/12/02 | |
| 2.5GE XPON ONU Firmware | Initial Release | 2024/01/10 |
