WEB-2TX801: 2.5Gbps Base-T Web Smart Multi Gigabit Switch

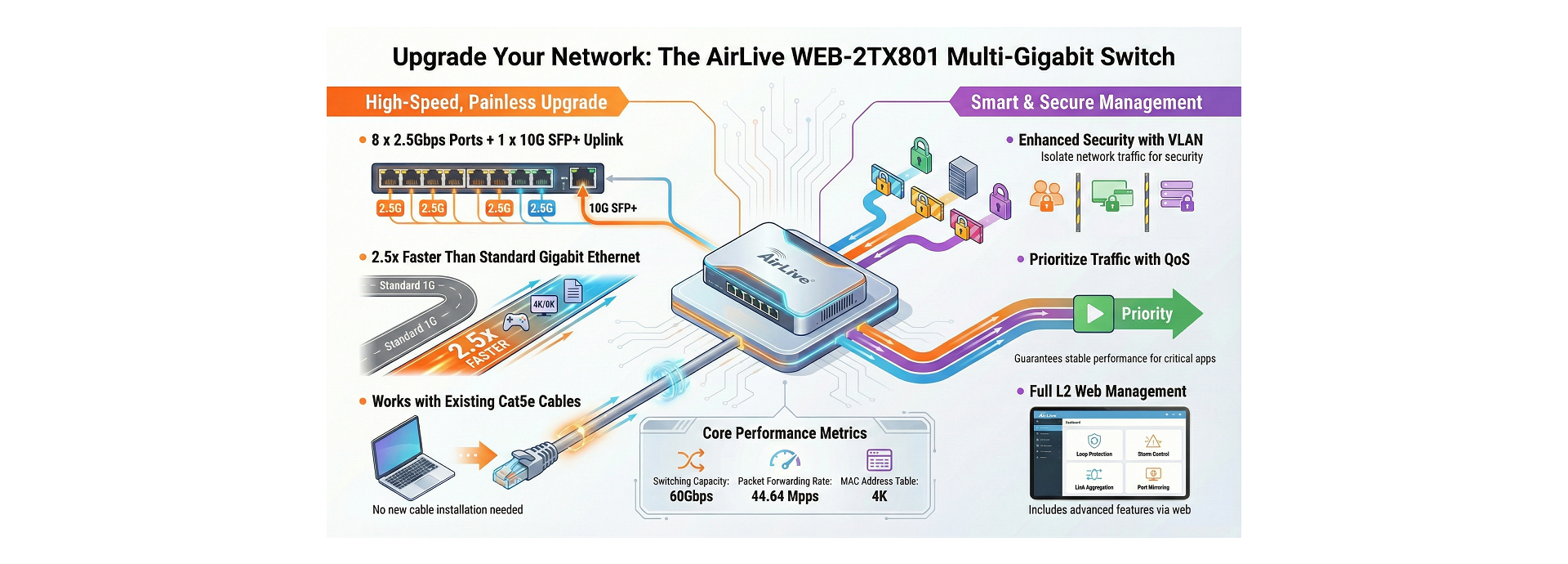

Upgrading your Network Connection to 10G Super High speed with Web Management Switch
Upgrading your Network Connection to 10G Super High speed with Web Management Switch
The AirLive Multi-Giga switch, WEB-2TX801 is a Web Managed switch, which supports 8 RJ45 and 1 SFP+ ports for delivering up to 2.5Gbps extra high-speed connection on RJ-45 and 10G SFP+ on fiber optic. Supports WEB Management function and is easy to manage and maintain. The easy to operate WEB-2TX801 has several functions like VLAN setting for a more secure connection. QoS to have more control of the bandwidth and many more like, IGMP, Loop Prevention, Port-Base Mirroring, Port Isolation, Bandwidth Control, Security (MAC Address /table /search / static MAC; Storm control and more. With the 2.5G multi-Giga switch, you can connect to a variety of 2.5GbE-enabled devices, such as NAS | NVR | PC | Server | Laptop, for enjoying faster experience and handle bandwidth-hungry applications. Designed in a slim sized solid housing, it’s an affordable, space-saving solution suitable to Home and SMB network applications.
Features and Specifications
  • 8 x 10/100/1000/2500Mbps RJ45
  • 1x 10G SFP+
  • Web Smart Management
  • QoS; Priority management
  • VLAN: enhanced security and performance
  • Loop protection
Features and Specifications
  • All ports at Multi Gigabit high speed, auto-negotiation
  • Providing satisfied bandwidth for various network devices, such as online gaming, multi-media, NAS, Server system
  • Super Fast 2.5Gbps RJ-45 and 10Gbps SFP+
  • Existing Cat5e cable suitable (Cat6a needed for 10G), painless upgrading
  • Compact size for Home or SMB Network Connectivity

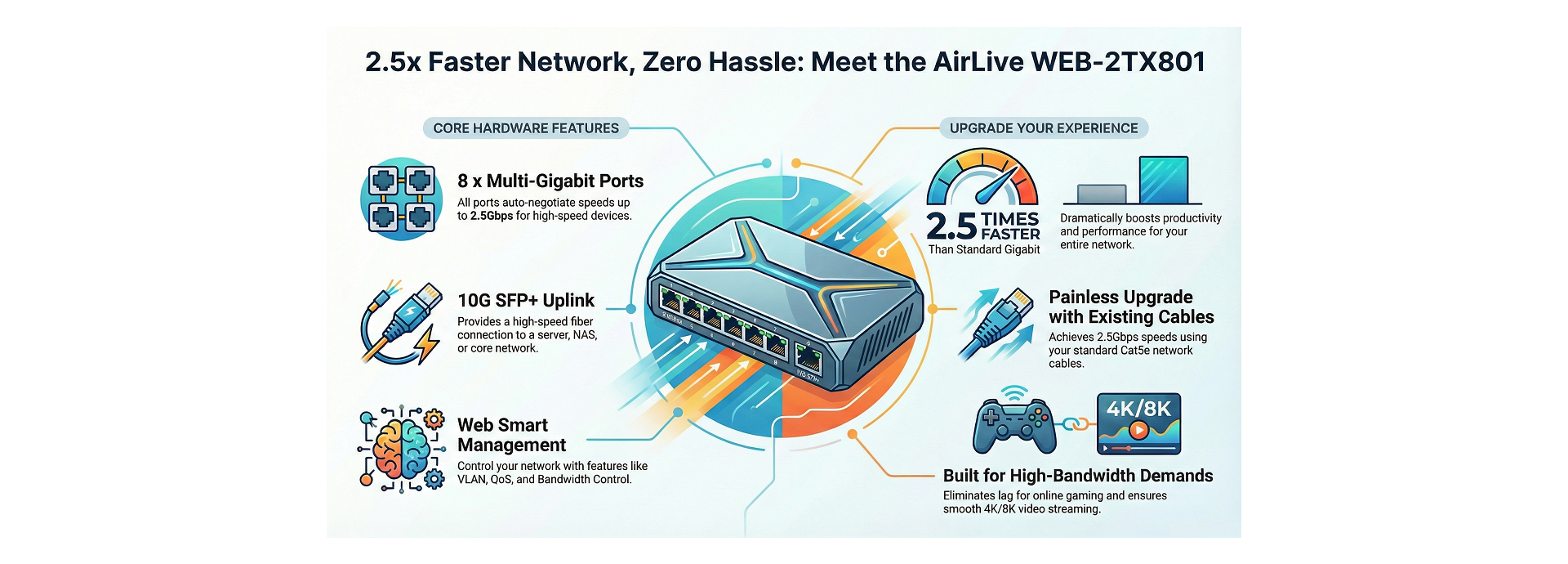

Multi Gigabit for Interconnect
Multi Gigabit for Interconnect
With the AirLive WEB-2TX801 2.5Gbps switch, it is possible to connect several high-speed devices together via RJ-45 connections using a normal Cat.5e network cable. Higher bandwidth improves the playback quality of 4K/8K videos, prevents lag for Gaming, smooths speed when download or upload large data, increases data transfer speed when doing backup to a NAS drive. Use the 10G SPF+ as uplink to a larger network with higher speed.
VLAN for enhanced network security
VLAN for enhanced network security
The VLAN 802.1Q VLAN tagging settings can be used to separate traffic within a business such as isolating resources between network administrators and general users or between employees and public guest users. With the help of VLAN interface, switches can communicate with other network layer devices.
QoS & Applications
QoS & Applications
QoS
(Quality of service) is the ability to provide different priority to different applications, users, or video/voice/data flows, or to guarantee a stable level of performance to each data flow. This can be with Port-based Priority or Priority to queue.
2.5 Times Faster
2.5GbE is 2.5 times faster than standard Ethernet (1GbE), high network performance to boost productivity
Works with existing cables
No special cables or connectors are required to take advantage of 2.5GbE. Simply use your existing CAT5e cables as normal with your new 2.5GbE infrastructure.
Video Streaming
Higher bandwidth improves the playback quality of 4K/8K videos.
Gaming
No lag when you are Gaming.
Hardware
ModelAirLive WEB-2TX801
Device Interface8 x 10/100/1000/2500 RJ45
1 x 1.25G/2.5/10G SFP +
9-port totally
StandardsIEEE802.3u 100Base-TX
IEEE802.3ab Gigabit 1000Base-T
IEEE802.3bz 2.5GBase-T
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet (optical fiber)
IEEE802.3x Flow Control and Back Pressure
IEEE802.3d Spanning Tree Protocol
IEEE802.3w Rapid Spanning Tree Protocol
IEEE802.3q VLAN tagging
Industry standard compliantEMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge)
Lightning Surge / ESD ProtectionSupport Surge Protection: Common Mode 6KV, Differential Mode 2KV(Class C), Electrostatic ESD 8KV Air, 6KV Contact(Class C)
LED IndicatorsPWR (power supply), Link/Act (Indicator), RJ45 2.5G (Indicator), SFP+ 10G (Indicator)
MechanicalSolid Metal Housing
Switch Architecture | Performance
Switching architecture: Store and ForwardBandwidth: 60Gbps
Packet Forward Rate: 44.64Mpps
Memory Cache: 8Mbit
MAC Address: 4K
VLAN: VLAN range 1-4094, with a maximum active VLAN of 31
Jumbo Frame: 16356bytes
Transfer mode: Store and forward
MTBF:100000 hour
Transmission Distance10Base-T: Cat3,4,5 UTP(≤100 meter)
100Base-TX: Cat5 or later UTP(100 meter)
1000Base-TX: Cat5e or later UTP(100 meter)
2500Base-TX: Cat5e or later UTP(100 meter)
Fiber Medium1000BASE-SX: 62.5μm MMF (Multimode optical fiber) (Minimum range: 2m~275m) or 50μm MMF
1000BASE-LX: 62.5μm/50μm MMF (Minimum range: 2m~550m) or 10μm SMF (Minimum range: 2m~5km)
2500BASE-X: G.652D SMF (Single-mode optical fiber) (Minimum range: 2m~500m or 2m~5Km)
10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m~300m)
10GBASE-LR: IEC and B1.1 and B1.3 SMF (Minimum range: 2m~10km)
Web Management Software Function L2
SystemSystem Information
IP Address Setting
User Account Setting
Port SettingPort Switch Configuration
Port Speed Configuration
Port Duplex Configuration
Port Flow Control Configuration
Jumbo Frame up to 16356bytes
EEE
Link AggregationStatic Group
Up to 2 groups
Max. 4 members per group
Storm ControlBroadcast
Unknown Multicast
Unknown Unicast
Priority selection
DSCP remapping
Priority to queue
Port-based Priority
Queue Weight
Port MirroringSupported
Port SecurityMAC Address Constraints
Port IsolationSupported
Port Rate-limitBandwidth Control
Loopback DetectionLoop Protocol
STP global
STP port
VLANAccess/Trunk/Hybrid
Configurable VID from 1 - 4094; Max. 31 static VLAN groups
MAC AddressDynamic Address
Static Address
Spanning Tree ProtocolSTP/RSTP
Edge Port
MulticastIGMP Snooping
IGMP V1/V2
Router Port
Static IGMP Join
Trunk Group SettingStatic
LACP
QoSTraffic classification based
Strict priority and WRR
Port Priority
Supports up to 8 queues per port
Services
Access ProtocolHTTP
DiagnosticsPort Statistics
Management
Manager AccessHTTP
Manager IP

Static Address
DHCP Client

User
FirmwareFirmware Upgradable
ConfigurationUpload and Download
Save, Restart, Factory Defaults
Power
Power InputDC 12V/1A Power Adapter
Power Usage Max11.29W
Environment
Operating Temperature0°C to +50°C
Storage Temperature-40°C to +70°C
Working Humidity10%~90%, non-condensing
Storage Humidity5%~95%, non-condensing



Ordering Information

ModelWEB-2TX801
9-port 2.5Gbps Web Smart Multi Gigabit Switch, incl 8x RJ45 2.5G and 1x SFP+ 10G, Plug and Play, auto-negotiation
Standard Package
Product Size19.0(L) x 10.0(W) x 2.8(H) cm
Package Size24.5(L) x 19.0(W) x 6.0(H) cm
Package WeightN.W: 0.49KGS
G.W: 0.71KGS
Package Content1 x Switch
1 x Power Adapter
1 x QIG
Carton Package
Quantity20 PCS / 1 Carton
Dimensions52.0(L) x 32.0(W) x 40.0(H) cm
Weight15.2KGS
QIG
NameDescriptionDownloadDate
AirLive WEB-2TX Series QIG
2024/08/02
