| Hardware | |
| Model | AirLive Live-2TX1602 |
| Device Interface | 16 x 10/100/1000/2500 RJ45 2 x 1.25G/2.5/10G SFP + 18-port totally |
| Standards | IEEE802.3u 100Base-TX IEEE802.3ab Gigabit 1000Base-T IEEE802.3bz 2.5GBase-T IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae 10G Ethernet (optical fiber) IEEE802.3x Flow Control and Back Pressure |
| Industry standard compliant | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), IEN61000-4-5 （Surge） |
| LED Indicators | PWR (power supply),Link/Act (Indicator), 2.5G (Indicator) |
| Lighting Surge / ESD Protection | Support Surge Protection: General 6KV, Differential 2KV(level C), ESD 8KV air, 6KV contact(level C) |
| Mechanical | Solid Metal Housing, Desktop |
| Power | |
| Power Input | AC 100~240V |
| Switch Architecture | Performance | |
| Switching architecture: Store and Forward | Switch Capacity: Back-plan up to 120Gbps Pack forward rate: 89.28Mpps MAC Address: 16K Transfer mode: Store and forward MTBF:100000 hour |
| Transmission Distance | 10Base-T: Cat3,4,5 UTP(≤250 meter) 100Base-TX: Cat5 or later UTP(150 meter) 1000Base-TX: Cat5e or later UTP(150 meter) 2500Base-TX: Cat5e or later UTP(150 meter) |
| Fiber Medium | 1000BASE-SX: 62.5μm MMF (Multimode optical fiber) (Minimum range: 2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF (Minimum range: 2m～550m) or 10μm SMF (Minimum range: 2m～5km) 2500BASE-X: G.652D SMF (Single-mode optical fiber) (Minimum range: 2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF (Operating range: 2m～300m) 10GBASE-LR: IEC and B1.1 and B1.3 SMF (Minimum range: 2m～10km) |
| Push & DIP Switch Control | |

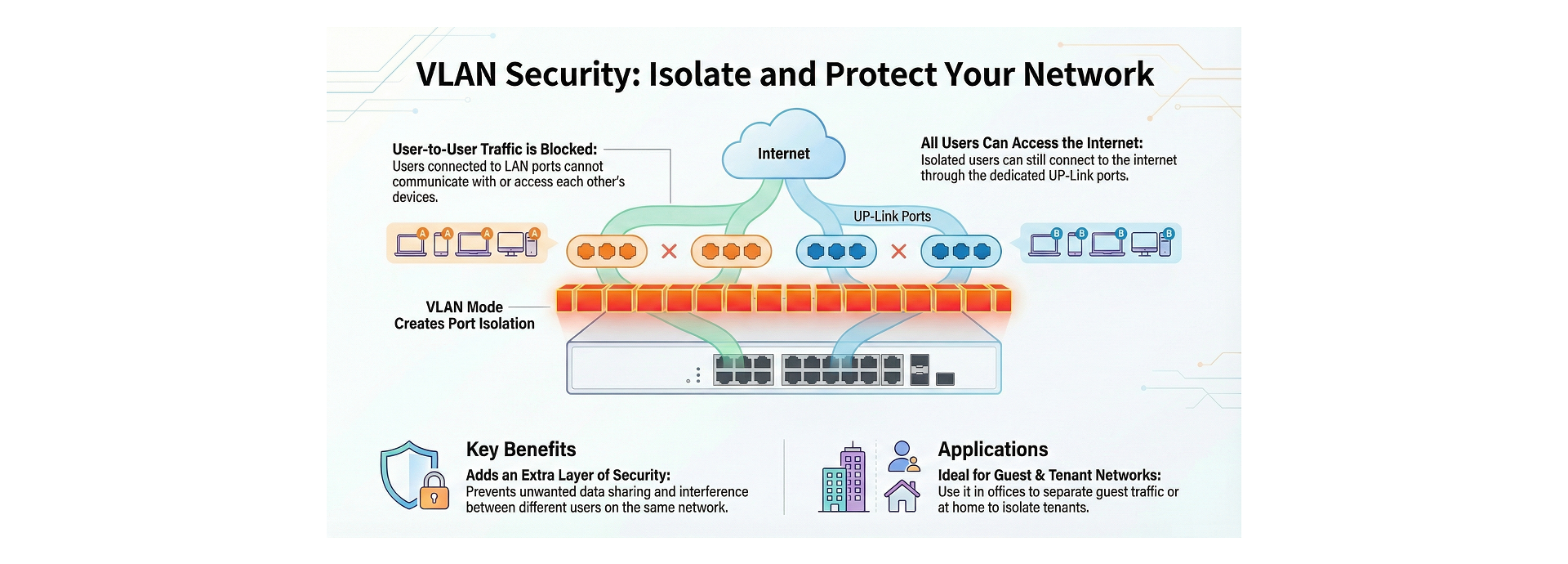

| Port Isolation/VLAN | VLAN: Port isolation mode. In this mode ports (1~14) cannot communicate with each other and can only communicate with the UP-Link ports 15~18. |
| Default | Default: Normal mode, all port can communicate with each other |
| SM SFP Speed control | SM: SFP default speed for port 17~18 is 10G/2.5G, when you press the SM switch for about 10s, The SFP ports will change to support 10G/1G. |
| Environment | |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Model | Live-2TX1602 18-port 2.5Gbps Multi Gigabit Switch, incl 16x RJ45 2.5G and 2x SFP+ 10G, Plug and Play, auto-negotiation |
| Standard Package | |
| Product Size | 44.0(L) x 20.4(W) x 4.45(H) cm |
| Package Size | 50.0(L) x 29.0(W) x 8.5(H) cm |
| Package Weight | N.W: 2.21KGS G.W: 2.72KGS |
| Package Content | 1 x Switch, 1 x Power cord, 1x QIG |
| Carton Package | |
| Quantity | 5 PCS / 1 Carton |
| Dimensions | 52.0(L) x 44.5(W) x 31.0(H) cm |
| Weight | 14.6 KGS |
