| Hardware | |
| Model | AirLive L3POE-XGS2404-400 |
| Device Interface | 24 x 10/100/1000M PoE Ports 4 x 10G SFP+ Ports 1 x RJ45 Console Port 1 x USB Port |
| Standards | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae：10G Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP IEEE802.3af（15.4W） IEEE802.3at（30W） |
| LED Indicators | PWR (power indicator), SYS(System lights), PoE (light), Link (Link light), Act (data light). |
| Lighting Surge Protection | Surge 6KV，ESD 8KV |
| Mechanical | Solid metal 19” 1U rack-mountable, IP30 |
| Power and PoE | |
| Protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| PoE Port | 24 |
| PoE Power Output / PoE Port | max. 30 watts |
| PoE Power Output / PoE switch | max. 400 watts |
| Power Input | AC100~240VAC, 400W |
| Switch Architecture | Performance | |
| Switching architecture | Bandwidth:128Gbps Packet Forwarding Rate:95.23Mpps DDR SDRAM:512MB Flash Memory:32MB Package cache:12Mbit MAC Address:16K Jumbo frame:12Kbytes VLANs:4096 MTBF:100000 hour |
| Fiber Medium | Multi-mode Fiber: 50/125 、 62.5/125 、 100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
| ERPS Ethernet Ring Protection | |
| ERPS Ethernet Ring Protection | Support G.8032 (ERPS), support 255 loops at most, and supports 1024 devices per ring. |
| Software Function | |
| Basic functions | Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, maximum frame length configuration Support Port mirroring, port speed limit, port energy saving |

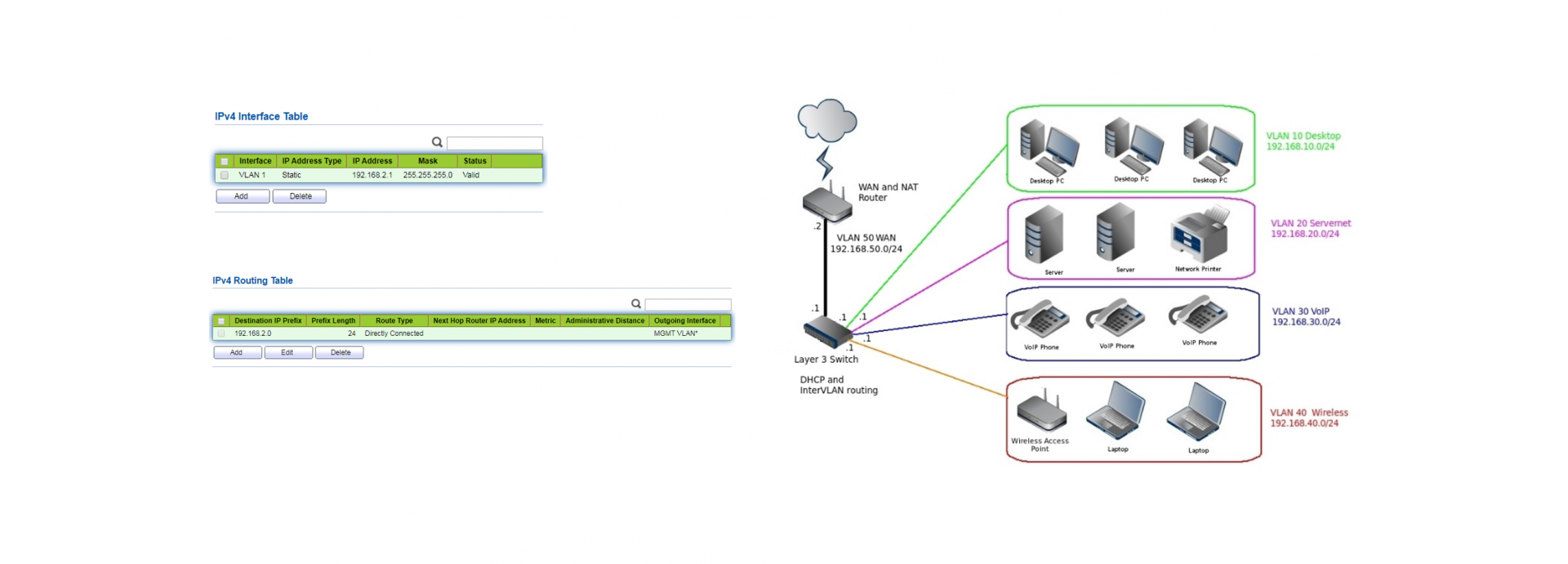

| Layer 3 Interface | Support Layer 3 interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration |
| Layer 3 Routing | Support IPv4 static routing Support IPv6 static routing |
| DHCP | Support DHCP server Support DHCP relay Support DHCP Snooping |
| VLAN | Support 4K VLAN Support 802.1Q VLAN，baesd on port VLAN Support Access、Trunk、Hybrid VLAN mode Support GVRP (VLAN registration protocol) Support MAC VLAN 、IP VLAN Support Voice VLAN |
| MAC Address | Support MAC address automatic learning and aging Support Static, dynamic, filtered address table |
| Security features | Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS、SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping、DHCP Attack protection Support 802.1X Certification Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol Support Port security, port isolation |
| Access control | Support L2(Layer 2)～L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking |
| QoS | Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm |
| Spanning tree | Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU protection |
| Multicast | Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast |
| Storm Suppression | Support multicast suppression Support broadcast storm suppression Support unknown unicast suppression |
| Ring protection | Support Ring protection |
| Link Aggregation | Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group) |
| IPv6 | Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP 、IPv6 HTTPS |
| Management and Maintenance | |
| Management and Maintenance | Support WEB Management (HTTP、HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection |
| Environment | |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -45°C to +85°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~90%, non-condensing |
| Model | L3POE-XGS2404-400 L3 Managed Gigabit PoE+ 802.3at switch, 400W 24-Port including 4 10G SFP+ Fiber ports. |
| Standard Package | |
| Product Size | 44x20.5x4.4 cm |
| Package Size | 50 x 38.5 x 9 cm |
| Package Weight | N.W: 3.9KGS G.W: 4.6KGS |
| Package Content | PoE Switch x 1, QIG x 1, Power cord x 1, Serial cable x 1, Rack ear x 1 |
| Carton Package | |
| Quantity | 4PCS / 1 Carton |
| Dimensions | 52 x 38 x 40.5 cm |
| Weight | 18.4 KGS |
