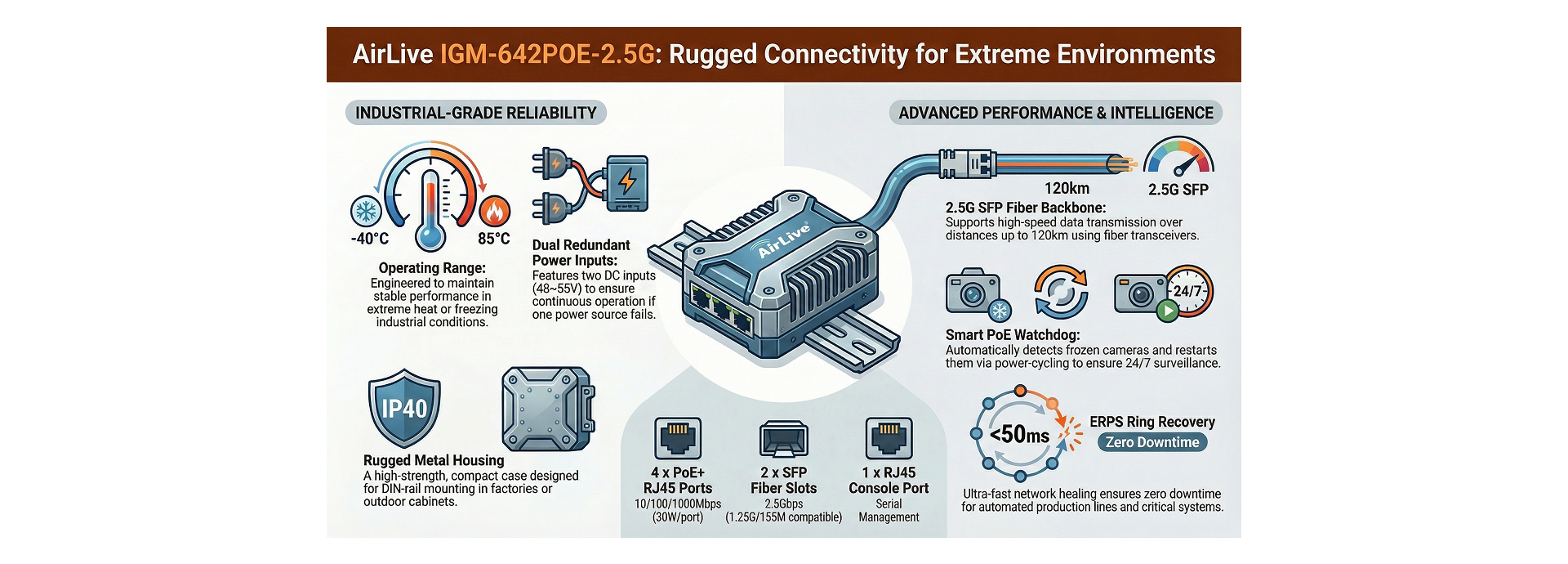

The AirLive IGM-642POE-2.5G is a L2+ managed 6-port Gigabit PoE+ switch including 4 PoE ports and 2 Gigabit 2.5G SFP ports. Each PoE port is 802.3at/af compliant up to 30W, automatically adaptive. Made for extreme environments with its wide temperature range from -40°C~85°C and rugged IP40 metal housing. Dual power inputs using a 4pin terminal block (DC48~55V).

The 6-port Industrial Gigabit L2+ management switch offers comprehensive SNMP management functions including IGMP, VLAN , Port aggregation, QoS port mirroring, Bandwidth control and Ring Network Protocol ERPS are supported.

The Switch IGM-642POE-2.5G supports high Power and each port at 30W auto adaptively. With PoE management function you can control PoE port setting, Timer setting and Timer reboot setting, and PoE watchdog. All the PoE management functions ensure full power for the connected PD and great reliability for the whole system.

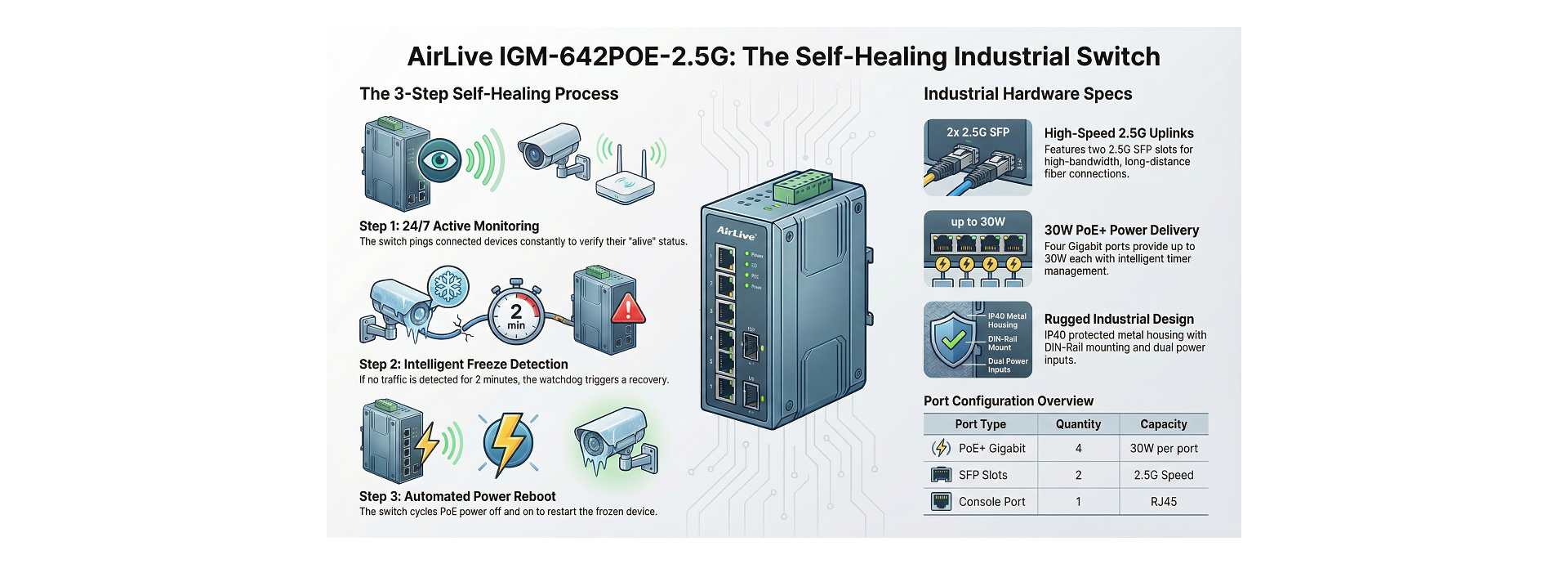

After PoE Watchdog function enabled, the IGM-642POE-2.5G switch works as a virtual security guard. When the POE port is continuously powered but there is no traffic, the POE watchdog will be triggered. After 2 minutes of detection, the power supply will be stopped and then powered on.

PoE Watchdog is especially helpful for camera. For example, when turning on the function, the switch will detect the front-end camera for 24/7. If there is no traffic output from the camera, it is judged that the camera is frozen, and the front-end camera will be restarted through PoE power failure to solve the problem.

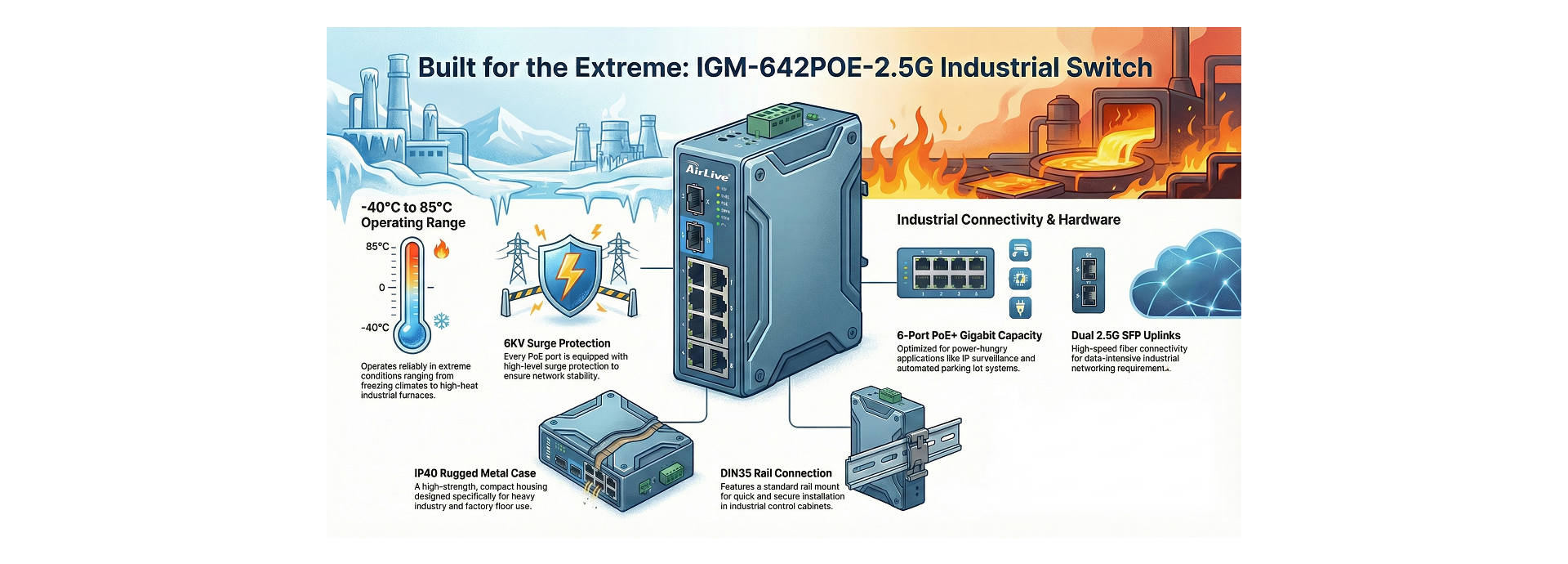

The IGM-642POE-2.5G switch can operate from -40°C ~ 85°C. And each POE port has 6KV surge protection. It is the ideal solution for applications which work under hash environment and require stable network and PoE power, such as parking lot or IP surveillance. The IGM-642POE-2.5G has a rugged high strength compact size metal case which is rated at IP40 and has a DIN35 Rail connection making it ideal for network use in a heavy industry or factories. It can be placed in almost any harsh environment.

The IGM-642POE-2.5G can be used for advanced switch management functions such as dynamic port link aggregation, Q-on-Q VLAN, rapid spanning tree protocol, QoS from layer 2 to layer 4, bandwidth control and IGMP inspection can be programmed. The switch offers VLANs with 802.1Q tags, and the permitted VLAN groups are up to a maximum of 255. By supporting port aggregation, the IGM-642POE-2.5G PoE enables the operation of a high-speed trunk that combines several ports. A maximum of 2 trunk groups with 2 ports trunk group and also supports failover.

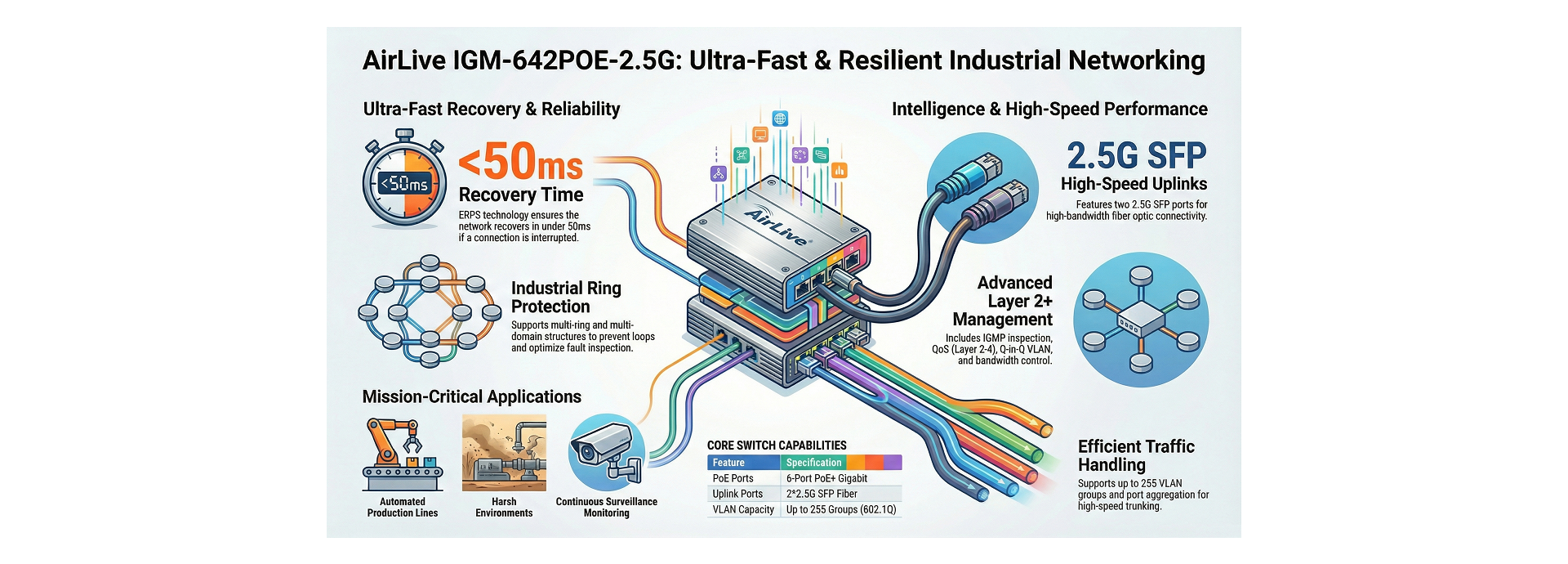

ERPS is supported by the IGM-642POE-2.5G Switch. ERPS supports multi-ring and multi-domain structures (master and sub rings) and optimizes the inspection mechanism in terms of two-way faults. In addition, it supports main device backup, load sharing and other work methods in <50ms switching. This means that when multiple switches have been placed in a Ring and the network work is interrupted, it will recover with in 50ms or less. Meaning the critical network like in harsh environments or automated production lines and surveillance will be online again with minimum loss of time. The ring network is also protected again loops.
